Alpenbrise 5m

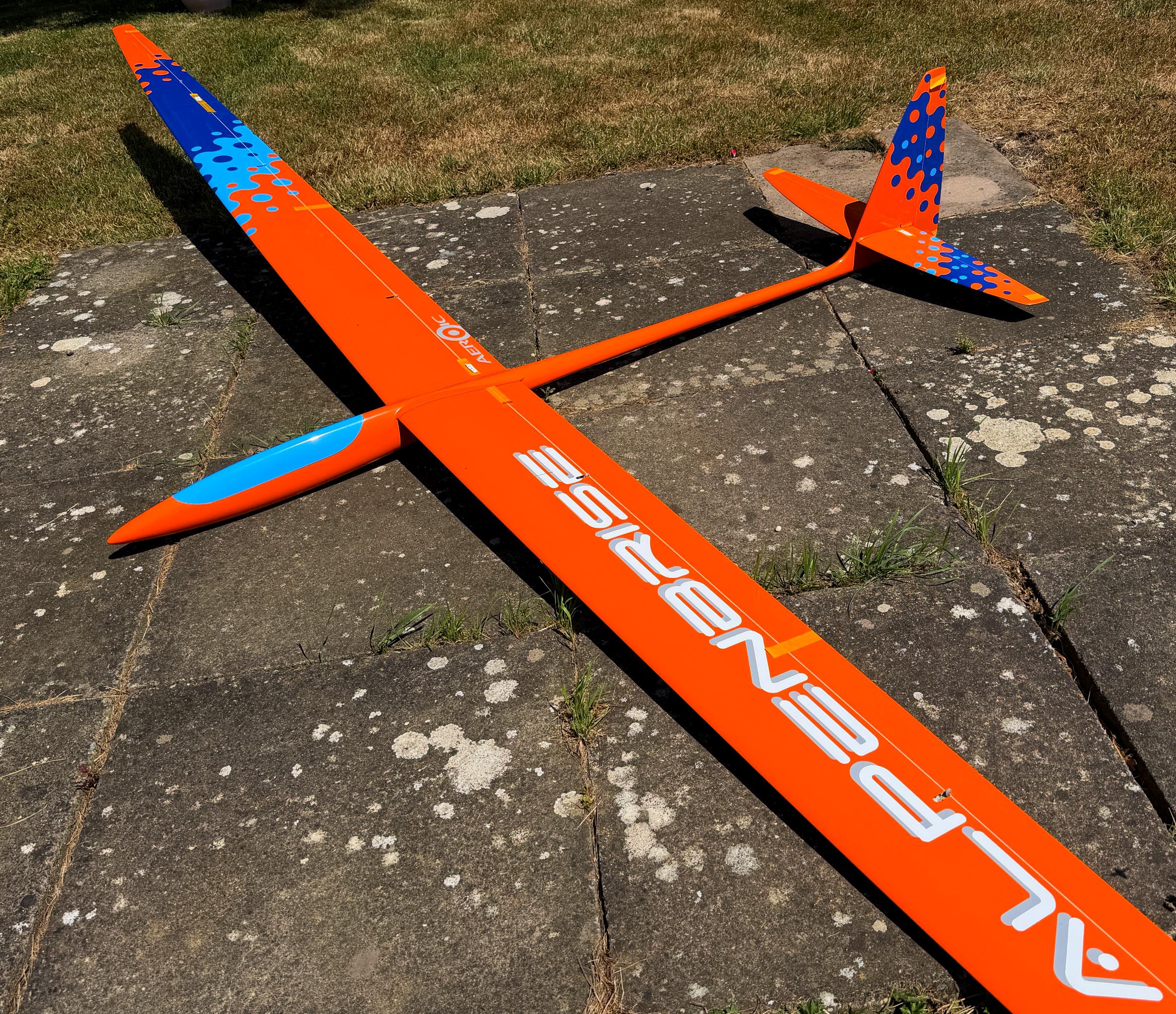

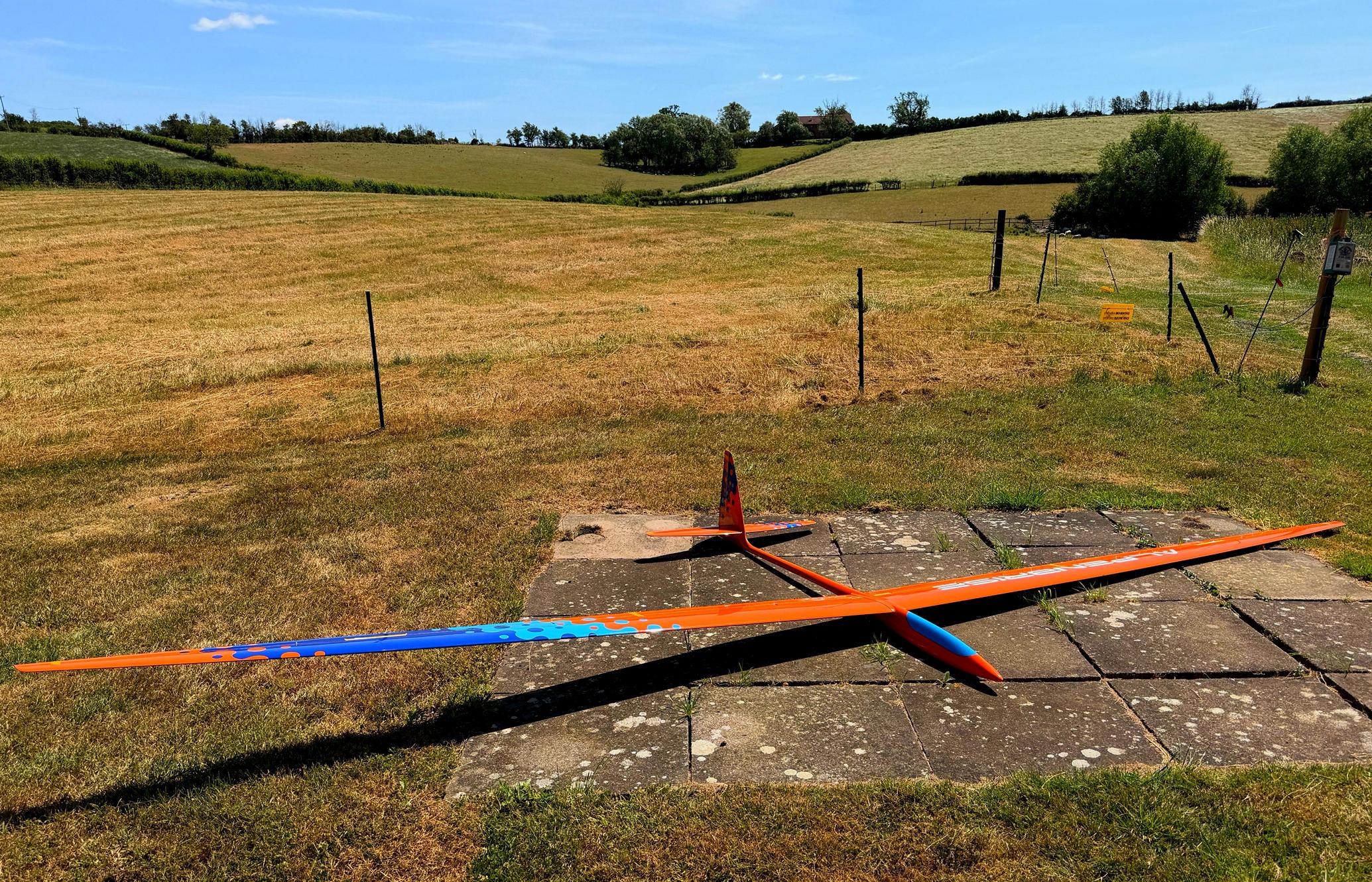

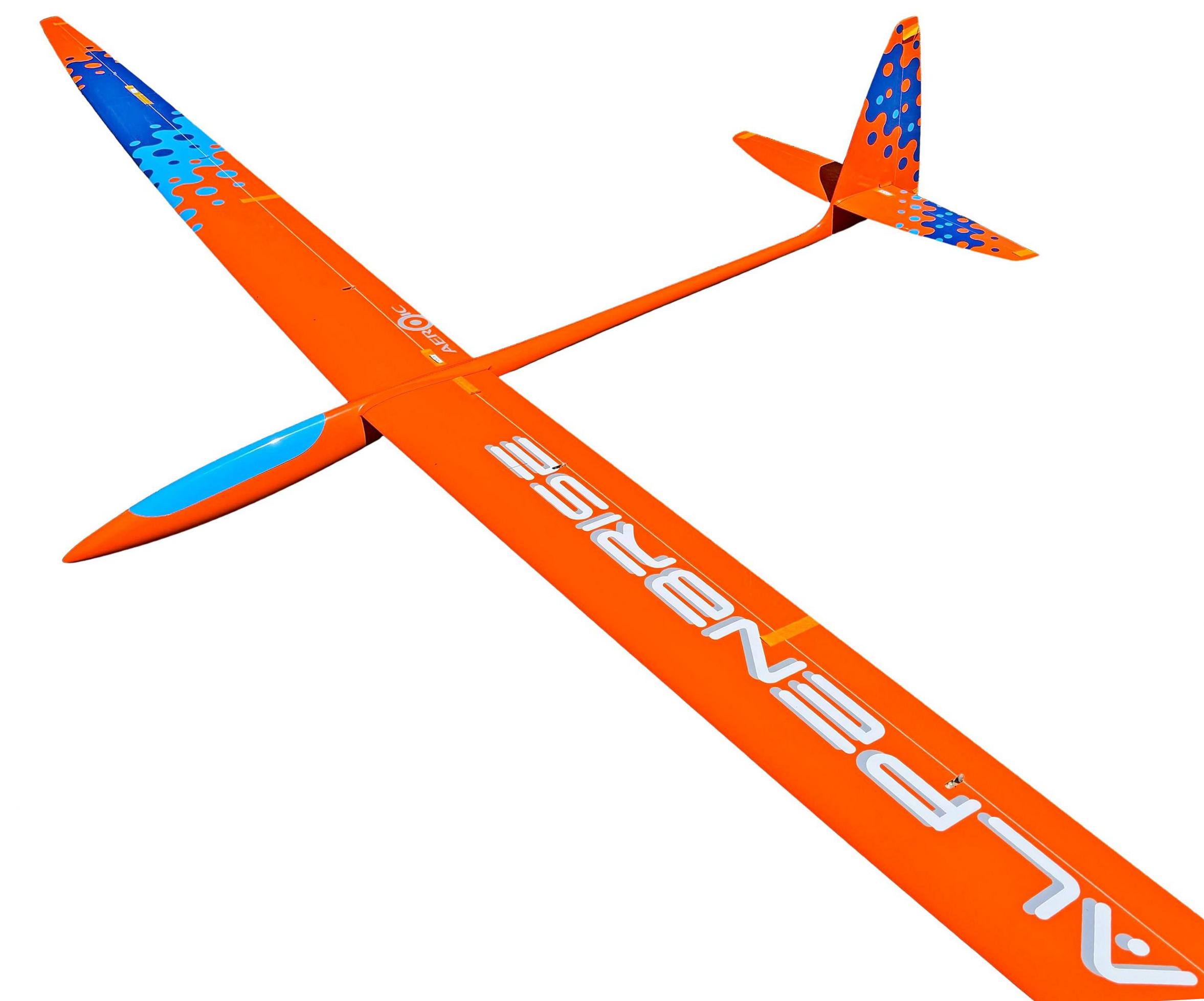

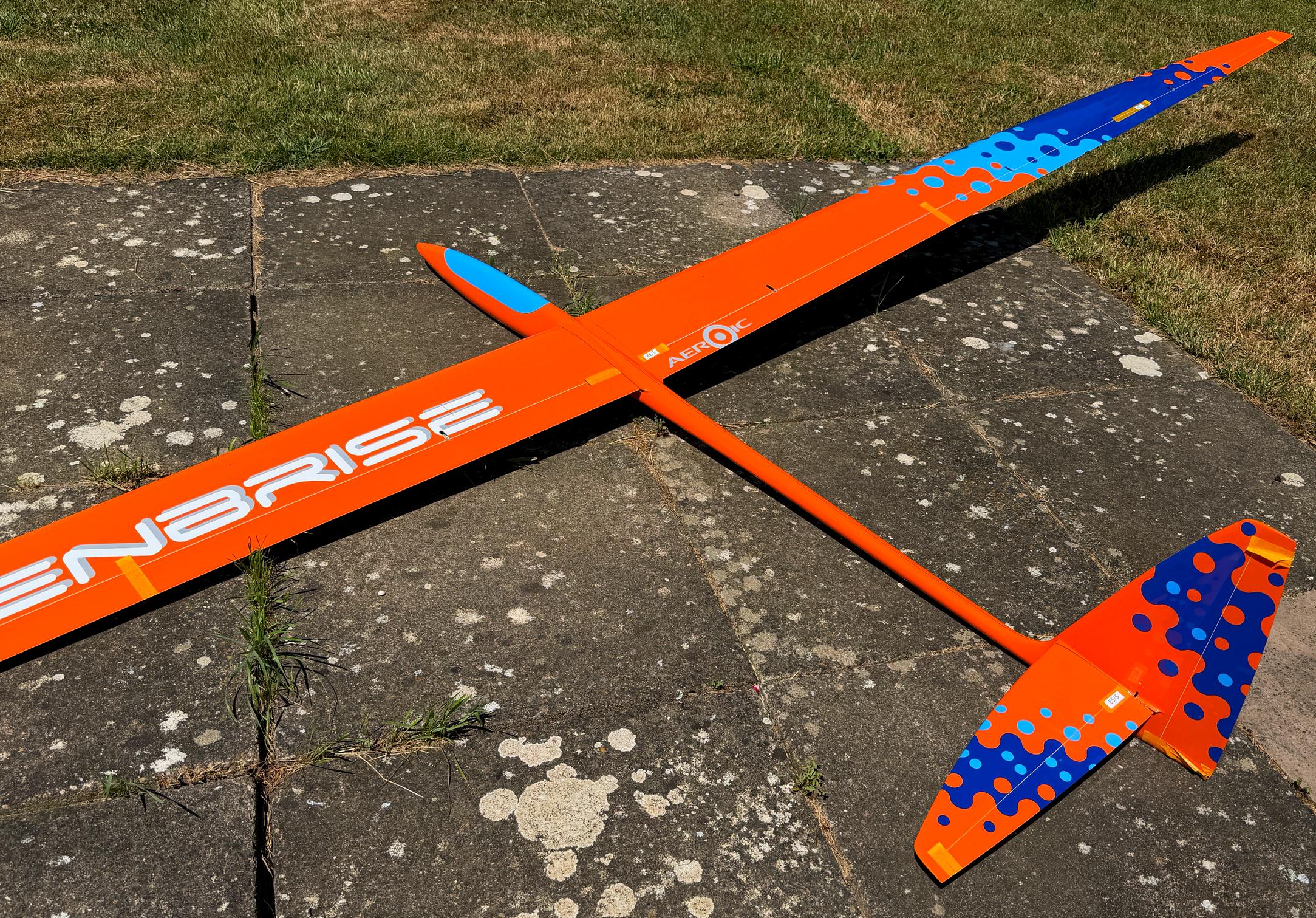

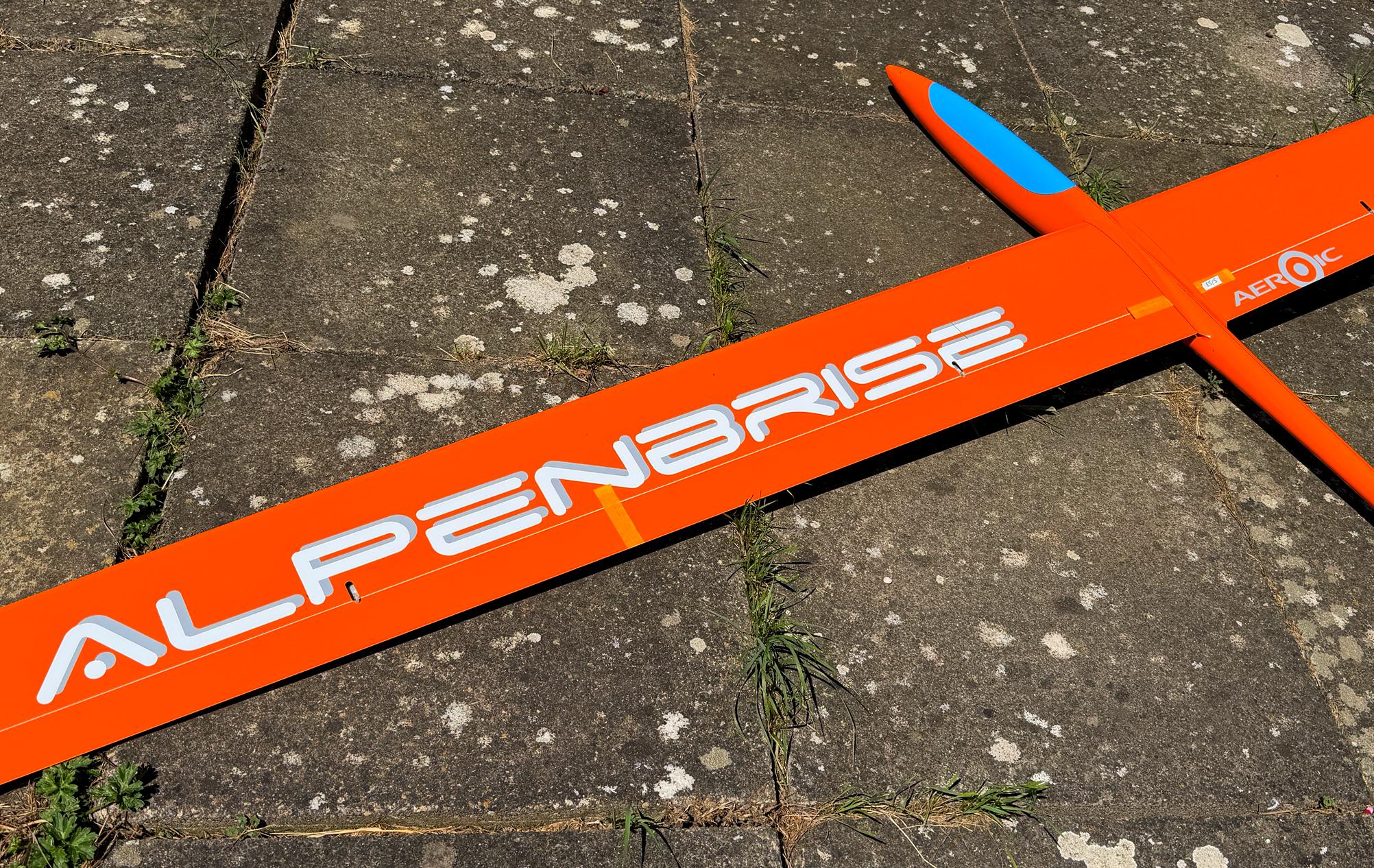

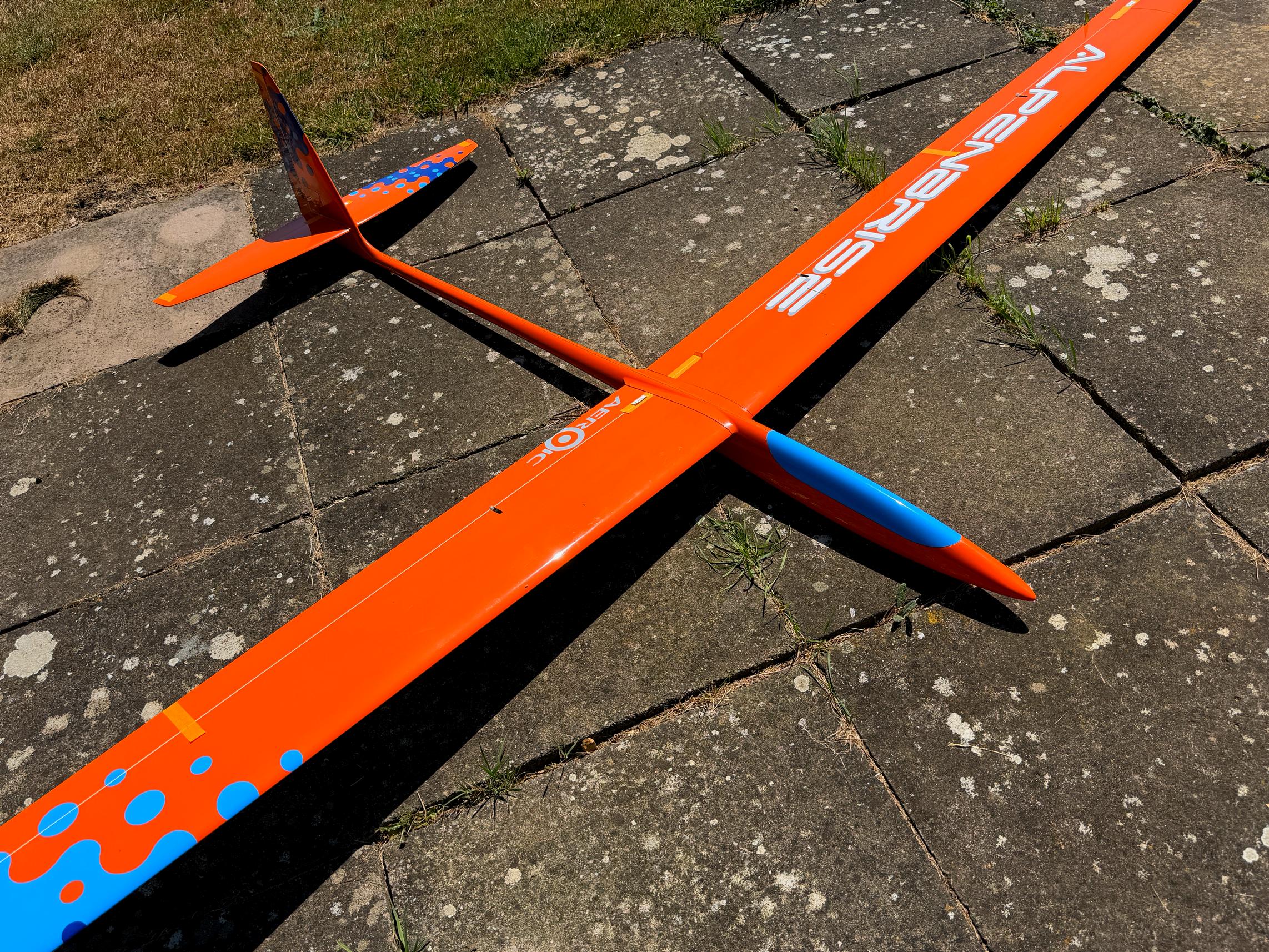

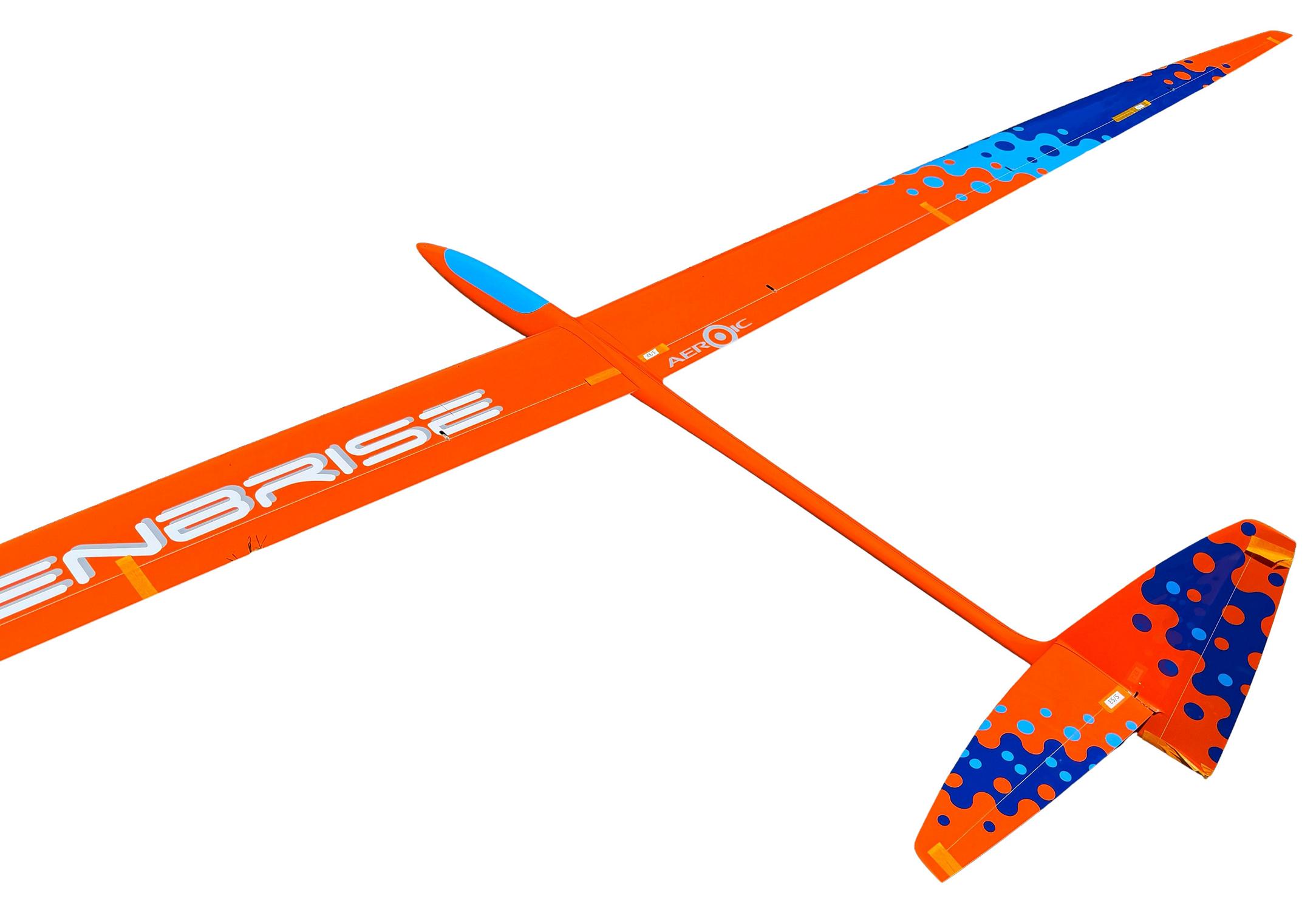

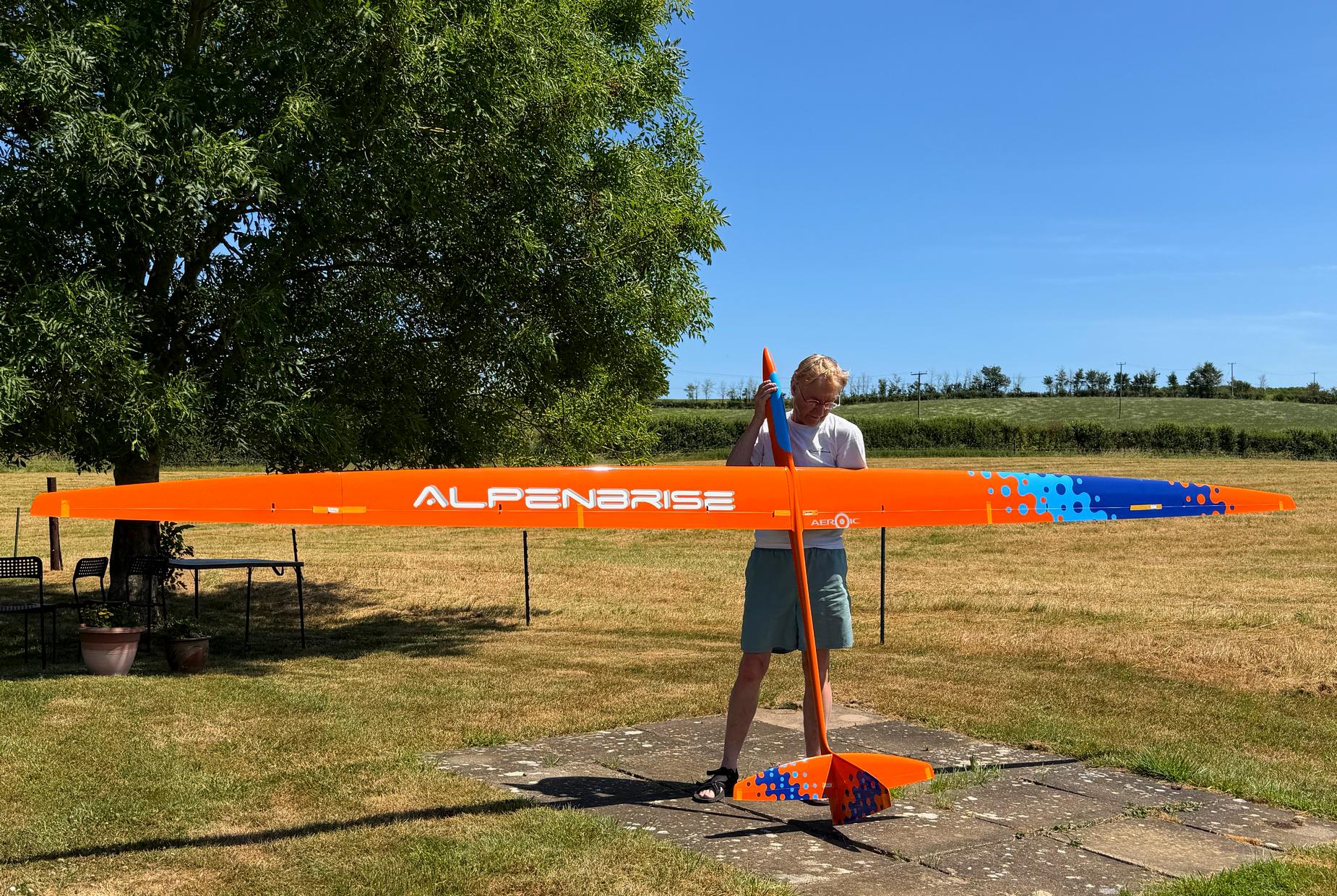

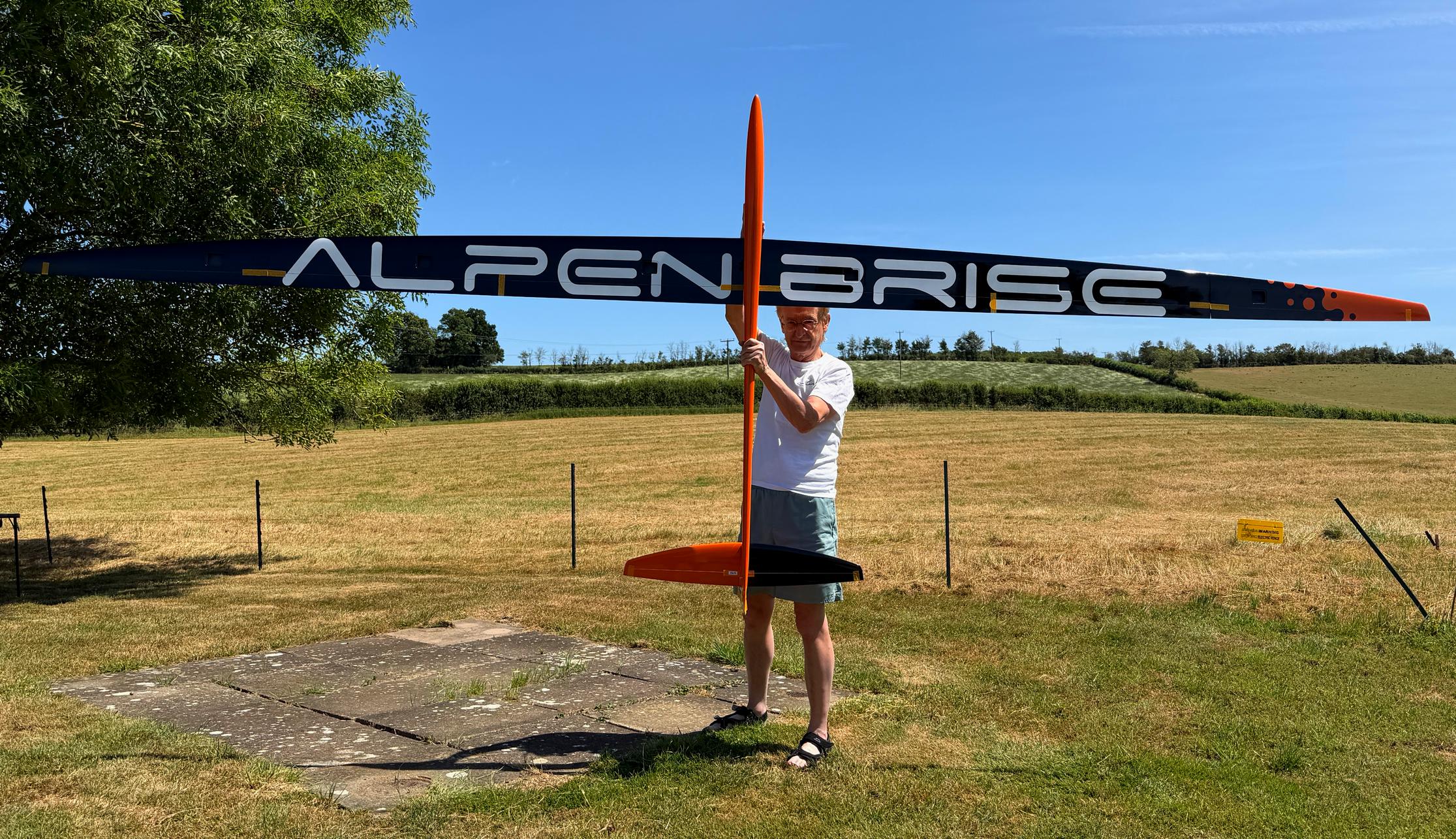

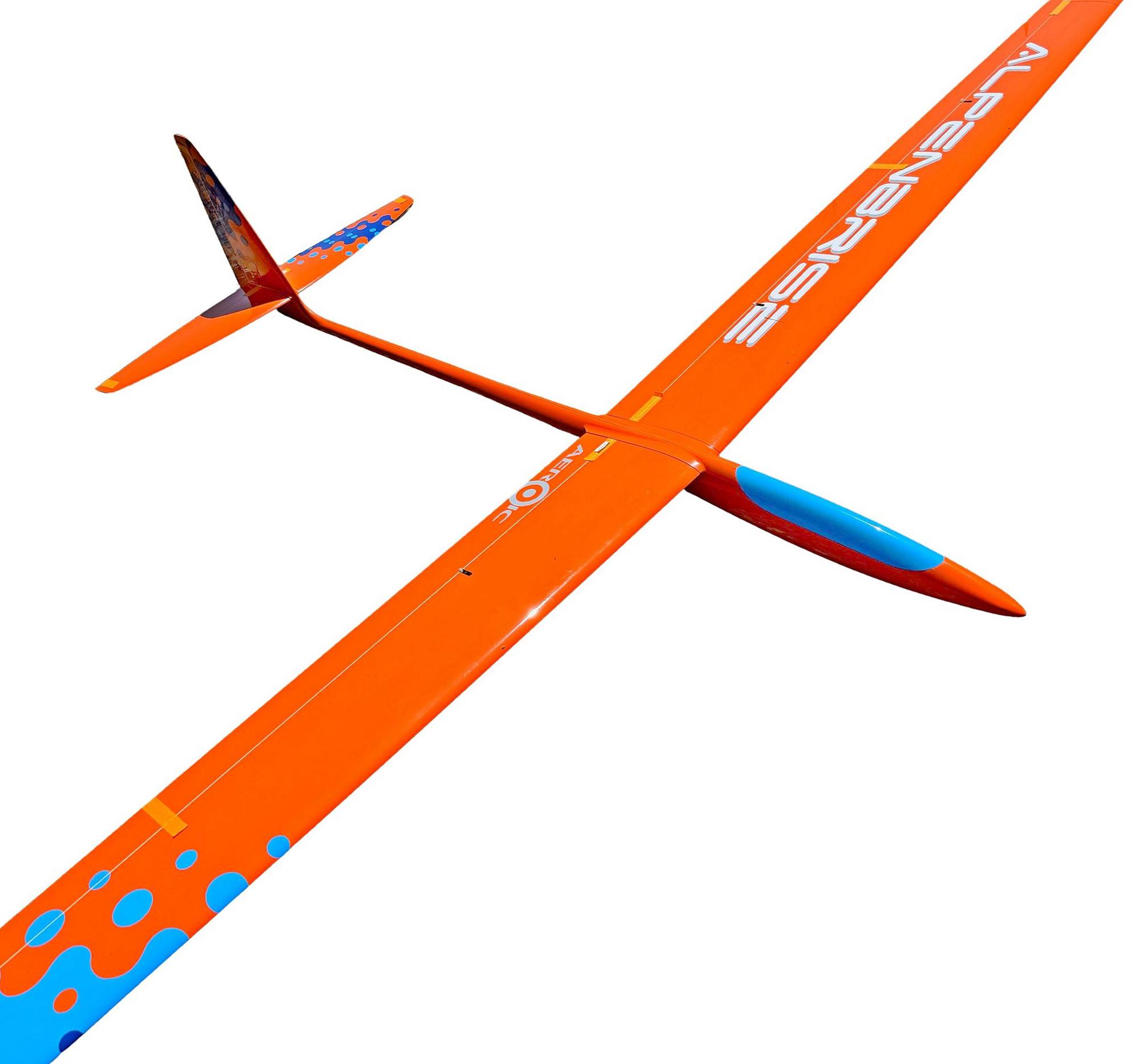

The new 5m wingspan Aeroic Alpenbrise A195 has finally arrived, and it was worth the wait.The Alpenbrise is a really good looking slope/electric soarer, and is a wonderful all composite successor to the great Alpina. The stiff, strong construction gives the Alpenbrise complete freedom of the air and it will soar in very light air, while when ballasted it has superb energy retention and aerobatic properties. With its own special shriek on fast passes, as the vortices are shed at the wingtips, the 5m Alpenbrise has a real presence when flying. The model can be built as a pure slope soarer, or as an electric glider. Due to its excellent speed range and great thermal capabilities the Alpenbrise is suitable for Triangle GPS Sport Class contests as well as sports flying.Construction: GFK/CFK Hybrid (Aeroic)
Wings: Carbon with Aeroic Sine Wave spar and composite skin
Fuse: Strong Carbon/Kevlar reinforced glass (2.4Ghz friendly)
Provision for motor in the front

Alpenbrise 5m Specifications
Wing span	5.00 m	197 in
Wing area	92.0 dm2	1426 sq in
Length	171 cm	67.3 in
Flying weight from	5500 g	194.0 oz
Wing loading	59.8 g/dm2	19.6 oz/sq ft
Aspect ratio	27
Wing airfoil	JH35-9 - JH35-8
Dihedral	4.0º
Spinner Diameter	42 mm
Centre of Gravity	104-108 mm from wing leading edge
Controls	Ailerons, flaps, rudder, elevator

The Sport layup is full carbon and is perfect formost fliers.
The Super Sport layup is double carbon and is designed for extreme flying.

Recommended RC
Rudder & Elevator	KST X10 Mini, KST X10 Mini Pro-A, KST A08H, KST X08H, CHA HV75H
Flap (servo max 12 mm thick)	KST X10, KST X10 Pro-A, KST A12-T, MKS HV6130, CHA HV95H, CHA HV120H
Inner aileron (servo max 10 mm thick)	KST X10, KST X10 Pro-A, MKS HV6130, MKS HV6120, CHA HV95H
Outer aileron (servo max 9 mm thick)	CHA HV95H, CHA HV85H, CHA DS09, KST HS08A, MKS HV6120,
Receiver	8/9 channel rx to match your transmitter
Power	HyperFlight 1600 mAh 6V NiMH, 2S LiFe, 2S LiPo

The supplied servo frames fit KST X10 and KST A08H sized servos. Rudder servo in fin or fuselage

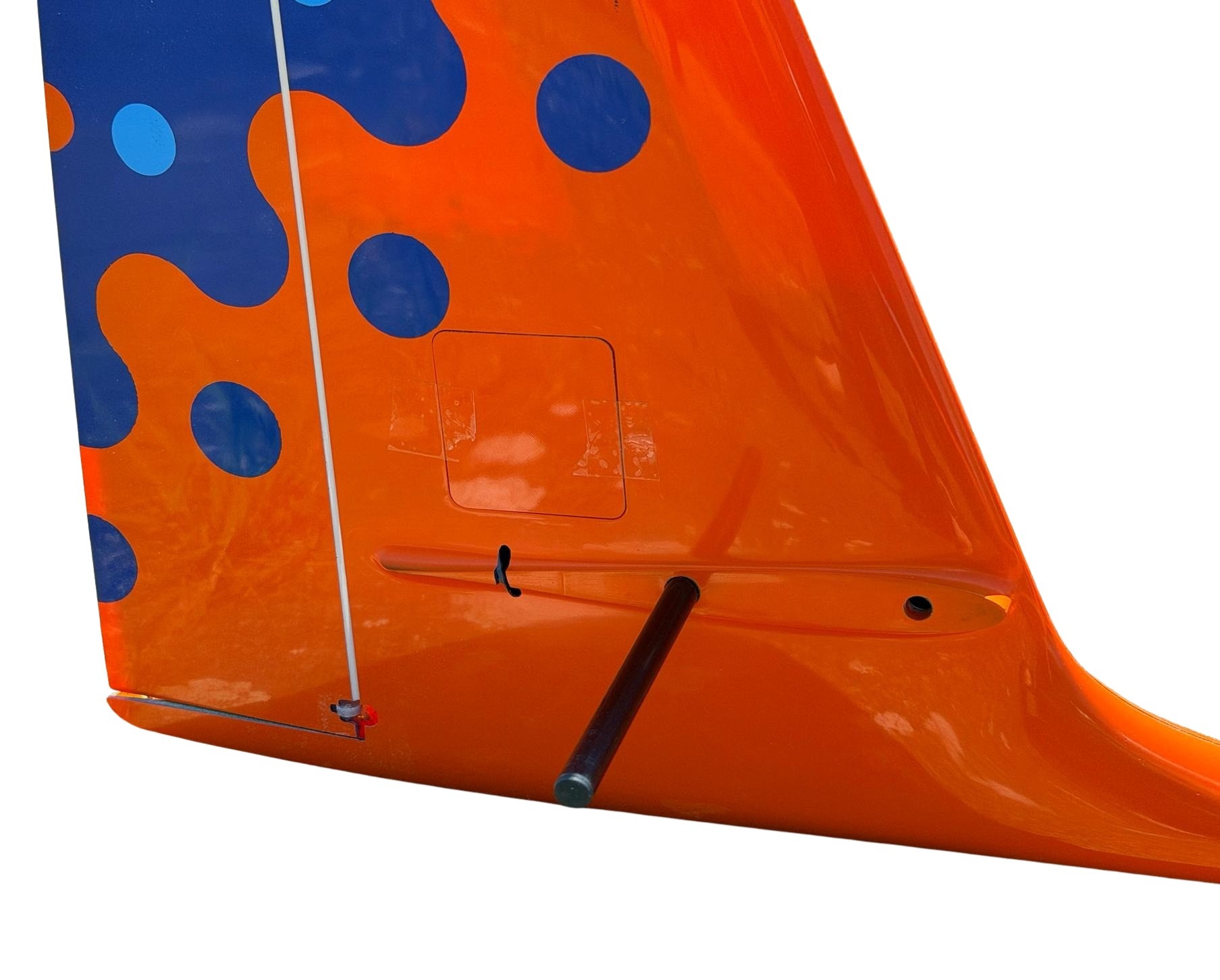

Elevator servo in fin or fuselage
Wings 6 servos (flaps, inner ailerons, outer ailerons)

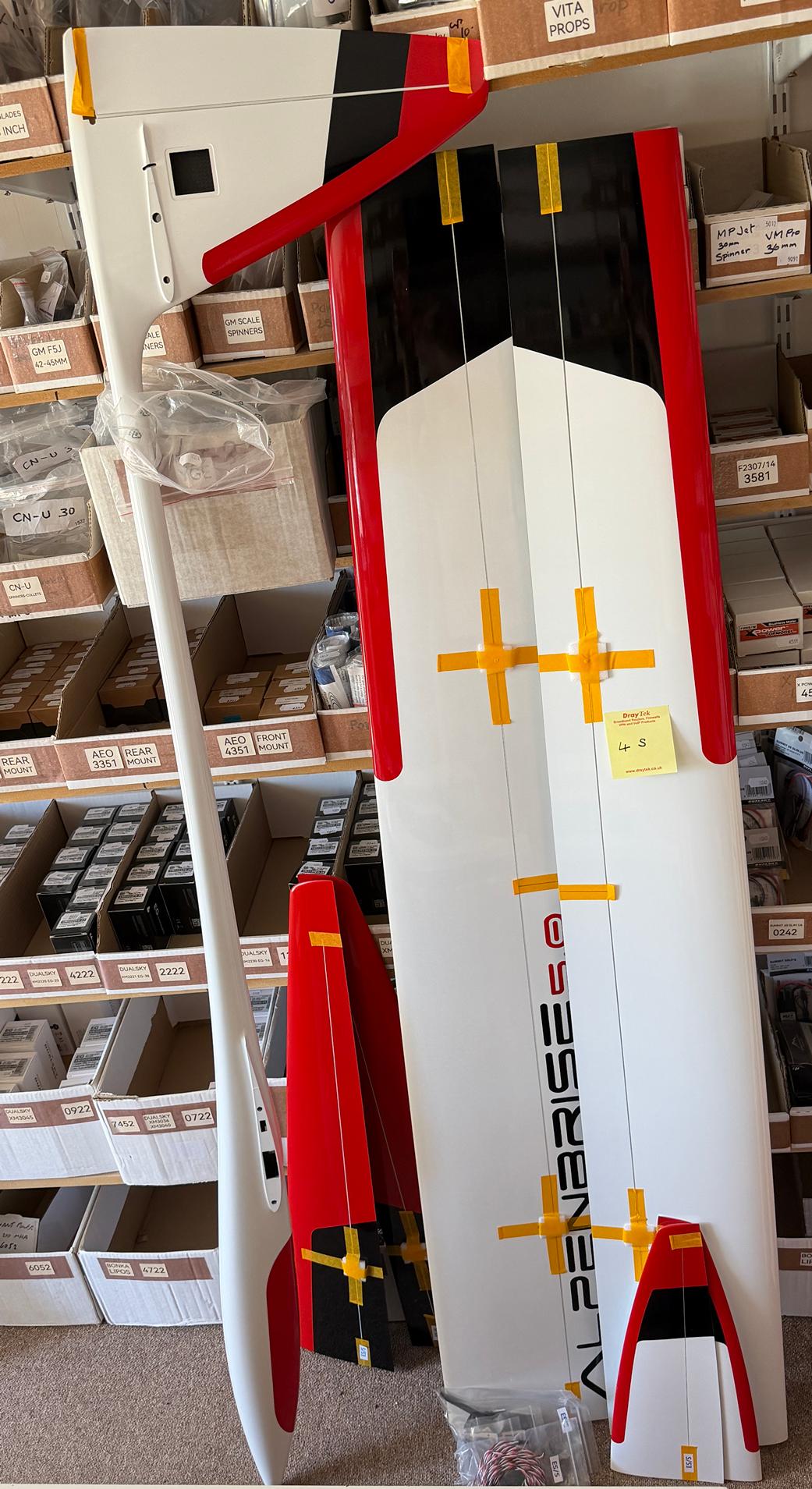

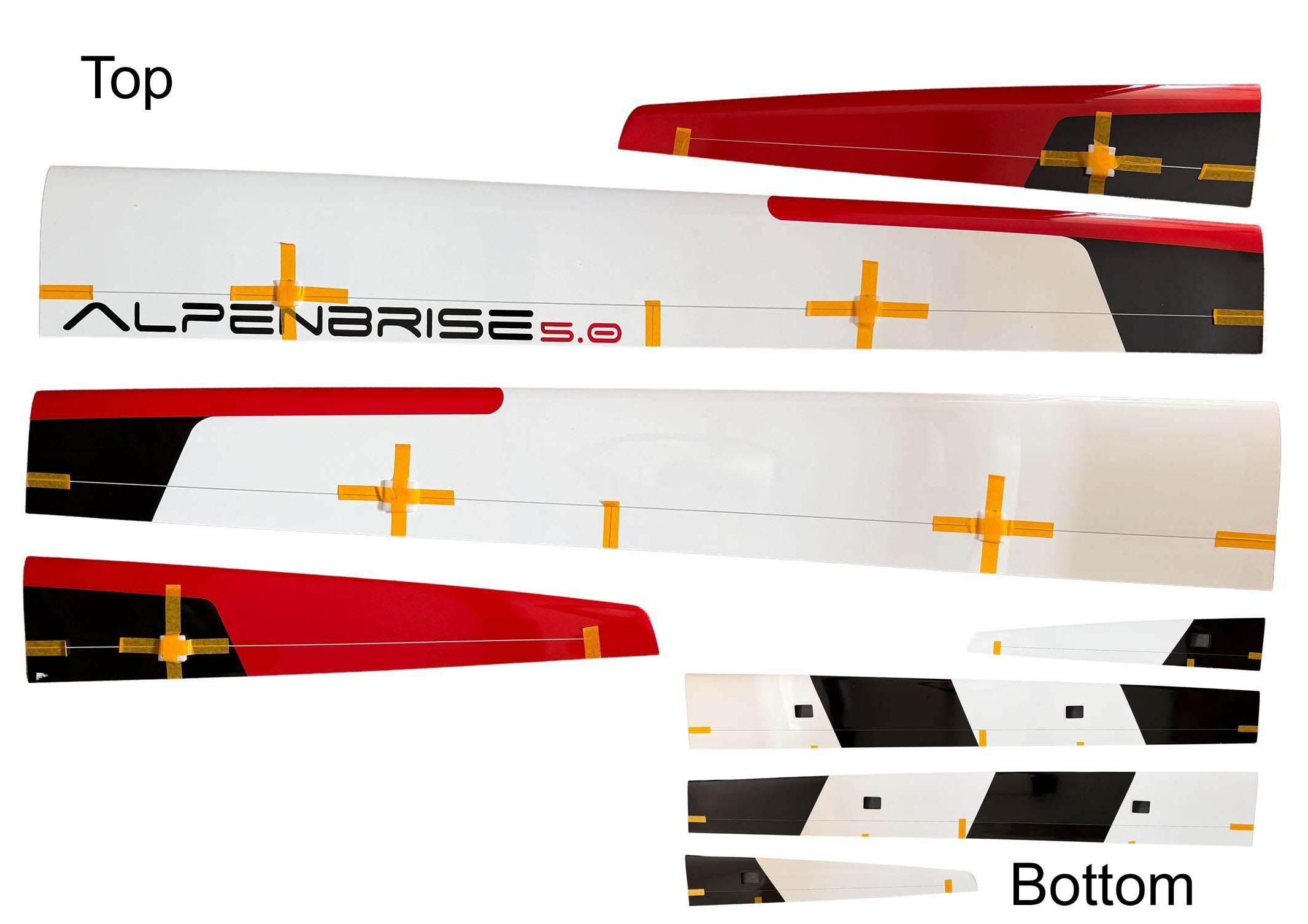

Alpenbrise 5m Typical Weights
Fuselage	710 g	25.0 oz
Wing innner panels	2182 g	77.0 oz
Wing tip panels	597 g	21.1 oz
Tailplane	171 g	6.0 oz
Wing joiners (3)	373 g	13.2 oz
Wiring loom	112 g	4.0 oz
Accessories	80 g	2.8 oz
Total structure	4225 g	149.0 oz
Servo mounting	100 g	3.5 oz
Receiver	15 g	0.5 oz
Tail servos (2)	50 g	1.8 oz
Wing servos (6)	160 g	5.6 oz
Battery	300 g	10.6 oz
Nose weight	650 g	22.9 oz
Flying weight from	5500 g	194.0 oz

Powertrain Recommendation
Motor	Hacker A40-10S V2 8-Pole kv1600 + 6.7:1 Gearbox
Spinner	42mm GM SL Scale Spinner, 6mm Split Collet for GM Spinners
6S LiPo prop	GM 22x14 Scale Folding Prop
ESC	Dualsky SUMMIT 100 Light
Battery	6S 3Ah LiPo (choose capacity for correct CG)

Due to its large size we prefer that customers pick up the Alpenbrise from our Warwickshire UK premises. Shipping is possible but expensive.
The shipping cost calculated by this website is usually correct, but may have to be adjusted in some cases.
