KST X10 Mini V8 Wing Servo - 7.5Kg.cm 0.09s 23.0g 10mm

Product Code: KST-X10-MINI

(23 reviews)

Price: $48.80

Description

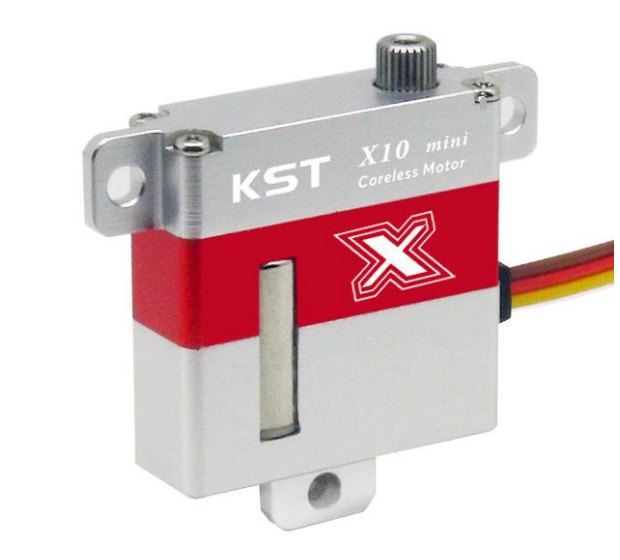

The KST X10 Mini V8 wing servo is a high and medium voltage MKS DS6125 Mini / KST DS135 sized servo with only lighly less torque than the larger MKS HV6130. The KST X10 V8 Mini has a hardened steel drive train and a coreless motor capable of running all the way from 4.8V to 8.4V (4S NiMH to 2S LiPo) making these servos ideal for electric powered models (most ESCs output 5.5V) as well as most gliders.

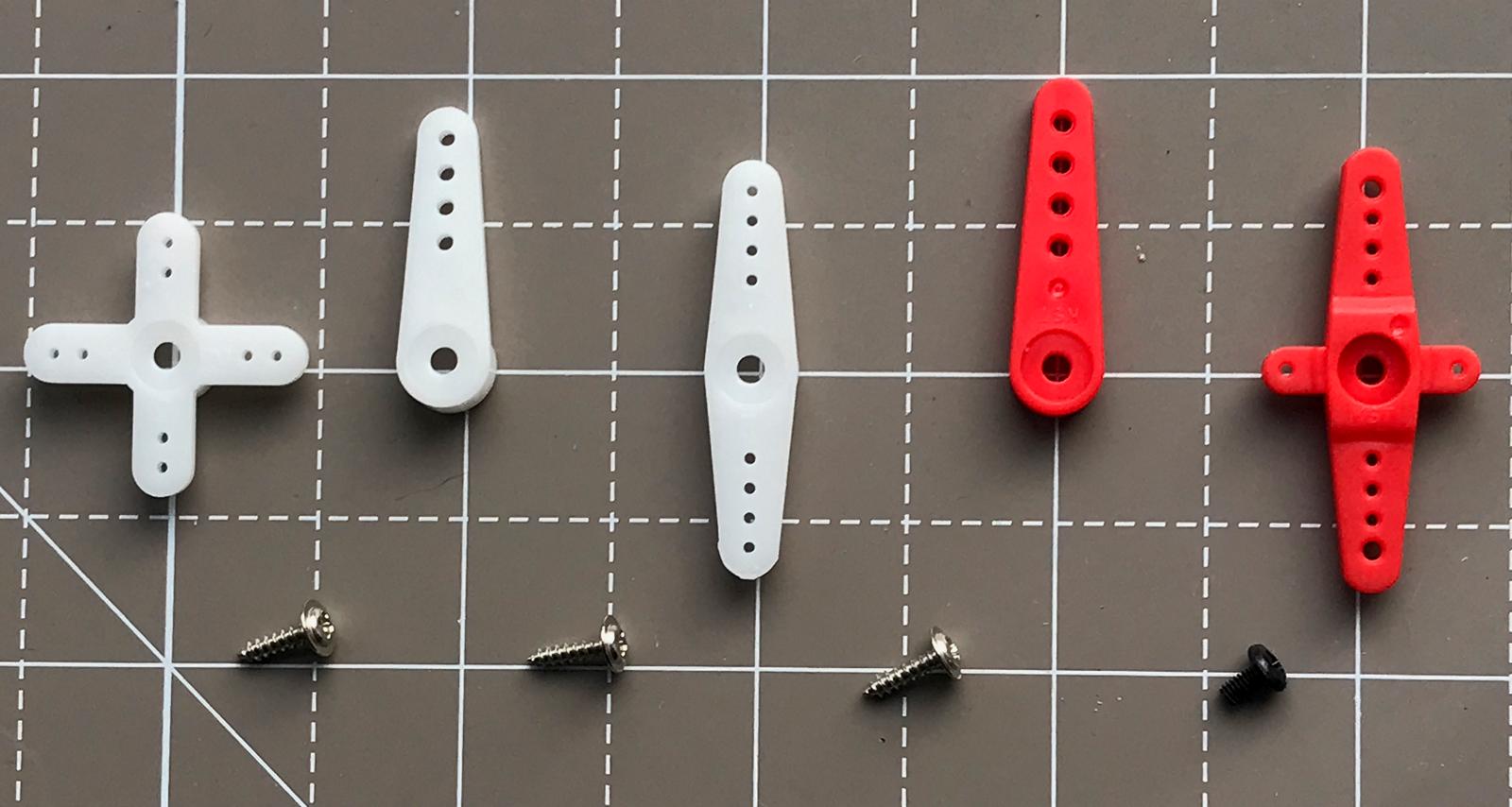

Supplied accessories include two strong red nylon output arms, and three normal strength white nylon output arms.

The accessories include two strong nylon red output arms, and three normal strength nylon white output arms.

KST X10 V8 Mini Features

Slim 10 mm body
Excellent 7.5 Kg.cm torque
Compact and light weight design
Good torque and speed
Wide 4S NiMH to 2S LiPo voltage range
Excellent heat dissipation
7075 Alloy casing
Hardened Steel gears
Designed for lightweight high performance RC Gliders

KST X10 Mini V8 Wing Servo Specifications

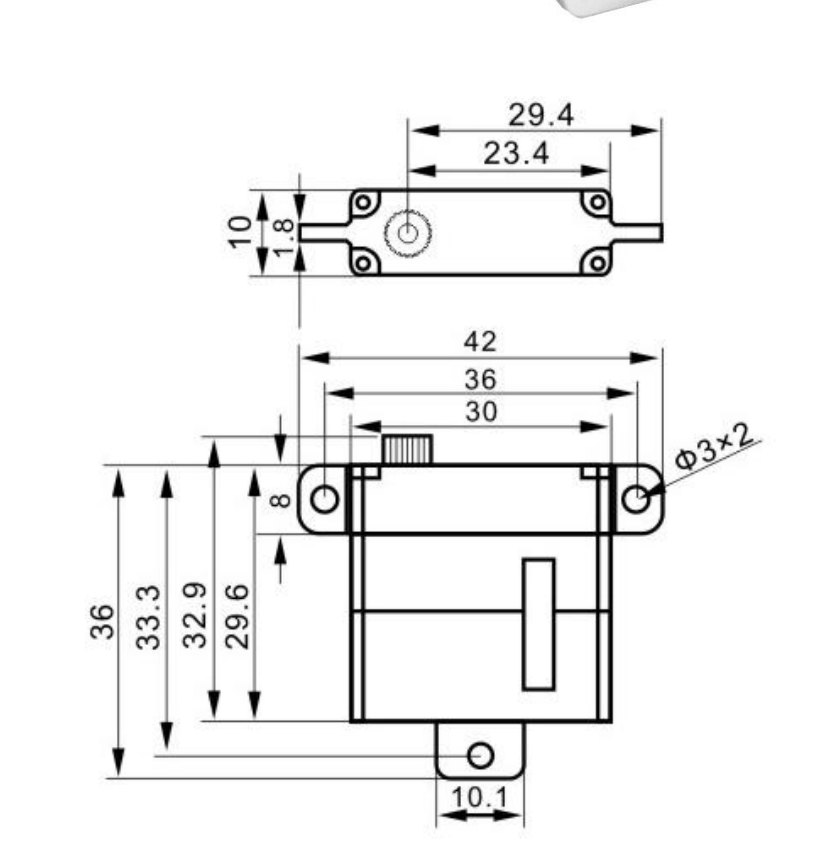

Body dimensions	30.0 mm wide x 10.0 mm thick x 29.5 mm high	1.18" wide x 0.39" thick x 1.16" high
Max dimensions	42.0 mm wide x 10.0 mm thick x 39.0 mm high	1.65" wide x 0.39" thick x 1.54" high
Stall torque (4.8V)	4.5 Kg.cm	62 oz.in
Stall torque (6V)	5.5 Kg.cm	76 oz.in
Stall torque (8.4V)	7.5 Kg.cm	104 oz.in
Weight	23 g	0.81 oz
Lead length	15 cm	5.9 in
Operating speed (4.8V)	0.16 sec/60°
Operating speed (6V)	0.13 sec/60°
Operating speed (8.4V)	0.09 sec/60°
Operating voltage	4.8V to 8.4V
Operating temperature	-10 to +50 °C
Bearings	2 ball races
Gear material	Hardened steel
Case material	7075 aluminium
Motor type	Coreless DC
Working frequency	333 Hz
Dead band/resolution	2 µs
Pulse width for ± 60º	900-2100 µs
Digital	Yes
Programmable	No
Position feedback	Potentiometer
Supplied accessories	5 strong plastic output arms, 2 arm retaining screws, 3 mounting screws
Optional accessories	Ply Frame for KST X10 Mini, Integrated Drive System/Mono for the KST X10, Frame with bearing for the KST X10

The V8 version is very similar to the original servo and is identified by V8.0 printed on the bottom of the case. The only change we are aware of is the wider operating voltage range. The physical size and shape are identical.
