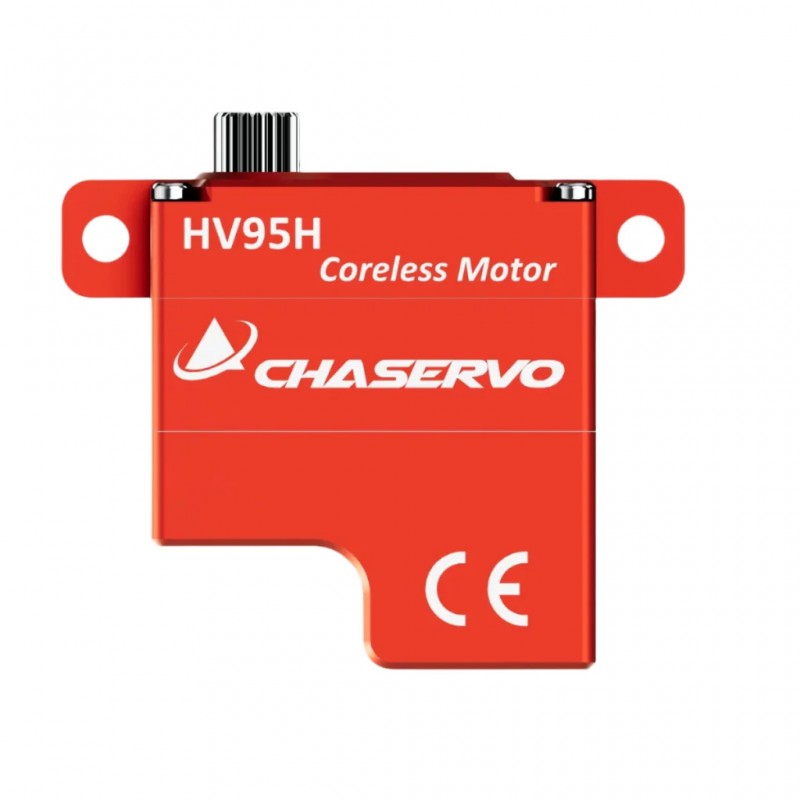

CHA HV95H Wing Servo - 11.5Kg.cm 0.12s 21.7g 10mm

The Chaservo HV95H is a powerful and precise 9.5mm thin HV wing servo that promises long and reliable precision work thanks to its robust equipment with steel gears, double ball bearings and aluminum housing. The 6mm T25 standard spline allows the use of a wide range of Futaba compatible servo arms.

Thanks to its compact design with a thickness of only 9.5 mm, the HV95H is particularly suitable as a wing servo and enables thinner wing profiles for improved aerodynamics of the model aircraft. When designing the servo, we attached great importance to a low height and arranged a third screw lug next to the motor so that the servo can also be mounted under small servo covers in the wing.

This H version has horizontal lugs for wing mounting. The range of applications extends from glider models and motorized models to high-performance jets.

CHA HV95H Wing Servo Specifications
Body dimensions	30.0 mm wide x 9.5 mm thick x 33.5 mm high	1.18" wide x 0.37" thick x 1.32" high
Max dimensions	42.0 mm wide x 9.5 mm thick x 37.5 mm high	1.65" wide x 0.37" thick x 1.48" high
Stall torque (6V)	8.5 Kg.cm	118 oz.in
Stall torque (7.4V)	10.5 Kg.cm	146 oz.in
Stall torque (8.4V)	11.5 Kg.cm	160 oz.in
Weight	21.7 g	0.77 oz
Lead length	8 cm	3.1 in
Operating speed (6V)	0.17 sec/60°
Operating speed (7.4V)	0.15 sec/60°
Operating speed (8.4V)	0.12 sec/60°
Operating voltage	4.8V to 8.4V
Operating temperature	°C
Bearings	2 ball races
Gear material	Hardened Steel
Case material	Aluminium
Motor type	Coreless DC
Working frequency	333 Hz
Dead band/resolution	µs
Pulse width for ± 60º	900uS - 2100 µs
Digital	Yes
Programmable	Yes
Position feedback	Potentiometer
Supplied accessories	2 plastic output arms, 4 mounting screws ,3 arm retaining screws
Optional accessories

Max current @ 6.0V = 1.16 A
Max current @ 7.4V = 1.32 A
Max current @ 8.4V = 1.58 A
