NG 2m V2 with wing bags

Product Code: NG2M
 (2 reviews)

Price: $797.46

Out of stock, notify me when back in stock

Description

The NG - New Generation 2m is a lightweight general purpose high performance model from the Doroshenko stable. The NG2m is a modern design with a slippery airfoil and an excellent finish. It has many innovative features and it is very complete. The lightweight yet strong construction is a joy to handle and the plane should give many years of satisfaction. We are supplying this great model with some beautifully made fabric wing, tailplane and fin bags. These have been expertly made from reflective fabric with black canvas edging and red and white NG2m logos and will keep the model safe from transport and storage damage.

The new V2 version has a four servo wing allowing separate aileron and flap control, giving more controllability and particularly steeper landing approaches and better control with the flaps down.

All the NG2m models in stock have the nose in place (as shown in the studio photos), and can be built as gliders or electric models. The Light electric layup models include a 32mm firewall in the accessory pack. The reason for not installing the firewall is so that the customer can decide if he want to fit the firewall at the very front and use a probably geared inrunner, or to recess the firewall and fit an outrunner.

Electrified NG2m models can be built light and flown as a 2m F5J type thermal soarer or a higher power motor can be fitted and it can be flown as a warm liner. Similarly its excellent speed range allows pure glider NG2m models to be used on the flat or as a light/medium wind slope soarer.

The NG2m’s pod is a strong all carbon fibre molding with a very generous canopy hatch. This is suitably placed aft allowing generous space for a geared motor installation. Unless the firewall is recessed fitting a rotating case outrunner would be difficult. The long nose of the glider version allows ballast and RC to be fitted a long way forward of the CG, reducing the weight and wing loading. There is a little access hatch on the top near the wing root to simplify connecting the aileron and flap servos. The rear of the fuselage consists of a long but lightweight carbon boom with pushrods (inners and outers) ready fitted. At the rear of the boom a beautifully molded carbon fin and tail mount enclose the internal elevator horn and also incorporate a clever plug-in fin mount. Overall the NG2m’s fin and tail, with its removable fin, hidden elevator connection, and superb attention to aerodynamic design is probably the best I have seen on any model glider. And as it is totally prefabricated it is almost ready to fly, with only the rudder control horn to be fitted.

The two piece wing is molded using spread carbon skin over a Rohacell type foam core. The good surface finish and modern airfoils give it an excellent glide angle and speed range.

The fin and tailplane are nicely molded from lightweight spread carbon over a Rohacell type foam core, and are both light and reasonably strong. The removable fin has a strong oblong spar at its base that locates in a suitable tube in the fuselage rear. The fin is retained in flight with small lengths of clear tape over the join.

The complete accessory pack includes all linkages. Apart from RC only two 20 cm and two 40 cm extension leads (for the aileron and flap servos) will be required to complete the model. Supplied with wing and tail bags. No build manual is available but there is useful info in this RCGroups NG 2m thread.

(c) 2022 Neil Stainton

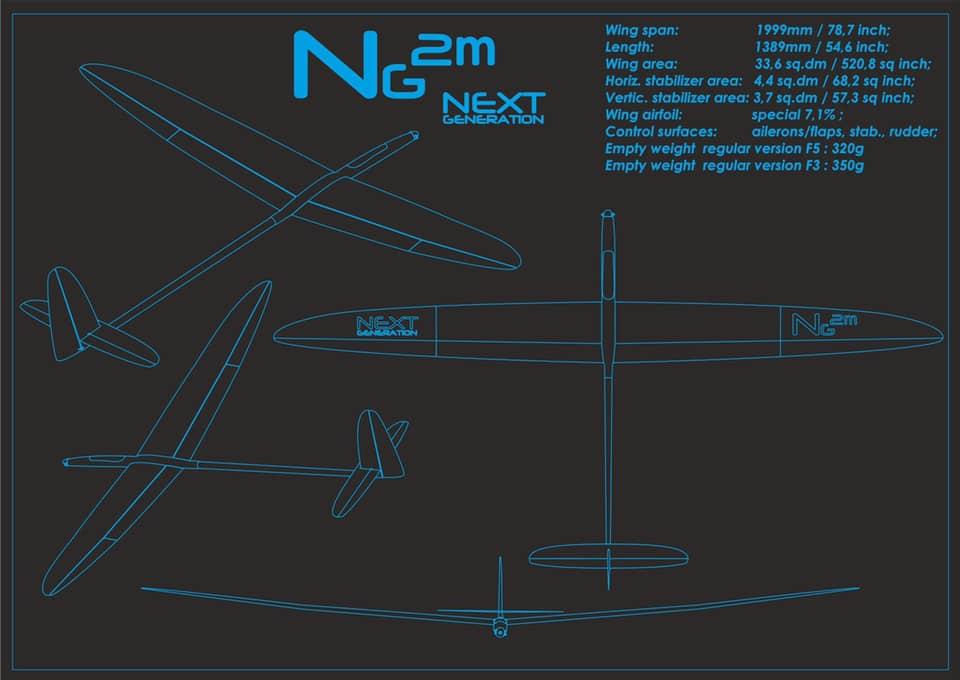

NG 2m Electric Specifications
Wing span 2.0 m 79 in
Wing area 33.6 dm2 521 sq in
Length inc spinner 139 cm 54.7 in
Flying weight from 634 g 22.4 oz
Wing loading 18.9 g/dm 6.2 oz/sq ft
Aspect ratio 11.9
Wing airfoil Special 7.1%
EDA (dihedral) 5.0º
Spinner Diameter 32 mm
Centre of Gravity 65-75 mm from wing leading edge
Controls Rudder, elevator, ailerons, throttle


Recommended RC
Rudder & elevator servos KST X06, KST X08, KST DS145, KST X10-710, Blue Bird BMS-A10H, Blue Bird BMS-126, Blue Bird BMS-M15H, MKS DS65K, MKS DS75K, MKS DS6100, MKS HV6100
Flap servos (2) KST X08N, KST X08H, KST X10 Mini, KST DS135, Blue Bird BMS-M15V, Blue Bird BMS-A10V, Blue Bird BMS-125, MKS DS6100, MKS HV6100, MKS HV6110
Aileron servos (2) KST X06N, KST X06H, KST X08N, KST X08H, Blue Bird BMS-A10V, Blue Bird BMS-125, MKS DS6100, MKS HV6100, MKS HV6110
Receiver 7+ channel rx to match your transmitter
Speed control 15A - 35A ESC, HyperFlight 30A BLHELI-32, Sunrise 30A Pro, YGE 35 LVT ESC


NG2m Powertrain Recommendations
XPower F2915/12 XLight 3S 800 mAh LiPo, 9x6 prop
XPower F2919/10 Light 3S 800 mAh LiPo, 9x6 prop
Powerline Micro 1010/19 3S 800 mAh LiPo, 12x7 prop
Powerline Micro 1015/17 3S 800 mAh LiPo, 15x8 prop
Leomotion L3007-6000 F5J 6.7:1 3S 1.5 Ah LiPo, 13x8 prop
Mega 16/15/4 2S 1 Ah LiPo, 10x5 prop
Mega 16/15/5 3S 1 Ah LiPo, 7x5 prop (29A, 8.2 m/s, 1640 fpm)


NG 2m Electric Typical Weights
Pod 63 g 2.2 oz
Boom 32 g 1.1 oz
Wings 230 g 8.1 oz
Tailplane 23 g 0.8 oz
Fin 20 g 0.7 oz
Accessories & glue 22 g 0.8 oz
Total structure 390 g 13.8 oz
Wiring 6 g 0.2 oz
Receiver 6 g 0.2 oz
Rudder servo 8 g 0.3 oz
Elevator servo 8 g 0.3 oz
Wing servos (2) 32 g 0.7 oz
Speed control 25 g 0.9 oz
Motor 70 g 2.5 oz
Prop & spinner 12 g 0.4 oz
Battery 75 g 2.6 oz
Flying weight 636 g 22.4 oz


NG 2m Glider Specifications
Wing span 2.0 m 79 in
Wing area 33.6 dm2 521 sq in
Length 139 cm 54.7 in
Flying weight from 620 g 21.9 oz
Wing loading 18.5 g/dm 6.0 oz/sq ft
Aspect ratio 11.9
Wing airfoil Special 7.1%
EDA (dihedral) 5.0º
Centre of Gravity 65-75 mm from wing leading edge
Controls Rudder, elevator, ailerons


NG 2m Glider Typical Weights
Pod 80 g 2.8 oz
Boom 32 g 1.1 oz
Wings 270 g 9.5 oz
Tailplane 25 g 0.9 oz
Fin 20 g 0.7 oz
Accessories & glue 20 g 0.7 oz
Total structure 447 g 15.8 oz
Wiring 6 g 0.2 oz
Receiver 7 g 0.2 oz
Rudder servo 9 g 0.4 oz
Elevator servo 9 g 0.4 oz
Wing servos (2) 36 g 0.7 oz
Battery 120 g 4.2 oz
Flying weight 634 g 22.4 oz



Reviews 2


 Review by:

The kit was delivered well packed and within days of being ordered.
Superb design and excellent quality of build.
The fully hidden actuation mechanism for the elevator is very impressive and benefitted from a quick squirt of silicone spray on the internal linkage, to smooth out a slight amount of stick/slip.
There are are no build instructions and I have asked Hyoerflight to check with the manufacturer for recommended control throws, etc. C of G was advised on the Hyperflight website.


 Review by:

Very nice plane and surface finish ! Now I'm excited to test this bird in flight :)
