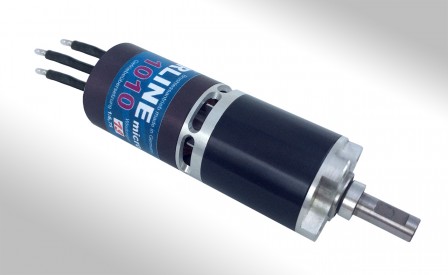

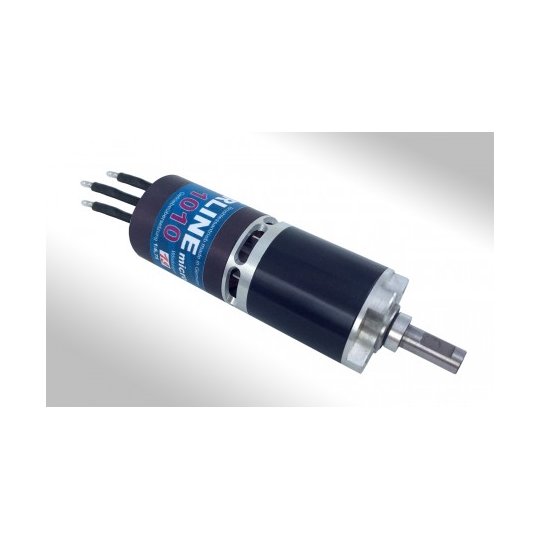

| Powerline Micro 1010 Turbo Weights | |
|---|---|
| Suitable for gliders weighing | Up to 1400 g max |
| Max power | 320W |
| Max current | 32A |
| Motor/gearbox weight | 68.5 g |
| Length | 58 mm |
| Diameter | 22 mm |
| Mounting pitch circle diameter | 17 mm |
| Shaft diameter | 5 mm |
| Gearbox ratio | 6.75:1 |
| Recommended ESC | YGE 35 LVT |
| Recommended propeller | Vitaprop 12x7, GM 12x8, VM 12x8, RF 12x8 (approx 32A on 3S) |
| Recommended battery | 3s Lipo up to 600 mAh |
| Powerline Micro 1010 Turbo Weights | |
|---|---|
| Powerline Micro 1010 Turbo | 68 g |
| Propeller RF 12 x 8 | 10 g |
| Spinner RF 30mm | 13 g |
| Lipo 3s 600 40C | 60 g |
| ESC YGE 35 LVT | 30 g |
| Plugs and screws | 4 g |
| Total weight | 185 g |
Review by: Steve Moss
Powerline 1010/19Very good efficient quiet great.
Review by: Tony
Top-end excellenceWonderful motor, super light, efficient, quiet, runs cool, near perfect. You get what you pay for. Looking at their website they seem to make some carbon mounting plates to fit to a glider nose which look nice as well, but they won't ship to the UK so I just fashioned one out of glass composite which worked well.
Review by: chris
Fantastic MotorPut this into a sprite hot-e and it climbs vertically drawing 39amps from a 850mah , very light and small. time will tell how it lasts but very impressed with build, weight , size and power. perfect job for sprite hot-e
Review by: Donald Grant
Works well smooth and powerful.Once I sorted out the right cells/battery and prop the motor is doing a great job. At present powering an Andreas 650gram ALES model with a GNB 2s 550mah drawing 24 amps with a 13x8 aeronaut folder.
The motor cuts at 200 meters before the 30 seconds is up taking the battery down to
60% capacity.
