TJIRC Wazzup 2.5m Slope Soarer

The TJIRC WazzUp was designed by Eric Rowan as a fun to fly slope soarer that really shines in radical big air aerobatics, yet has the efficiency to fly with style on marginal days also. The Wazzup is easy to fly for a less experienced sloper but really shows its abilities in the hands of an experienced pilot.

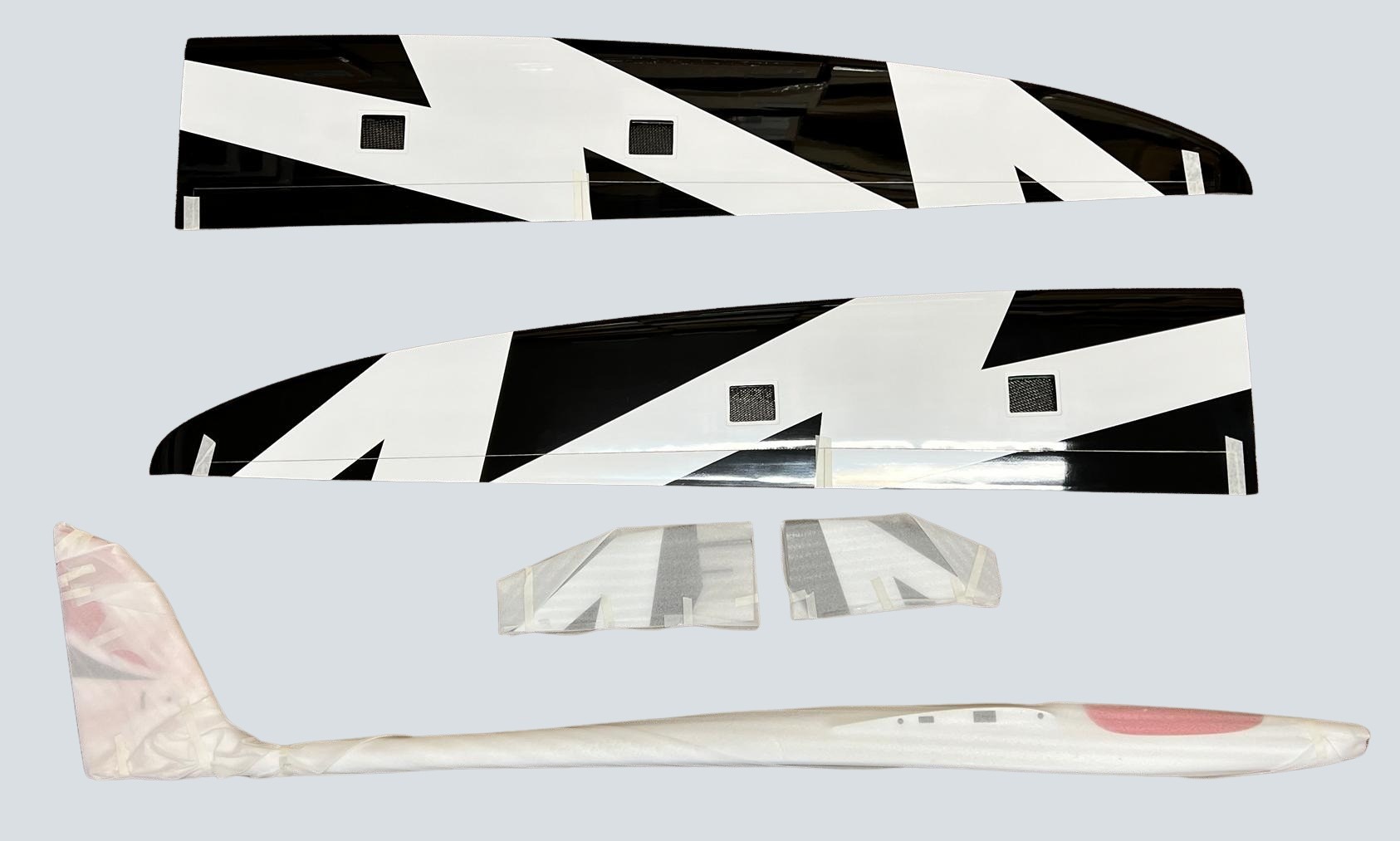

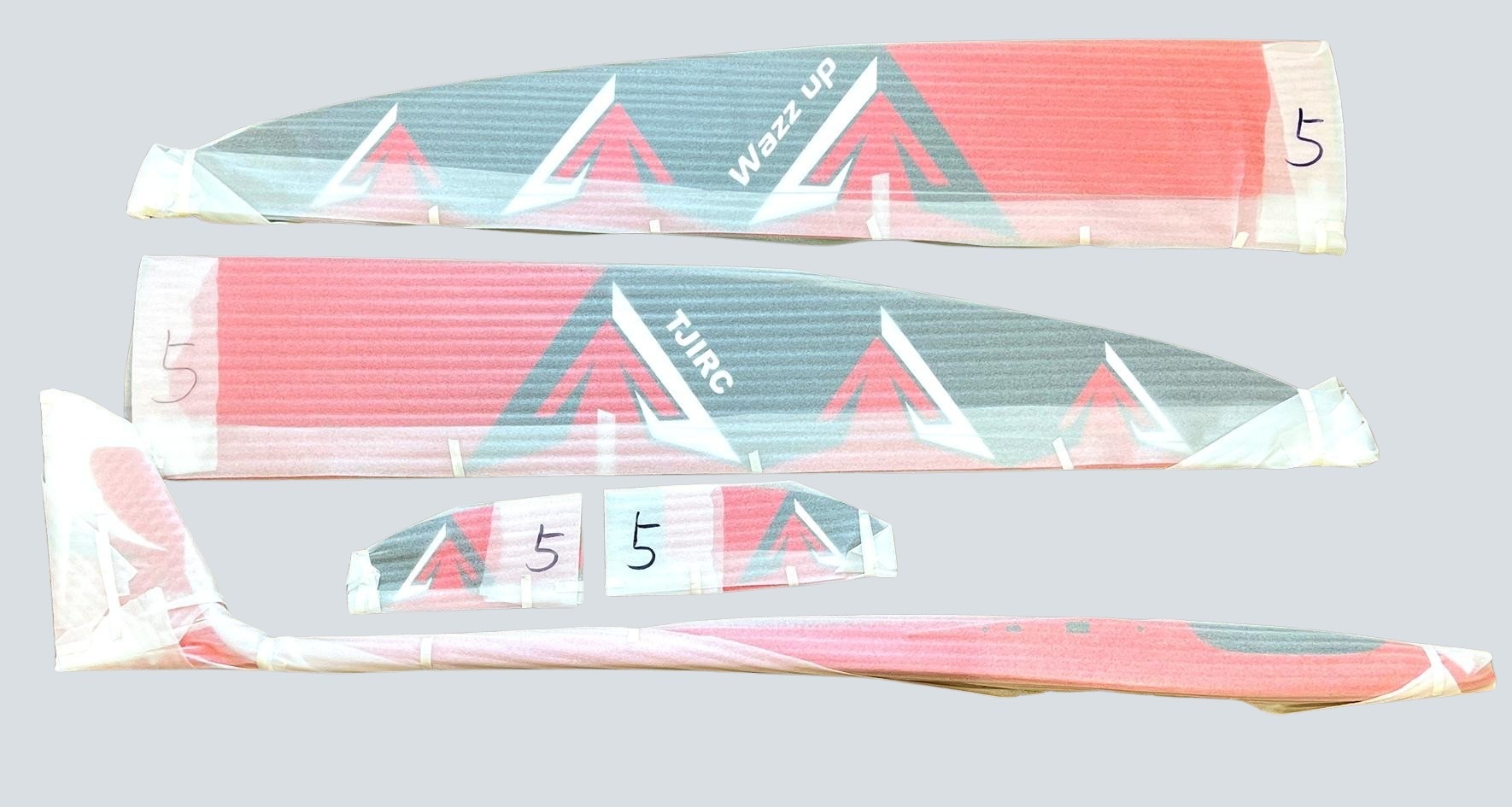

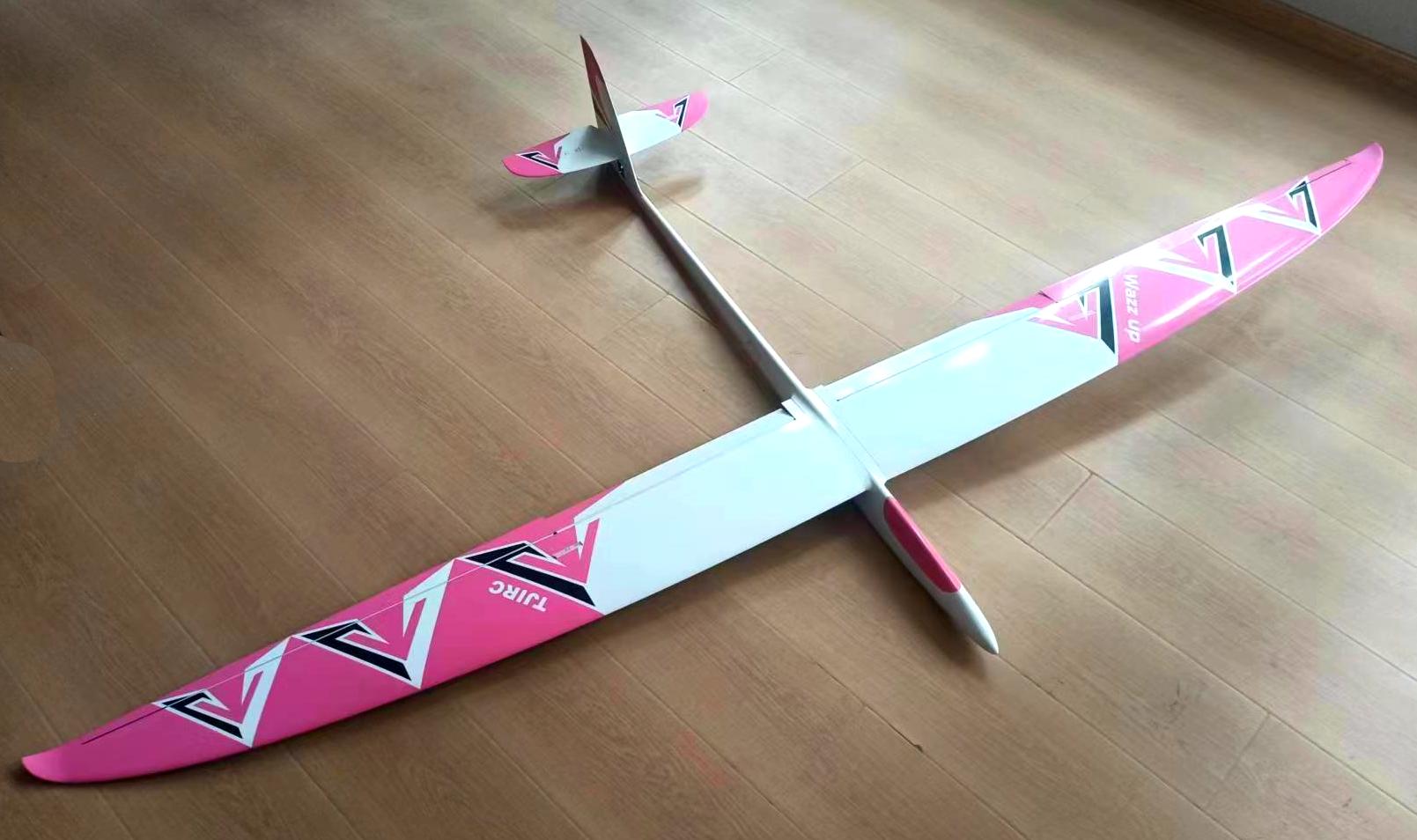

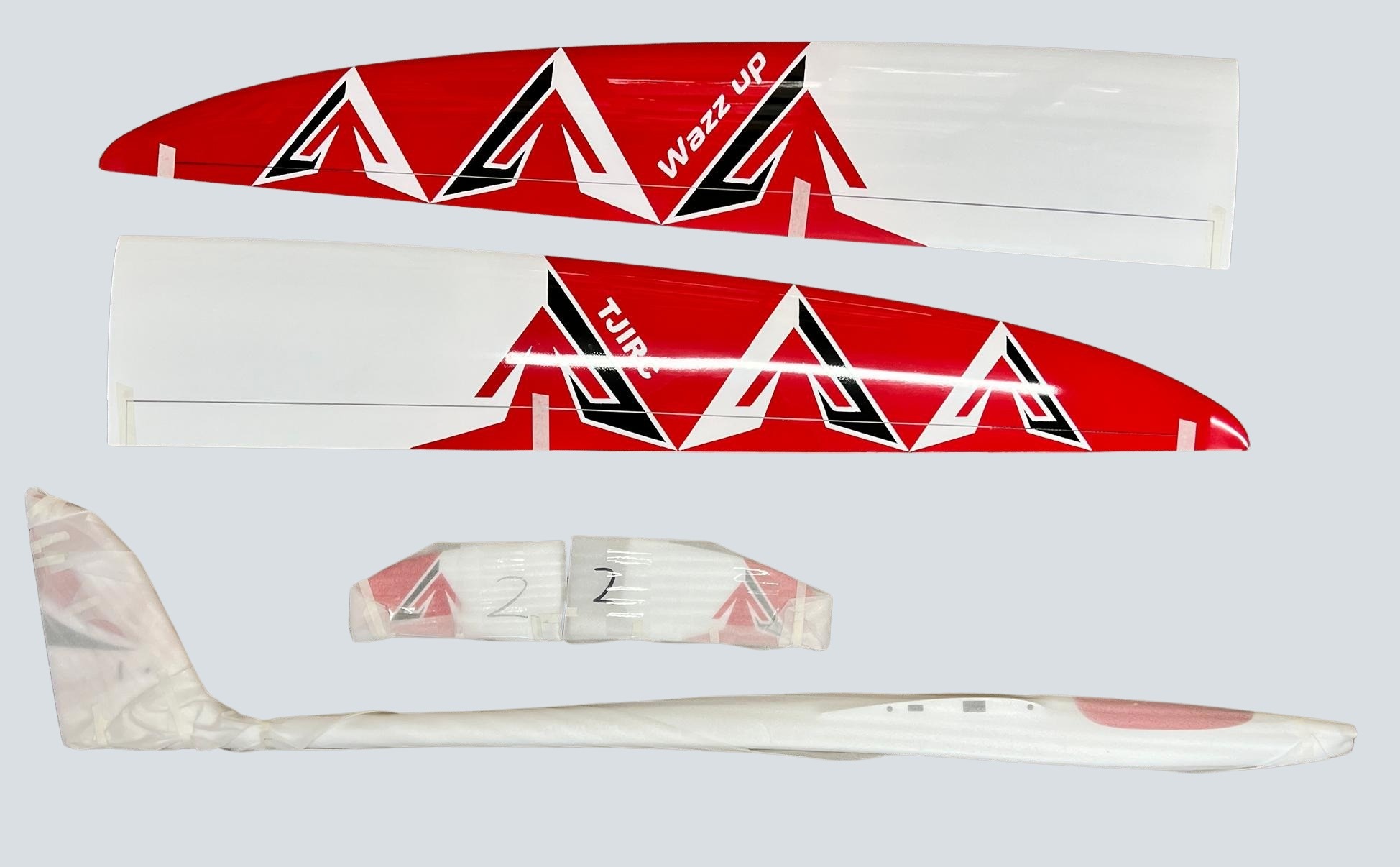

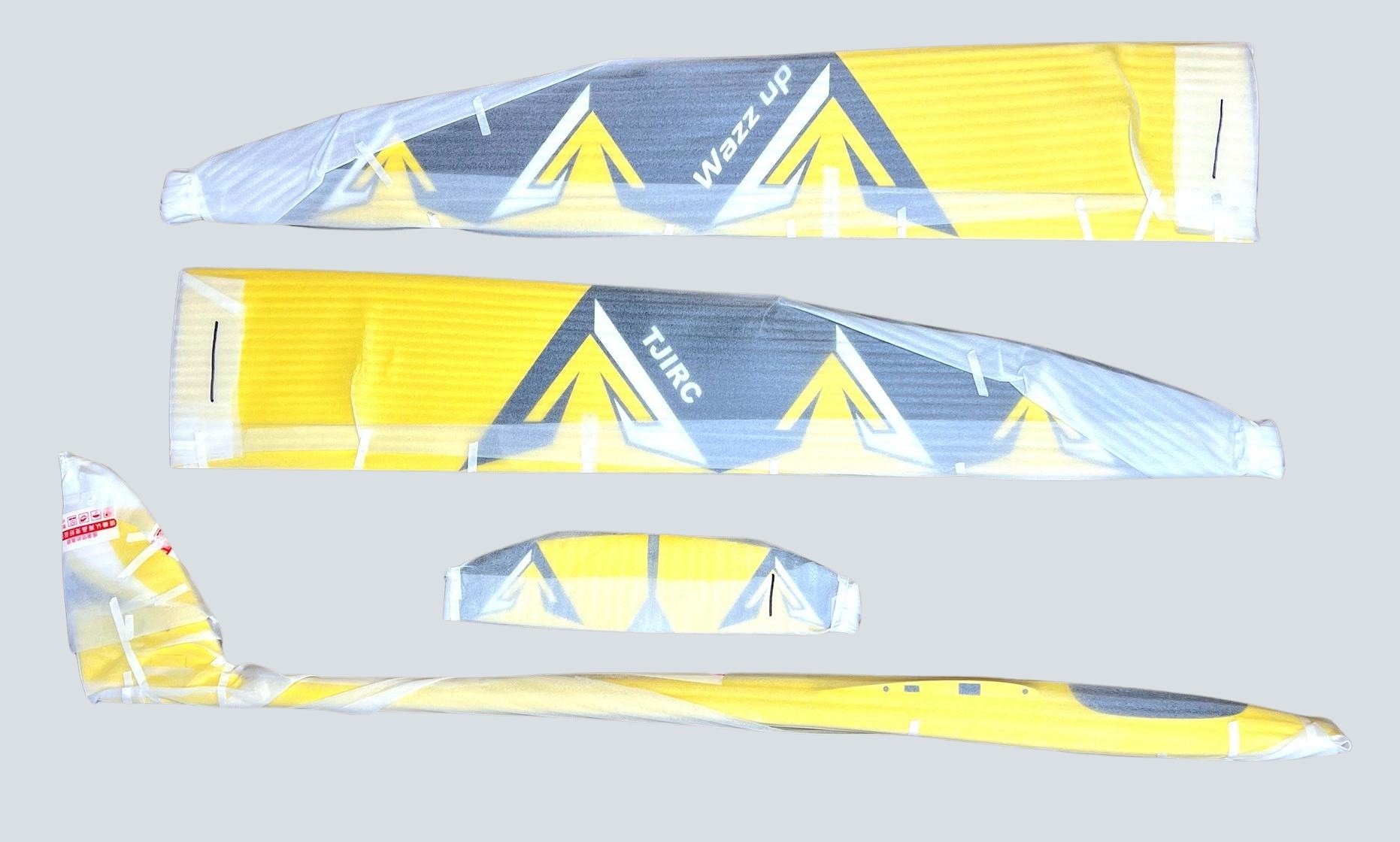

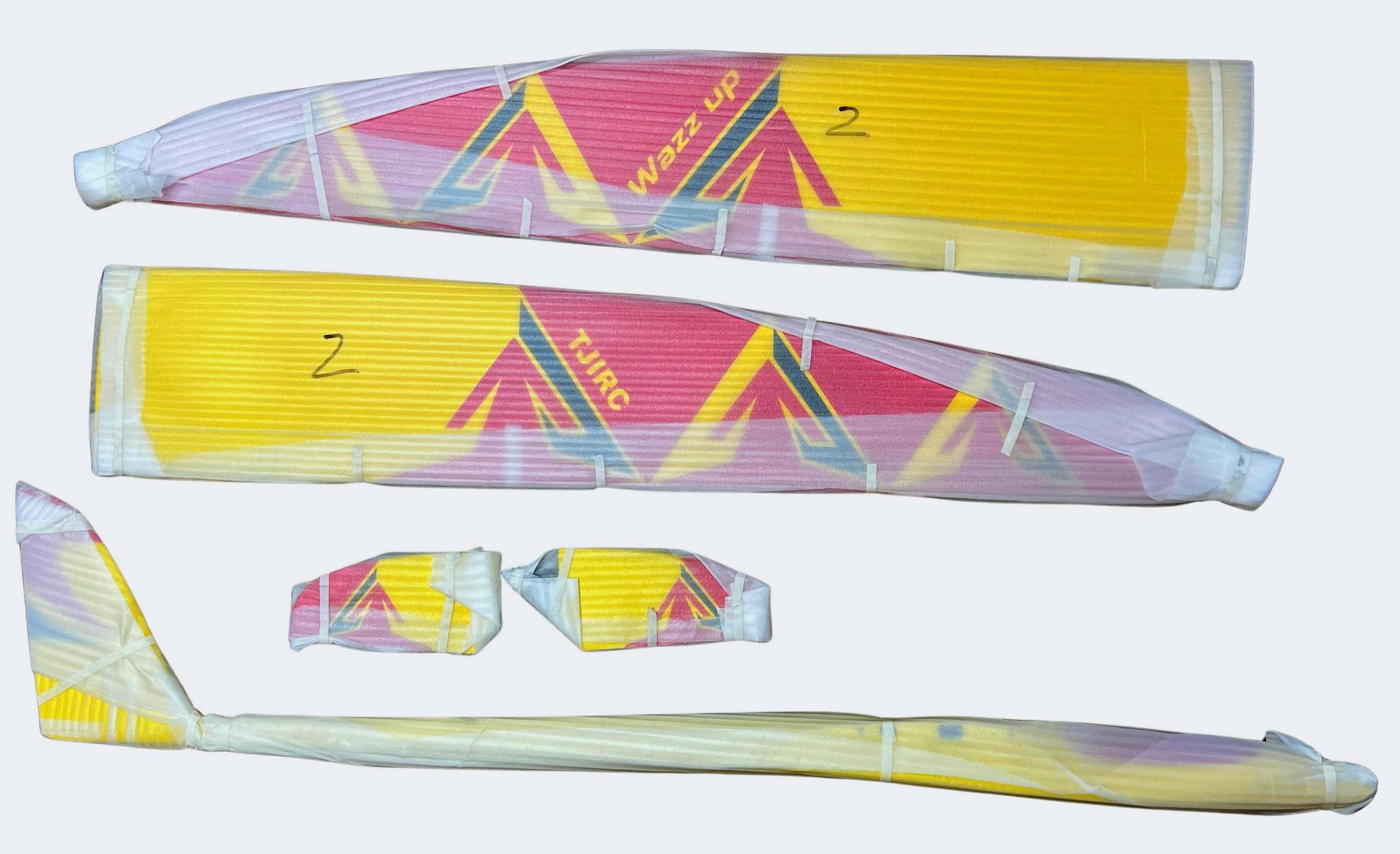

The WazzUp is all molded in carbon fibe and glass to a high standard by TJIRC. The fit and finish are very good, colours are brilliant with clean edges. The push rods and elevator bell crank are pre-installed and the RC installation is straightforward.

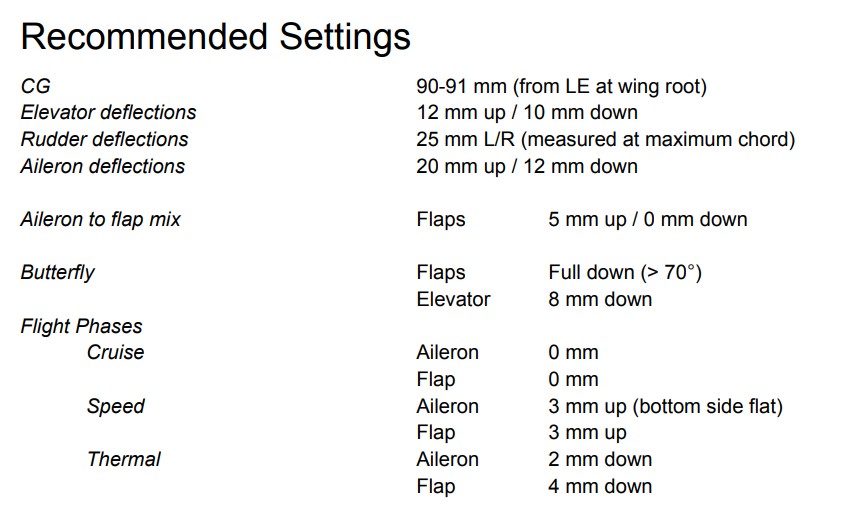

The WazzUp can be built as a pure glider or can be equipped with a motor. The build manual covers both builds. The manual can be downloaded here. The manual is not a step by step build manual, but is an example of how the aircraft can be fitted out; as well as recommended settings for the first flight.

An unusual design decision is Wazzup's triangular fuselage. It is nearly flat on the bottom and makes holding the model very easy, it also gives you a lot of room inside the fuselage which is useful if you want to install an electric motor. There is lots of room for electronics and battery, but the fuselage is still very sleek - very nice balance for both applications.

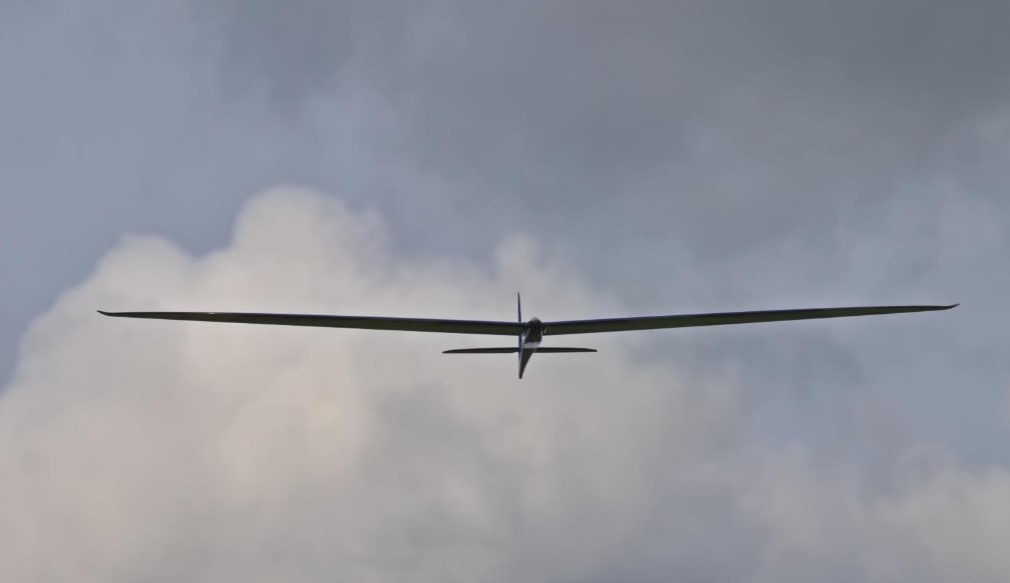

Another unusual feature is the very slightly forward swept wings, coupled with the rather long tail moment and full flying cross tail. This makes theWazzup very smooth and she tracks through the sky beautifully. See this Wazzup build & fly thead for more info.

Nice Wazzup video here.

Wazzup Specifications
Wing span	2.50 m	98 in
Wing area	46.3 dm2	718 sq in
Length	13 cm	5.1 in
Flying weight from	2180 g	76.9 oz
Wing loading	47.1 g/dm	15.4 oz/sq ft
Aspect ratio	13.5
Wing airfoil	JX-GT Strak (by Jochen Gunzel)
EDA (dihedral)	3.0º
Decalage	0.5°
Centre of Gravity	90-91 mm from wing leading edge
Controls	Ailerons, flaps, elevator, rudder
Ballast	Up to 700 grams in wing pockets (optional)

Recommended Servos
Rudder & Elevator	KST MS320, KST MS325, KST X12-508, KST DS215MG, KST X10-710, KST DS145, MKS HV6130H, CHA HV85, CHA DS09
Flap (10mm)	KST X10, KST DS125, MKS HV6130, CHA HV85H
Aileron (9mm)	KST HS08A, KST A08H, KST X08H Plus, CHA HV85H, CHA DS09

Powertrain Recommendation
Motor	Dualsky XM3045EG-8
Battery	3S 2-3 Ah LiPo (choose size to aid correct CG)
ESC	Dualsky SUMMIT 60X 6V, Dualsky SUMMIT 60X 8V, YGE 65LVT, YGE 95LVT
Prop blades	GM 11x6
Spinner	32mm GM F5J Spinner, 5mm Split Collet for GM Spinners

Wazzup (glass layup) Glider Typical Weights
Fuselage	392 g	13.8 oz
Left wing	475 g	16.8 oz
Right wing	475 g	16.8 oz
Tailplane	53 g	1.9 oz
Wing joiner	150 g	5.3 oz
Accessories	57 g	2.0 oz
Total structure	1602 g	56.5 oz
Wiring	30 g	1.1 oz
Receiver	8 g	0.3 oz
Elevator servo	20 g	0.7 oz
Rudder servo	20 g	0.7 oz
Wing servos (4)	92 g	3.2 oz
Battery	148 g	5.2 oz
Nose weight	260 g	9.2 oz
Flying weight	2180 g	76.9 oz

The carbon layup model is approx 100g heavier.
The electric version should not weigh any more as the powertrain will replace the nose weight.
