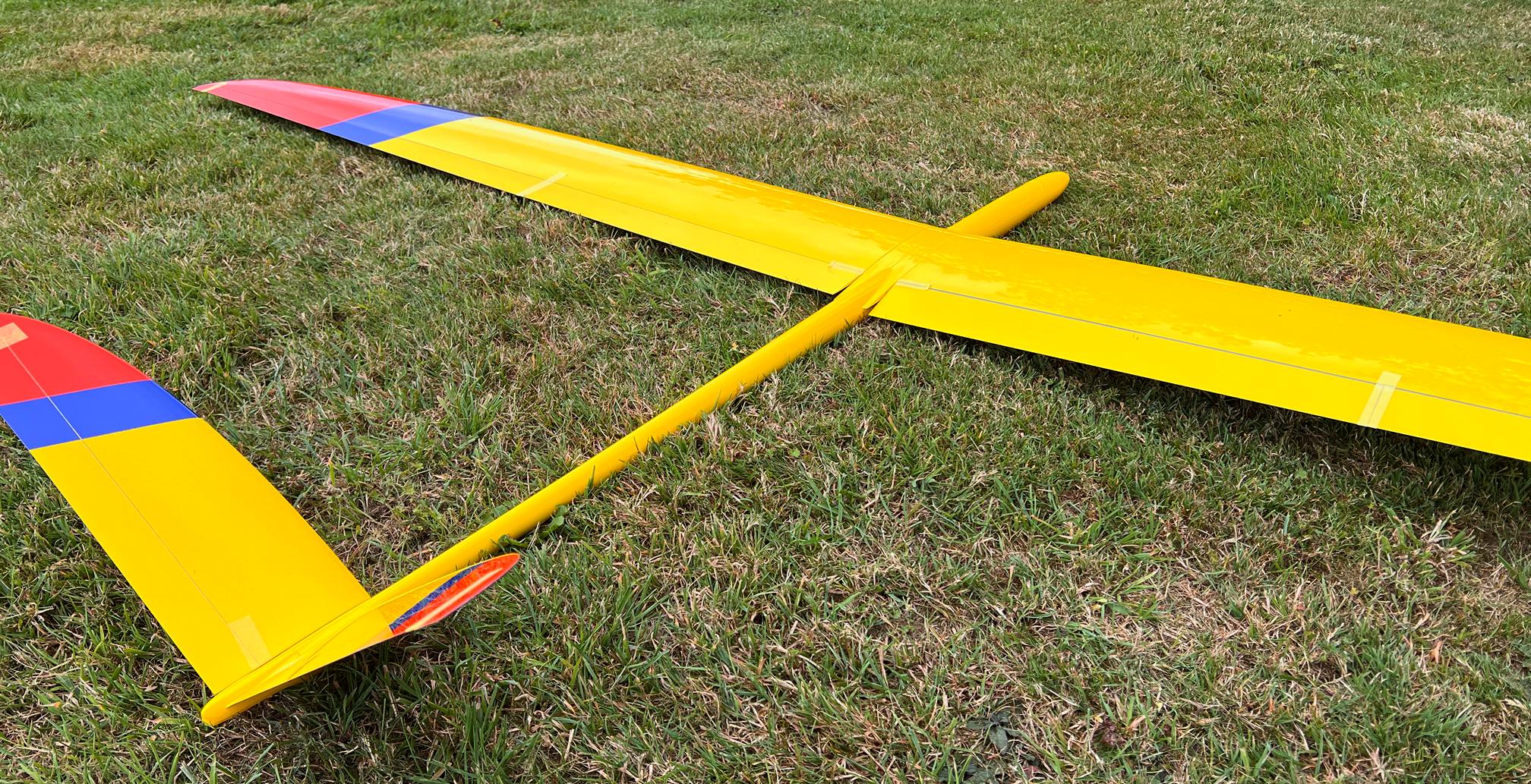

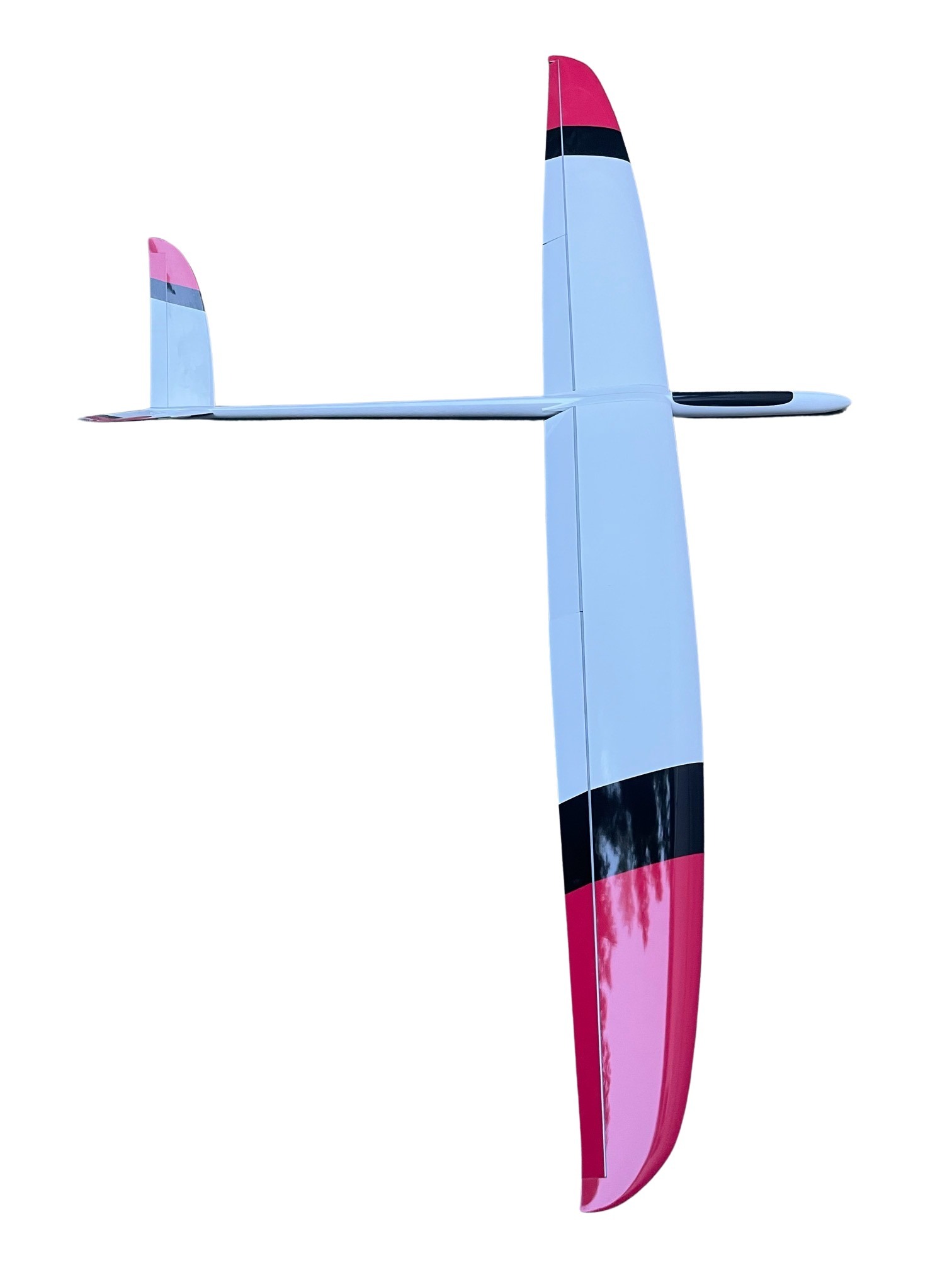

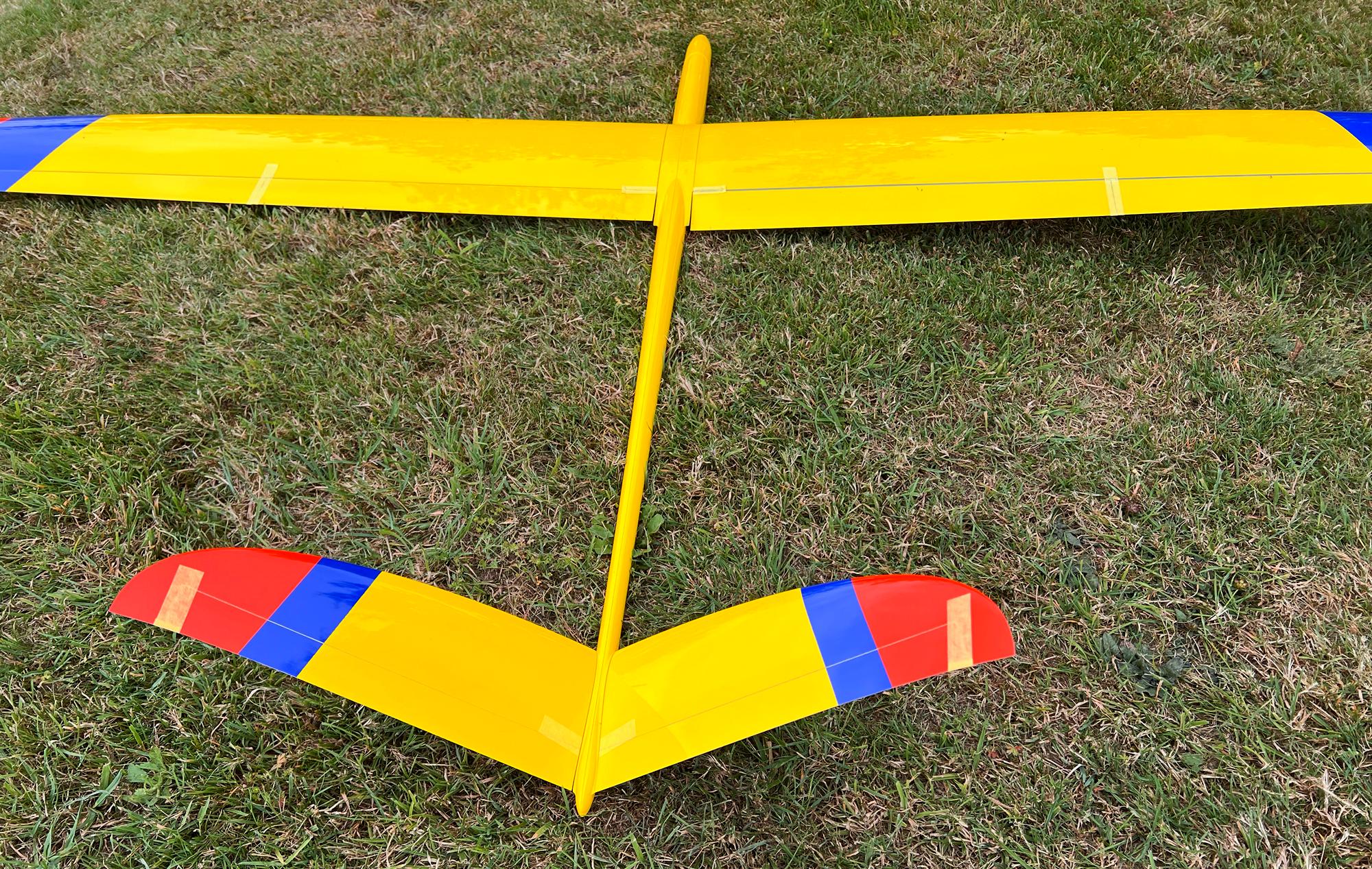

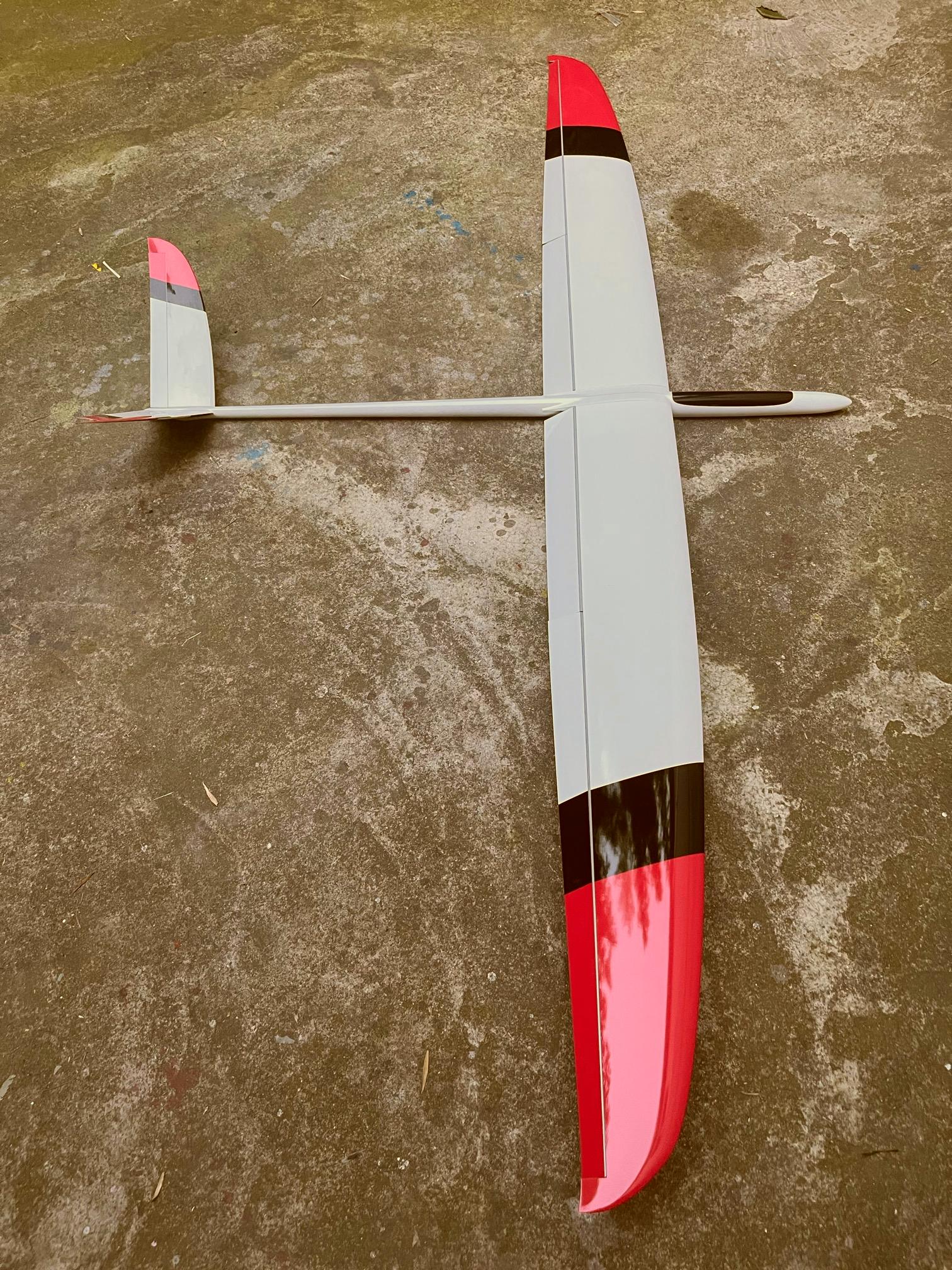

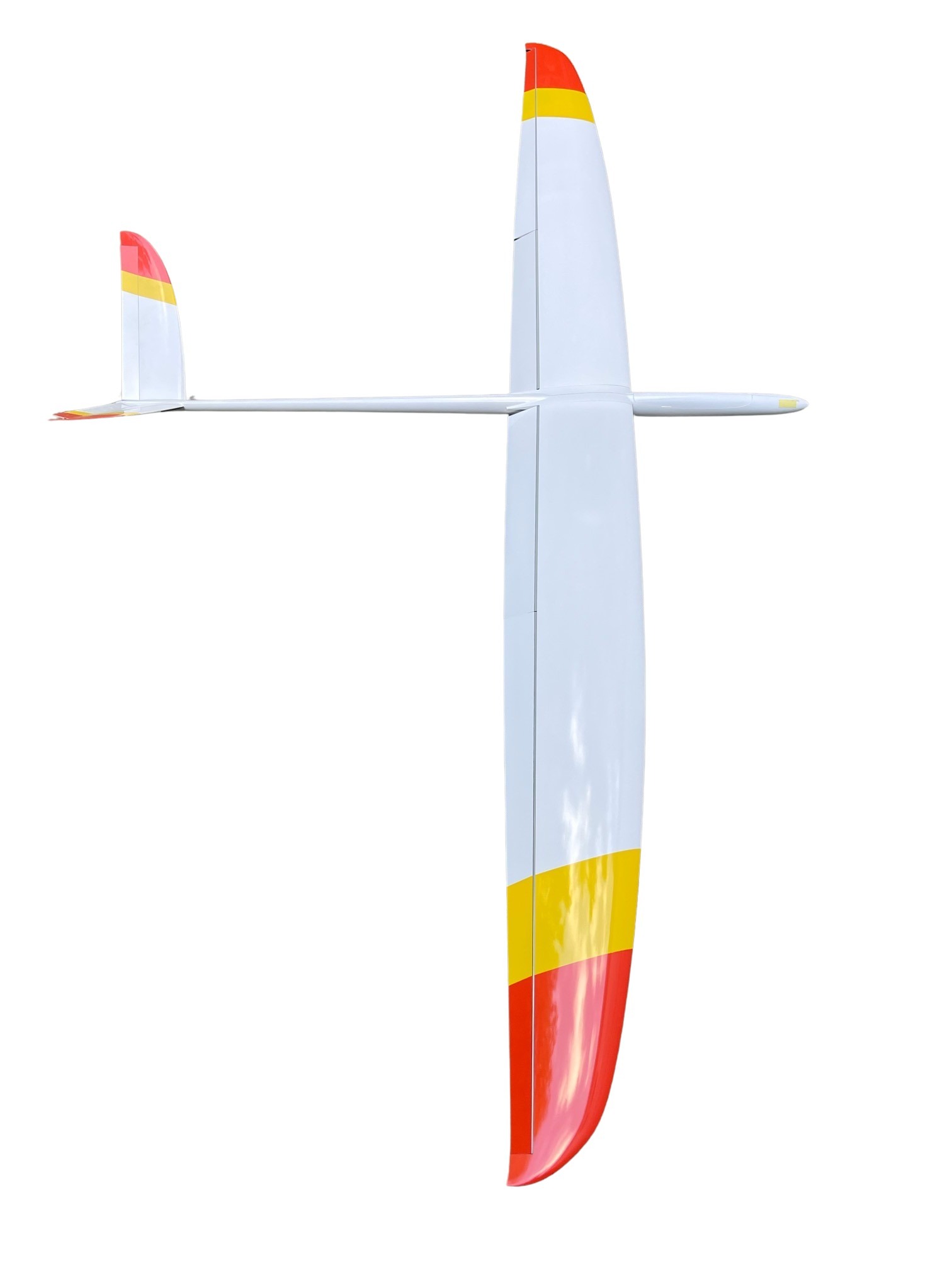

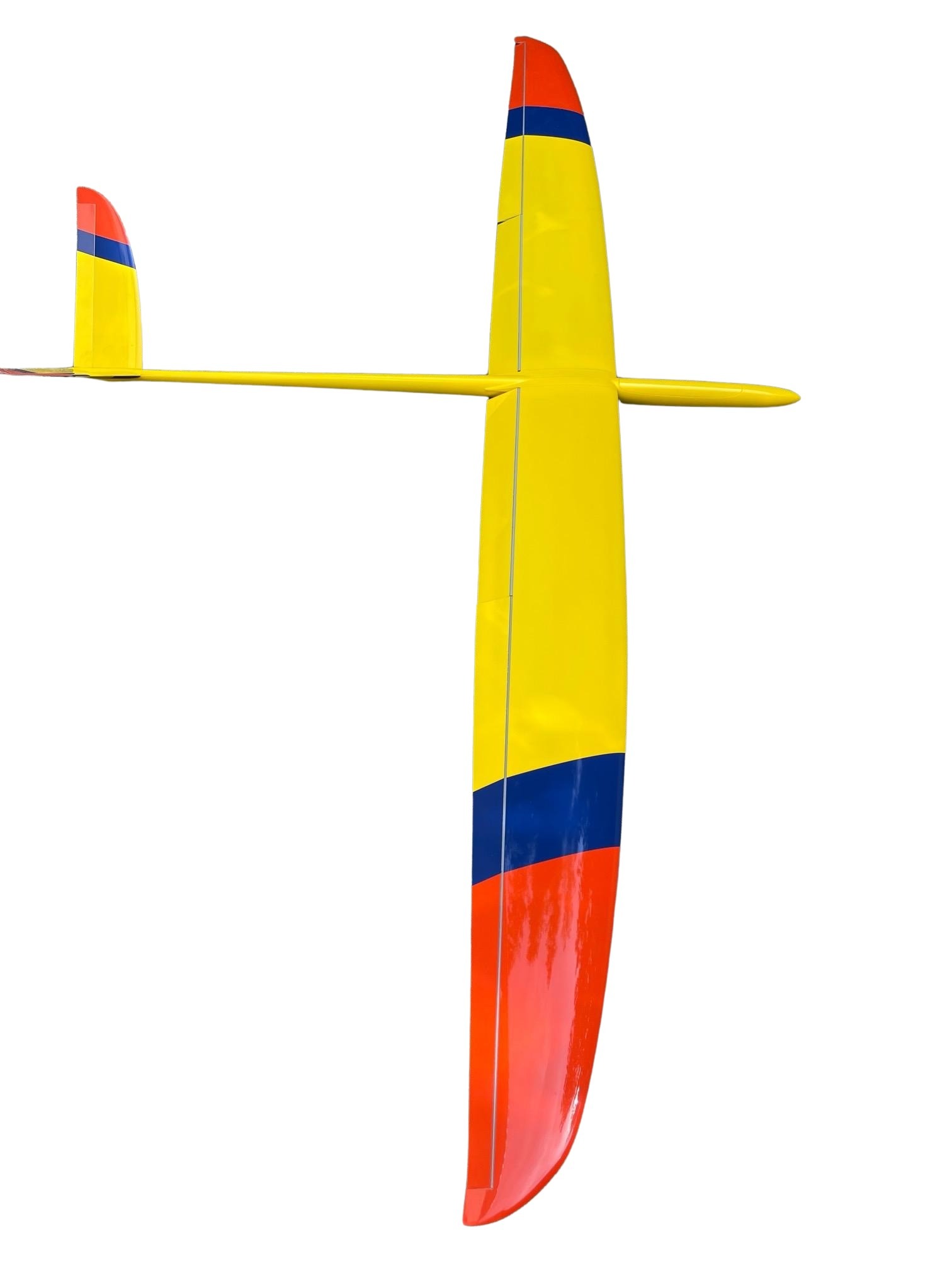

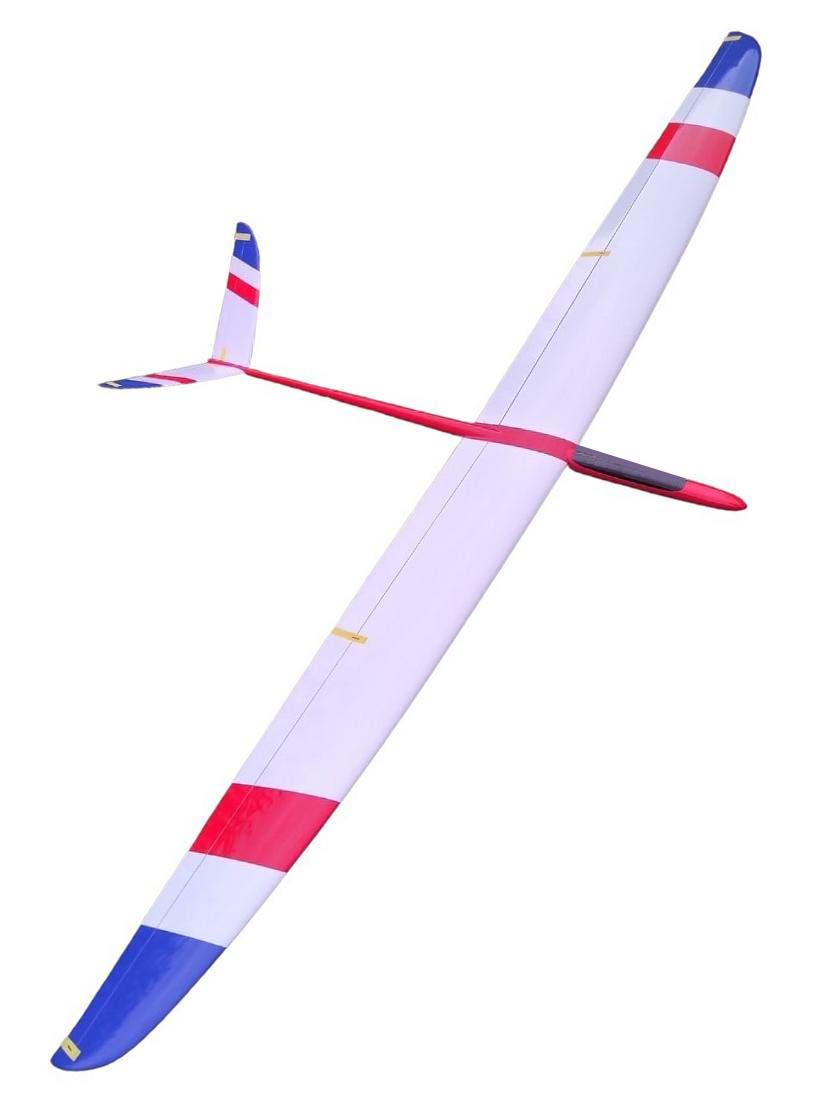

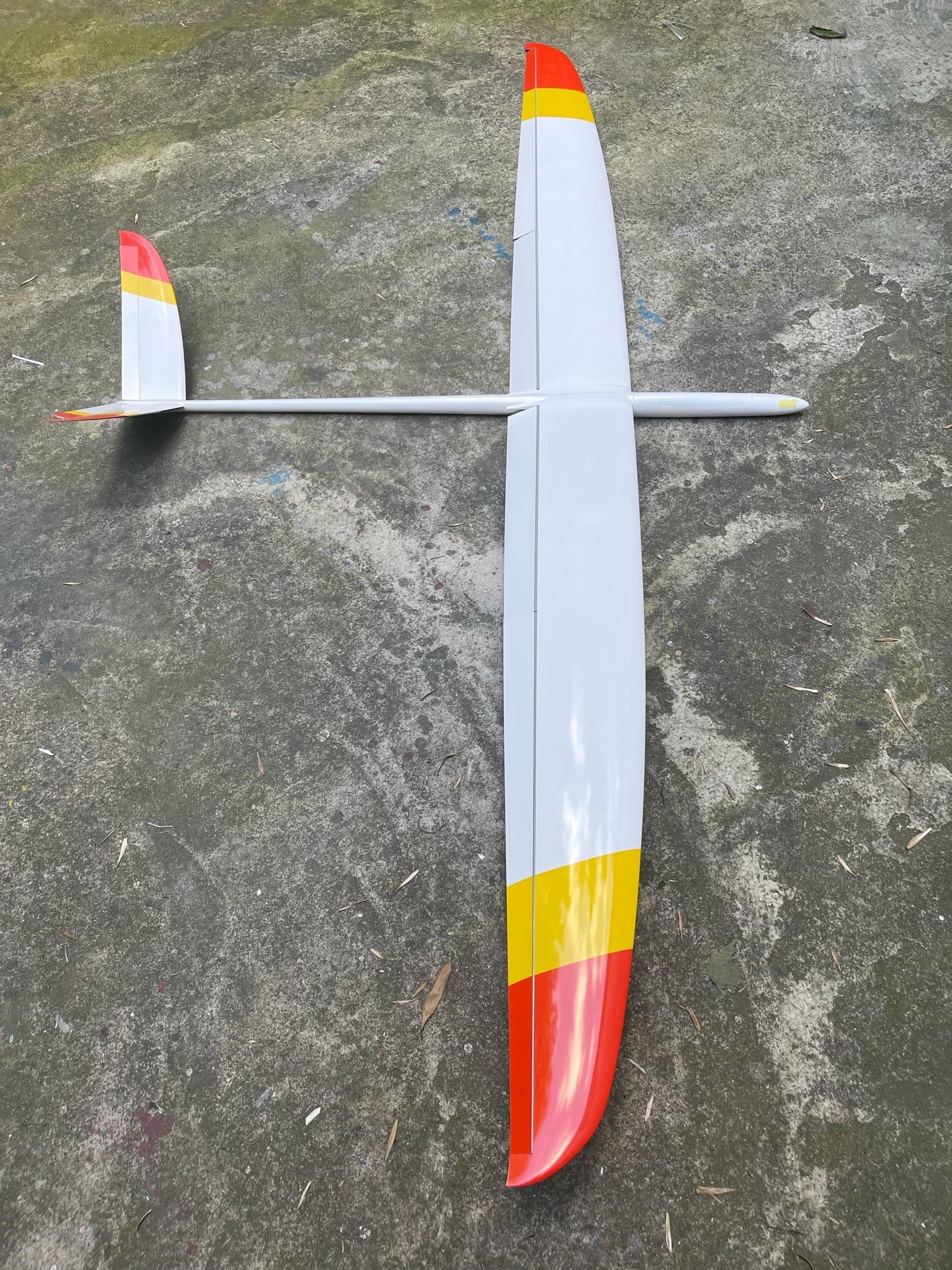

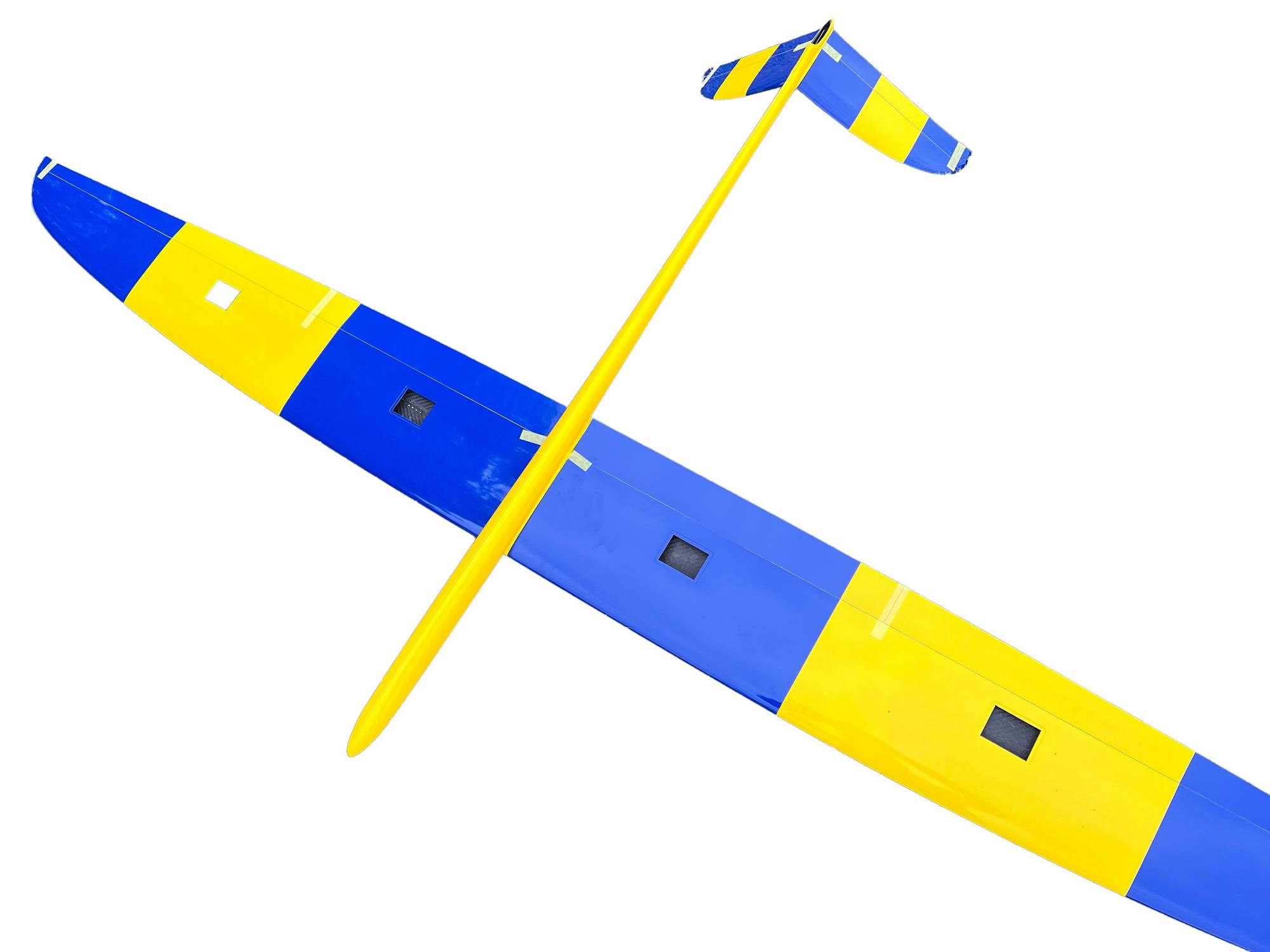

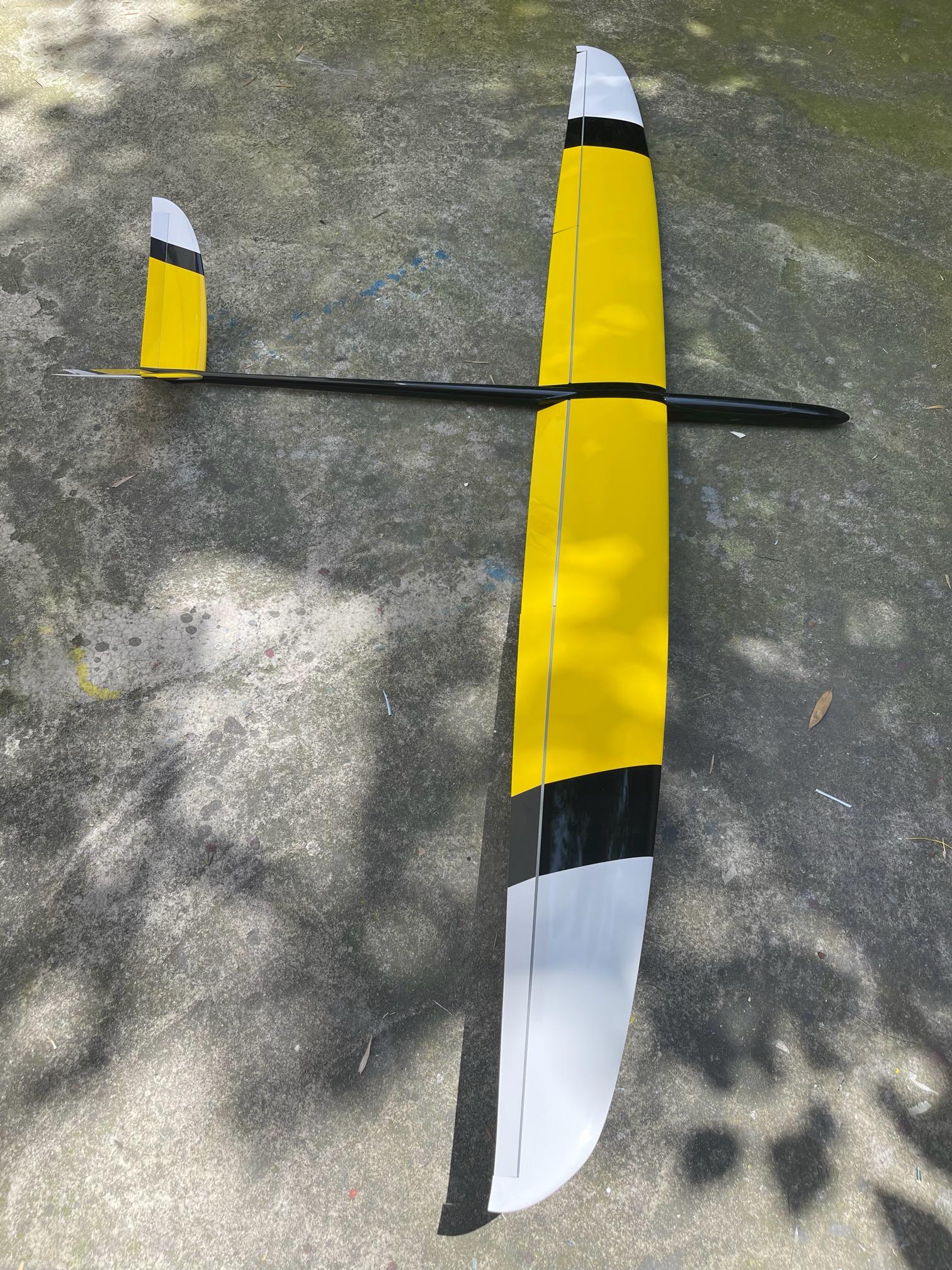

Falcon 100 Slope Soarer 2.5m

Product Code: FALCON-100

(1 review)

Price: $694.11 save 10%

Description

The Falcon 100 is a sturdy, slippery and very aerobatic slope soarer that excells in big air. With graceful lines and a beautiful finsh, this strong model will bring out the best in any pilot.

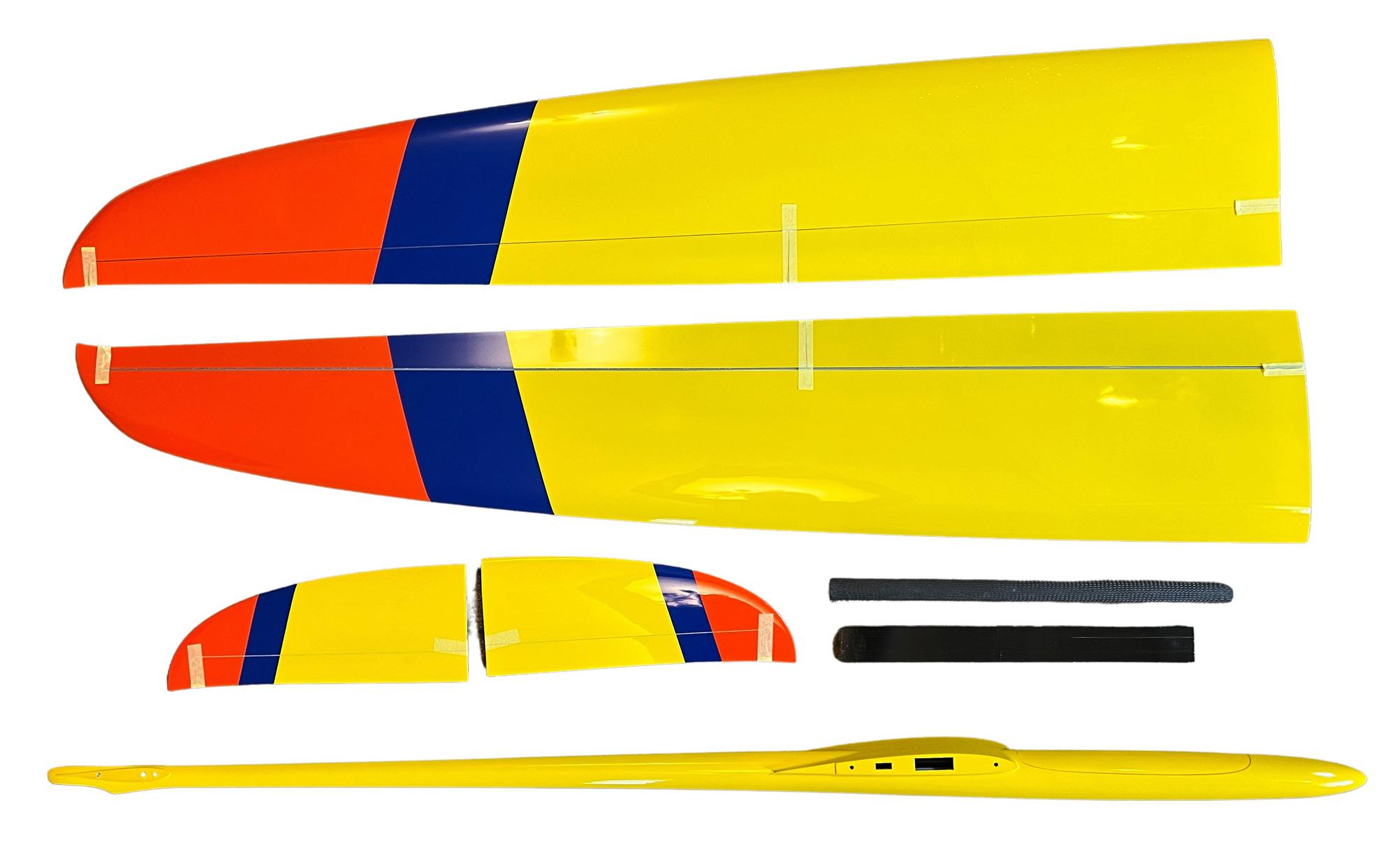

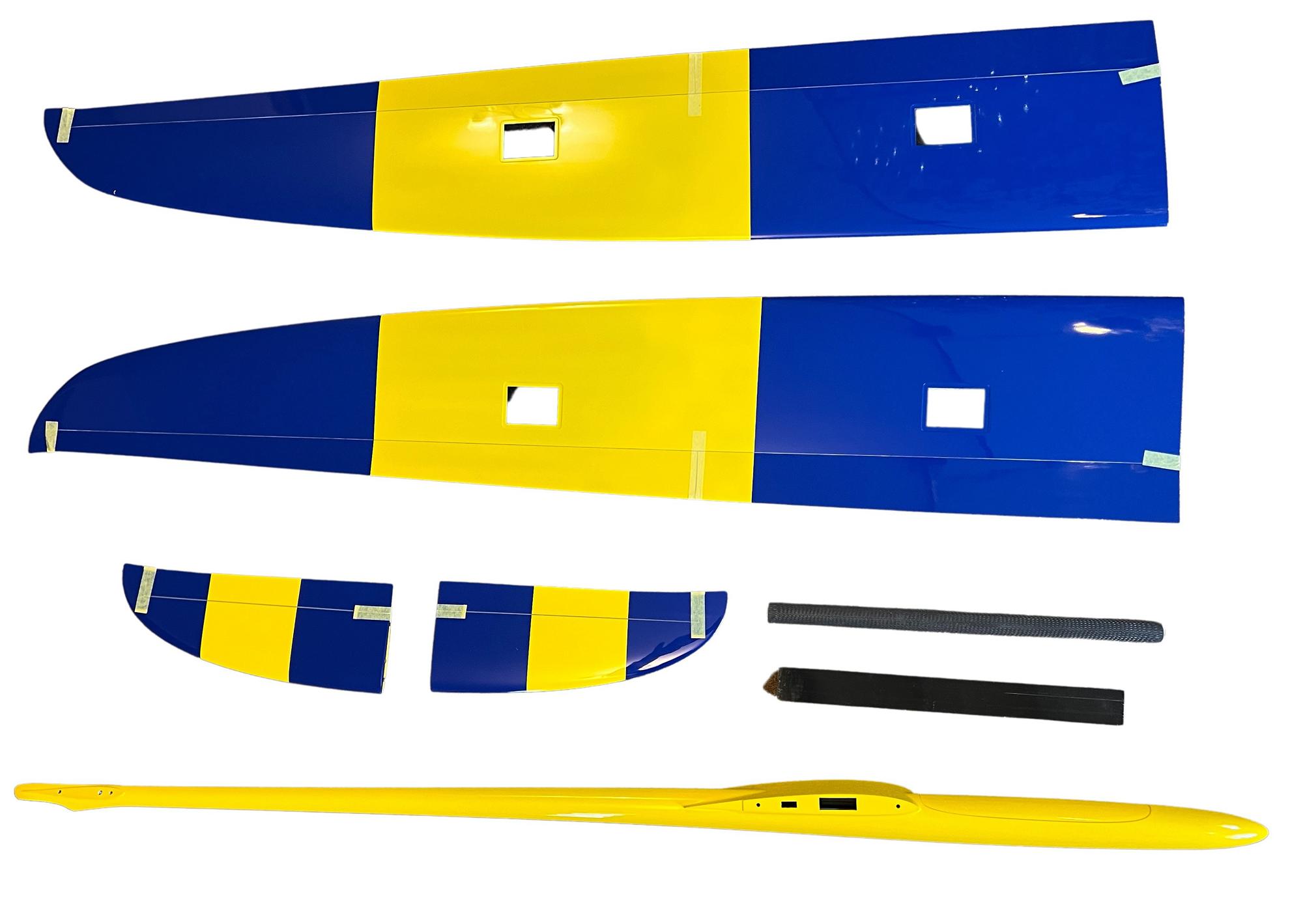

The Falcon 100 is of fully molded construction and has very strong full carbon wing skins and well engineered spars.

See this BARCS forum thread for more info.

Falcon 100 Slope Soarer Specifications
Wing span	2.500 m	98 in
Wing area	48.0 dm2	744 sq in
Length	130 cm	51.2 in
Flying weight from	2323 g	81.9 oz
Wing loading	48.4 g/dm	15.9 oz/sq ft
Aspect ratio	13.0
Wing airfoil	Proprietary
Dihedral angle	1.5º
Centre of Gravity	91-100 mm from wing leading edge

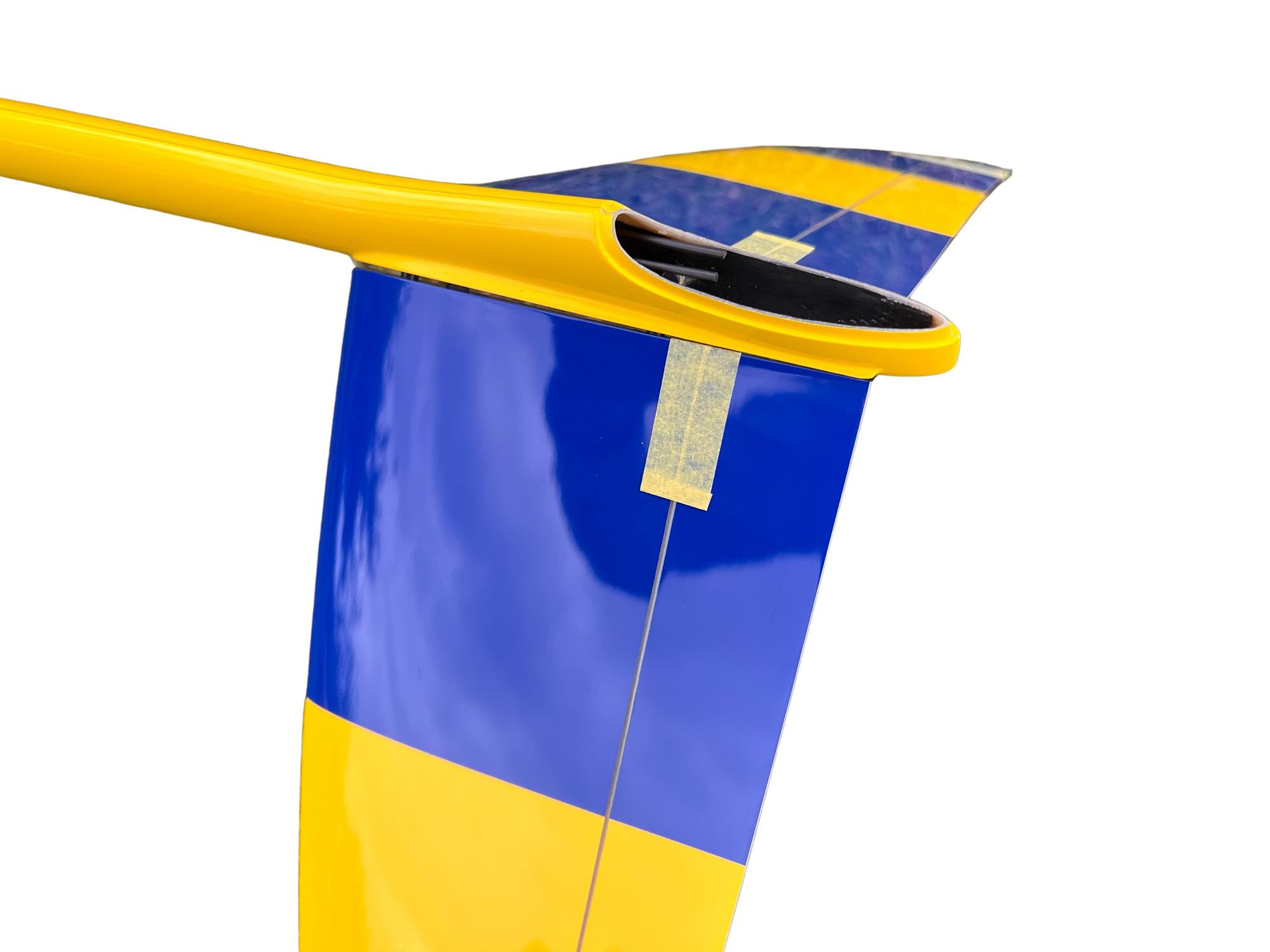

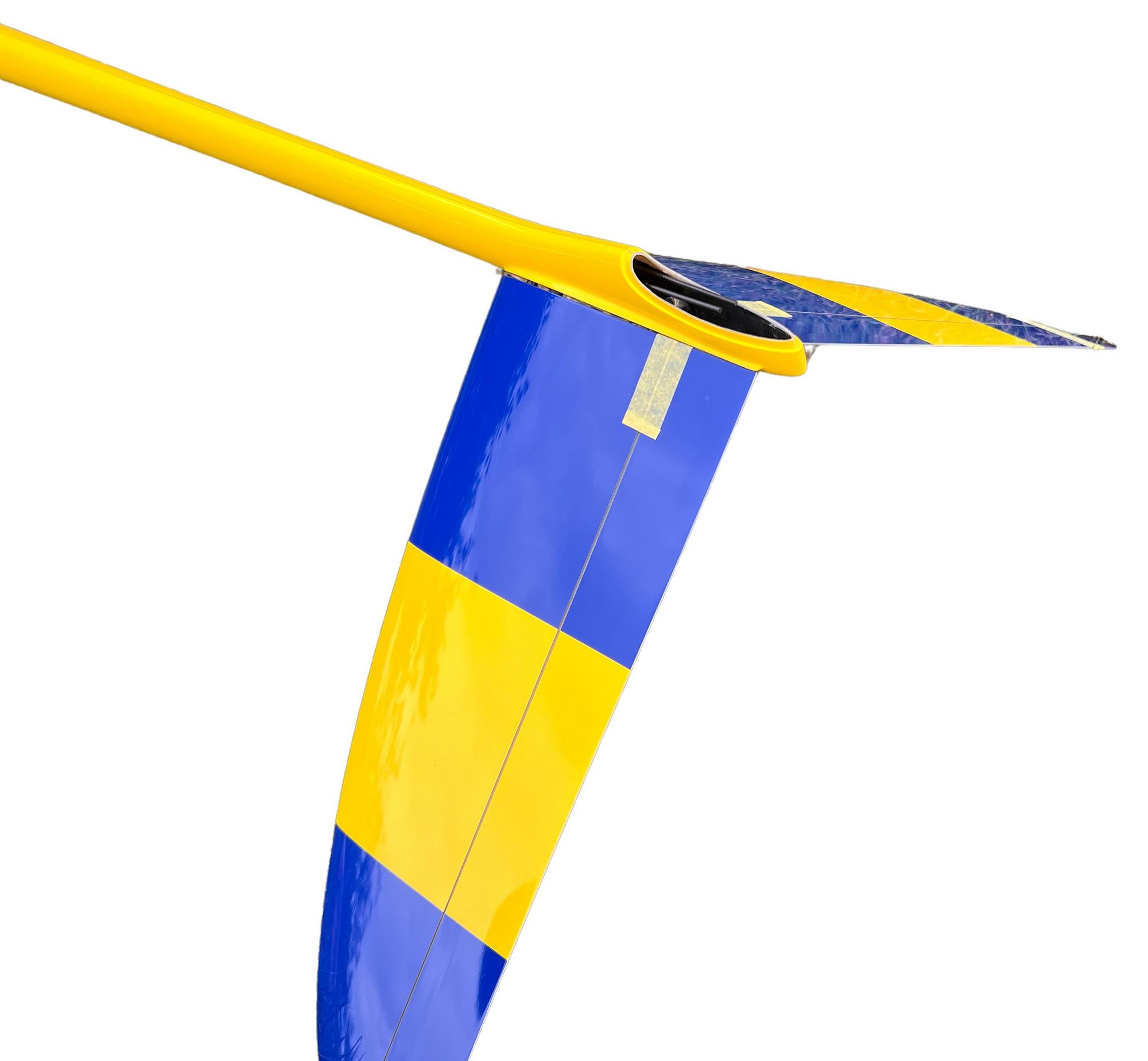

Controls	Ailerons, flaps, V tail

Recommended Servos
V tail	KST MS320, KST MS325, KST X12-508, KST DS215MG, KST X10-710, KST DS145, MKS HV6130H
Flap	KST X10, KST DS125, MKS HV6130
Aileron	KST X10 Mini, KST X10, KST DS135, KST DS125, MKS HV6130

Recommended Control Throws (for 91mm CG)

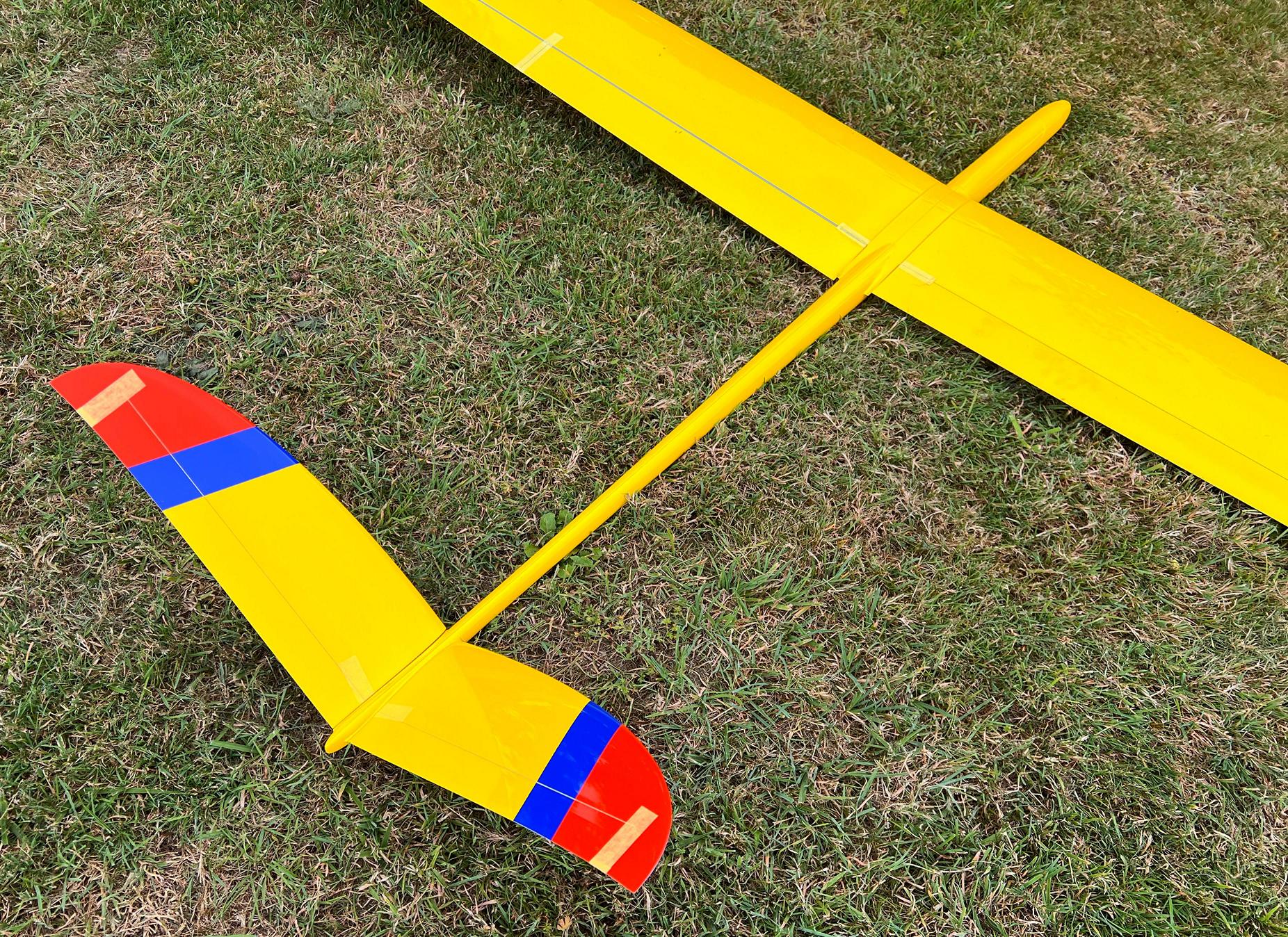

V tail pitch	4 mm up / 5 mm down
V tail yaw	6 mm left / 6 mm right
Ailerons	14 mm up / 8 mm down
Flap (roll)	3 mm up, 2 mm down
Flap (brake)	45 deg down
Snap flap	2 to 3 mm down flap with up elevator. Ailerons move with flaps
All measured at the widest point.

Falcon 100 Slope Soarer Typical Weights

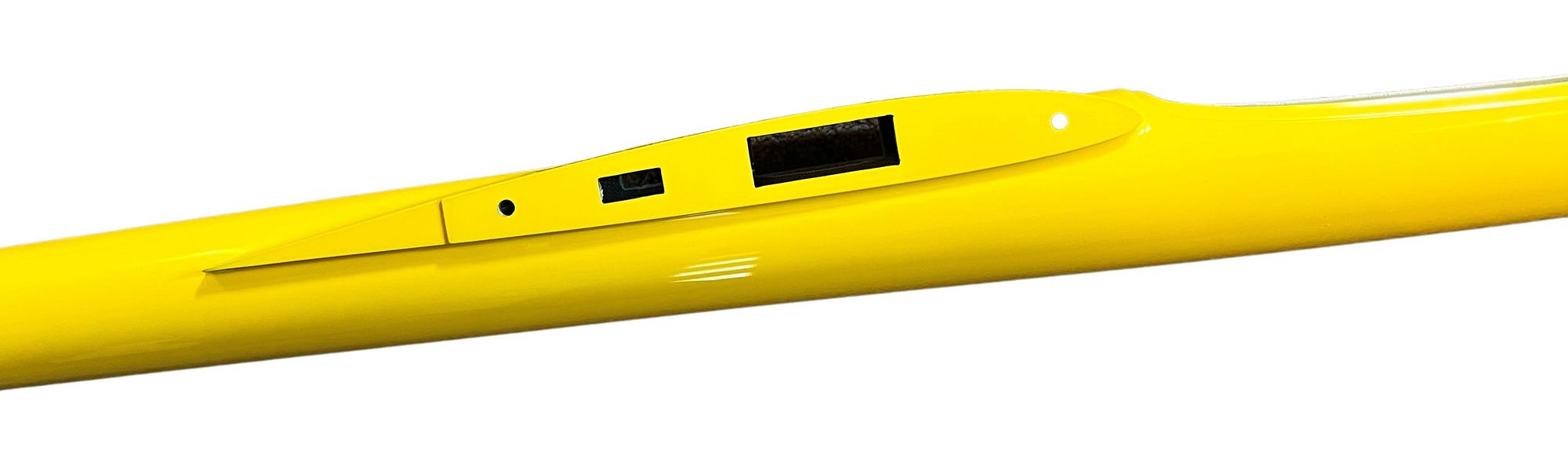

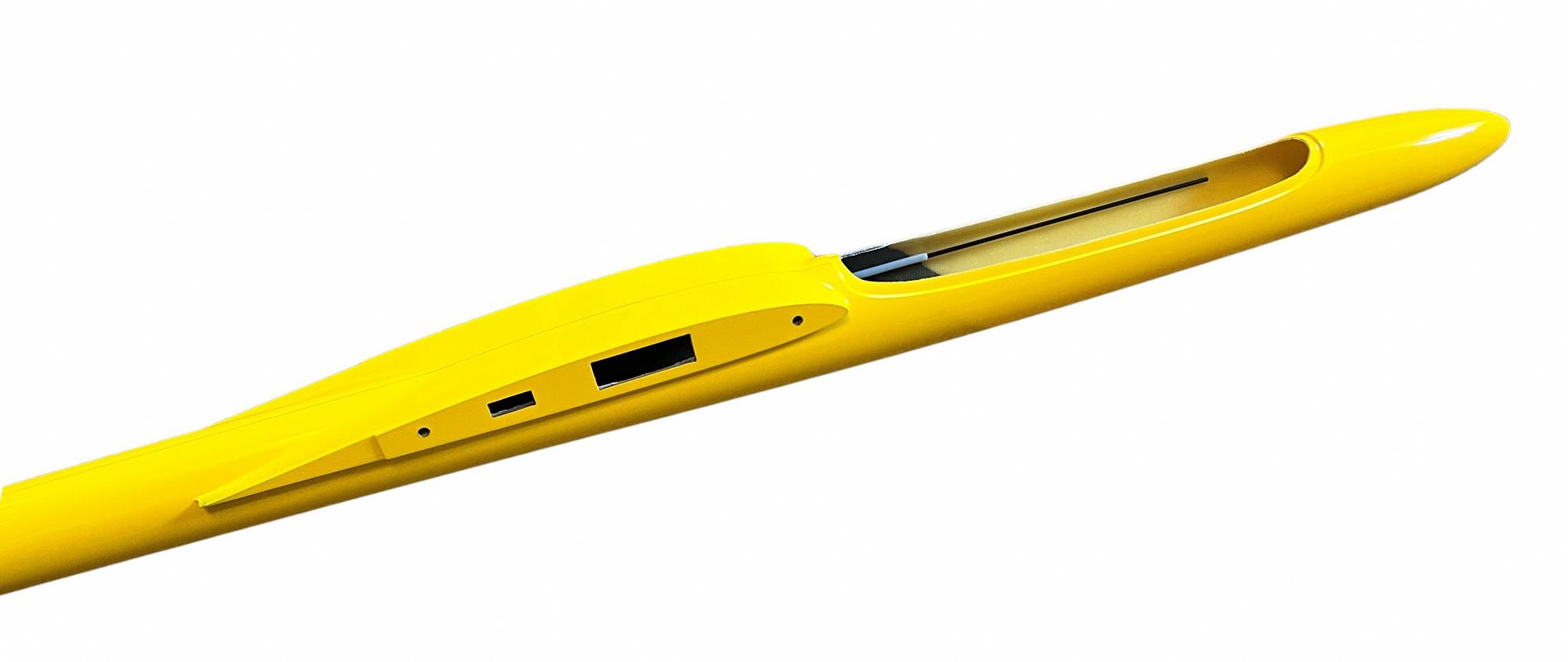

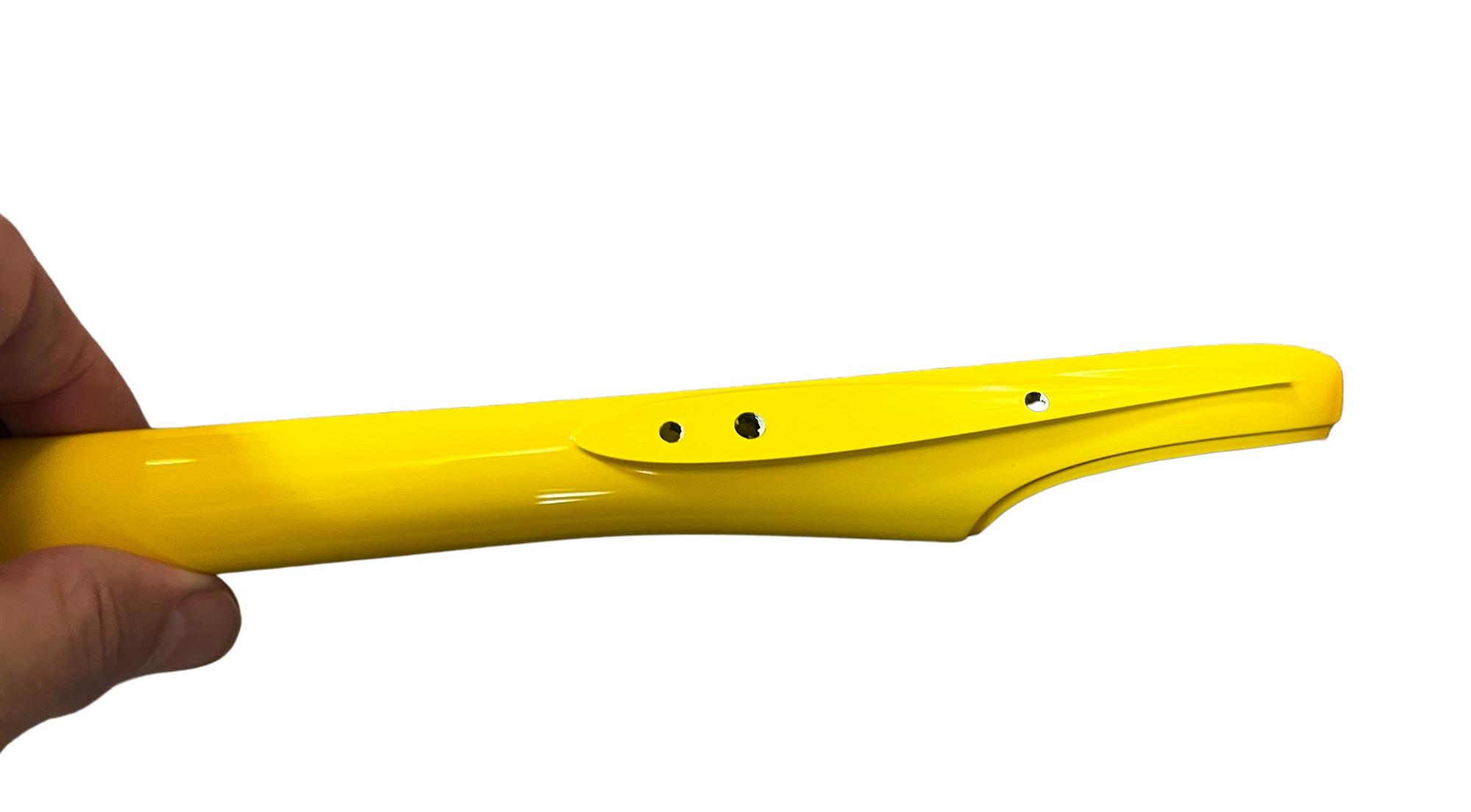

Fuselage	265 g	9.3 oz
Wing	1335 g	47.1 oz
Tailplane	100 g	3.5 oz
Wing joiner	155 g	5.5 oz
Ballast tube	43 g	1.5 oz
Accessories	35 g	1.2 oz
Total structure	1933 g	68.2 oz
Wiring	30 g	1.1 oz
Receiver	10 g	0.4 oz
Rudder servo	20 g	0.7 oz
Elevator servo	20 g	0.7 oz
Aileron servos	50 g	1.8 oz
Flap servos	40 g	1.4 oz
Battery	120 g	4.2 oz
Noseweight	100 g	3.5 oz
Flying weight	2323 g	81.9 oz

Reviews 1

26/04/2025 15:06

Review by: Peter Outridge

Falcon 100 Slope Soarer 2.5m

The Falcon 100 slope soarer 2.5m model was of really excellent quality, I really couldn't fault it! Customer service received from the team at Hyperflight was also excellent.

The only one very slight niggle was that they didn't have the colour scheme I ordered due to a stock mix up, for which they were very appolagetic, so I had to go with my second choice.

All in all, a first class experience, and I wouldn't hesitate to deal with them again... Thank you!
