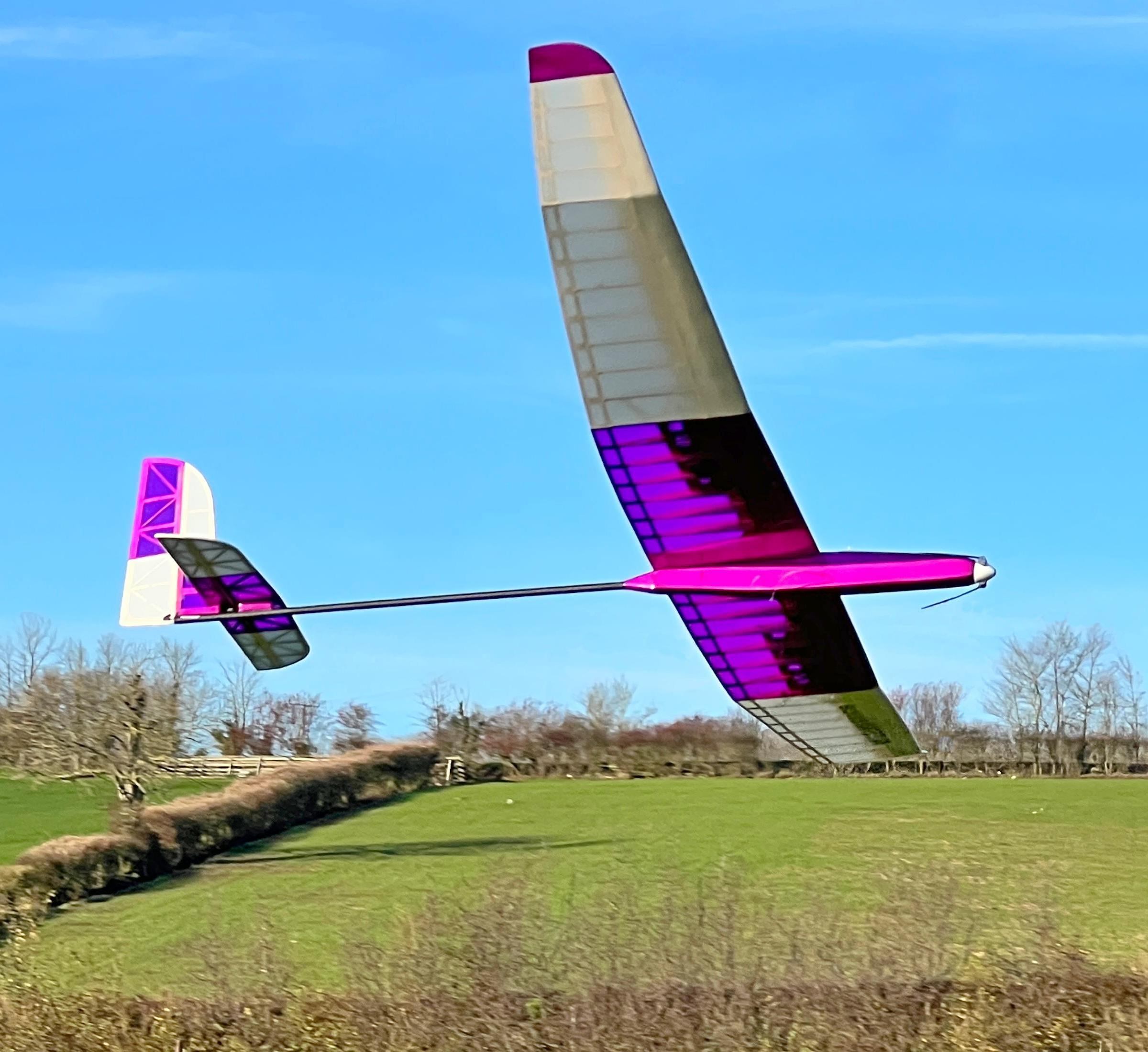

The RESilience W Competition is designed as a competition and sport RES F3L thermal glider. The model is set apart from other RES models by its good long-distance performance which allow it to fly quickly through sink. This and its very good thermal performance ensure the model is not only fun to sport fly, but ready to win competitions with ease.

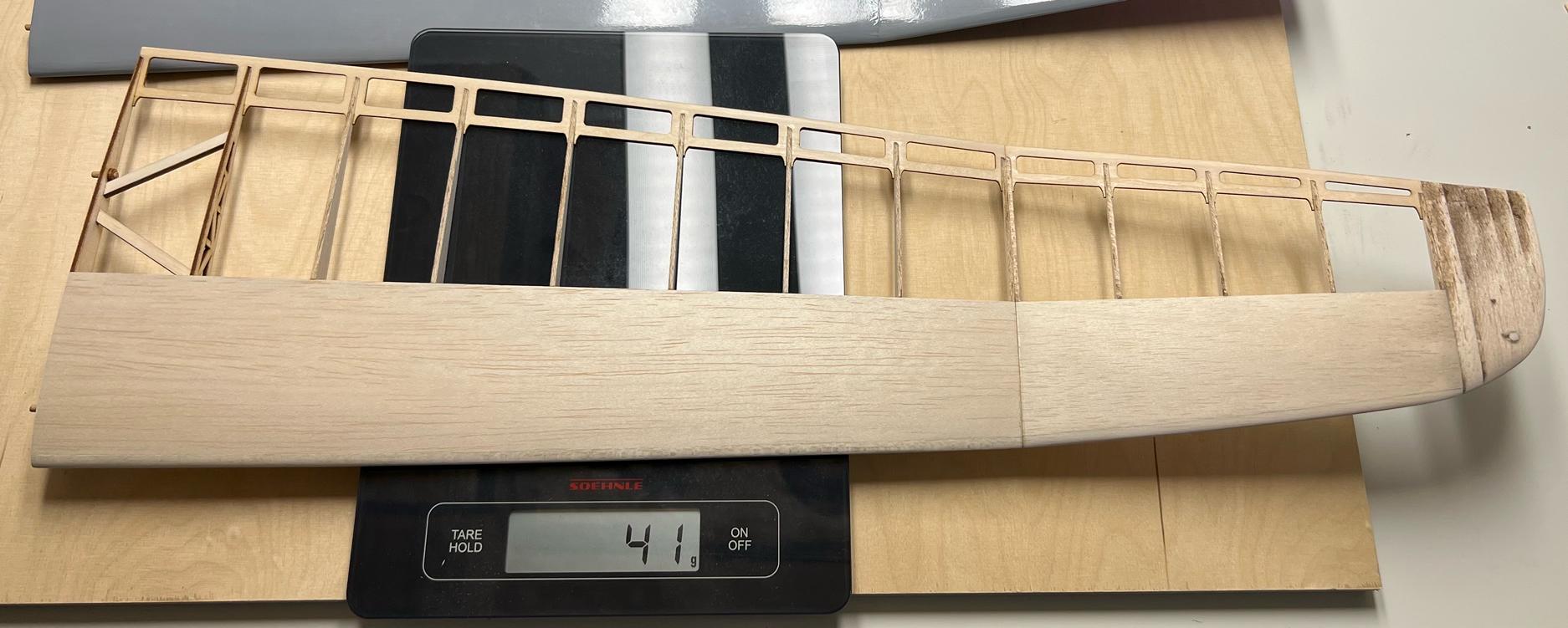

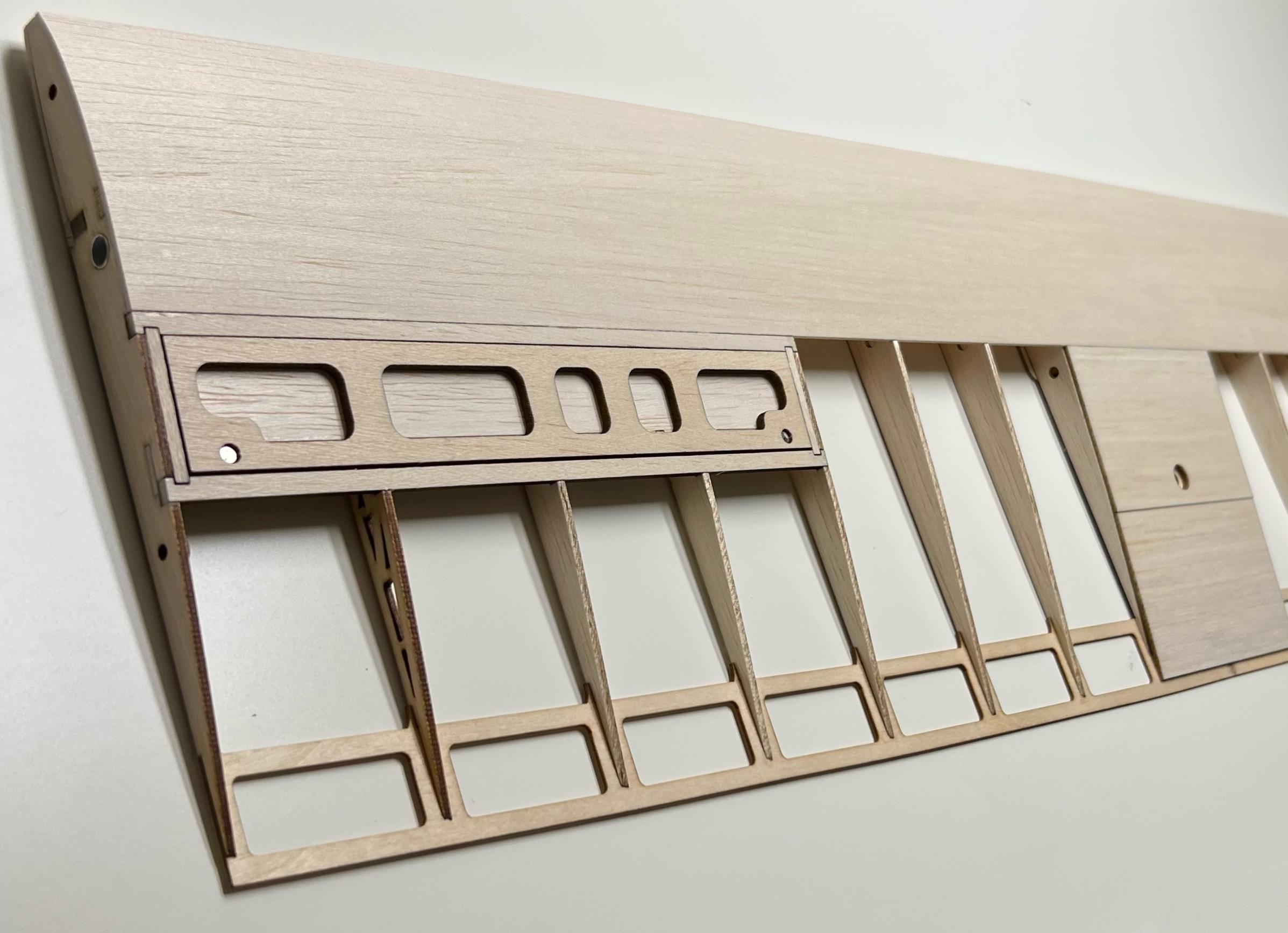

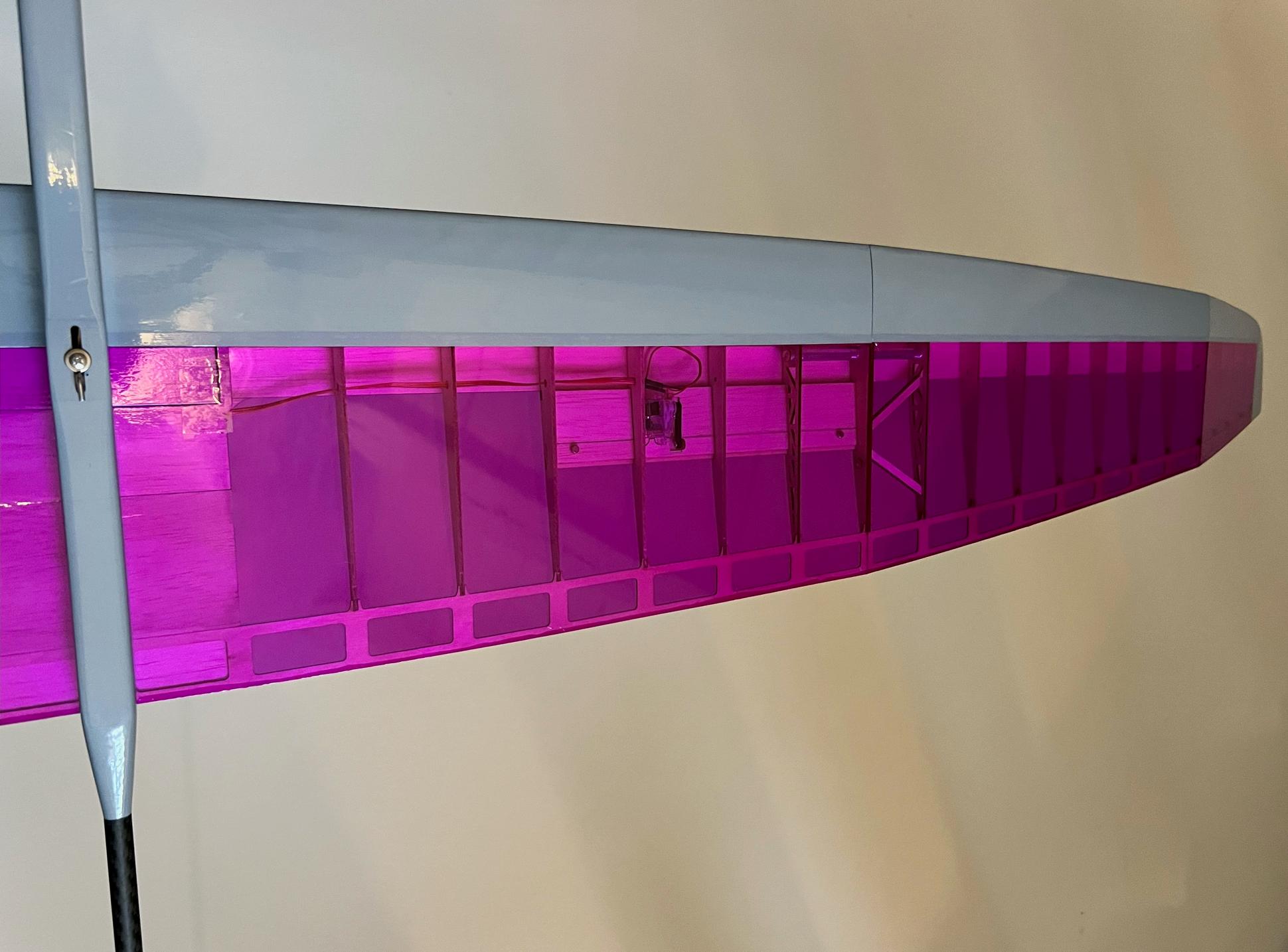

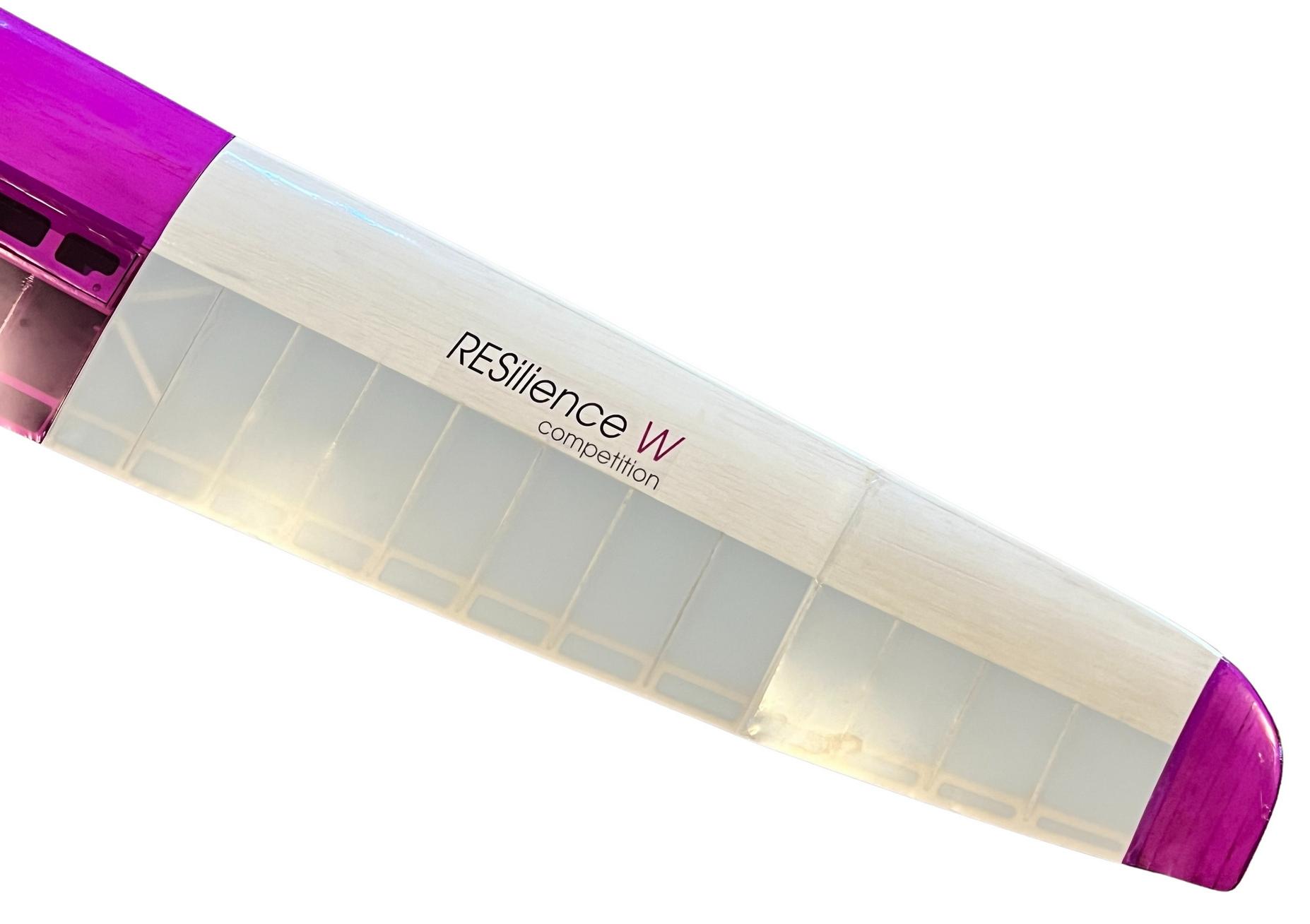

The heart of the model is an elliptical surface wing with a D-box, which increases the laminar flow over the wing, reducing drag. The centre panel is equipped with a ballast box that allows ballasting with up to four rectangular ballast slugs. We recommend our custom ballast set as an accessory. The ballast box is located directly at the center of gravity position. This ensures that the center of gravity does not shift when ballasting. The low-drag fuselage, is only 20 mm wide and very functional.
The Competition wing is compatible with all other RESilience fuselages. See the excellent Resilience RC Groups thread for a lot more info, including a great build log.

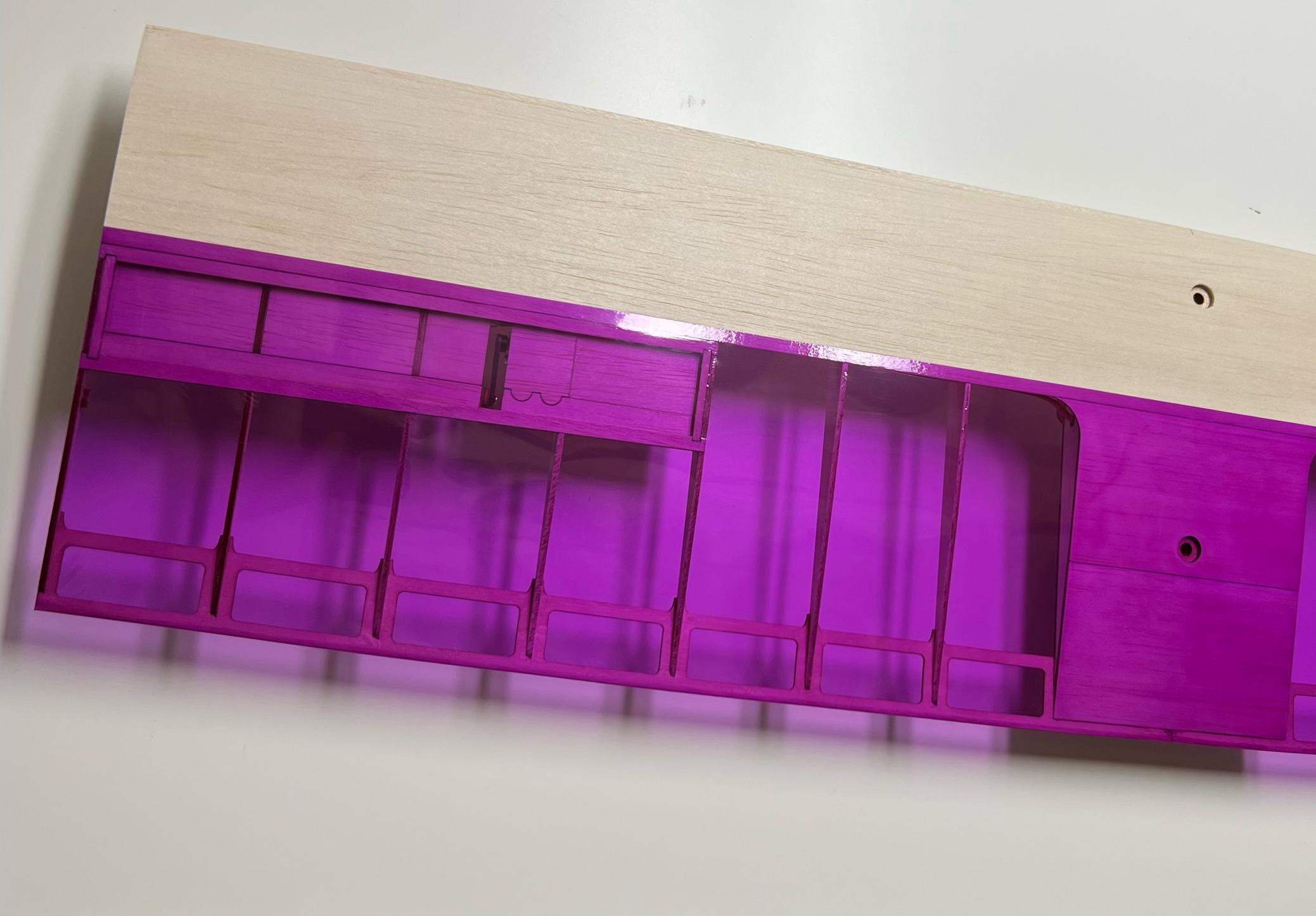

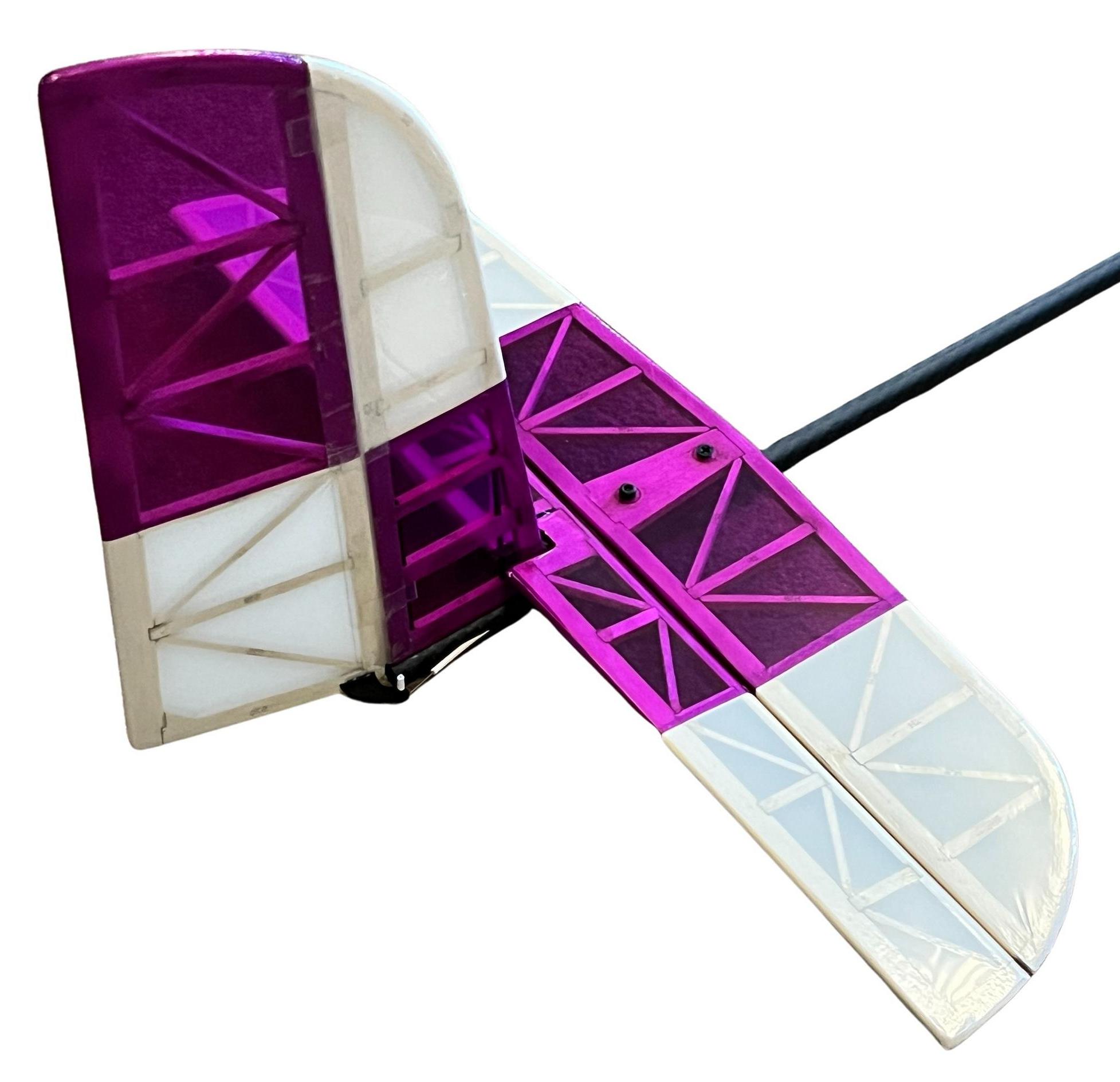

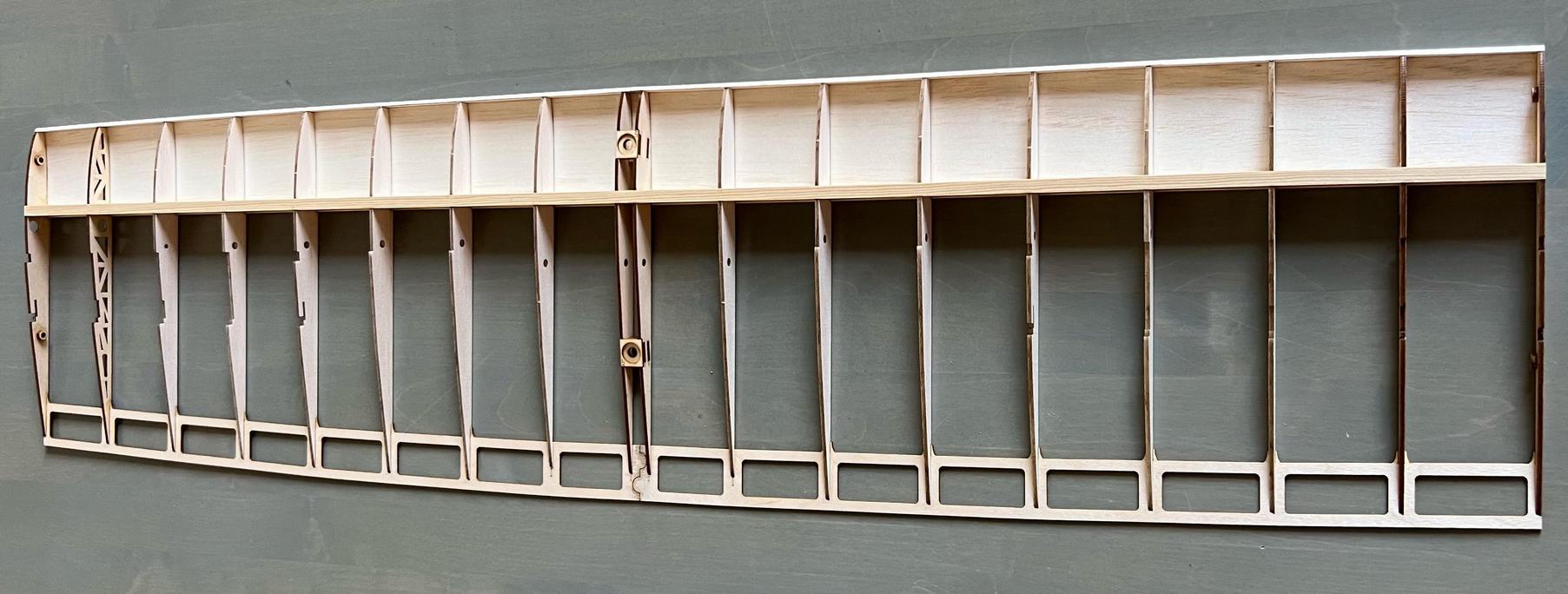

Construction Three-part partially sheeted D-Box wing with pine spars Two spoilers Tail boom made of wound CFRP tube Removable cross-tail in lattice construction
Technical data Wingspan: 1992 mm Length: approx. 1180 mm Wing area: 34.21 dm2 Take-off weight: from 440 g Profile: AG35 - AG38 Strak Spinner diameter: 30 mm Control functions: height, rudder, spoiler

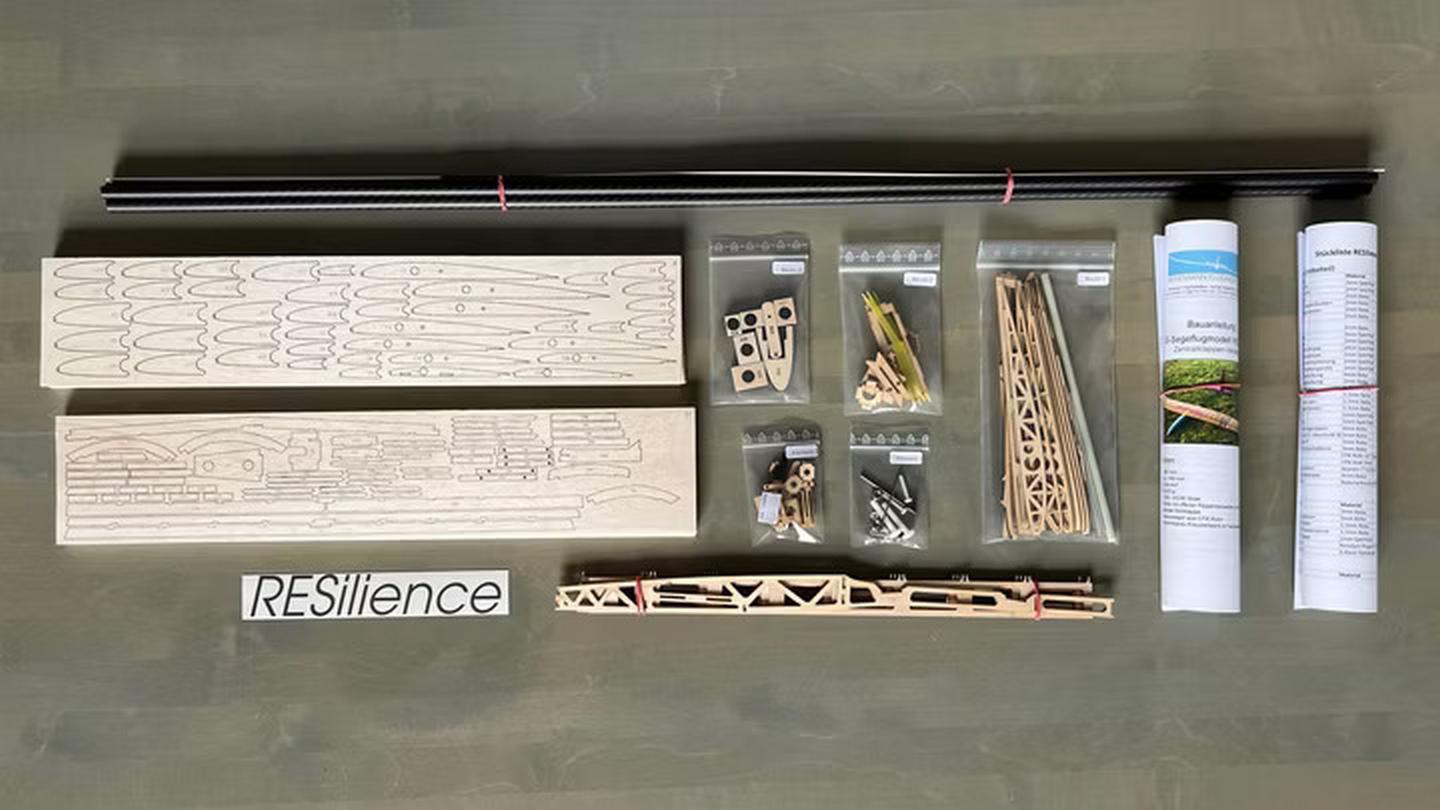

Kit Contents Balsa and plywood parts from precise laser-cut production Wound CFRP tube for tail boom All small parts required for the shell Detailed illustrated assembly instructions with parts list (printed English manual included) Full size A0 multi-coloured plan
Required accessories (not included) Adhesives and covering film (recommended: Oralight) RC equipment (servos, receiver, battery) Recommended servos: KST X06, CHA DS06, Hitec HS 40. D-Power AS-107BB or EMAX ES 9051 for spoiler

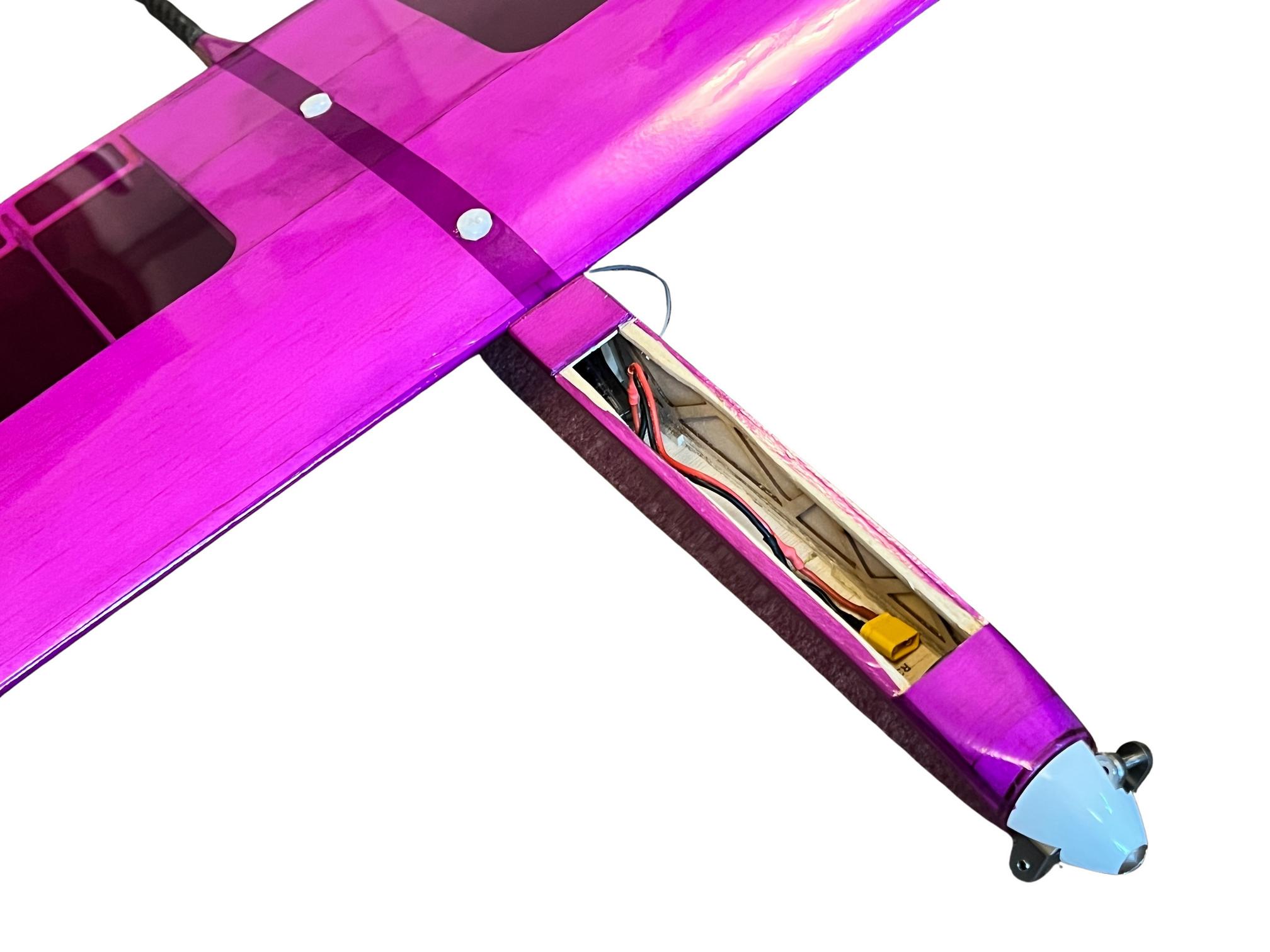

The fuselage will easily accept a 22mm diamwter ourrunner and we think can take 25mm non-rotating case motor like the ----

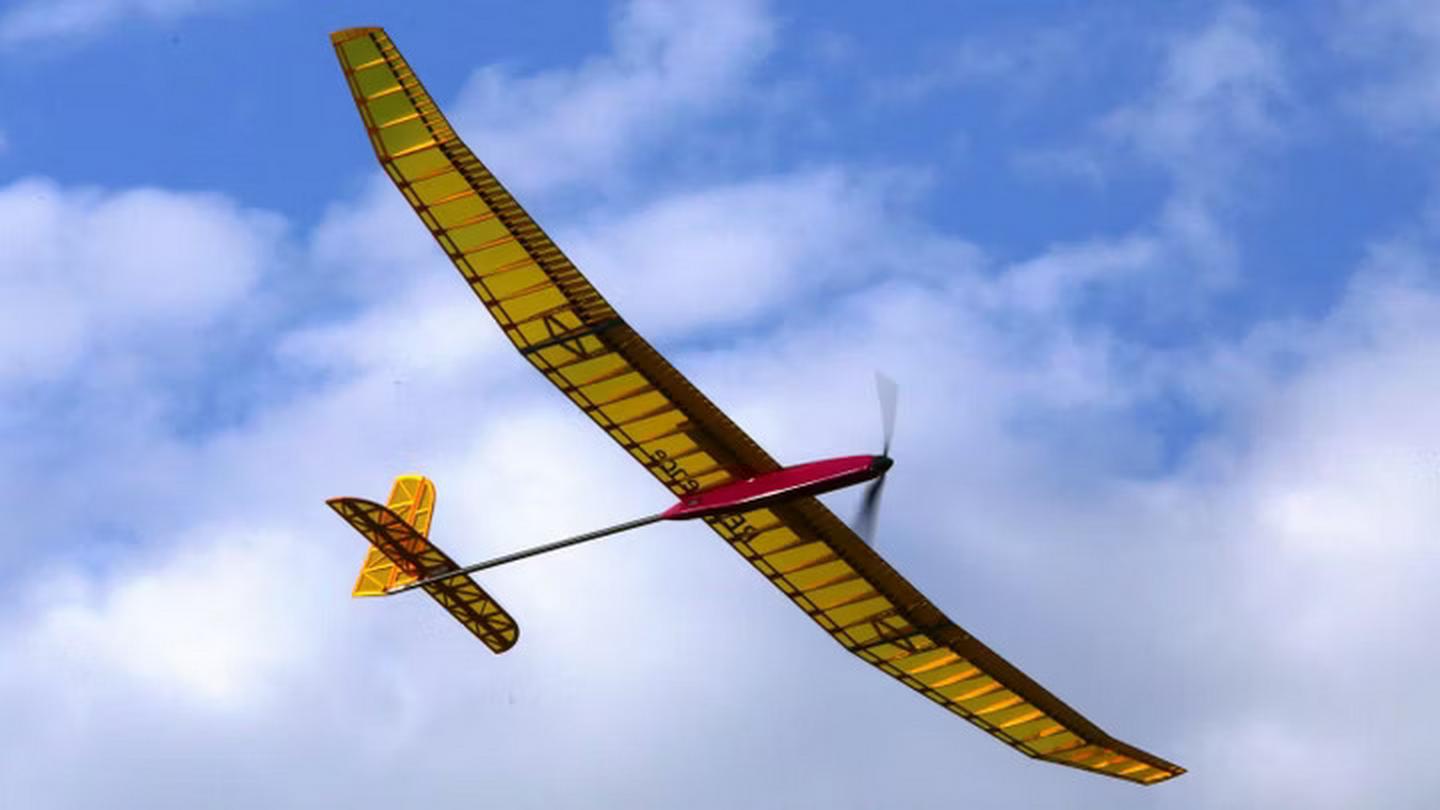

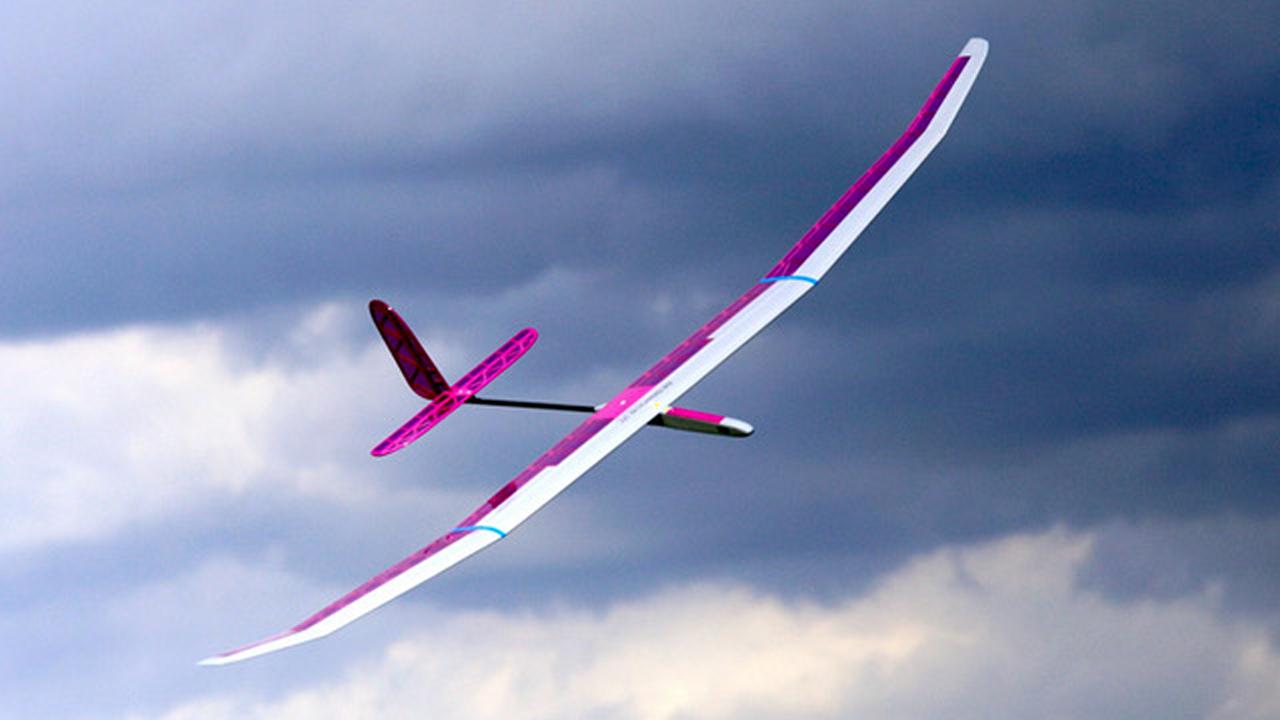

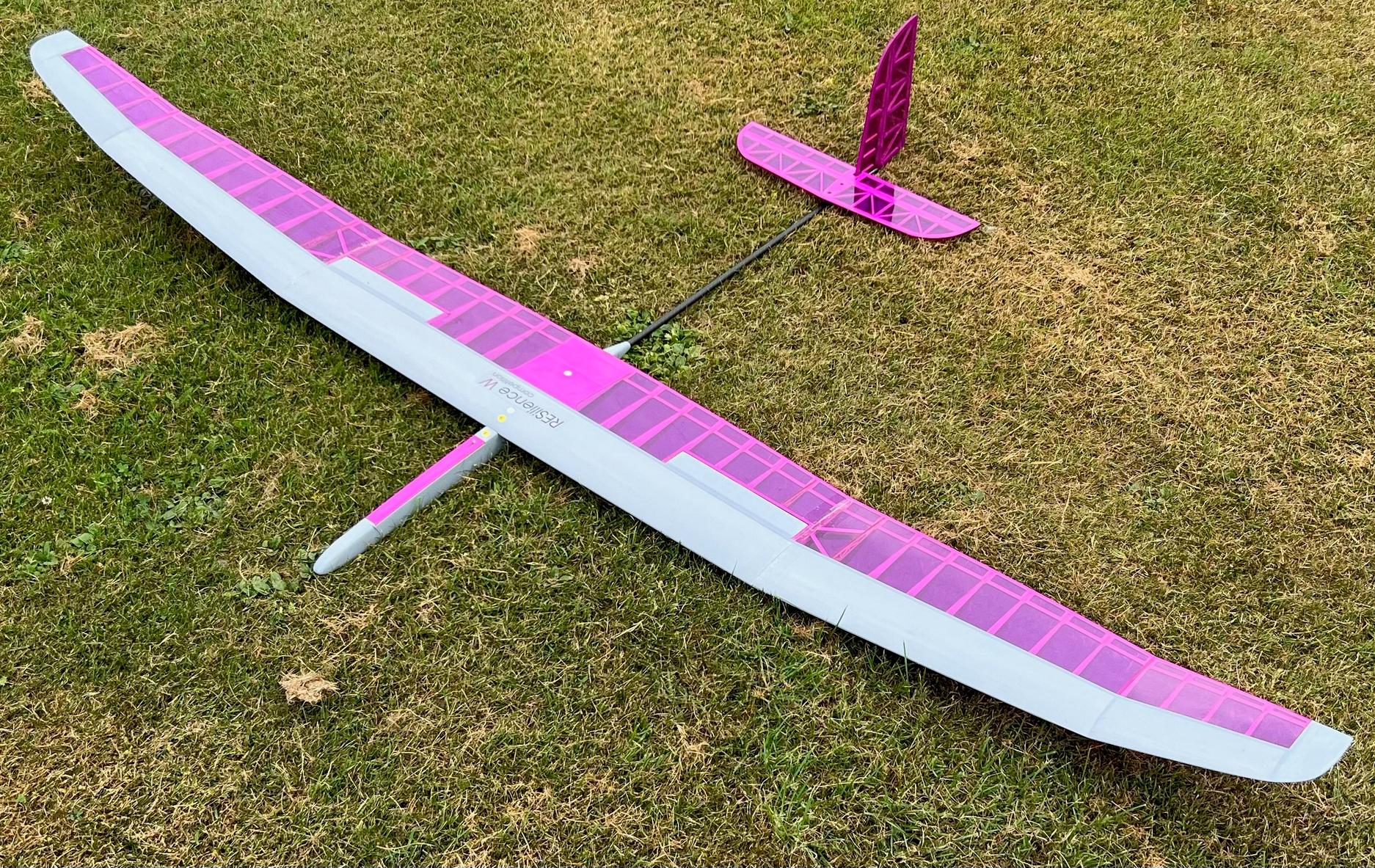

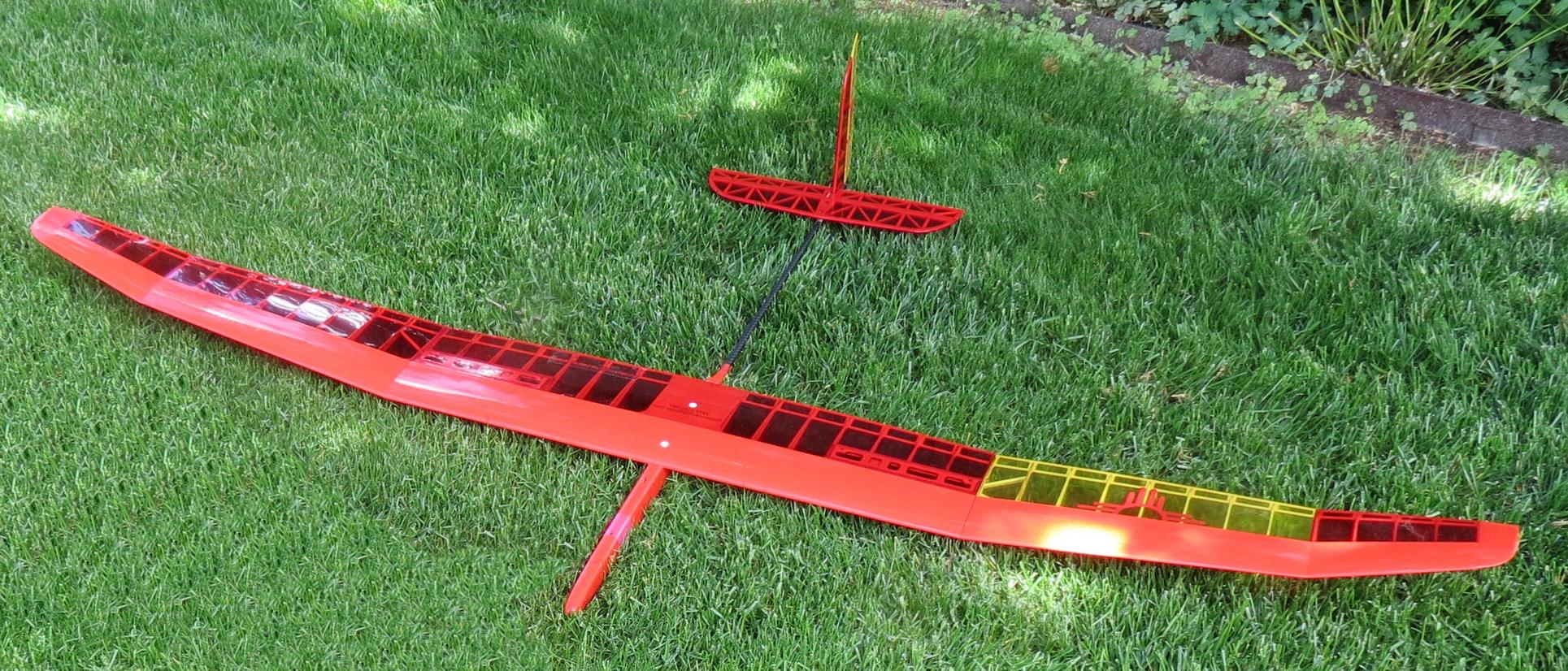

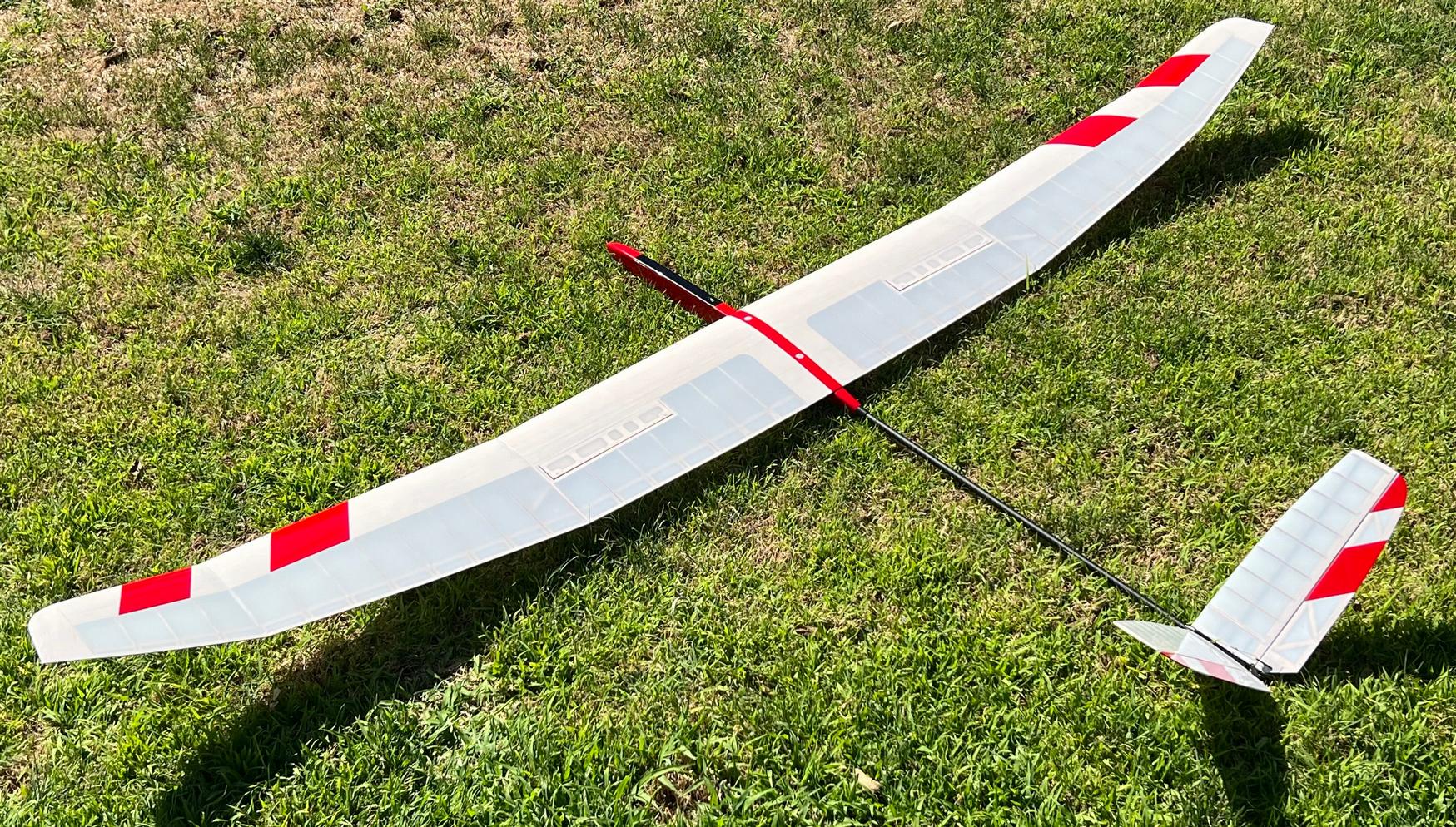

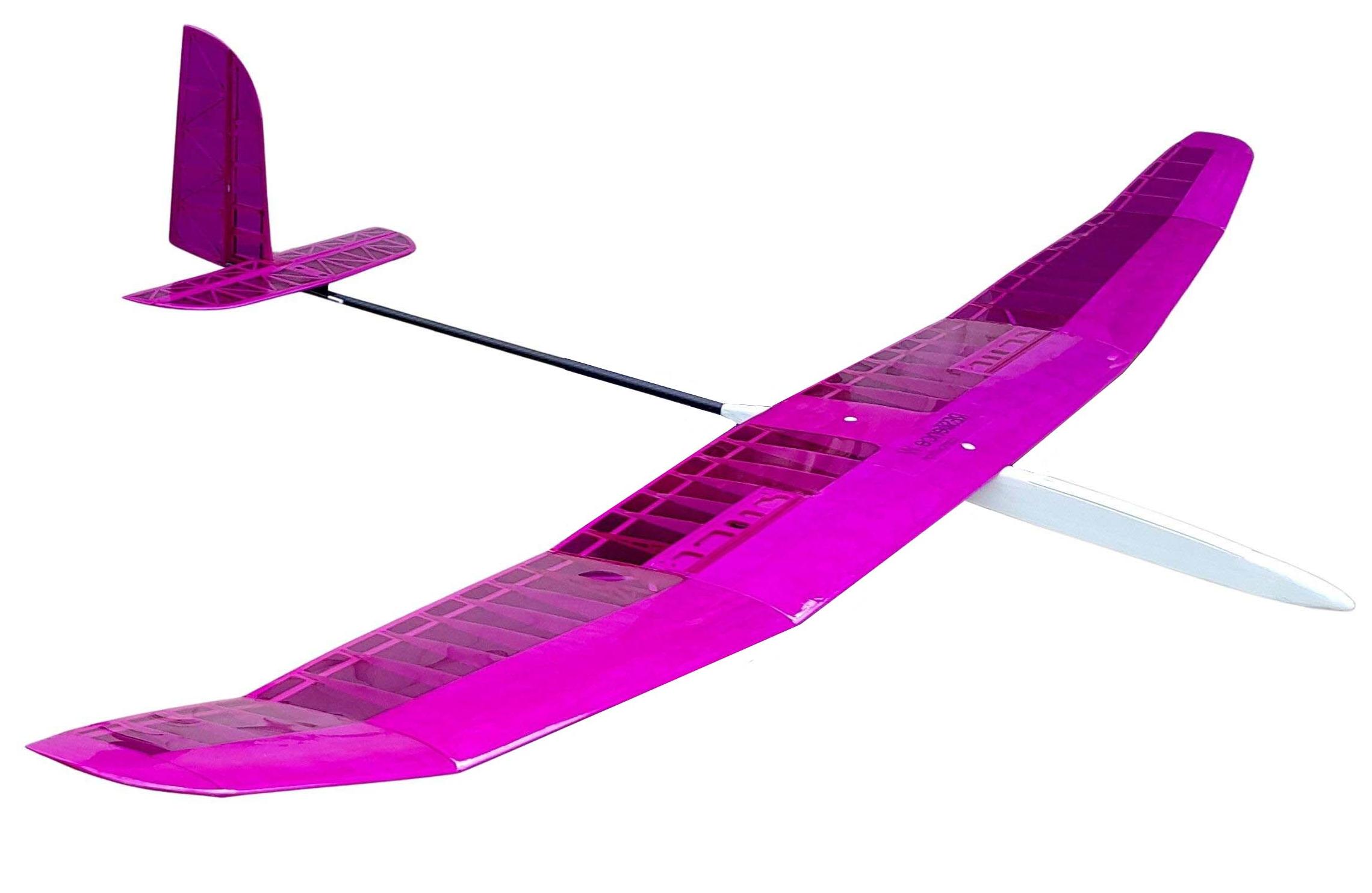

The RESilience Competition Elekro is designed as a competition and sport RES F5L electric glider. The model is set apart from other RES models by its good long-distance performance which allow it to fly quickly through sink. This and its very good thermal performance ensure the model is not only fun to sport fly, but ready to win competitions with ease.

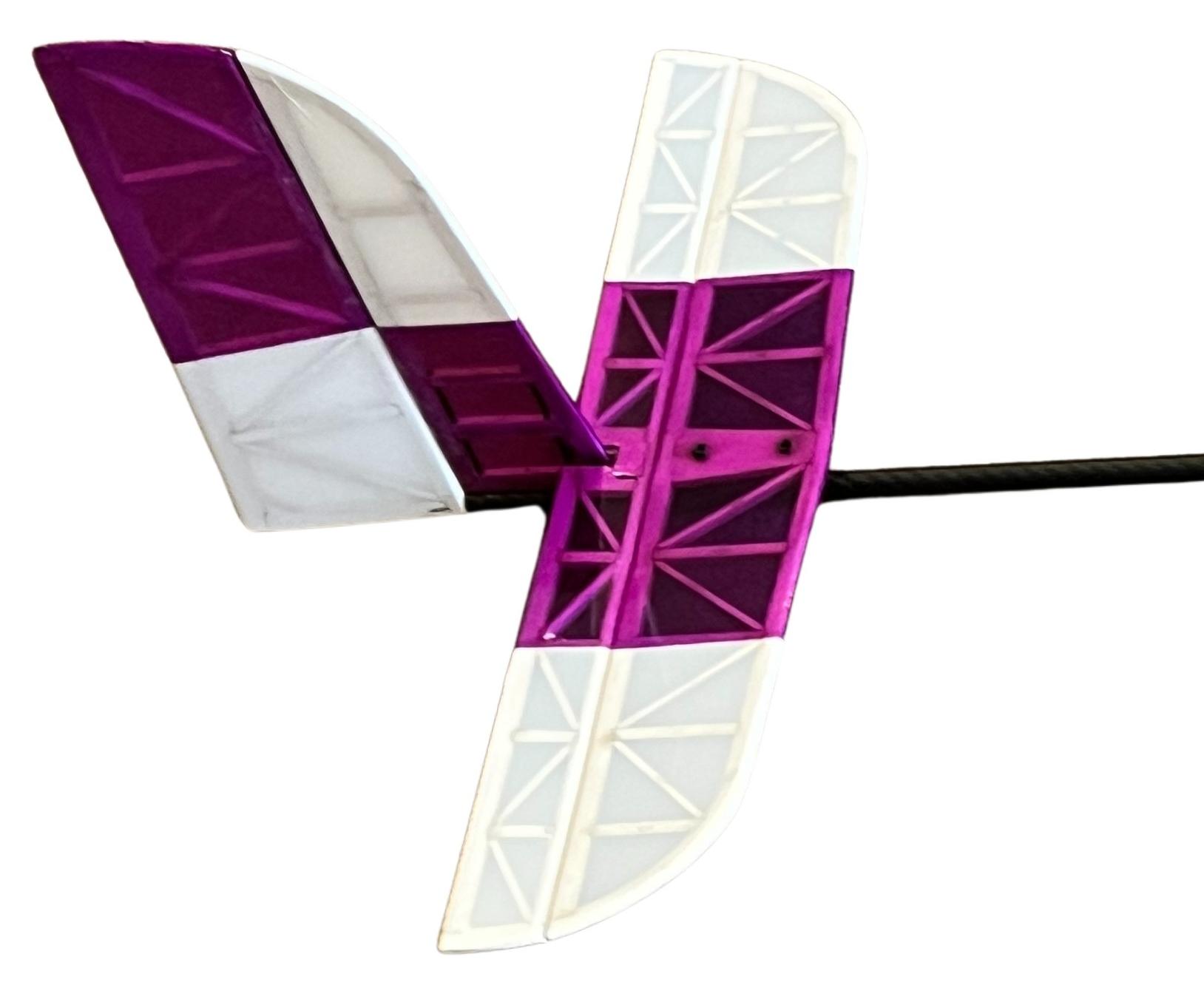

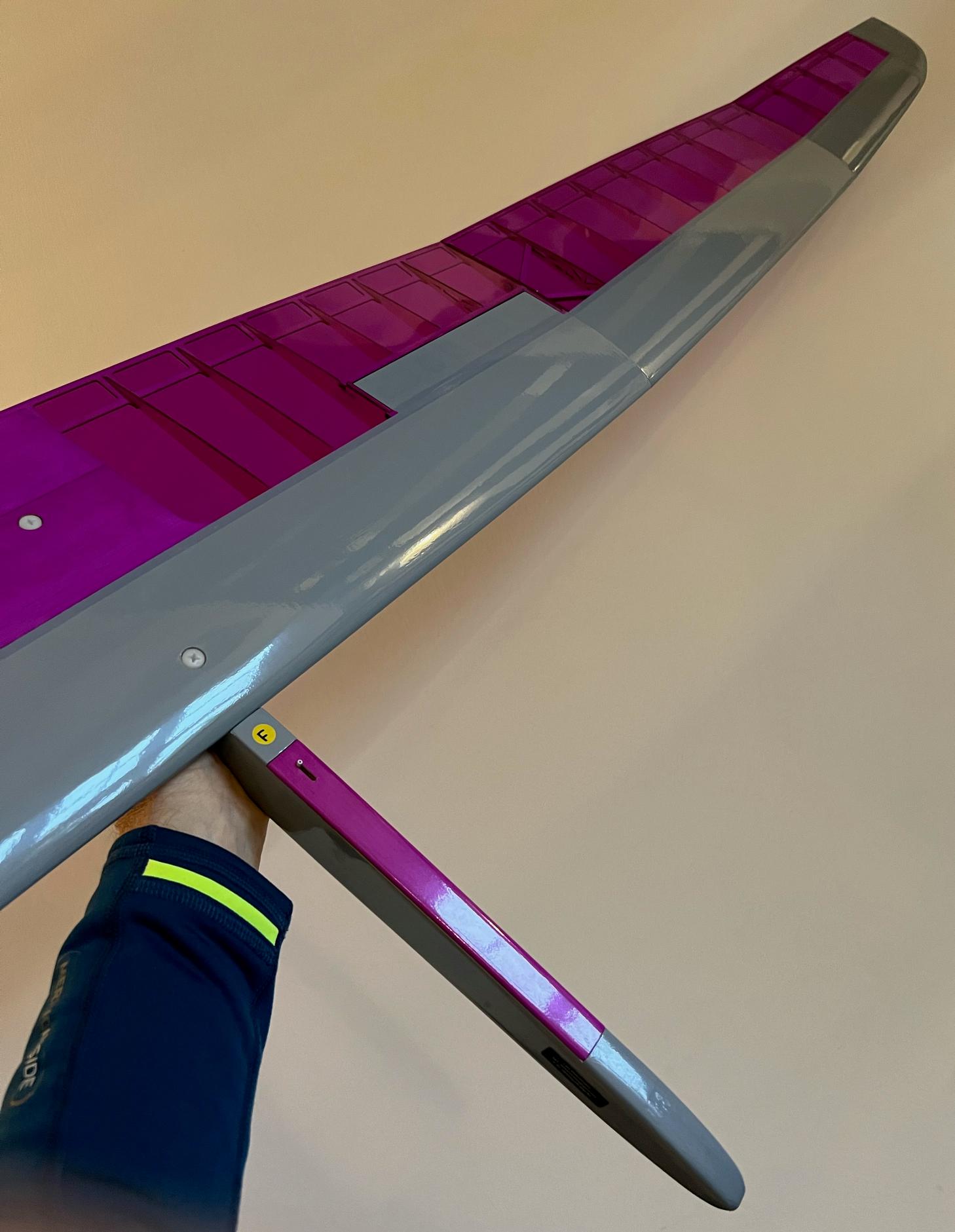

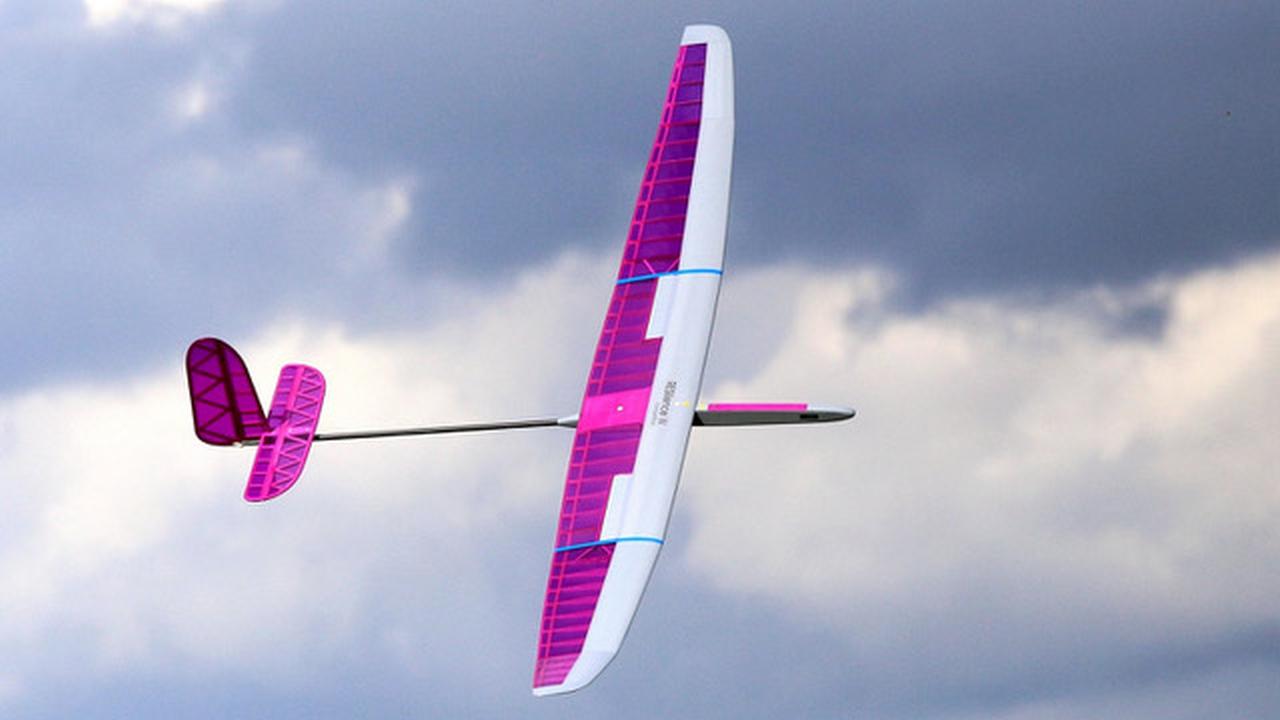

The heart of the model is an elliptical surface wing with a D-box, which increases the laminar flow over the wing, reducing drag. The middle section is equipped with a ballast box that allows ballasting with up to four rectangular ballast slugs. We recommend our custom ballast set as an accessory. The ballast box is located directly at the center of gravity position. This ensures that the center of gravity does not shift when ballasting. The low-drag fuselage, is tiny and very functional. The version we are stocking has an X tail.

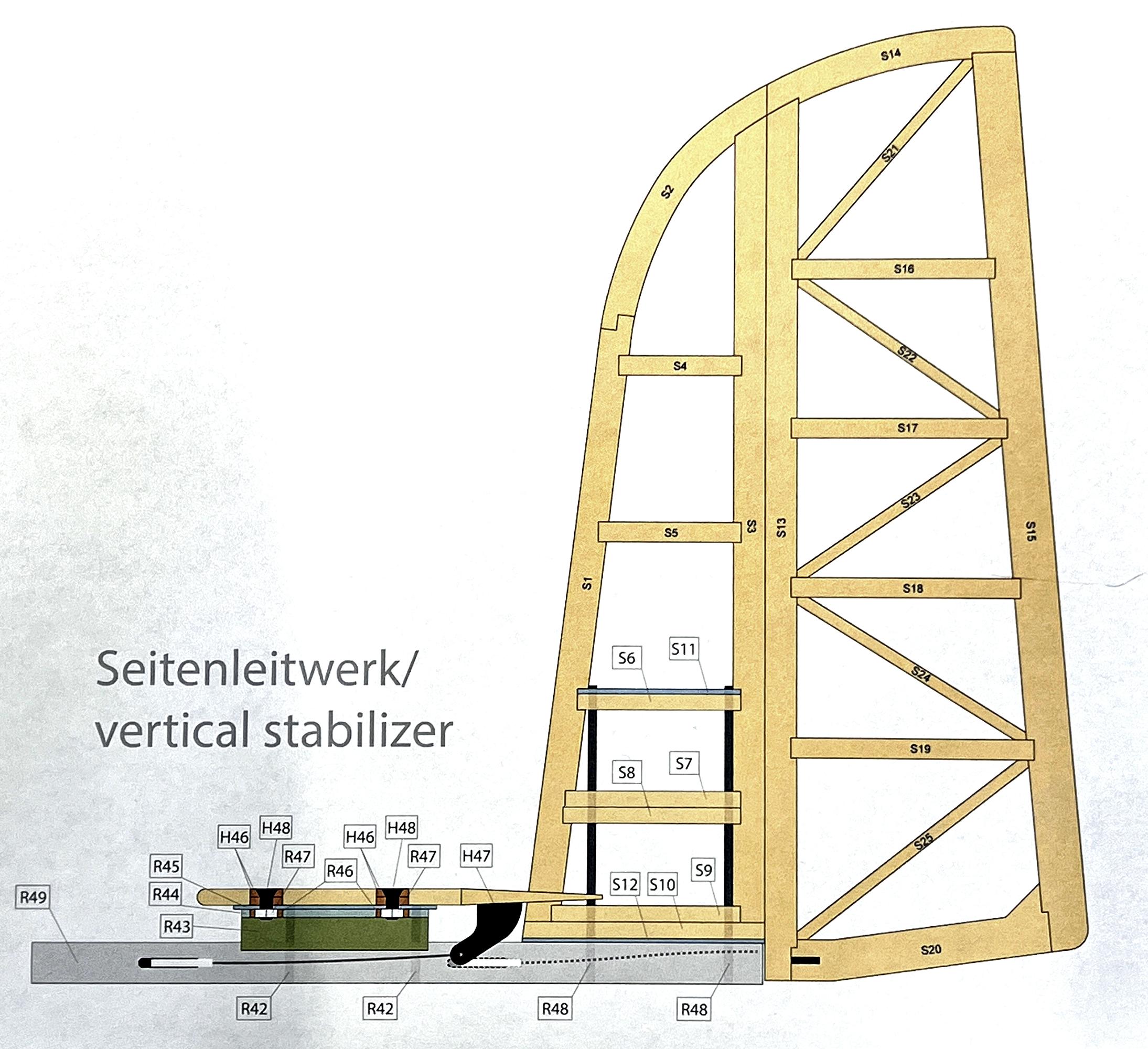

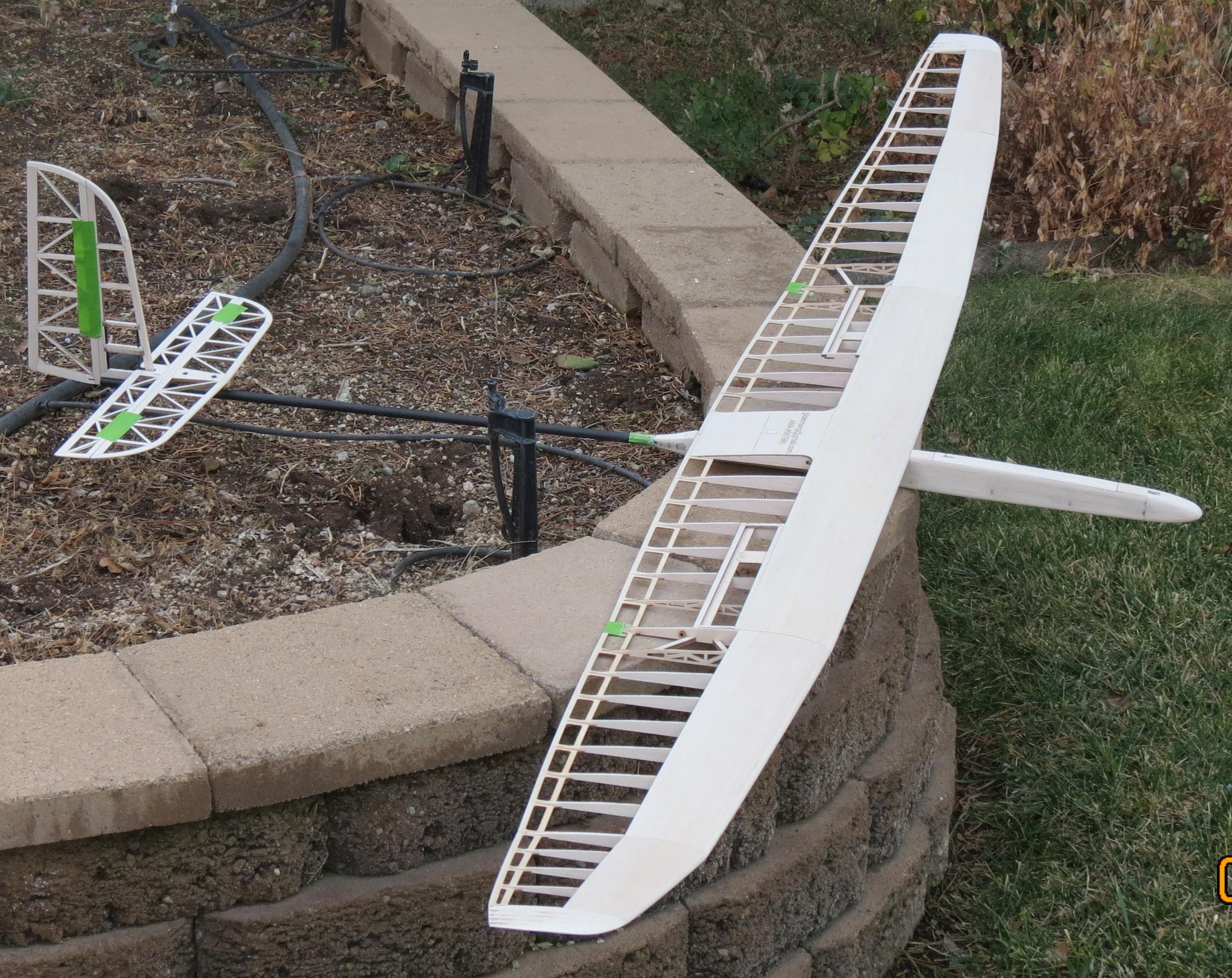

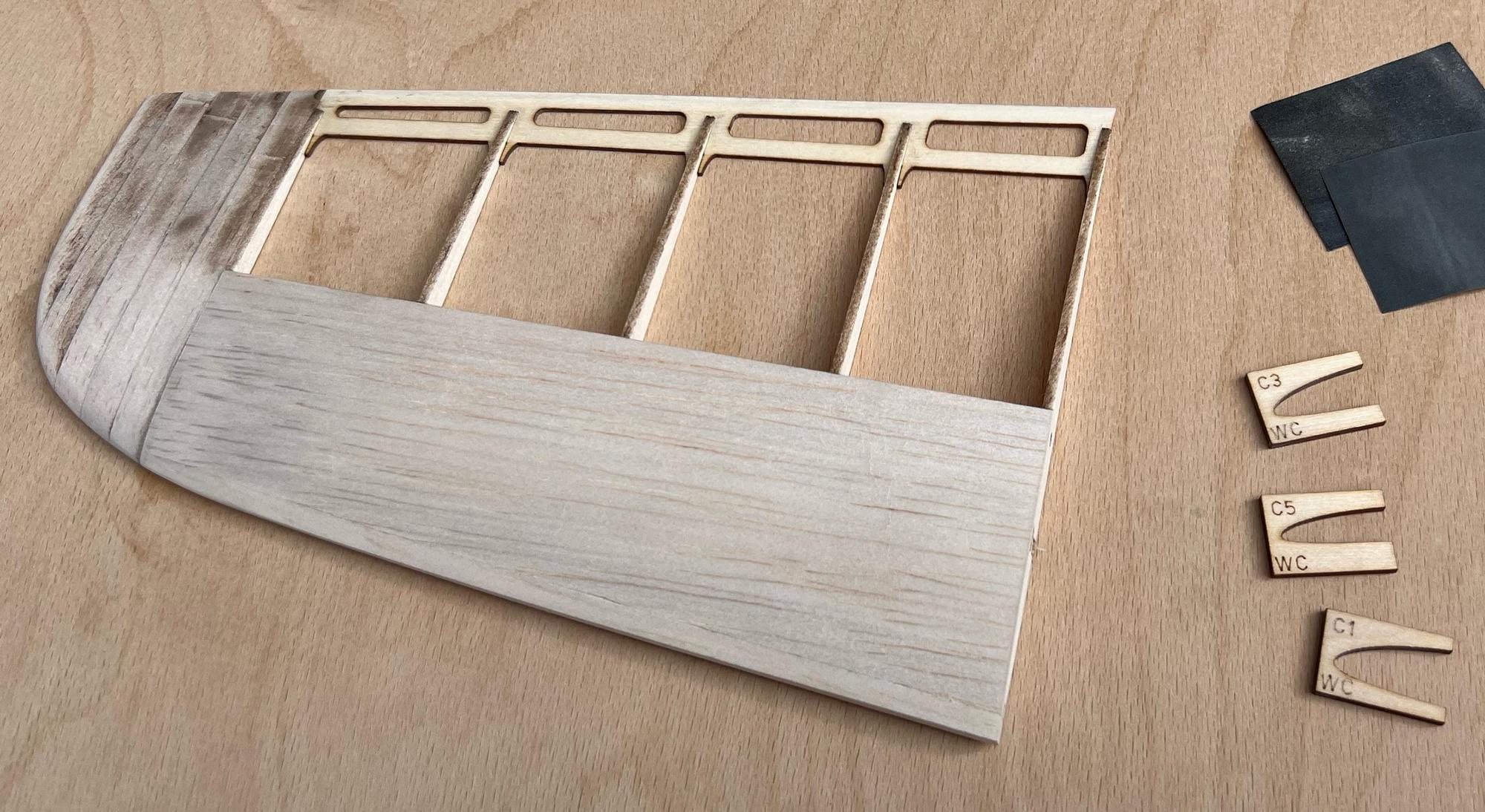

Construction Three-part partially sheeted D-Box wing with pine spars Two spoilers Tail boom made of wound CFRP tube Removable cross-tail in lattice construction
Technical data Wingspan: 1992 mm Length: approx. 1180 mm Wing area: 34.21 dm2 Take-off weight: from 440 g Profile: AG35 - AG38 Strak Spinner: 30 mm diameter Control functions: height, rudder, spoiler, throttle

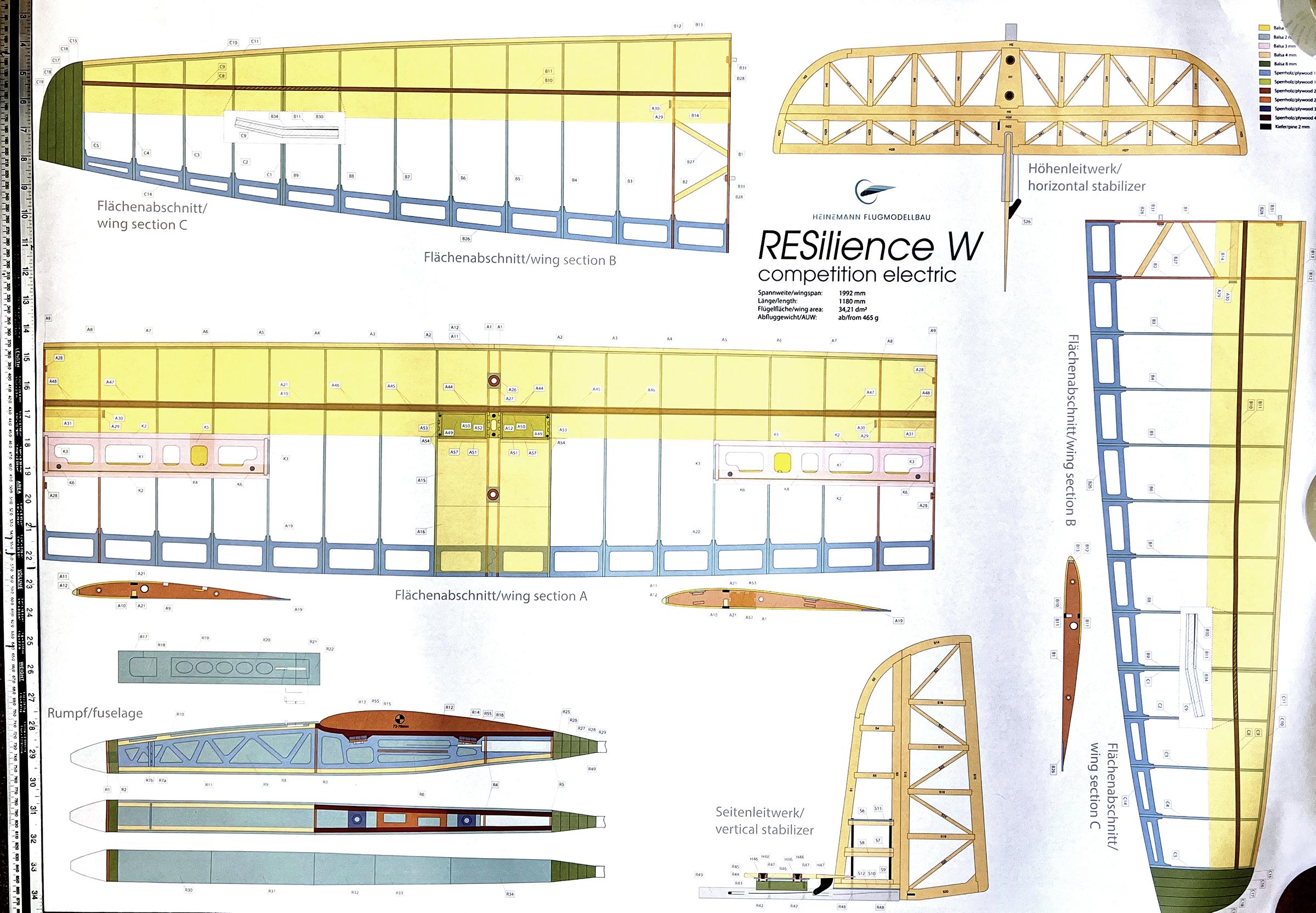

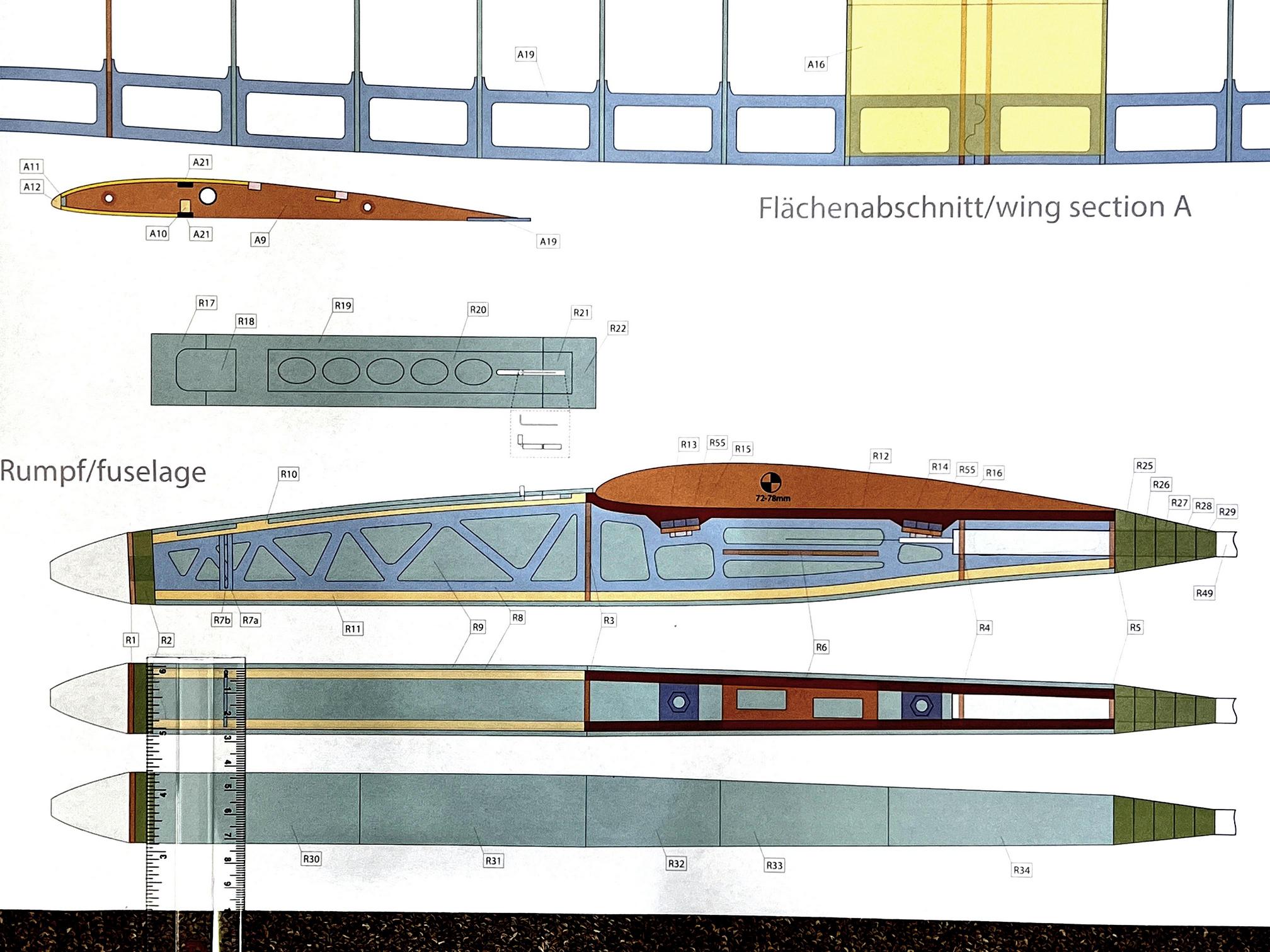

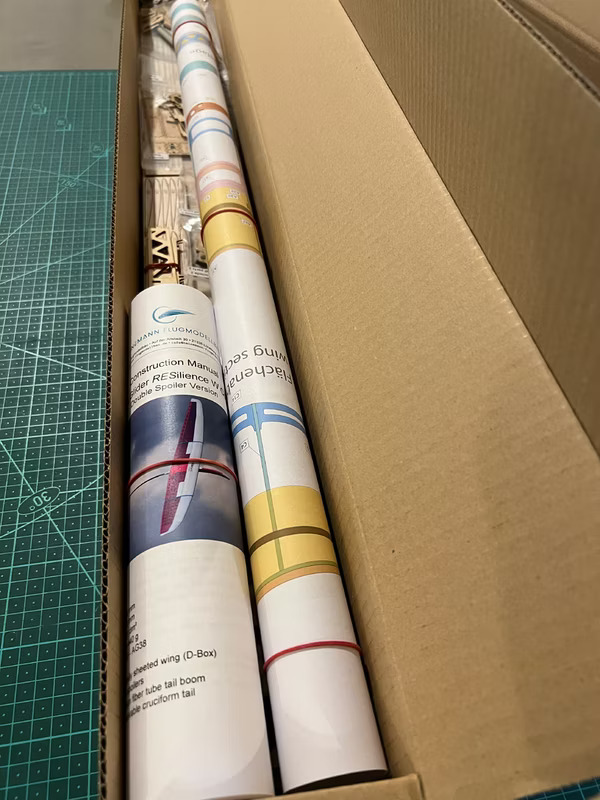

Kit Contents Balsa and plywood parts from precise laser-cut production Wound CFRP tube for tail boom All small parts required for the shell Detailed illustrated assembly instructions with parts list (English manual available) 1-to-1 plan DIN A0 multi-colored
Required accessories (not included) Adhesives and covering film (recommended: Oralight) RC equipment (servos, receiver, battery) Recommended servos: KST X06, CHA DS06, Hitec HS 40. D-Power AS-107BB or EMAX ES 9051 for spoiler Powertrain (motor, battery, ESC, prop, spinner)
