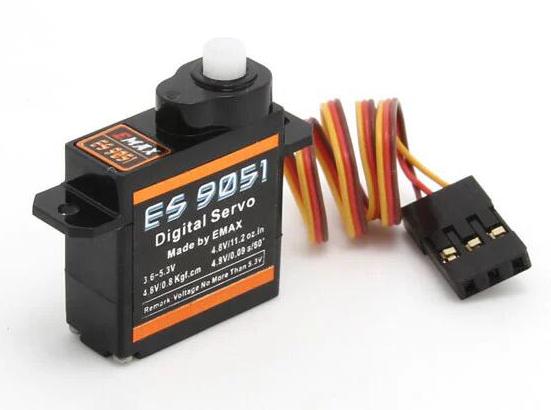

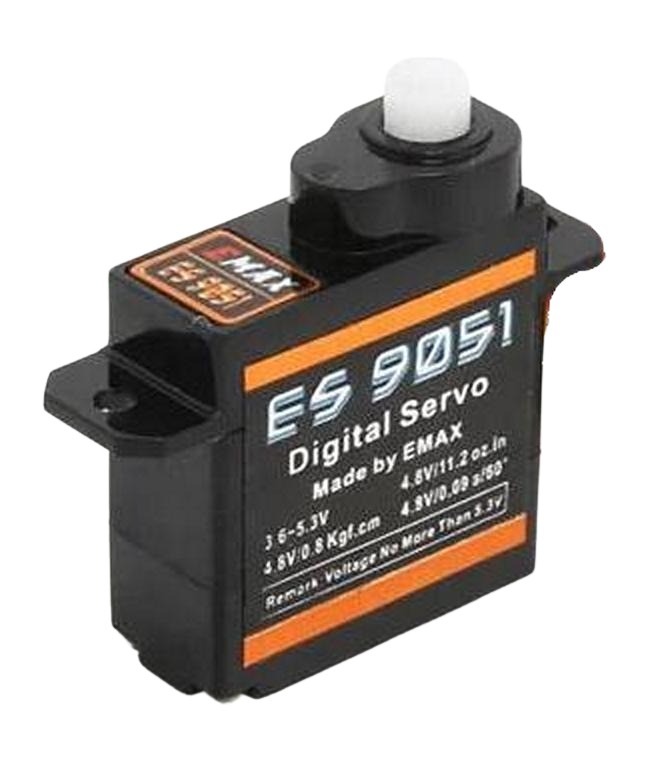

The Emax ES9051 is a well regarded budget servo that is ideal for small models.

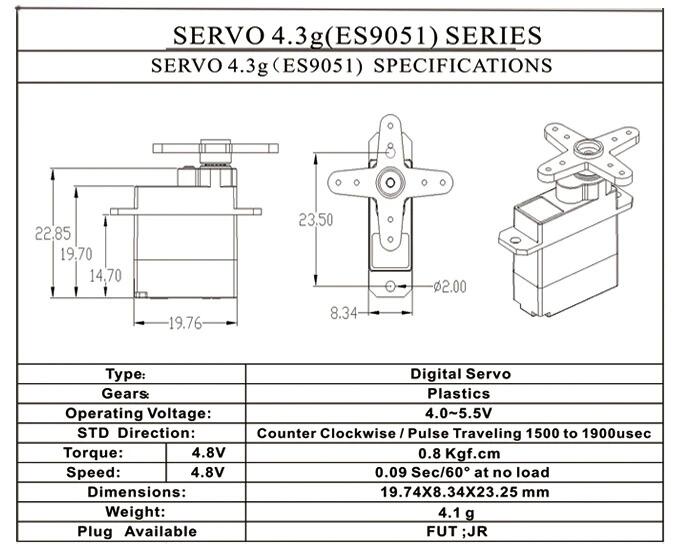

| Emax ES9051 Servo Specifications |
|---|
| Body dimensions |
20.0 mm wide x 8.3 mm thick x 20.0 mm high |
0.79" wide x 0.33" thick x 0.79" high |
| Max dimensions |
28.0 mm wide x 8.3 mm thick x 22.9 mm high |
1.10" wide x 0.33" thick x 0.90" high |
| Stall torque (4V) |
0.7 Kg.cm |
10 oz.in |
| Stall torque (4.8V) |
0.8 Kg.cm |
11 oz.in |
| Stall torque (5.5V) |
0.9 Kg.cm |
12 oz.in |
| Weight |
4.1 g |
0.14 oz |
| Lead length |
15 cm |
5.9 in |
| Operating speed (4V) |
0.1 sec/60° |
| Operating speed (4.8V) |
0.09 sec/60° |
| Operating speed (5.5V) |
0.08 sec/60° |
| Operating voltage |
4V to 5.5V |
| Operating temperature |
°C |
| Bearings |
|
| Gear material |
Nylon |
| Case material |
Plastic |
| Motor type |
Coreless |
| Working frequency |
Hz |
| Dead band/resolution |
µs |
| Pulse width for ± 60º |
µs |
| Digital |
Yes |
| Programmable |
No |
| Position feedback |
Potentiometer |
| Supplied accessories |
|
| Optional accessories |
|
