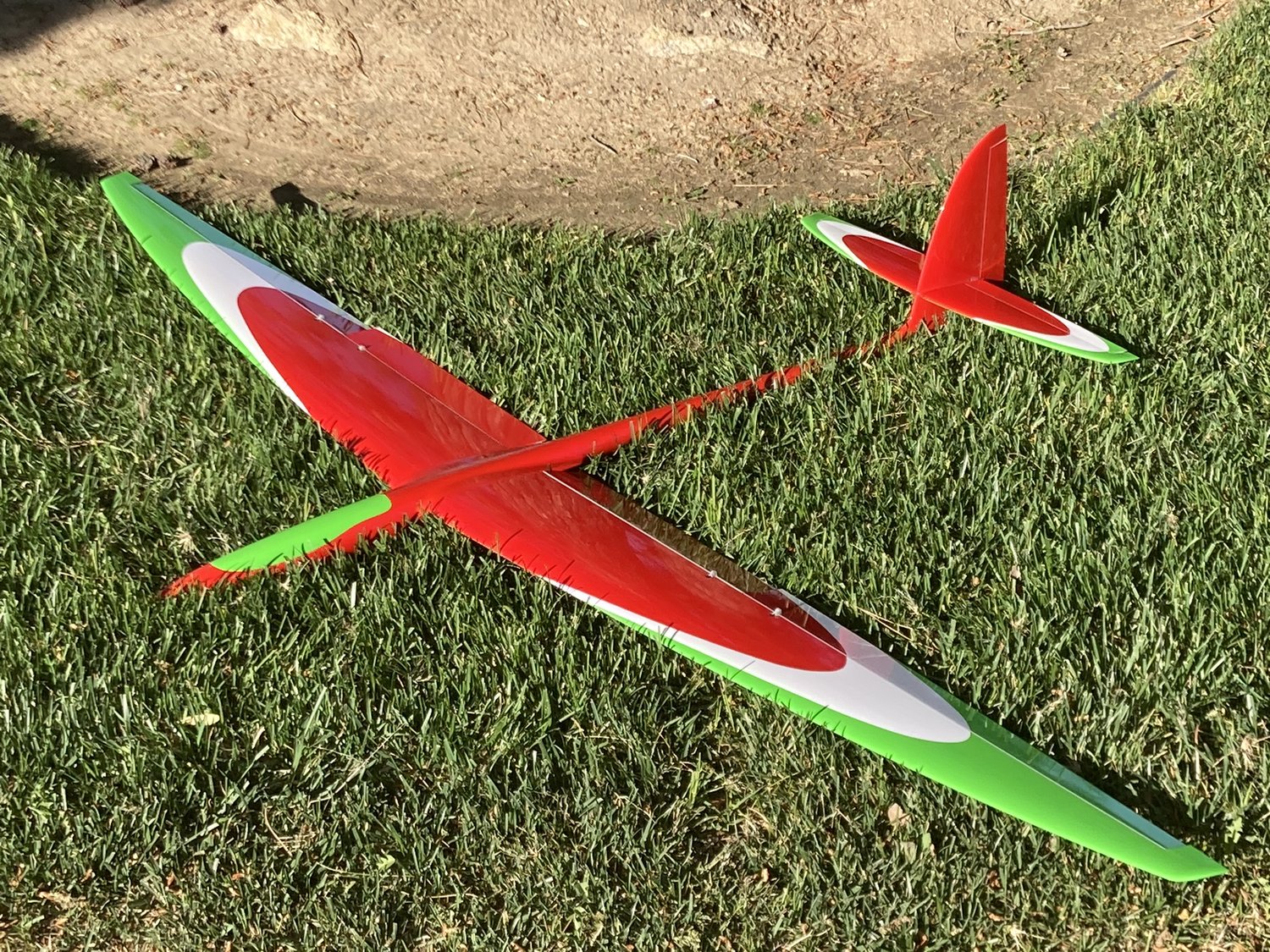

Typhoon Mk2 Toccata Electric 2m

The Typhoon Mk 2 "Toccata Electric" is the latest 2m hotliner from the James Hammond stable of high performance models. This electric glider gives scintillating performance, flying like a much larger model.

The Toccata Electric is based on the well regarded Toccata slope soarer which has been improved in both construction and aerodynamics. The basic dimensions and curves that distinguish the model and have made it a classic remain.

James Hammond's Aeroic company builds these models to a very high standard. The strength and surface finish are excellent. The reasonably complete accessory pack includes a full wiring harness and a 32mm firewall. Note the fuselage nose has not been removed to give the customer maximum flexibility to the size of the motor installed.

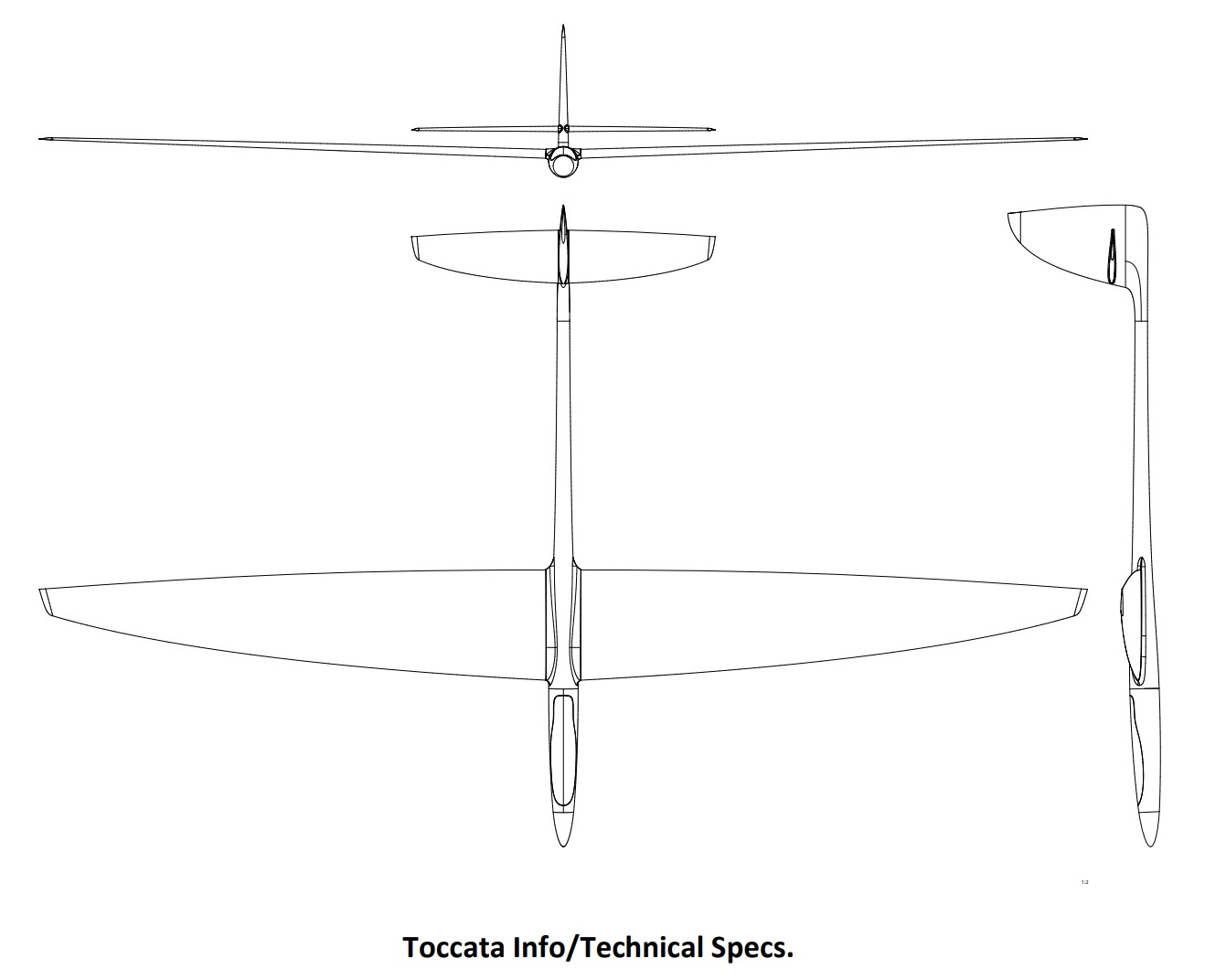

Toccata Electric 2m Specifications
Wing span	2.00 m	79 in
Wing area	30.6 dm2	474 sq in
Length	95 cm	37.4 in
Flying weight from	1900 g	67.0 oz
Wing loading	62.1 g/dm	20.3 oz/sq ft
Aspect ratio	13.1
Wing airfoil	JH817
EDA (dihedral)	1.0º
Spinner Diameter	32 mm

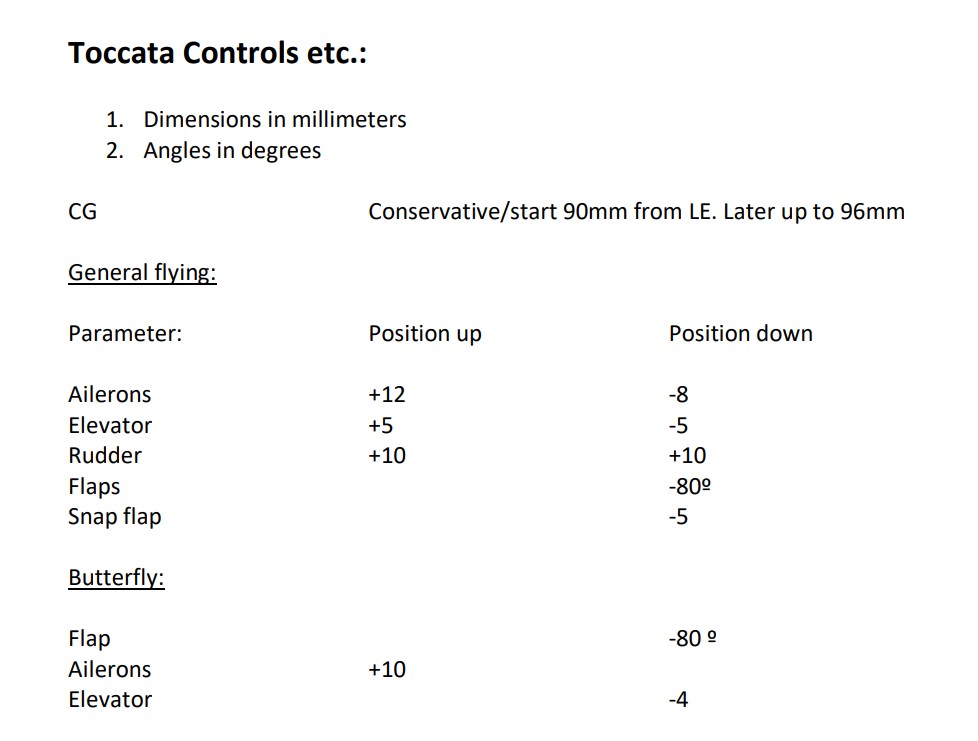

Centre of Gravity	90-95 mm from wing leading edge
Controls	Ailerons, flaps, rudder, elevator

Recommended Servos
Elevator (8mm)	KST HS08A, KST HS08B, KST X08H Plus, KST X08 Plus, KST A08H, KST A08, KST X08H, KST X08, MKS HS75, MKS HS75H
Flap (8-9mm)	CHA DS09, CHA HV85H, KST HS08A, KST HS08B, KST X08H Plus, KST X08 Plus, KST A08H, KST A08, KST X08H, KST X08, MKS HS75, MKS HS75H
Aileron (8mm)	KST HS08A, KST HS08B, KST X08H Plus, KST X08 Plus, KST A08H, KST A08, KST X08H, KST X08, MKS HS75, MKS HS75H

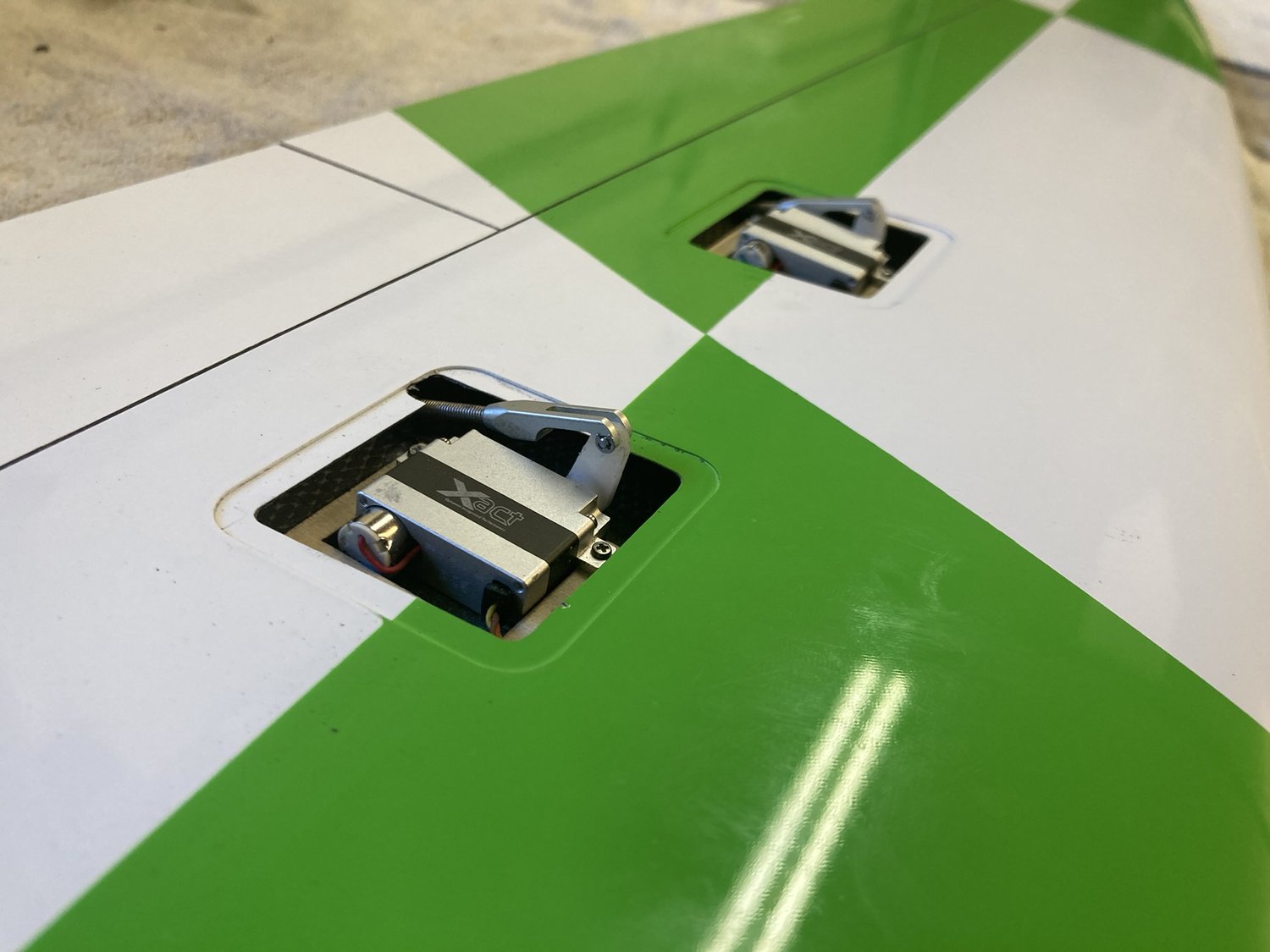

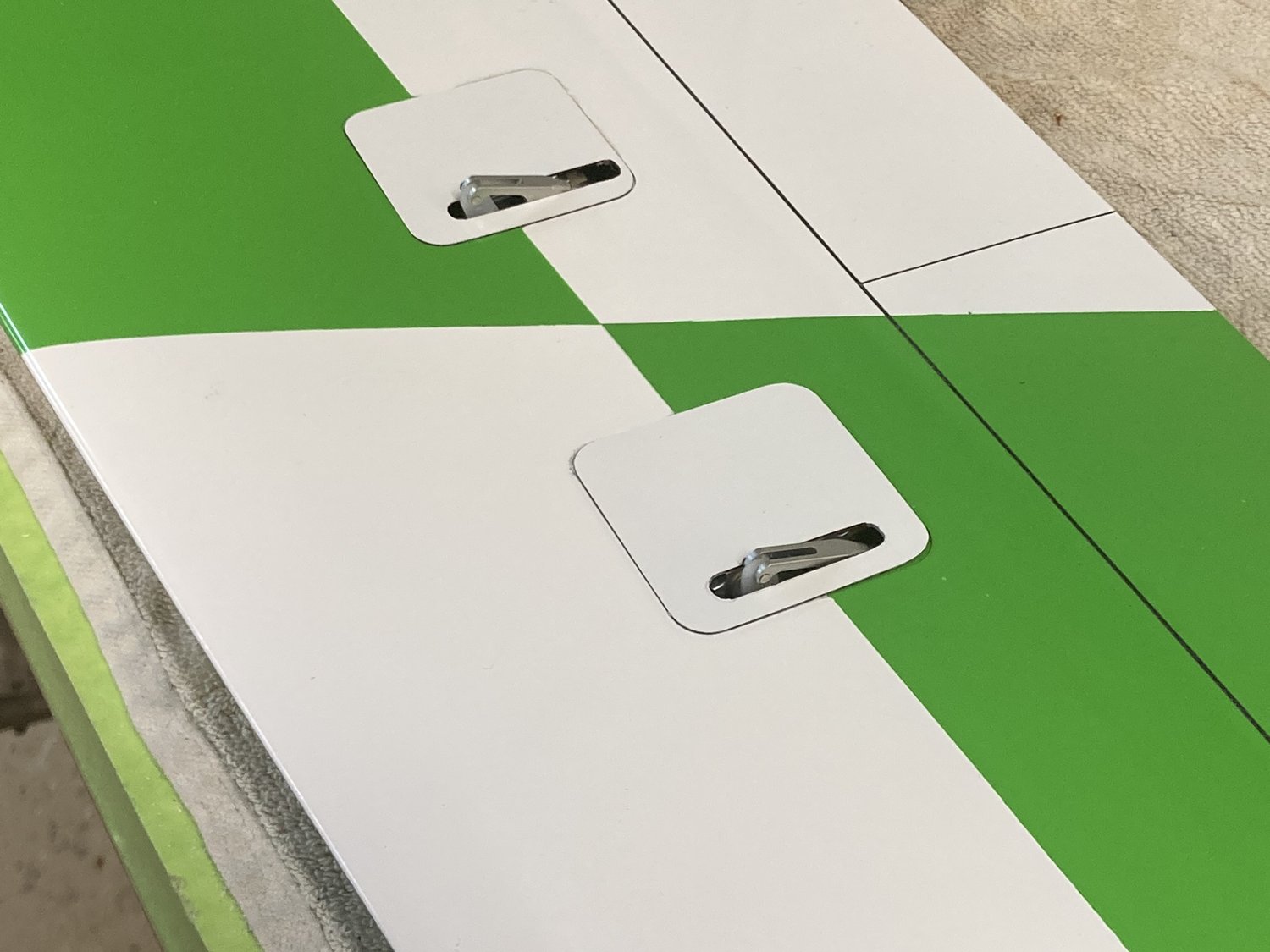

The wing is very thin and 8 mm servos are required for the ailerons, and 8mm or 9 mm for the flaps.

Toccata Electric 2m Typical Weights
Fuselage inc pushrods	380 g	13.4 oz
Left wing	405 g	14.3 oz
Right wing	402 g	14.2 oz
Tailplane	66 g	2.3 oz

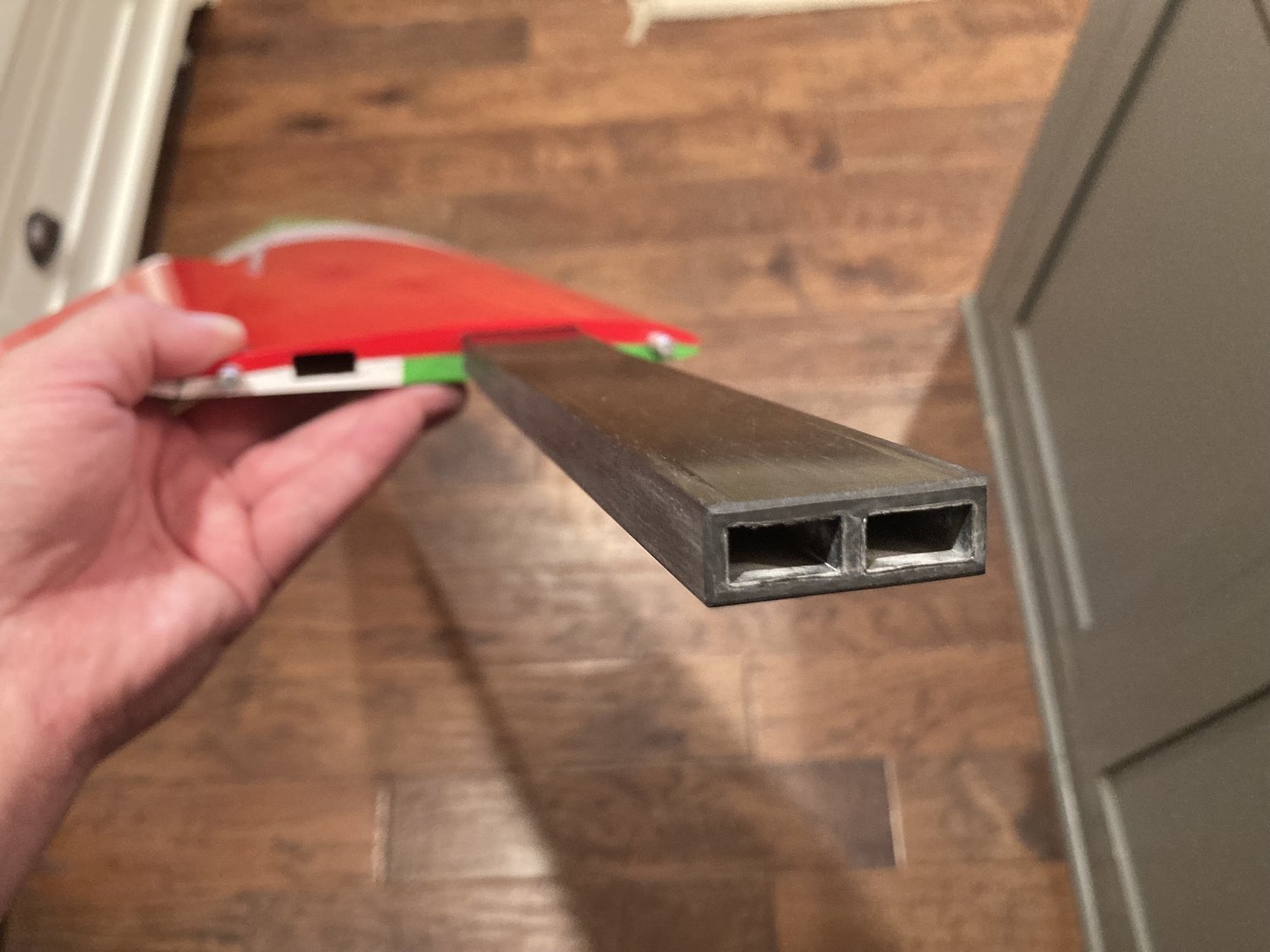

Wing joiner	128 g	4.5 oz
Ballast tube	40 g	1.4 oz
Accessories	29 g	1.0 oz
Total structure	1450 g	51.1 oz

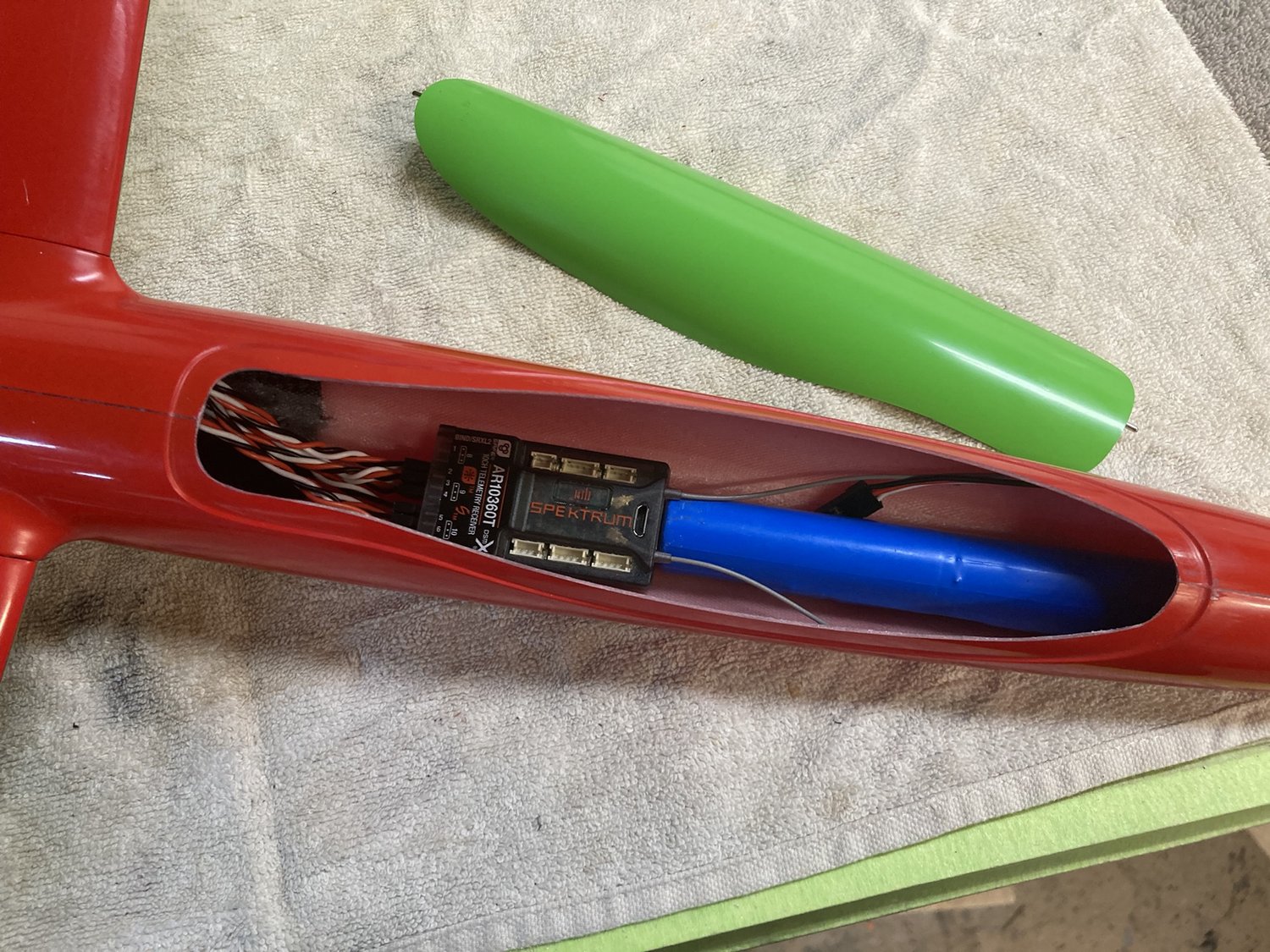

Wiring	30 g	1.1 oz
Receiver	10 g	0.4 oz
Tail servos (2)	16 g	0.6 oz
Wing servos (4)	32 g	1.1 oz
Speed control	35 g	1.2 oz
Motor	140 g	4.9 oz
Prop & spinner	25 g	0.9 oz
Battery	162 g	5.7 oz
Flying weight from	1900 g	67.0 oz

Recommended Powertrain
xxx

The wing is very thin and 8 mm servos are required for the ailerons, and 8mm or 9 mm for the flaps.
