Mini Dart 2 1m DLG

Product Code: MINI-DART2
 (46 reviews)

Price: $186.34

3 in stock
Add to basket to see shipping cost

Available Options

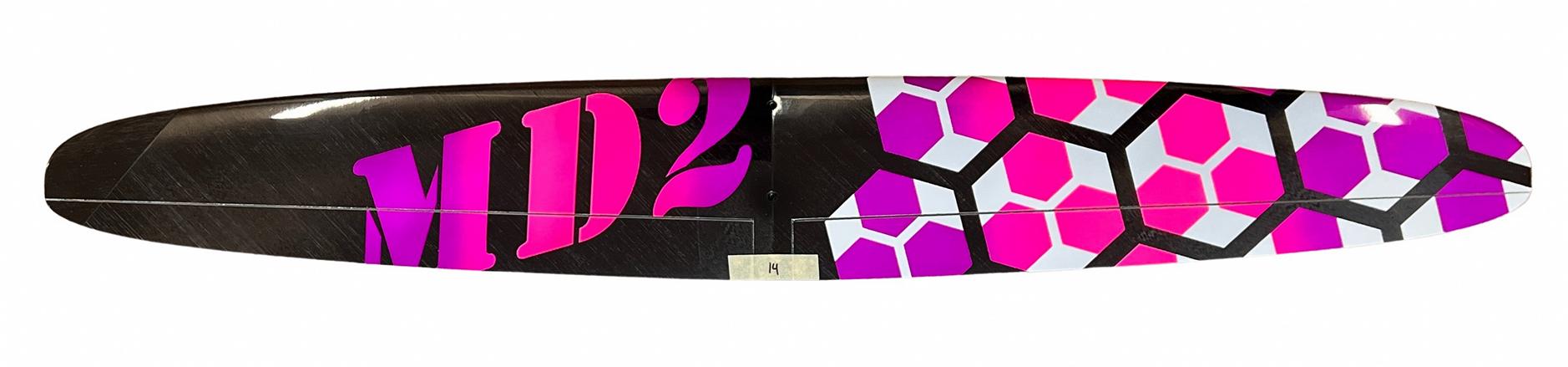

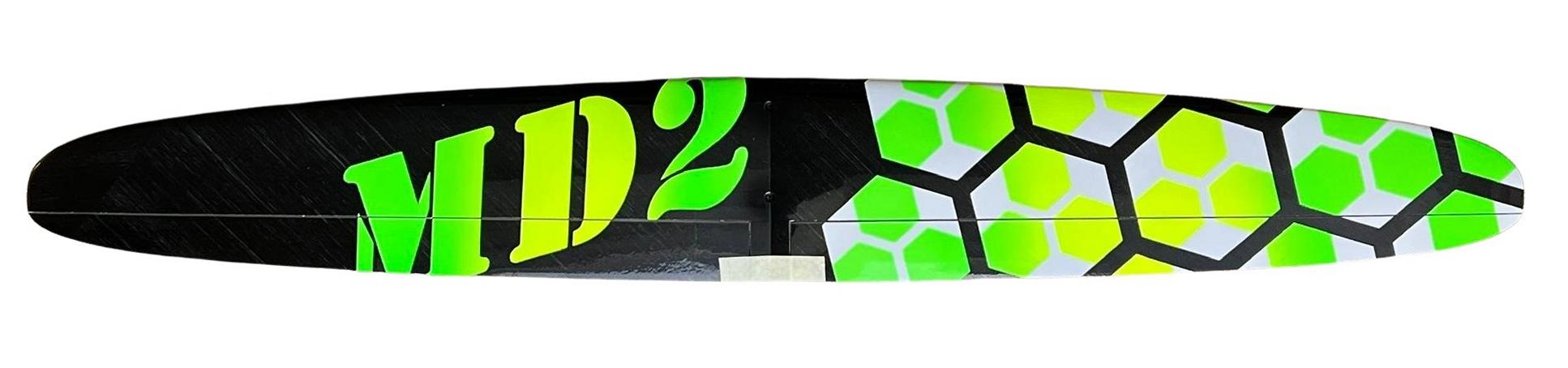

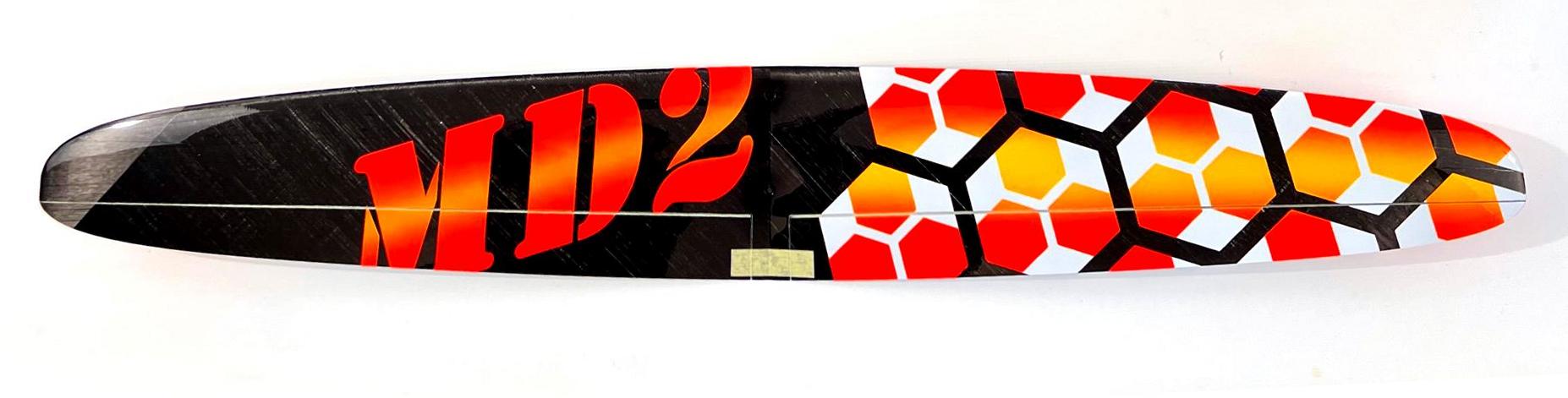

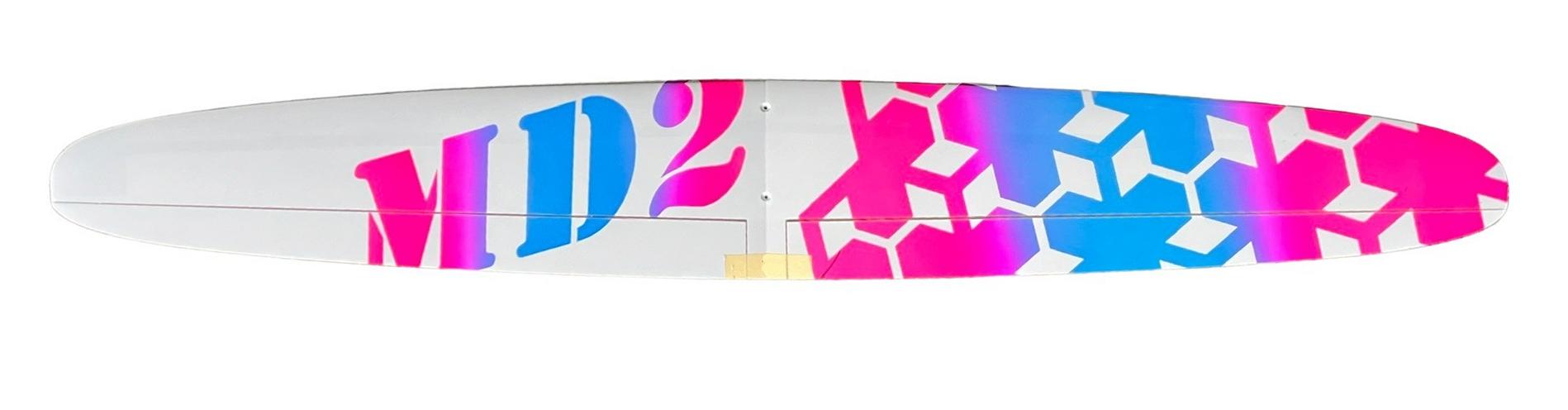

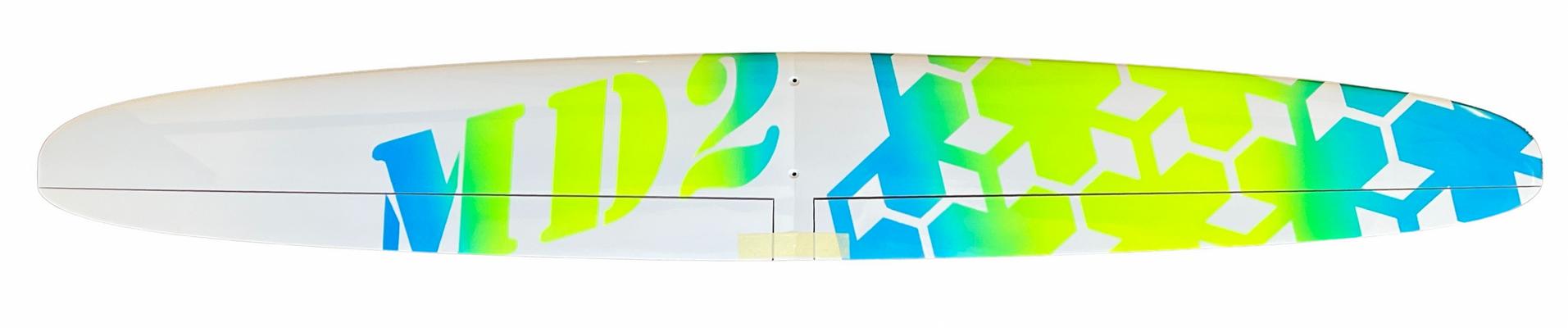

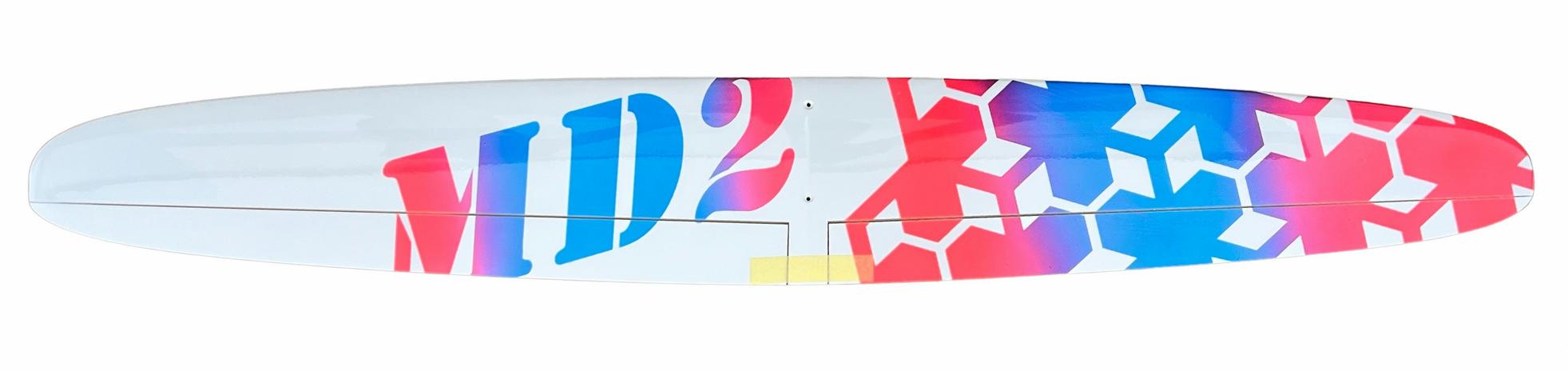

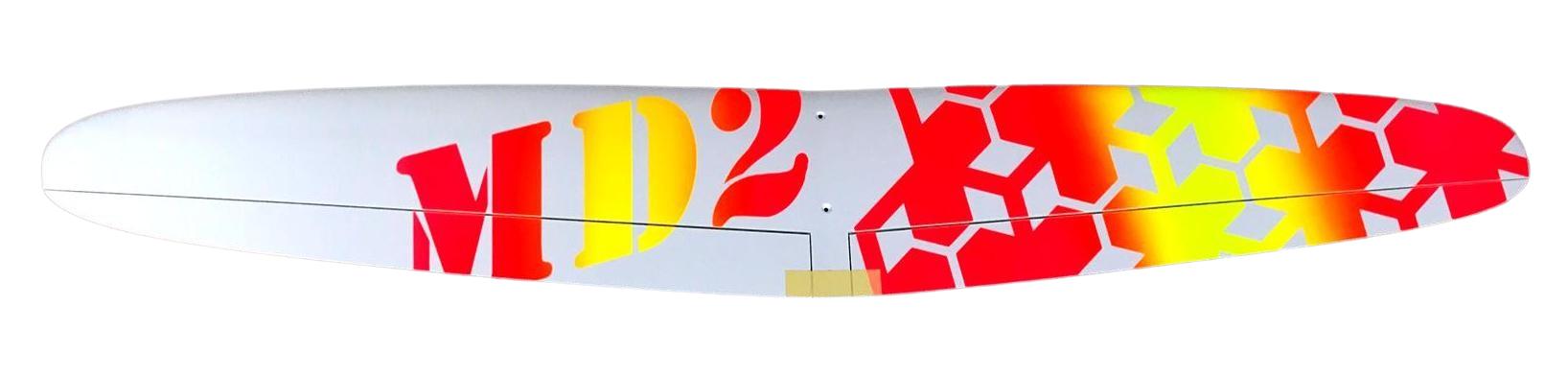

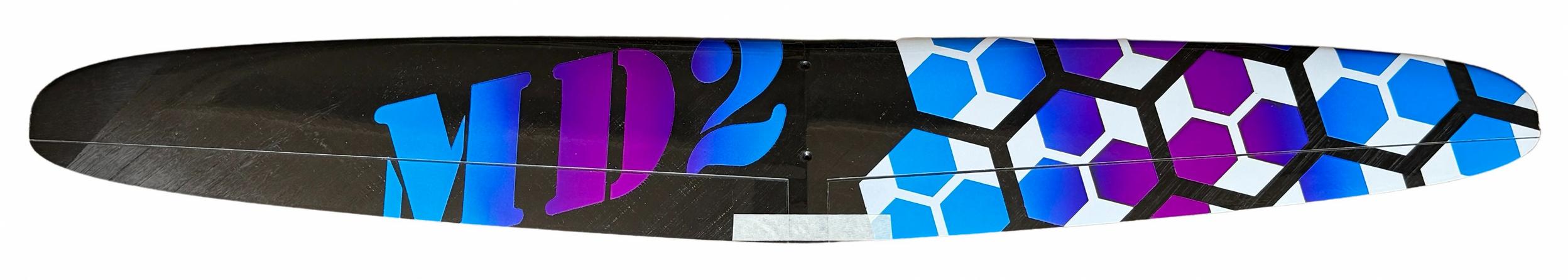

* Layup, Colour (design ID):
* Wing & Tail Bags:
Quantity

Description

The Mini Dart 2 is a lovely, very competitively priced all molded 1m DLG. The quality of the construction, attention to detail and surface finish are all very good, and the flying performance is excellent.

The wing and tail are all molded from glass or spread carbon in an epoxy matrix over a solid XPS foam core. The glass layup version is more than adequate for all users but the carbon layup version is a little stronger, more rigid, and lighter, justifying the 47% higher price for many customers.

The 2.4GHz-friendly fuselage (also made from carbon or glass, to match the wing) is a one piece design with a very good sized nose and a slip-on nosecone. Removing this reveals a very large space (approx 120 x 30 x 22mm) for installing the RC, which makes for a very easy installation - probably the easiest of any DLG we sell. The front portion of the fuselage and nosecone are made of glass (in both versions) so are 2.4GHz friendly. The rear of the fuselage sports a carbon pylon for mounting the tailplane, and the rear of the boom is ready-slotted to take the fin. Both the tail surfaces are lightweight fully molded items, either carbon or glass, to match the wing. The carbon fuselage and tails are all back, and the glass ones are all white.

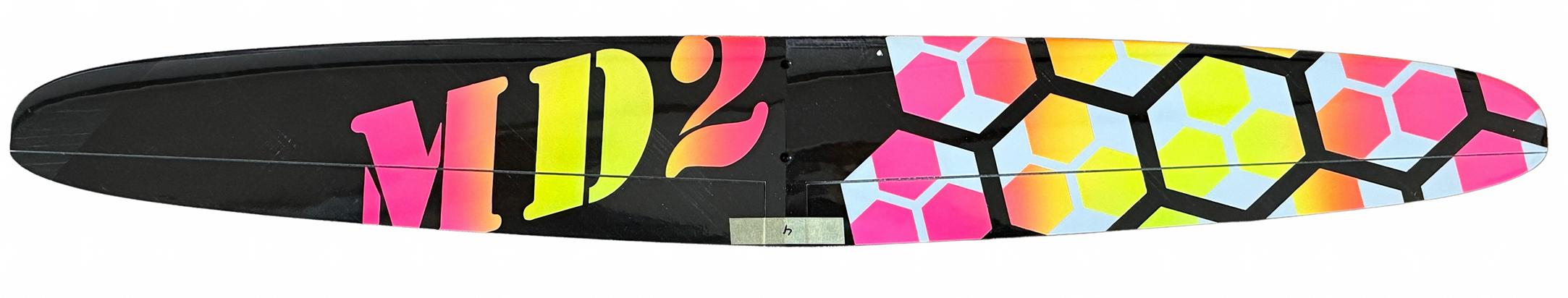

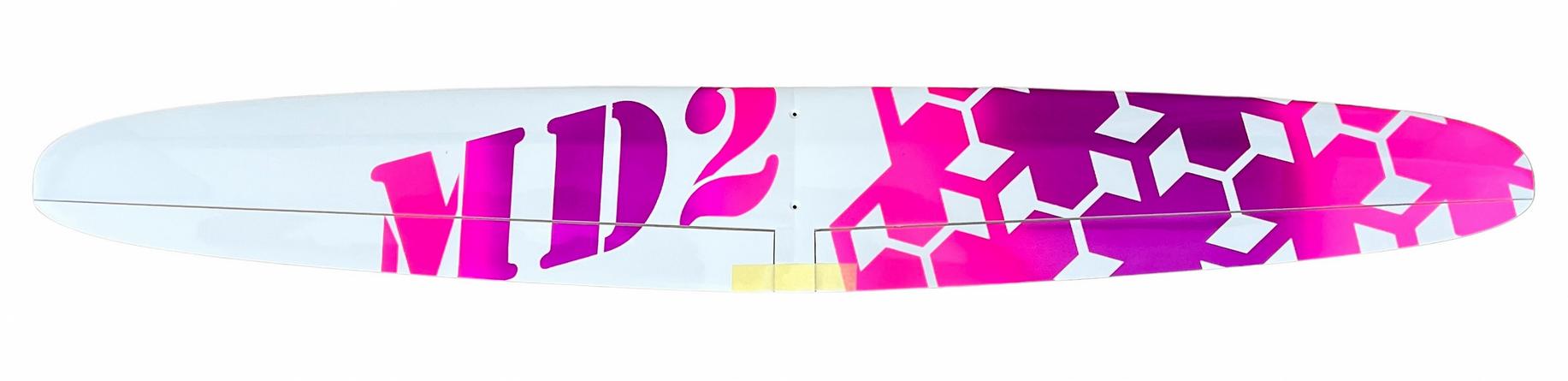

The beautifully molded wing has quite a wide chord, giving a low wing loading and benign handling. The wing has large ailerons and a high gloss finish, as good as on models double the price.

The very complete accessory pack includes aileron pushrods, all control horns, a glass servo mounting tray, a contoured carbon fibre throwing blade, and torque springs and pull cables for actuating the tail surfaces. The servo tray now has 20mm x 15mm cut outs making it most suitable for KST X06 or BMS-101 servos. A well illustrated build manual is available – see the link below the More Details heading.

Also see this RCGroups Mini Dart thread and this one for more info.

Now available very nicely made custom wing and tail bags to keep the model in perfect condition - highly recommended.


Mini Dart 2 Carbon layup Specifications
Wing span 1.0 m 39 in
Wing area 11.6 dm2 180 sq in
Length 72 cm 28.2 in
Flying weight from 125 g 4.4 oz
Wing loading 10.8 g/dm 3.5 oz/sq ft
Aspect ratio 8.6
Wing airfoil AG45, AG455, AG46, AG47
Dihedral angle 6.0º
Centre of Gravity 58-62 mm from wing leading edge
Controls Ailerons, elevator, rudder


Recommended R/C-nano gear only
Elevator & rudder servos Blue Bird BMS-101DMG, Blue Bird BMS-101HV, KST X06, CHA DS06
Aileron servos Blue Bird BMS-101DMG, Blue Bird BMS-101HV, KST X06, CHA DS06
Receiver *case removed Spektrum AR410, FrSky GR6, Jeti R4L, Futaba R3004SB, FrSky X4R, Orange DSM2 compatible, Multiplex Mlink RX-6-DR Light*
Battery Bonka LiPo 1S 450mAh, HyperFlight 150 mAh 4.8V NiMH, Bonka LiPo 2S 300mAh


Mini Dart 2 Control Throws
Rudder 11 mm each way
Elevator 8 mm up / 8 mm down
Ailerons 11 mm up / 8 mm down
Camber Settings
Launch 1 mm up
Speed 0.5 mm up
Cruise 0 mm
Thermal 1 2 mm down
Max thermal 6 mm down, elevator 1 mm down
Landing 45 mm down, elevator 5 mm down


Mini Dart 2 Carbon Layup Typical Weights
Fuselage (carbon) 22.7 g 0.8 oz
Wing (carbon) 54.0 g 1.9 oz
Fin 2.5 g 0.1 oz
Tailplane 3.3 g 0.1 oz
Accessories 7.5 g 0.3 oz
Total structure 90.0 g 3.2 oz
Glue mounts etc 2.0 g 0.1 oz
Receiver 5.0 g 0.2 oz
Tail servos 9.0 g 0.3 oz
Wing servos 9.0 g 0.3 oz
Battery 10.0 g 0.4 oz
Flying weight 125.0 g 4.4 oz


Mini Dart 2 Glass Layup Typical Weights
Fuselage (glass) 32.6 g 1.1 oz
Wing (glass) 59.0 g 2.1 oz
Fin 2.6 g 0.1 oz
Tailplane 3.3 g 0.1 oz
Accessories 7.5 g 0.3 oz
Total structure 105.0 g 3.7 oz
Glue mounts etc 2.0 g 0.1 oz
Receiver 5.0 g 0.2 oz
Tail servos 9.0 g 0.3 oz
Wing servos 9.0 g 0.3 oz
Battery 10.0 g 0.4 oz
Flying weight 140.0 g 4.9 oz



Reviews 46


 Review by:

Flying update!!

If I could leave 6 stars I would.
Incredibly nimble and fast, yet able to fly slow in no wind to light conditions and core thermals TIGHT! Yesterday I topped out a thermal off 1 throw at 72 meters!!!!

Ive also had a few mishaps on landing in stronger conditions but overall the plane and wing hold up well. The rudder fin however is a bit fragile. I may be inserting a small carbon rod to give it more strength for more of my "improvised" landings.

100% getting another one to fly with a bit more weight for the slope!


 Review by:

Nice Plane!

This is a lovely made little DLG. As far as I can tell, it flyes really nice. However, be careful not to leave as many dents in the wing as I did building it, the surface looks as strong as double carbon, but it isn't :) I'm tempted to compare it to the glass version, but so far it handles my "neary catched" landings pretty well.
Thanks for the perfect shipping!


 Review by:

Incredible Little Thing!

Arrived in California in 4 DAYS! Very impressed with the quality of this model and build time, all up around 4 hours to build and then longer waiting for glue/epoxy to cure. I will be ordering another one soon. I want more of these for the quiver!!! Hours of fun with a 300mah battery! Also note: The HS40 servos do not fit in the vertical position, they are too tall. The aileron servos should be about 15mm tall max.


 Review by:

MD2

Excellent


 Review by:

Great 1m DLG

Got my glass MD2 and very pleased with it. Fit and finish and paint are all very good. Roomy servo area for a DLG. Used a three servo setup, taping the rudder straight and it flies very nicely w flaperons and elevator. Used Beadalon pull wire. A 2S lipo and R84 rx in front balance the plane nicely. The wing and tail bags allow me to keep the plane ready to fly.


 Review by:

Le meilleur rapport qualité / prix du matché!!

J'ai acheté un Dart V2 carbone... et à peine quelques jours après la réception...J'en ai acheté un deuxième en fibre de verre!! Ces modèles sont IMPECABLEMENT fini, les surfaces sont magnifiques! La qualité des modèles correspond à celle de modèles beaucoup plus chères! Ils ont été envoyé TRES rapidement et étaient parfaitement conditionnés! Mon expérience d'achat avec Hyperflight est vraiment très satisfaisante, je compte faire encore de nombreux achats auprès de cet EXCELLENT vendeur!


 Review by:

et de deux!!

Et de deux! Je n'ai pas pu attendre Janvier, j'ai commandé et reçu un deuxième Mini Dart , mais cette fois-ci en version fibre de verre! La qualité de fabrication est tout aussi irréprochable que la carbone, l'envoie a été ultra rapide et parfaitement sécurisée!! Mon expérience d'achat avec Hiperflight est vraiment au top!


 Review by:

Incroyable

INCROYABLE!!! J’ai réceptionné mon Mini Dart ce 30/10/2023 et les finitions sont irréprochables!! Tout est parfait!! Le rapport qualité /prix de ce planeur est la meilleure du marché!! J’attends le début de l’année prochaine pour en acheter un deuxième!!


 Review by:

The quality craftsmanship and shipping of this kit to the USA was Excellent! This is my first high performance DLG so I have suggestions for the work instructions. The orientation of the elevator/ rudder spring wire installation with some more detail would be helpful. State to cut 2 5mm long tubes from the aileron tubing for the R/E guide tubes. Making the first cable loops for R/E attachment were successful but for the servo attachment the cable loop bends were to short and frayed and was unable to insert into the keeper tubes. Longer wire cables or larger diameter keeper tubes might be beneficial. Hyper flight is an excellent company and I look forward to purchasing another kit in the future, thank you!!


 Review by:

The quality craftsmanship and shipping of this kit to the USA was Excellent! This is my first high performance DLG so I have suggestions for the work instructions. The orientation of the elevator/ rudder spring wire installation with some more detail would be helpful. State to cut 2 5mm long tubes from the aileron tubing for the R/E guide tubes. Making the first cable loops for R/E attachment were successful but for the servo attachment the cable loop bends were to short and frayed and was unable to insert into the keeper tubes. Longer wire cables or larger diameter keeper tubes might be beneficial. Hyper flight is an excellent company and I look forward to purchasing another kit in the future, thank you!!


 Review by:

Mini Dart 2

Excellent service, great model, quick delivery and very well packaged. Highly recommend Hyperflight. Looking foward to getting a 1.5 mtr dlg sometime from Neil!


 Review by:

Amazing 1m

Best quality for the price. The fuselage is accessible for most servos under 8g, finishing of carbon or fiber glass is as good as top range 1.5m dlgs.

The best shipping service across Europe&UK, wish to give 500 stars to Neil. Thank you Neil for producing me the best quality airplanes wherever in UK China mainland or HK, well done!


 Review by:

Mini Dart 2 DLG

Shipped the kit to the USA, at my house in 7 days, way faster than I ever expected. Kit arrived well-protected and un damaged, every single piece was in top condition. Assembled the kit as my first DLG and it was a great introduction, had a surprisingly successful maiden flight in light wind. Definitely plan to get more DLG models from Neil.


 Review by:

Fun 1m DLG

The MD 2 was my first DLG. Shipping was fantastic, and the build went well. It is a blast to fly, but wow is it sensitive to the least bit of wind. I now mainly fly 1.5m models, but will grab the MD 2 when I head to the local school field that is near my home.


 Review by:

Mini Dart 2

A really great kit easy to build. I 3D printed a mount to use emax 9051 servos mounted on their side. Works a treat. Great service from Hyperflight. Can’t fault anything


 Review by:

Mini Dart 2

A really great kit easy to build. I 3D printed a mount to use emax 9051 servos mounted on their side. Works a treat. Great service from Hyperflight. Can’t fault anything


 Review by:

Mini Dart 2 review

I received my Mini Dart 2 for Christmas 2022, the model arrived in a sturdy box and everything was immaculately packaged. The quality of the components were extremely high, with no flaws at all.
The assembly went well with only minor niggles installing the torque springs, this was very fiddly and the tail components were very easy to damage, I suggest taking some of the spring out to 45 degrees. I also suggest you install one end of the spring at a time into the holes, as the foam can easily open out under tension.
Also the slots for the aileron rods made in the fuselage should be just above the mould line of the fuselage, I copied the photos and they were a tad too high for a straight run.
I installed the Bluebird Servos
Box which are a good fit, with only a mm or so needed to widen the servo tray, the screw holes had to be filled with epoxy on one end as these were a bit out and needed re- drilling. I have also fitted a single cell 502 mah Lipo connected through a voltage booster to 6 volts. With the battery and Micro Hitec receiver right up the nose it appears to balance well, although the weather is too rough for test flights.
All up weight comes in at 145G.
Very pleased so far.


 Review by:

A great plane that fly very well. I have used it a lot. This is my second one. I had a transport accident. A great plane for a beginner. I have made quite some 10 minutes flights. It is easy to repair. It can take a lot of beating when I have made mistakes or flying in very turbulent conditions. Be careful when installing so you get the CG right. With the right CG it can really be floaty in weak conditions.


 Review by:

A great plane that fly very well. I have used it a lot. This is my second one. I had a transport accident. A great plane for a beginner. I have made quite some 10 minutes flights. It is easy to repair. It can take a lot of beating when I have made mistakes or flying in very turbulent conditions. Be careful when installing so you get the CG right. With the right CG it can really be floaty in weak conditions.


 Review by:

Mini Dart 2 fibreglass DLG

Order received very rapidly (as I have now come to expect from Hyperflight !!) Superb build quality and finish. It will be a while before I start to put together (not really a "build" !). Packaging could have stood the worst of any mishandling.


 Review by:

Mini Dart 2 1m fiberglass DLG.

Extremely well made airplane. Fit and finish is superb. Tried to use "cheap" 4.5 g Turnigy 1440A servos. After slight modification to servo tray, I installed the servos but found that the servos we're too tall. I then ordered Blue Bird BMS-1010MG servos from HyperFlight which is a much, much better servo. Height of this servo is perfect. However, because I modified the original servo tray, I needed to make a new one. Designed a new one using Fusion 360 an tried different materials. (PLA, PETG, NylonX). PETG and NylonX we're too flexible. PLA at a thickness of 1.5mm was perfect and was the same weight as the original fiberglass servo holder.
Also, Neal's help with a shipment issue was really great. Fantastic company to buy from.


 Review by:

Very disappointing

Bourght a carbon MD2 about 4 months ago and after spending a month trying to build it and ultimately gave up and gave it to a friend to build, after it was built and set up if flew great, probably has 2-300 launches on it but a few weeks ago I launched it and cracked the bottom of the fusilarge (never crashed it) so got a carbon repair kit and reinforced the bottom of the fusilarge and just test flew it and maybe 5 throws in the wing mount ripped off the fusilarge and the wing folded.
Honestly quite disappointed with it, flies great but don't want a glider that's going to fall to bits in normal use


 Review by:

Perfect

Perfect shipping from hyperflight and a lot of fun to a fair value. The MD 2 is a superb DLG. It's easy to fly, lightweight and has nearly no elevator momentum while switching the cambers.

I'm using four jx servo DHV56MG, Frsky grx6 receiver, Frsky X-Lite radio and 2S 240mAh battery. It's just a perfect fit without any balast.


 Review by:

Mini Dart 2

This is my first DLG model. The quality of the molding & finish is to a very high standard 👍 The model was very well packaged in a very strong cardboard box. I am looking forward to installing the radio gear & flying this model.

Excellent service from Neil 👍 thank you 🙂


 Review by:

Mini Dart

First full-house dlg (Elf being my starter dlg)
Great finish, outfitting was painless with lots of room in the fus. Maiden was faultless although I have dual rates on the elevator and even dialed in more as she was a little twitchy in the pitch but that could be my thumbs. In my opinion a great dlg at a reasonable price. Excellent service from Neil.


 Review by:

Excelente calidad, acabados impresionantes, llegó muy bien embalado y sin ningún daño, un DLG precioso,estoy muy contento con él.
Vendedor altamente recomendado y muy serio,es la primera vez que compró en Hiperflight y sin duda volveré a comprar.


 Review by:

International cargo delivery

發貨的速度很快,收到的貨物品質很好。
精緻的商品!!
很滿意!!
The speed that delivers goods is very quick, the goods quality for receiving is very good.
Fine merchandise!!
Very satisfied


 Review by:

Great

Well packed , lovely quality, be nice if some paper instructions included , hooe to build it slowly soon


 Review by:

Purchased the Mini Dart 2 arrived with in 6 days but someone bent the box. So to my disappointment the wing and fuselage was damaged. The fantastic team at Hyperflight were very good fix the problem and sent replacement parts. Now with a DLG that in good order to fly. Have flown it now and I love it but I’m new to DLG. Highly recommend it. I purchased the glass which is fine to me.


 Review by:

Mini Dart 2

My 1st flaperon DLG, perfect follow on from my extremely worn out Big Vick. Great quality. Recommend using the correct servos as I didn't and it has made the install difficult.


 Review by:

Fantastic easy build

Great entry int the world of DLG easy build for my first DLG, some pictures in the instructions could be clearer but it’s enough to get you close. The recommended bluebird servos don’t fit the supplied servo tray so I 3d printed a replacement.


 Review by:

Fantastic easy build

Great entry int the world of DLG easy build for my first DLG, some pictures in the instructions could be clearer but it’s enough to get you close. The recommended bluebird servos don’t fit the supplied servo tray so I 3d printed a replacement.


 Review by:

Fantastic easy build

Great entry int the world of DLG easy build for my first DLG, some pictures in the instructions could be clearer but it’s enough to get you close. The recommended bluebird servos don’t fit the supplied servo tray so I 3d printed a replacement.


 Review by:

Fantastic easy build

Great entry int the world of DLG easy build for my first DLG, some pictures in the instructions could be clearer but it’s enough to get you close. The recommended bluebird servos don’t fit the supplied servo tray so I 3d printed a replacement.


 Review by:

Fine

Fine good, but little bit brittle. When i removed the adhesive which lock the position of the Fin, the coating was tore


 Review by:

nice model plenty of room in fuselage for radio, more room under wing than the dlg hawk rx


 Review by:

Very fast delivery 5 days to remote northern Norway. Great protective package. I’m very pleased with the quality and finish. I’m excited to start the build.


 Review by:

Not impressed

terribly disappointed with the quality control on the glider i received.
received with finger imprints on the wing. a crack in the fiberglass layup and just over all small scuff marks.
the fuselage doesn't hold to the nose at all and the tolerance is huge it will need to be fixed down adding weight to the nose.


 Review by:

Work of art

Unbelievably fast delivery in great packaging. Ordered from Western Australia and received within a week. Don’t know how that happened. Very delicately manufactured glider with wonderful surface finish. Just be careful with the skin though as it can indent quite easily if squeezed. Servo mounting bay needed some minor mods to accomodate the superb KST servos (used epoxy to fill the gaps in plate.). Still yet to fly it but so far very impressed for the price. Great shop to deal with.


 Review by:

Great value for money!

Looking at trying my hands at DLG, I was on the hunt for a 1m reasonably priced model, as I was not ready to invest hundreds of £s on something I might not like in the end. Read good reviews about the MD2 and found no better price then on Hyperflight (though I live in CZ). The glider was shipped pretty much the day of the order and arrived very quickly, very well packed with the BMS101 I had ordered too (note : avoid those). I was amazed by the quality and finish of the kit! Great set of accessories too, straightforward assembly, and it flies great!! Just be careful to land straight as the rudder is very thin and light and can bend break, but that's easily fixed with epoxy. Very happy with my purchase and HF service.


 Review by:

First carbon dlg for me. Arrived England to Fl in 3 days! Can’t comprehend how. Haven’t built it yet, but the workmanship is first rate. No ‘orange peel’ effect found on other more ‘bargain’ carbon ships. Will build and fly in the next few weeks after finishing my current build. Will update review then. First impression though… can’t go wrong here. An excellent value.


 Review by:

Excellent Value, Intro to DLGs

This is my first DLG, and I went with the glass layup Mini Dart 2 mainly because of the attractive price point, and the large, beginner-friendly fuselage. At the time of ordering, there were none of the BMS101-DMG servos available, so I used some EMAX ES9051's I had instead.

As another reviewer mentioned, the fuselage is roomy but not tall and the ES9051's did not fit as supplied. I removed the bottom of the servo case, and bored out the servo horns to install them upside-down and that worked fine. I would recommend just spending the extra money on the bluebirds and not worrying about it.

I installed a 6ch 5g LemonRX under the wing, leaving loads of room for a 500mAh 1S in the front with space to adjust for CG.

First flights have been delightful. The model does not require constant correction to keep it cruising along. It responds in a snappy, positive manner, and carries its energy well. It feels slippery in the air and has been a lot of fun so far.

The tail is VERY fragile to sideways forces and will bend easily. I have reinforced it with a little extra glass stripe.

Overall I recommend this to any beginner or someone looking for a small but capable DLG to keep around for those serendipitous flying moments.


 Review by:

Mini Dart 2

I bought the fiberglass Mini Dart 2 and I found it well built and I am enjoying flying it. I'm in the eastern U.S. and it arrived from the U.K. within a week and was very well packaged. It was fairly easy to put together following the instructions on this site. The only minor thing to note is that although the nose has plenty of room, it is not tall, so, either plan to use short servos or plan to mount them horizontally. I used Bluebird BMS-101DMG and they fit well. I'm using an AR6610T receiver which is just a bit heavier, so, I put the battery under the wing so that it balanced without any additional weight. I'm still getting used to it, but, so far I've found it launches high enough to find thermals and it handles them well.


 Review by:

Weak fuselage

Hyperflight served very good as usual.
The flying performance is excellent. The only problem for an inexperienced pilot like me is the strength of the fuselage. The shock of the landing has induced several small cracks. I reinforced the fuselage by wrapping carbon roving and carbon spread. Does anyone have good idea to increase the strength?


 Review by:

Mini Dart 2 1m DLG

Bought the new “Mini Dart 2 1m DLG”, my first DLG. I am very impressed, the quality of all the contents are 1st class. Everything fits perfectly, the finish is really nice. This is an easy build, the fuselage is nice and wide and accommodates the 4 servos on the provided tray very well. You will need to use micro servos no wider than about 9mm (those recommended are ideal, as are the batteries). The delivery as always is very quick, well packed and in a sturdy box.


 Review by:

Mini Dart 2 1m DLG

Bought the new “Mini Dart 2 1m DLG”, my first DLG. I am very impressed, the quality of all the contents are 1st class. Everything fits perfectly, the finish is really nice. This is an easy build, the fuselage is nice and wide and accommodates the 4 servos on the provided tray very well. You will need to use micro servos no wider than about 9mm (those recommended are ideal, as are the batteries). The delivery as always is very quick, well packed and in a sturdy box.
