MaxFlight F5K 1.5m

Product Code: MAXFLIGHTF5K
 (12 reviews)

Price: $597.48

6 in stock
Add to basket to see shipping cost

Available Options

* Colour/servos (serial #):
* Wing Bags:
Quantity

Description

The MaxFlight F5K is an innovative 1.5m electric DLG type glider with two piece wings. With great performance and forgiving flight characteristics this may be the most advanced F5K model we have seen so far.

The outstanding benefits of this model are:
  • Well thought out design intended for electric flight from the outset - not a modified discus launch glider.
  • Excellent glide performance and good speed range.
  • Lightweight carbon all molded construction.
  • Superb surface finish and attractive colour schemes.
  • Two piece wing and easy to dismount the fin and tailplane make for a very easy to transport model in a box just 86 cm (34") long.
  • Large canopy hatch for east access to the motor, ESC and battery.
  • Available in 4 servo (flaperon) and 6 servo (aileron and separate flap) versions.
  • Preinstalled mounting system for 4 KST X08 tail and wing servos under the wing.
  • Large under-wing hatch for access to the fuselage servos.
  • Easy and quick assembly at the field.
The wing is beautifully molded from spread carbon with a Rohacell core to maximise strength and dimensional stability, ensuring the surface finish stays smooth. The wing is available in two versions:

Flaperons - a single control surface on each wing, actuated from fuselage mounted servos, is used both for roll (aileron) and flap/camber, as used successfully on DLGs. This has the advantage of simplicity and not needing any wing mounted servos, reducing the cost. Also only a 5+ channel receiver is required and transmitter programming is simplified.

Separate Ailerons and Flaps - two control surfaces on each wing. The inner flap control surface is actuated from fuselage mounted servos, and the outer aileron control surface is mounted by an outboard servo. This has the advantage allowing much greater flap deflection during landing, giving better control and slower touchdowns - potentially allowing the model to be flown from a smaller field. A 7+ channel receiver will be required and transmitter programming is a little more complex.

The fuselage is a one piece design with a generous front to facilitate fitting a small powertrain and four servos. A firewall is supplied but not fitted, to allow it to be recessed as appropriate for the motor used. The tailplane (horizontal stabiliser) and fin (vertical stab) are very light and have a good finish. The rudder and elevator are ready hinged and give good control response.

The fuselage is supplied with a servo deck pre-cut for 4 pcs KST X08 servos. The supplied accessories include a firewall, servo mount, all pushrods, rudder and elevator pull cables, torque springs, and all control horns. The wings are supplied in thin foam bags but fit nicely in our DLG F3K Wing Bags for greater protection. Little work is required to get the model flyable, however no build info is currently available. A discount may be available to any modeller who would like to create a useful build log.

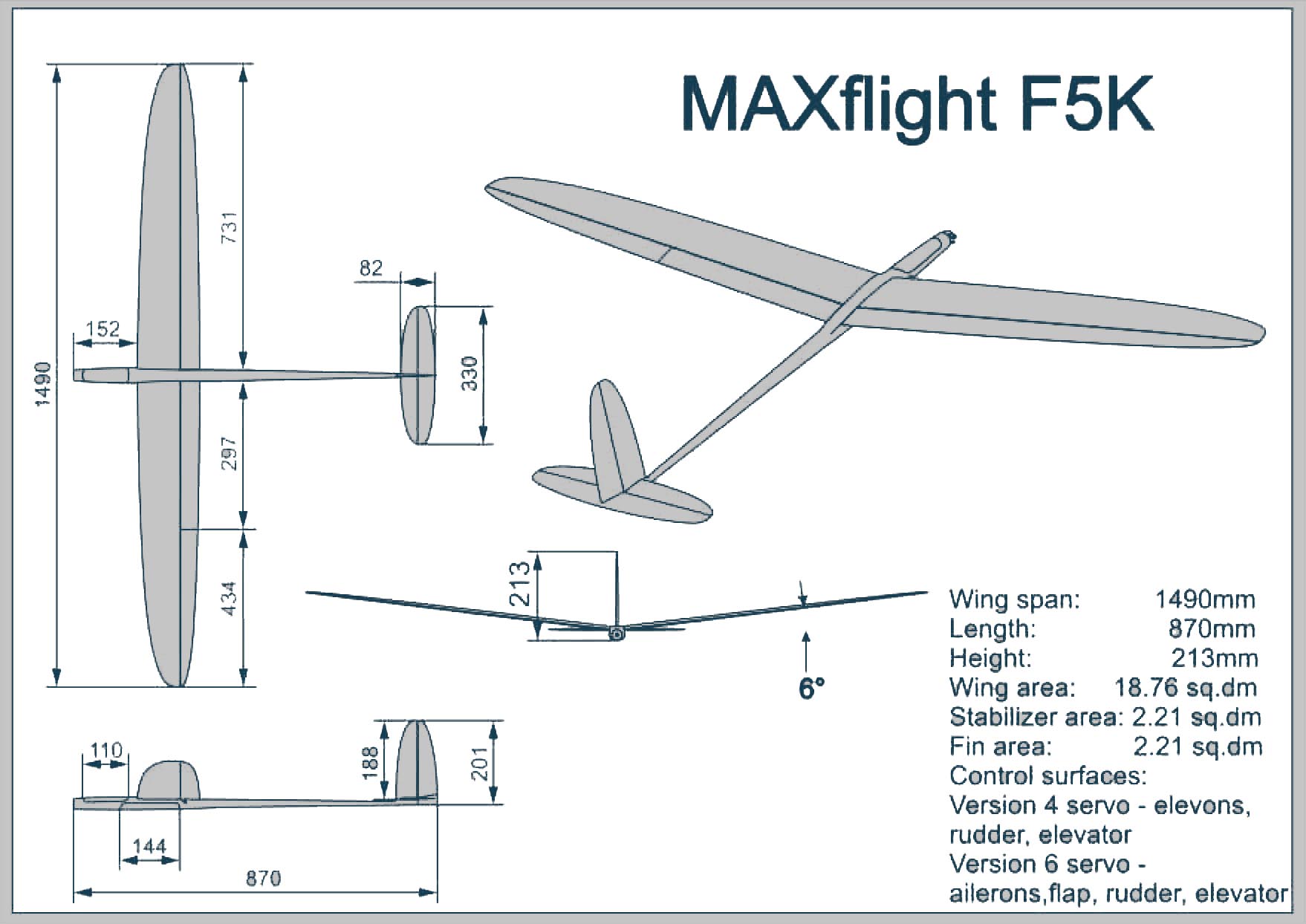

MaxFlight F5K Specifications
Wing span 1.5 m 59 in
Wing area 18.8 dm2 291 sq in
Length inc spinner 87 cm 34.3 in
Flying weight from 270 g 9.5 oz
Wing loading 14.4 g/dm 4.7 oz/sq ft
Aspect ratio 12.0
Wing airfoil Special 7%
EDA (dihedral) 6.0º
Spinner Diameter 25 mm
Centre of Gravity 61-65 mm from wing leading edge
Controls (4 servo version) Rudder, elevator, ailerons, throttle
Controls (6 servo version) Rudder, elevator, ailerons, flaps, throttle


Recommended R/C
Elevator & rudder servos KST X08H, Blue Bird BMS-A10V
Flap/Flaperon servos KST X08H, Blue Bird BMS-A10V
Aileron servos (6 servo version) KST X06H, Blue Bird BMS-101DMG, Blue Bird BMS-101HV
Receiver (4 servo version) 5 channel rx to suit your transmitter, eg Spectrum AR6610T, Orange DSM2 compatible, Jeti Duplex R5, Multiplex Mlink RX-6 Light & RX-5 Light
Battery (2S 300 - 450 mAh LiPo) Nanotech 2S 300 mAh, Radient 2S 430 mAh


Electric Powertrain Recommendations
HyperFlight 1806 2S 450mAh LiPo, 6x3, 6x4 folding prop
ArmSoar 1507 2S 450mAh LiPo, supplied 6x3 folding prop
ArmSoar 1806 2S 450mAh LiPo, supplied 6x4 folding prop
XPower F2307/14 2S 450mAh LiPo, 6x4 folding prop


Electronc Speed Controls (ESC) Recommendations
HyperFlight 28A BLHELI-32 28A, 2A 5V BEC, JST plug ready fitted
HyperFlight 30A BLHELI-32 30A, 3A 5V BEC, XT30 plug ready fitted
HyperFlight 40A BLHELI-32 40A, 3A 6V BEC, XT60 plug ready fitted
HyperFlight 40A BLHELI-32 40A HV, 3A 7.5V BEC, XT60 plug ready fitted

The powertrain used in the photos gave closely folding prop blades to minimise drag. The items used were as below.
HyperFlight 1806
CN Models 25mm Spinner for M5 Shafts
CN 6x4 folding prop blades
HyperFlight 28A BLHELI-32


MaxFlight F5J 6 Servo Control Throws
Rudder 12 mm each way
Elevator 8 mm up / 6 mm down
Ailerons 8 mm up / 5 mm down
Flaps (roll) Flaps follow ailerons
Flaps (landing) 40 mm down (6 mm down elevator with full flap)
Camber Settings
Speed Flaps 2 mm up, ailerons follow flaps
Cruise 0 mm
Thermal Flaps 4 mm down, ailerons follow flaps


MaxFlight F5J 4 Servo Control Throws
Rudder 12 mm each way
Elevator 8 mm up / 6 mm down
Ailerons 11 mm up / 7 mm down (at wing root)
Ailerons (landing) 25 mm down (4 mm down elevator with full flap)
Camber Settings
Speed Ailerons 2 mm up
Cruise 0 mm
Thermal Ailerons 4 mm down


MaxFlight F5K Typical Weights - 4 servo version
Fuselage 36 g 1.3 oz
Wings 97 g 3.4 oz
Tailplane 10 g 0.4 oz
Fin 7 g 0.2 oz
Wing joiner 10 g 0.4 oz
Accessories & glue 10 g 0.4 oz
Total structure 170 g 6.0 oz
Receiver 6 g 0.2 oz
Rudder servo 8 g 0.3 oz
Elevator servo 8 g 0.3 oz
Wing servos (2) 17 g 0.6 oz
ESC 5 g 0.2 oz
Motor 20 g 0.7 oz
Prop & spinner 6 g 0.2 oz
Battery 30 g 1.1 oz
Flying weight 270 g 9.5 oz


(C) 2021 Neil Stainton

Reviews 12


 Review by:

One of the nicest DLG you will own

The Max Flight F5K was the first elect. DLG I owned. I bought this plane to fly under the FAA 250-gram guidelines. When i saw how well it fly's I had to start up a collection. These planes fly and land on a dime. I have both 4 servo and 6 servo planes. The 4 servo turns faster than the 6-servo unit and they are both fantastic and led me down a long journey on exploring the world of elect. DLGS


 Review by:

Maravilloso producto

Estoy muy conforne y feliz con el producto, llego en 8 dias a la patagonia chilena, practicamente al otro extremo del mundo, además su embalaje muy bien preparado no existe daño de ningun tipo.
en cuanto al armado del max f5k, creo que especialmente poner las lineas de control del estabilizador vertical y horizontal fue lo mas complicado, todo lo demás fue mas bien sencillo y rapido de realizar. lo recomiendo mucho es un lindo y buen planeador


 Review by:

Lovely model, some thought required in assembly

As previous reviewers have noted, the MF5K is a lovely model. The fit and finish leaves nothing to be desired and the final product is a beautiful flier. On a warm autumn evening after sundown a few days ago, I consistently got 4 minutes or more on an 85m launch.

As previous reviewers have noted, assembly can benefit from some thought and planning ahead. Like others, I found the flapperon linkages to require particular attention. I opted to make my own control horns and pushrods, and to relocate the flapperon servos to the aft end of the servo bay. That cutouts in that bay seem designed for KST A08H servos.

The CG is another item that might need some thought. With a 1507 motor, PNC aluminum mount, and a 46g 3S 550mAh battery, I used 14g of lead to achieve a CG around 70mm. That's fairly reward and makes for a very responsive model but it works for my preferences. RTF weight is just a titch over 300g for my 4-servo version.

With my chosen power system and a 6x4 prop, max vertical speed is around 13m/s, which is enough to put a big grin on my face. After 60 seconds of total runtime, my 550mAh batteries come home at about storage voltage. Sixty seconds is enough for eight launches to 800-100m.

I've added some further details and pics to the MF5K thread on RCG. It's worth a read if you're thinking of building this beautiful little glider:
https://www.rcgroups.com/forums/showthread.php?4365975-Maxflight-F5K


 Review by:

Update

MaxFlight flies as good as it looks! In spite of a few hiccups, I'm very happy with this plane & recommend it. Build tips can be found at
https://www.rcgroups.com/forums/showthread.php?4365975-Maxflight-F5K#post51426307


 Review by:

Max flight test

So I’ve finally flight tested my 6 servo version Max. First test glide I thought it wasn’t going to stop! It just kept going so I opened up the throttle and it shot up beautifully. It was a tad tail heavy and the elevator needed adjusting on the crow brake setting as it had a bit to much down in. So after correcting it, the second test flight (in minimal lift conditions) gave me a 23 minute flight! It just didn’t want to come down!! It’s a superb model and I love every second flying it. Yes the assembly can be a little fiddly but if you take your time you’ll be fine. I would totally recommend it.


 Review by:

Beautiful finish

The finish on the Maxflight F5K is outstanding and it is a beautiful model. I got the 6 servo model and am currently assembling it. There have been a few issues.

The fuse's molded-in servo tray for the tail & flap servos does not quite fit KST x08 servos & requires quite a bit of trimming to work.

One of the flap pushrods was about 1/4" too long. (Be aware that the 2 pushrods are different lengths to accommodate the servo positions on the tray. In my case, the long rod was too long.)

Do not glue in the flap horns where indicated by the manufacturer's stickers. Assemble the wing and use the flap pushrods to locate where the flap horns go.

The rudder & elevator control horn positions are accurate. I installed the elevator horn backwards from what I'm used to so the slot in the horn for the string faces to the rear of the elevator.

Threading the pull string through the bulkhead to the tail was challenging. I used beadalon wire and was able to thread a short piece through the bulkhead and pull it out through the side flap pushrod opening in the fuse. I then threaded the long wire from the rear of the fuse & also fished it out the side opening. I glued both the short & long wires together with CA, pushed them back inside and pulled the joined wire through the bulkhead and cut off the short piece of wire.
Voila!

One of my wings was pre-drilled for the aileron wire. The other was not. Ugh. I also needed to cut a slot in the fuse to thread the aileron wires through. My decision to use Jr servo extensions from the rx to connect to the aileron wires is proving to be a poor one as there isn't much room in the fuse for these. I may need to find an alternative.

I used the cnc electric dlg aluminum motor mount with the ArmSoar 1507 power train. This mount strengthens the nose of the Maxflight very nicely. I had to file the centre opening of the mount so I could squeeze the esc through. This motor sticks out beyond the front of the nose a bit (about 4-5mm) but I've decided I don't care. YMMV

Overall, I would recommend this F5K as a reasonably good value with the caveat that it may need a bit more work than anticipated.

As always, Neil's service is the best in the world.

I hope to update this review once the plane has maidened.


 Review by:

Maxflightf5K

Once again, awesome service from Neil!
Ordered from Australia and received within 3 days.


 Review by:

Max flight F5K

What can I say? Simply stunning!! Incredible build quality. I’m yet to assemble it properly as I’m gathering all the electronics etc together first. Once again another quality product from HyperFlight.


 Review by:

Controle horns

Hi, just want you to take note to place the controle horns on 4x servo plane, 1mm to 2mm from hinge line on ailerons and the same for 6x servo on crow flaps, i made the mistake to make the slots as sticker indicated, but they were to far back. Can mount servos in fuselage with pushrods and then glue the controlhorns in place. It is a great plane and flys well in windy and calm weather


 Review by:

Beautiful!

I was waiting for one of these to be in stock again. I particularly wanted the the multi coloured, 6 servo version. Although I won't build it yet, I had to put in my order.

As always, Neil's service is unmatched. Ordered just before 1pm yesterday, and then at about 2pm today the parcel with this beautiful f5k arrived, packaged safely in a strong box.

The quality of workmanship from our European friends is outstanding. Beautiful finish and such clever design. It's in a queue of builds, but will be looking forward to building this in the not too distant future.

Thanks to Hyperflight for bringing such wonderful models for us to enjoy!


 Review by:

Build Notes

When I unboxed the Max Flight, the effort that had gone into designing and manufacturing it was very evident. It exudes quality. I chose this model as unlike most other manufacturers, it was designed with excellent regard to installing and accessing the servos. Given how light the airframe is, the general construction of the model is a lot more robust that I expected.

After planning the build, my first task was to do a small bit of fettling to the servo holes, which are pre prepared for KstX08. I just needed to ensure that wires would not be pinched and to create a bit more room for the control horns. Tool needed, decent diamond coated files. The servos fit into the frames using very small screws, fortunately I had a suitable 0.7mm drill bit.

I decided to use 0.7mm bowden wire to connect to the rudder and elevator as I want to be able to remove them for holiday transportation and this would be more durable and easier to handle than the supplied cord. This meant using different control horns. Rudder was the same pcb type but as I am a bit paranoid about elevator controls, I decided to fit a small brass MP Jet fitting, tiny but very robust and hidden by the rudder. The only difficulty I found with the R/E build was that it was very difficult to thread a wire or cord through both the front and rear "eyelets" for the rudder. Solved by removing the one in the servo bay.

I particularly wanted a 2 piece wing for transportation. I think that there are also storage and "hanger rash" benefits. Wing servo horns were easily installed by slitting the aileron skin in the premarked position, working some glue in and sliding the horns into place. Before fitting the horns, you need to suitably open out the holes for the control wires. The only problem I had was that after mounting the servos in their bays, I found that the supplied connection rods were each about 5mm too short. Not a problem as I just made a couple more but I could have avoided having to had I ignored the fitting template, fitted the servo and control rod and used that to check the positioning of the aileron control horns before fitting them. Guess I forgot the maxim "measure twice, cut once".

All in all, an easy build with the absence of instructions not proving to be a problem. Although the information is on the Hyperflight website, it wouldn't hurt for the model to come with a sheet detailing the recommended cog and control throws.

I would also suggest that people fit the cnc motor mount from Hyperflight as this significantly strengthens the nose as well as being easy to fit.

Overall weight excluding 2s lipo is 270g, so around 300g rtf.


 Review by:

Max flight f5k

Needless to say the quality of model is outstanding. Build of went well, a little fidly to get flap pushrods running smoothly , a little bending is advised . used the kst xo6 v6 servos plus plastic frames for the ailerons, cn 6x4 prop with Ldarc xt 1806 motor esc tallon 15a on 3s 300mah and altis nano, Auw 314g. Im familiar with f5k, got the fury and nrj, very happy with nrj, and the mf5k also has a narrow cord wing, will penetrate well in windy conditions and fly well in fair weather, still got to maiden. The plane is worth every penny. The 4 servo is ideal for f5k comp. with auw 270g rtf. The 6 servo just makes your landings easyer . Usual exellent Hyperflight sales and shipping. Thanks Neil
