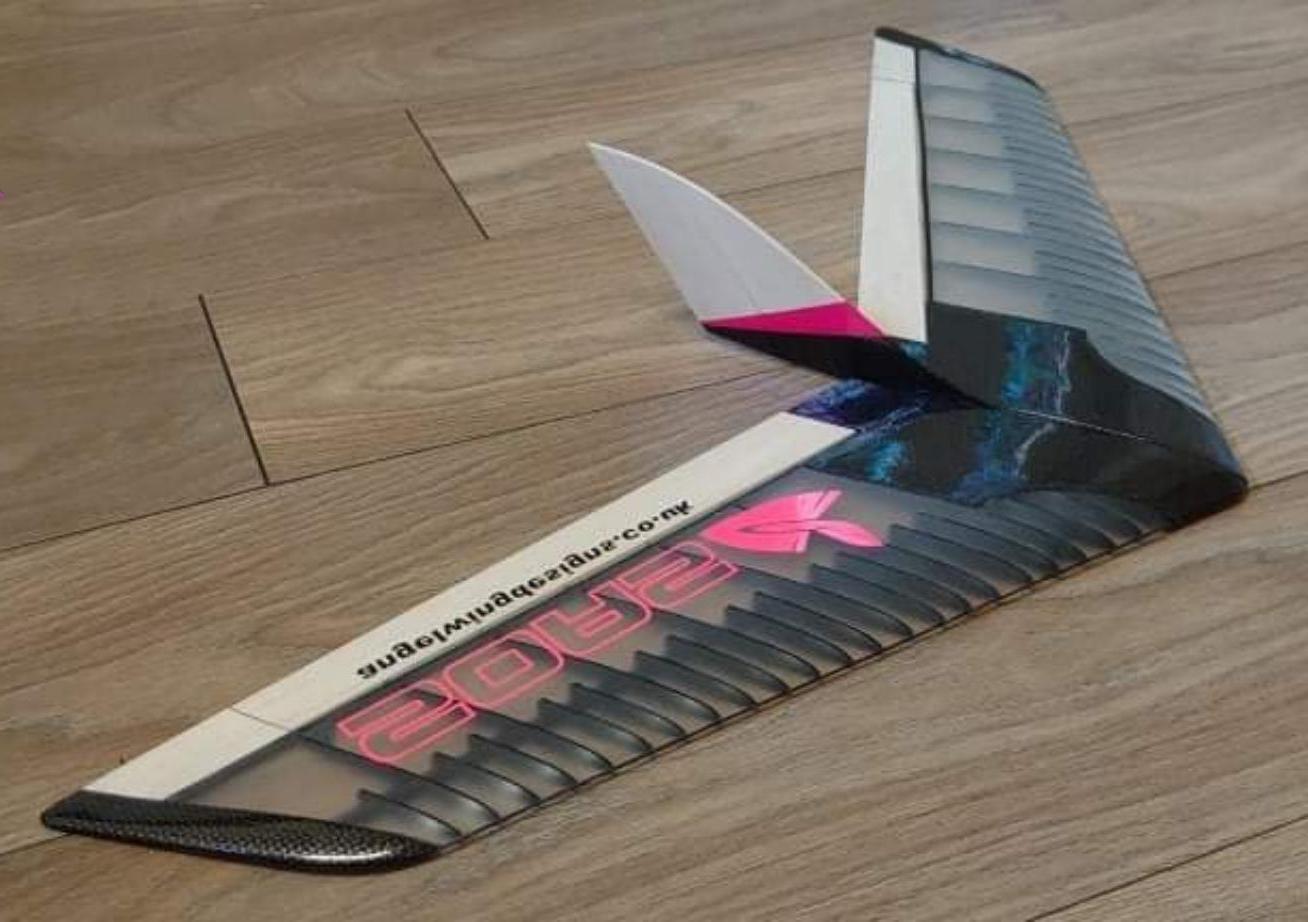

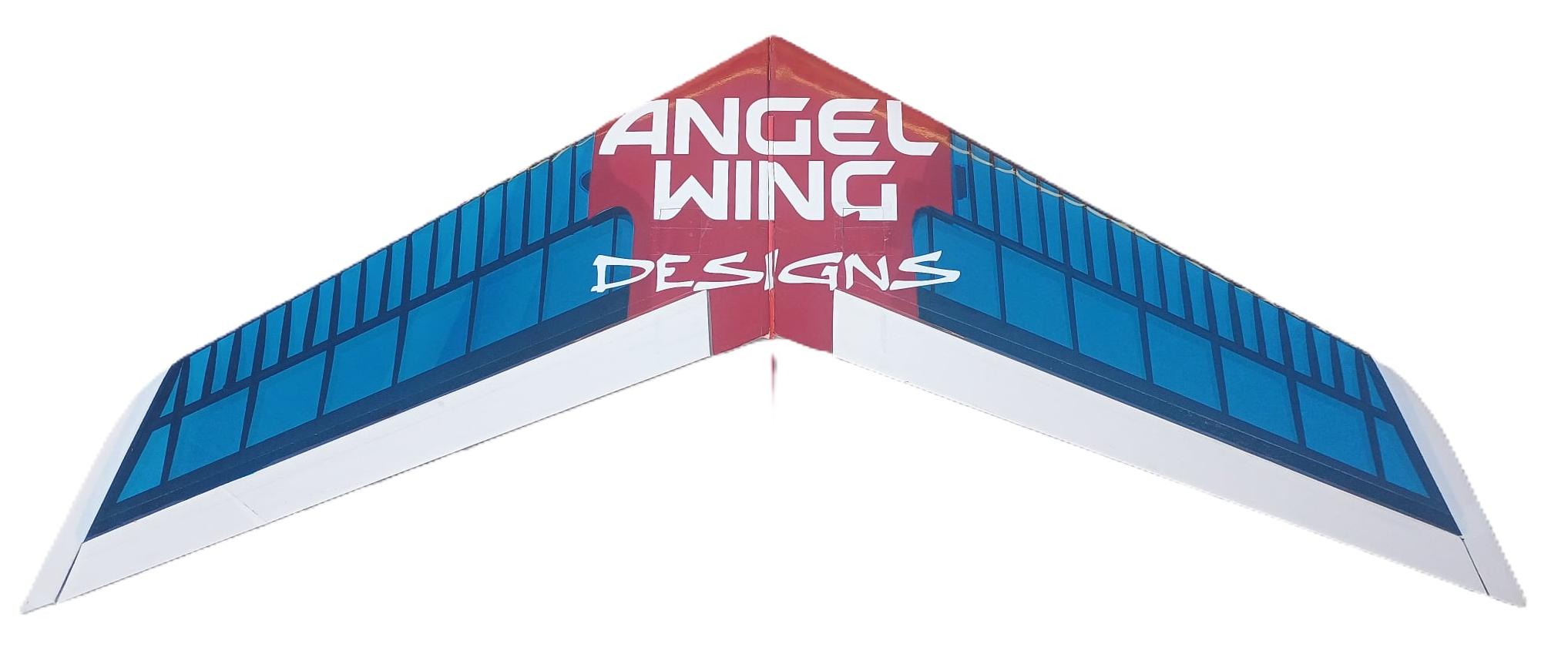

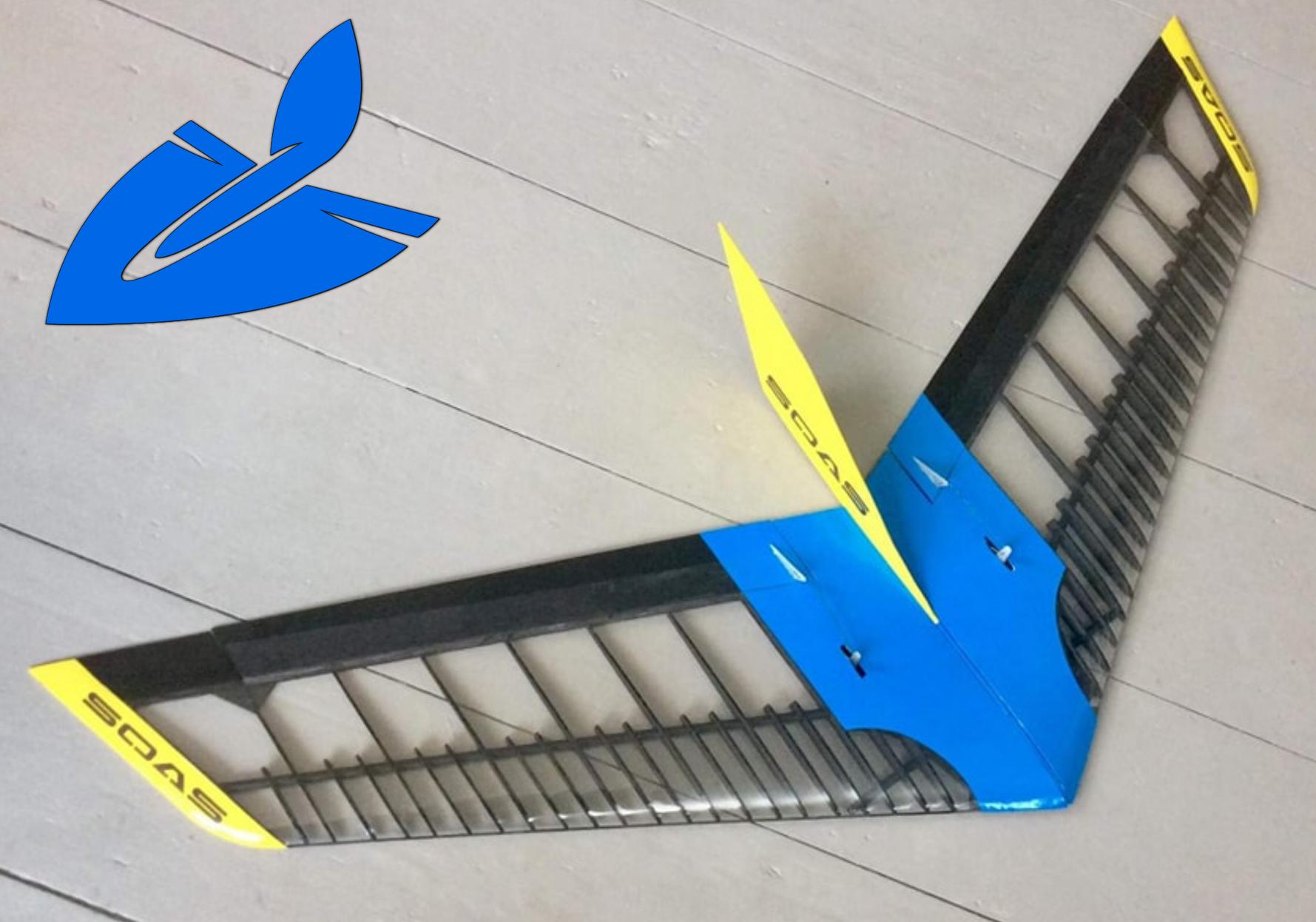

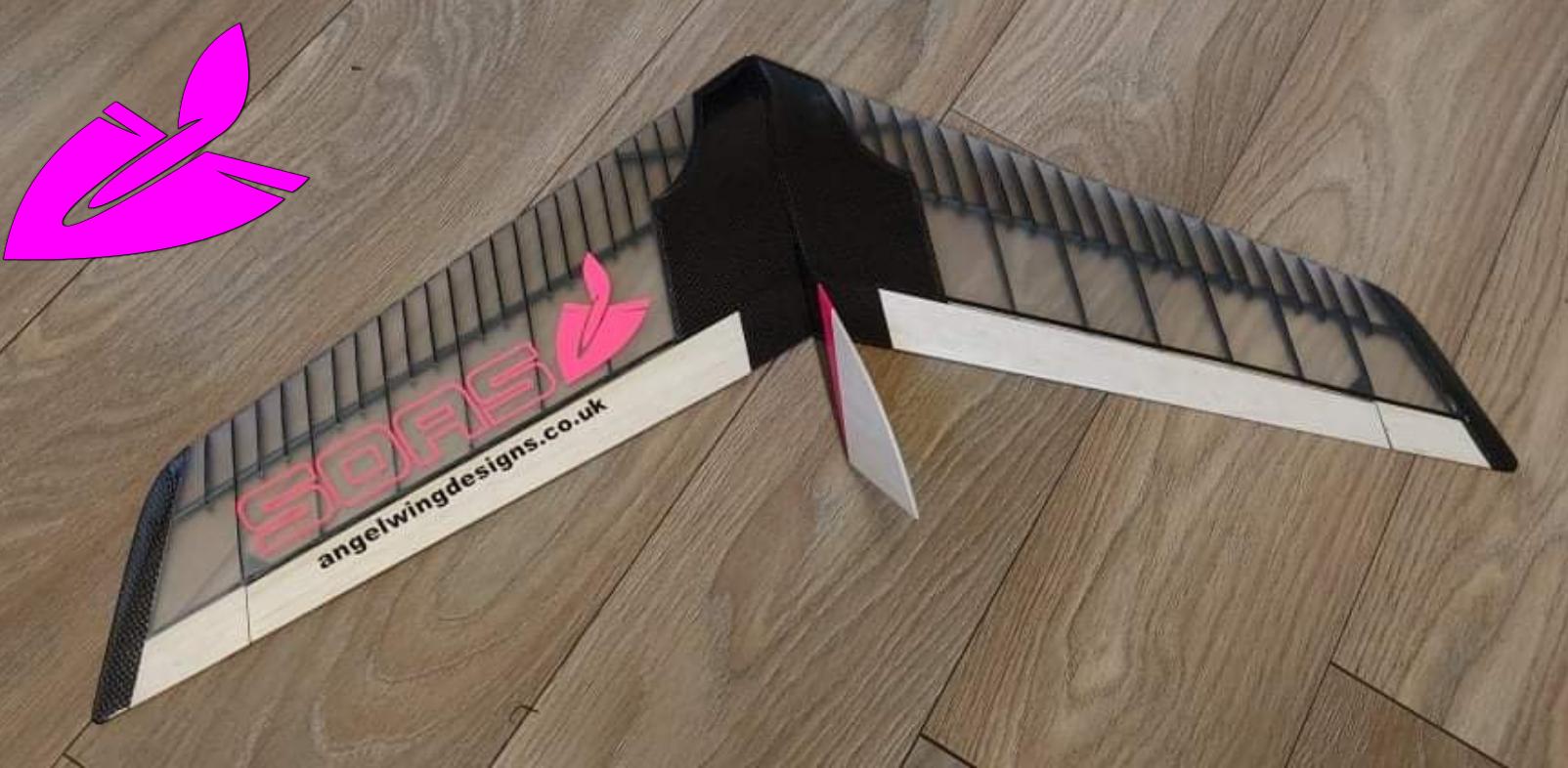

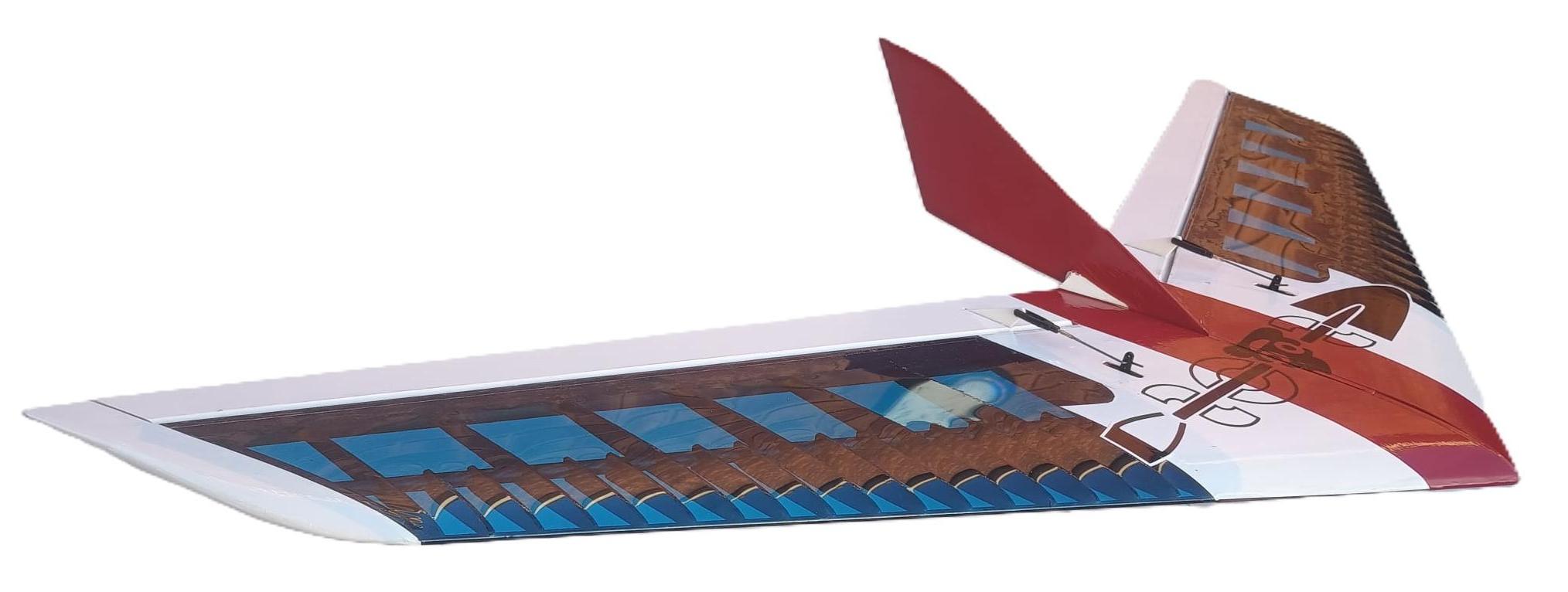

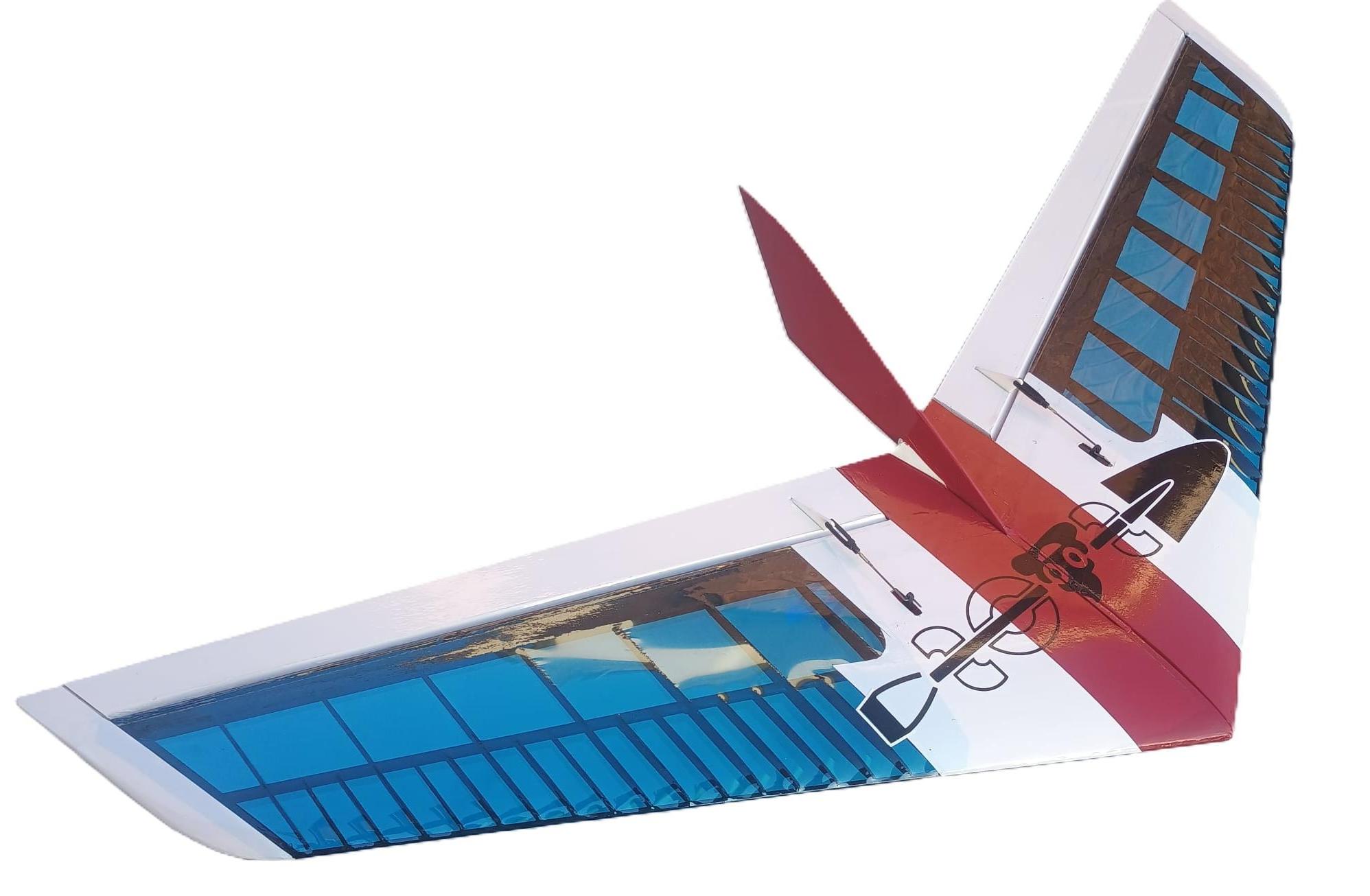

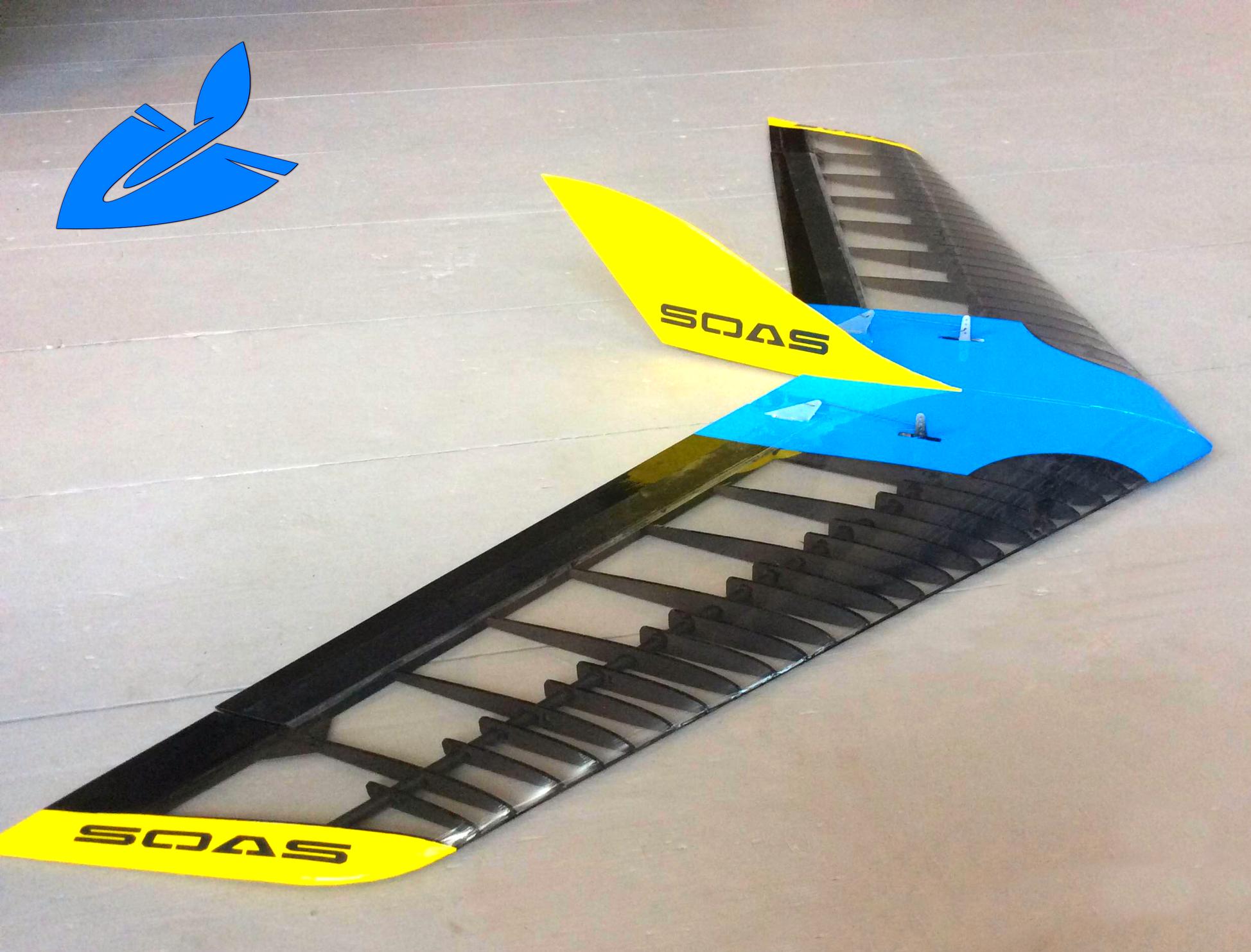

SOAS V3 90cm Ultra Portable Slope Soarer

Description

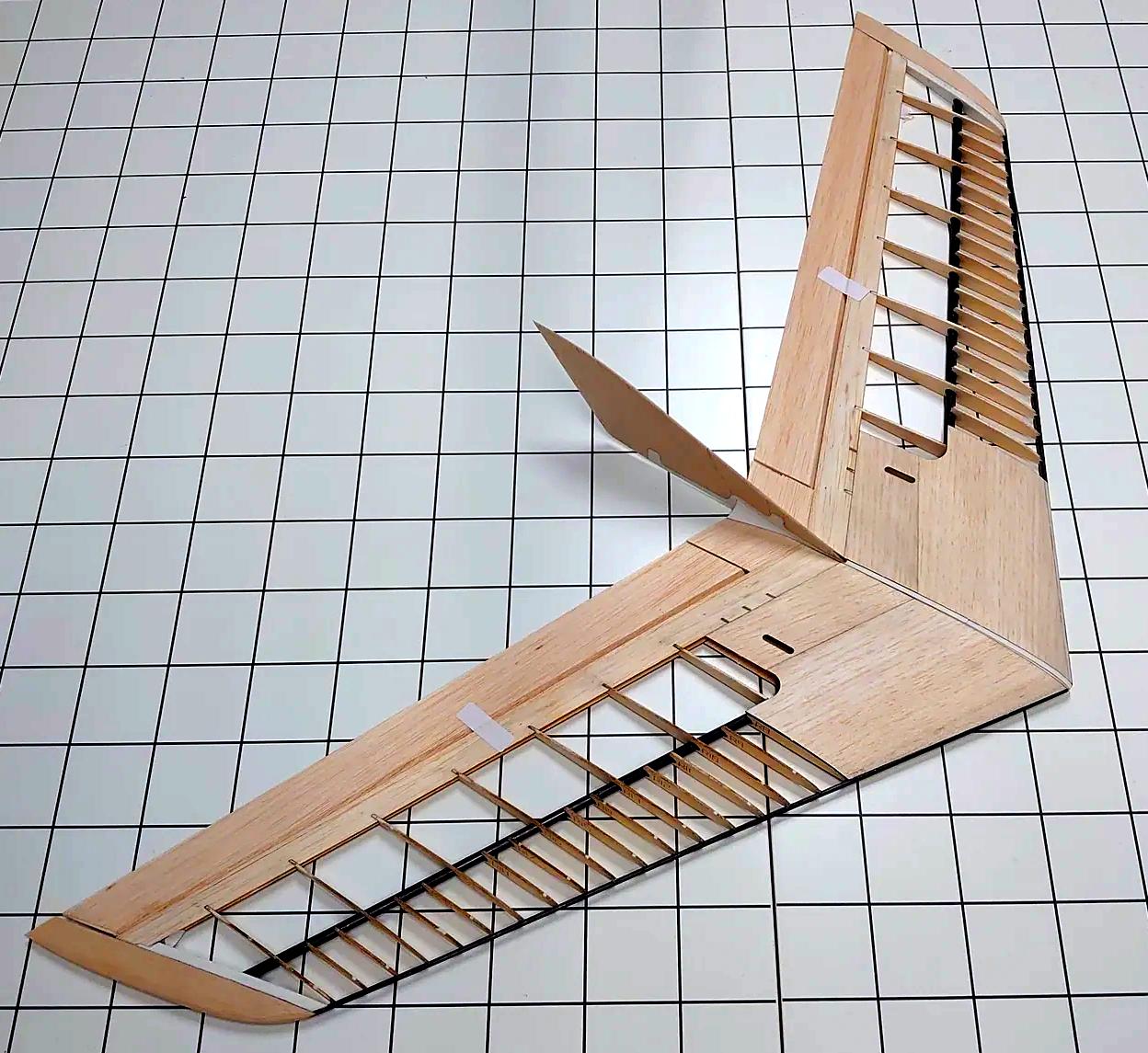

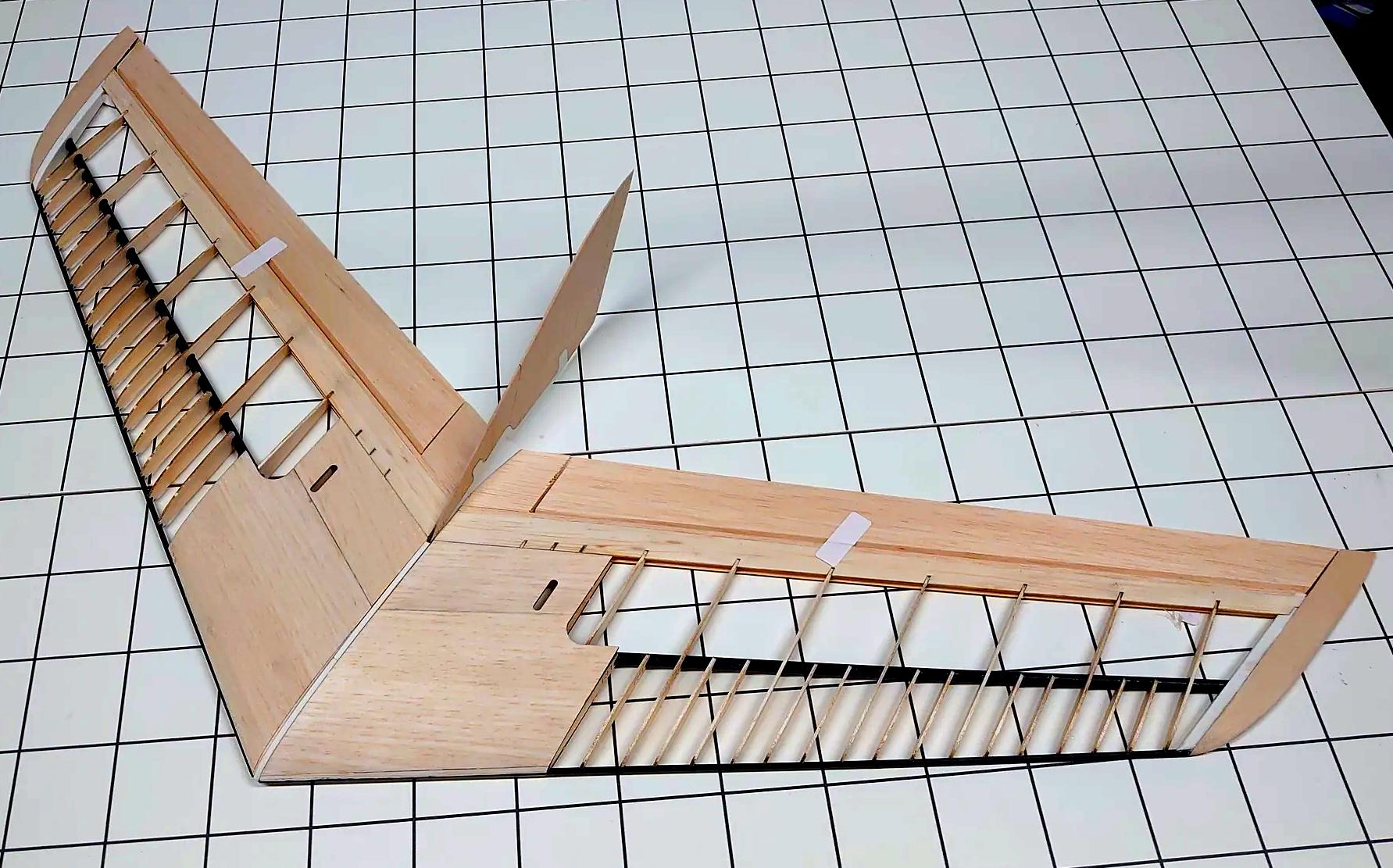

The AngleWing Designs SOAS V3 is a high performance 900mm span ultra portable slope wing with a sub 250g typical flying weight.The new SOAS V3 kit integrates ingenious use of 3D printed parts into the lightweight balsa / carbon tube structure. The design also now uses solid balsa elevons machined using AngelWing's own designed tooling to ensure the airfoil shape is accurate.The genius behind the 3D printed parts ensures accurate wing alignment and a super quick, super accurate build. Kits Contents:
High quality Laser cut balsa components
6mm Carbon tube main spars
3mm Carbon tube leading edge
5mm Carbon wing joiner
Aluminum wing joiner sleeves

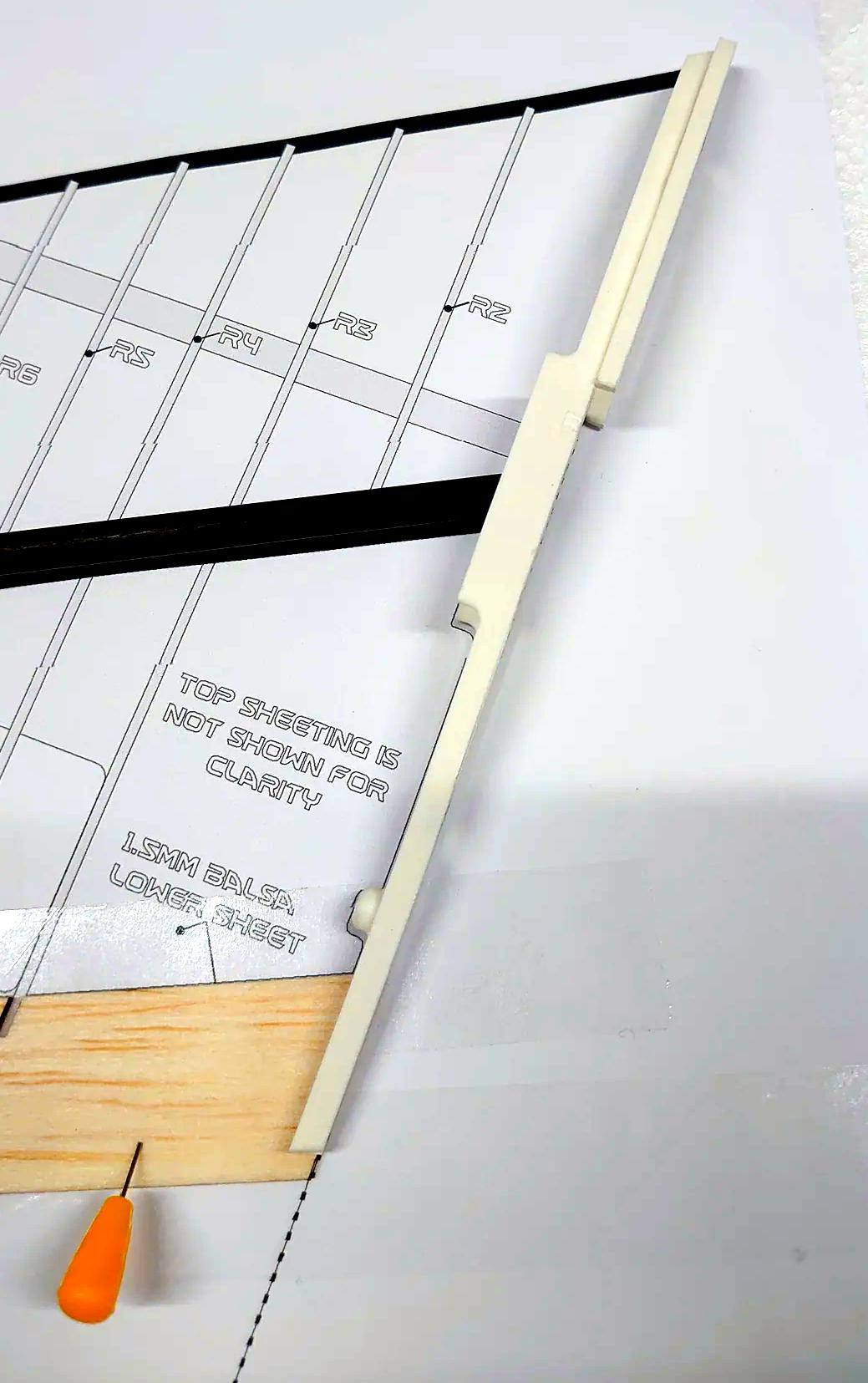

Full sized printed plan (no need to join)

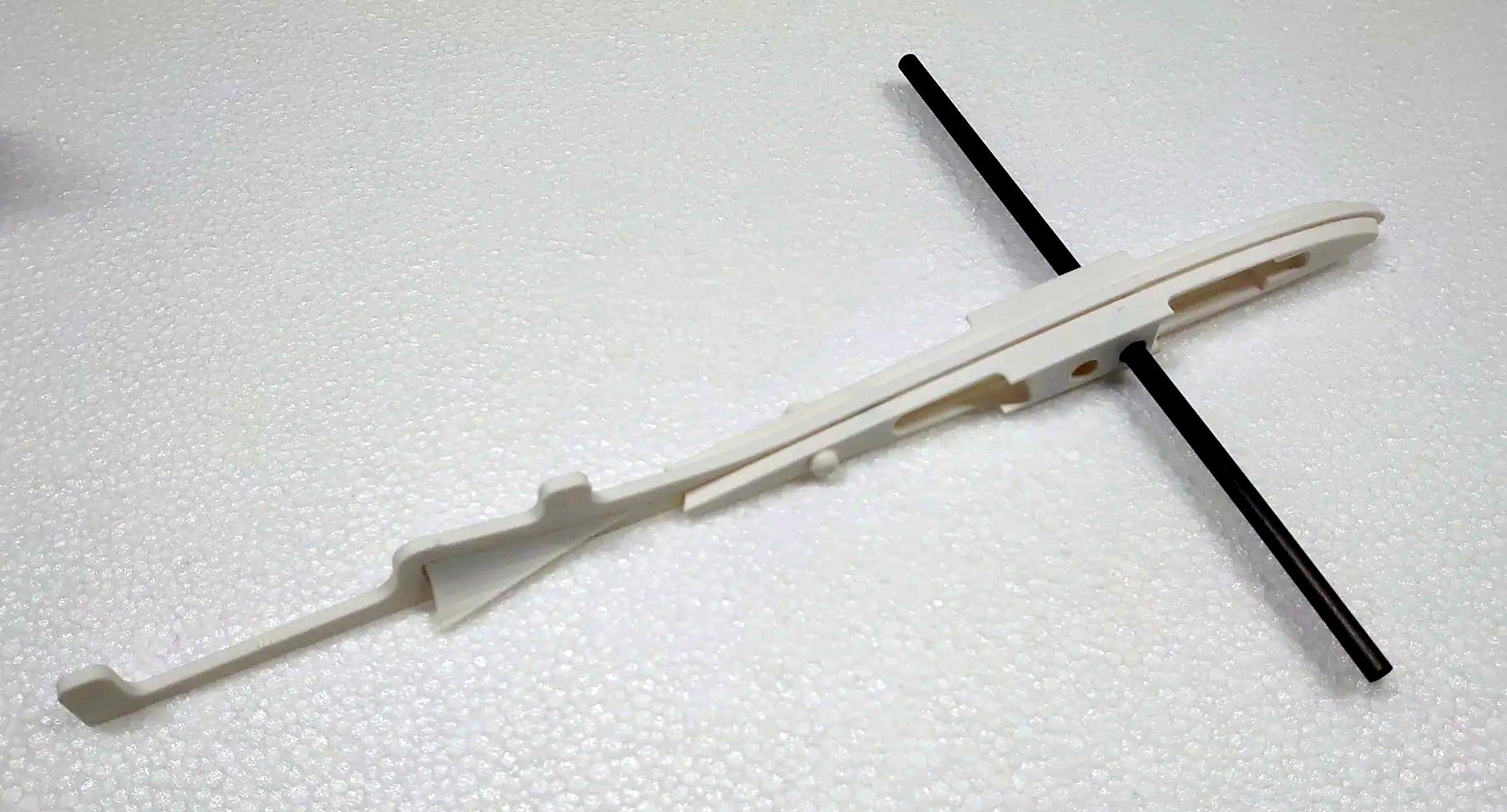

3D printed parts spru
High quality 6mm x 1.5mm Magnets for wing and fin joint
SOAS Poop Emoji decal
Optional wing bag.Download the build manual from here.Wings Span 900mm, 35.4"
Area 17.5dm2, 271sq"
Weight From 200g, 7.15oz
Wing Load 11.4g/dm2, 3.8oz sqft
A/R 4.6
Airfoil PW1211 Mod
Recommended R/C-nano gear only
Servos (2) Blue Bird BMS-101DMG, Blue Bird BMS-101HV, Hitec HS-40, KST X06
Receiver *case removed Spektrum AR6260*, AR6100e, AR400, Futaba R6004FF*, FrSky X4R, Orange DSM2 compatible, Jeti Duplex R5, Multiplex Mlink RX-6-DR Light*
Battery 150 mAh 4.8V NiMH, Radient 1S 500 mAh LiPo, Radient 1S 600 mAh LiPo

Reviews 12


  United Kingdom
  Future project

Not yet built as this is a future project, got a few on the go.
Package arrived in a timely manner in perfect condition.
Unpacked to inspect, all nicely cut and well packaged parts and fittings.
Very pleased looking forward to building soon

 Verified Purchase
  United Kingdom
  Future project

Not yet built as this is a future project, got a few on the go.
Package arrived in a timely manner in perfect condition.
Unpacked to inspect, all nicely cut and well packaged parts and fittings.
Very pleased looking forward to building soon

 Verified Purchase
  United Kingdom
  Quick Glider to Build

Service from Hyperflight great as usual.

Given 4 stars for the kit as there was a few issues:
* the balsa sheet containing the laser cut trailing edge parts was too short, so there was a bit missing from them - I had to add a little bit of scrap balsa from the sheet to correct the effected parts
* the centre sheeting only just reached rib 6, so there was minimal contact - corner of sheeting to corner of rib rather than the sheeting laying on the rib fully
* the servo reinforcing plate doesn't sit low enough, causing the balsa centre sheeting to slightly bulge up above the trailing edge - so I thinned the centre sheeting in the area of the servo plate so it laid level and flat.
* no servo hatch covers were supplied, so made my own

Not flown yet, but sure it'll be great based on videos I've seen.

Purchased because I wanted a few gliders that I could carry in a backpack on one of my sports motorcycles and the SOAS looked a perfect candidate.

 Verified Purchase
  United Kingdom
  Great kit but follow the instructions closely!

The kit arrived very quickly and was well packaged. I'd ordered the wing bag too which was neatly folded up inside the box. Construction fairly straightforward with excellent laser - cutting. The downloadable instructions are very good as well as the youtube instructions via Nick Chitty (Thanks to Nick!) You need to be very careful when fitting/gluing the wing ribs to the wing joining tube and spar in the correct order to avoid costly mistakes! I didn't get the 0.8mm servo doubler sheets or the servo covers in my kit but have managed to cobble something together. Looking forward to flying it once all finished!

 Verified Purchase
  United States
  Cool little sloper

The 3D printed parts are great for fitting things together. I found that the center sheeting on the upper surface was a 2mm short due to the curve of the upper airfoil. The bottom sheeting fit perfectly. The long piece to be put on the hinge line when butted to the trailing edge sheet moved the control surface to far back so it did not align with the 3D printed tip rib. I removed it and sanded it down to fit the space between upper and lower trailing edge sheets which also allowed it to reach the rib ends. The thin wing profile makes it a challenged to fit the battery and receiver but should make for a fast ship. When all put together the CG was right on the mark with no weight needed. I live the look of the finished ship.

 Verified Purchase
  United Kingdom
  Soas v3 flying wing

Very accurate kit to build and good fun to fly.

 Verified Purchase
  Australia
  SOAS

Quick delivery to Oz, quality kit and as usual top customer service by Neil and Crew.

 Verified Purchase
  United States
  SOAS

Received last week. Well packaged and made it to the USA without any damage. Have not started the build but looks straight ahead. Video guide should be good help. Look it up on YouTube.

 Verified Purchase
  Italy
  Excellent

Excellent product. Assembled in one night and tested the day after.
Superb assistance

 Verified Purchase
  United Kingdom
  SOAS

Beautiful quality kit builds fast and flys great plus great service
from Neil as always

 Verified Purchase
  United Kingdom
  Great service-excellent quality kit

Beautiful quality kit - some experience required to build but looking forward to the project.

 Verified Purchase
  Germany


Sehr schöner Bausatz alles passt perfekt.
Wenn die Aufkleber dabei wären und nicht optional, wäre es schön.

 Verified Purchase
