PTK 7350-MG-D Servo - 1.8Kg.cm 0.07s 5.2g 9mm

The PTK 7350-MG-D is a lightweight, budget-friendly servo suitable for the Pug 2 and other small balsa models. While it may not match the ultra-fine resolution of premium servos, it delivers more than enough precision for the vast majority of small aircraft.What really sets it apart is its impressive rotation range: up to 180° with a 500–2500 µs pulse width. This gives you far more flexibility when setting up your control linkages, making it easier to dial in the perfect mechanical advantage for your build.The 15T-4 output spline adds another layer of versatility, ensuring seamless compatibility with popular servo accessories from KST X06 - including the Pulley for KST X08 & X06 Servos. That makes it an excellent choice for DLGs and other pull-spring control system models.In short, the PTK 7350-MG-D packs serious value into a small, lightweight package - giving you the control you need without breaking the bank.

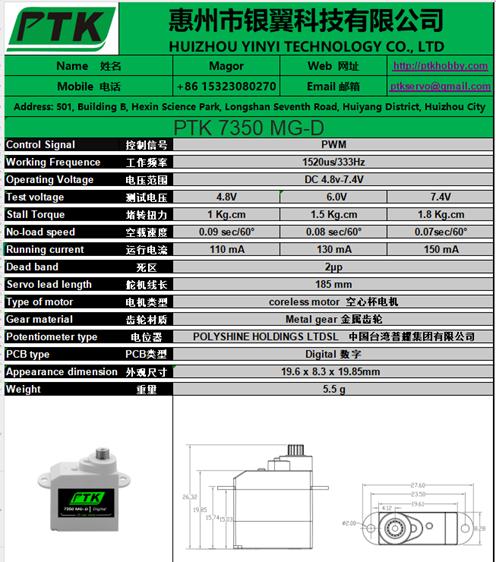

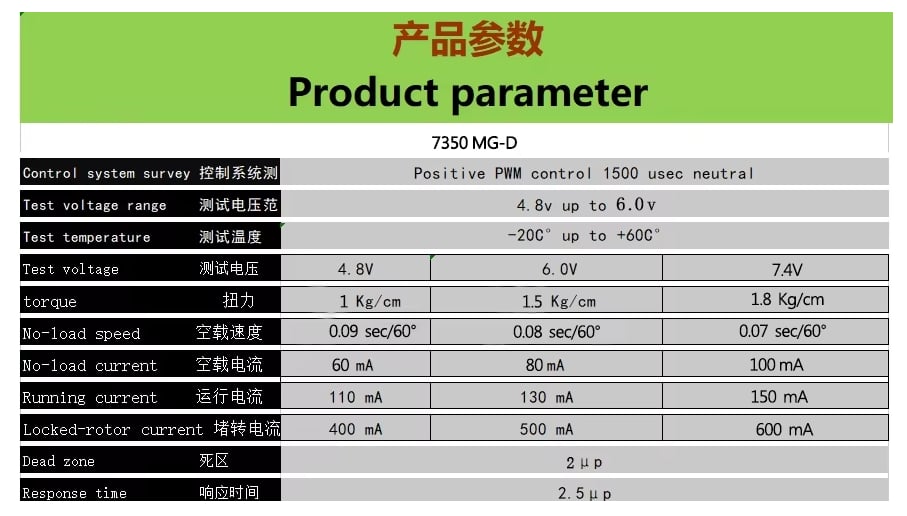

PTK 7350-MG-D Servo Specifications
Body dimensions	19.8 mm wide x 8.5 mm thick x 20.0 mm high	0.78" wide x 0.33" thick x 0.79" high
Max dimensions	27.5 mm wide x 8.5 mm thick x 27.5 mm high	1.08" wide x 0.33" thick x 1.08" high
Stall torque (4.8V)	1 Kg.cm	14 oz.in
Stall torque (6V)	1.5 Kg.cm	21 oz.in
Stall torque (7.4V)	1.8 Kg.cm	25 oz.in
Weight	5.2 g	0.18 oz
Lead length	16 cm	6.3 in
Operating speed (4.8V)	0.09 sec/60°
Operating speed (6V)	0.08 sec/60°
Operating speed (7.4V)	0.07 sec/60°
Operating voltage	4.8V to 7.4V
Operating temperature	-20 to +60 °C
Bearings	2 ball bearings
Gear material	Aluminium
Case material	Nylon
Motor type	Cored
Working frequency	333 Hz
Dead band/resolution	5 µs
Pulse width for ± 60º	µs
Digital	Yes
Programmable	No
Position feedback	Potentiometer
Supplied accessories	4 output arms, 2 mounting screws, 1 arm retaining screw
Optional accessories	KST X06 Arm Set, Aluminium Output Arm for CHA DS06, Pulley For KST X08 & X06, Plastic Frame only for the PTK 7350 MG
