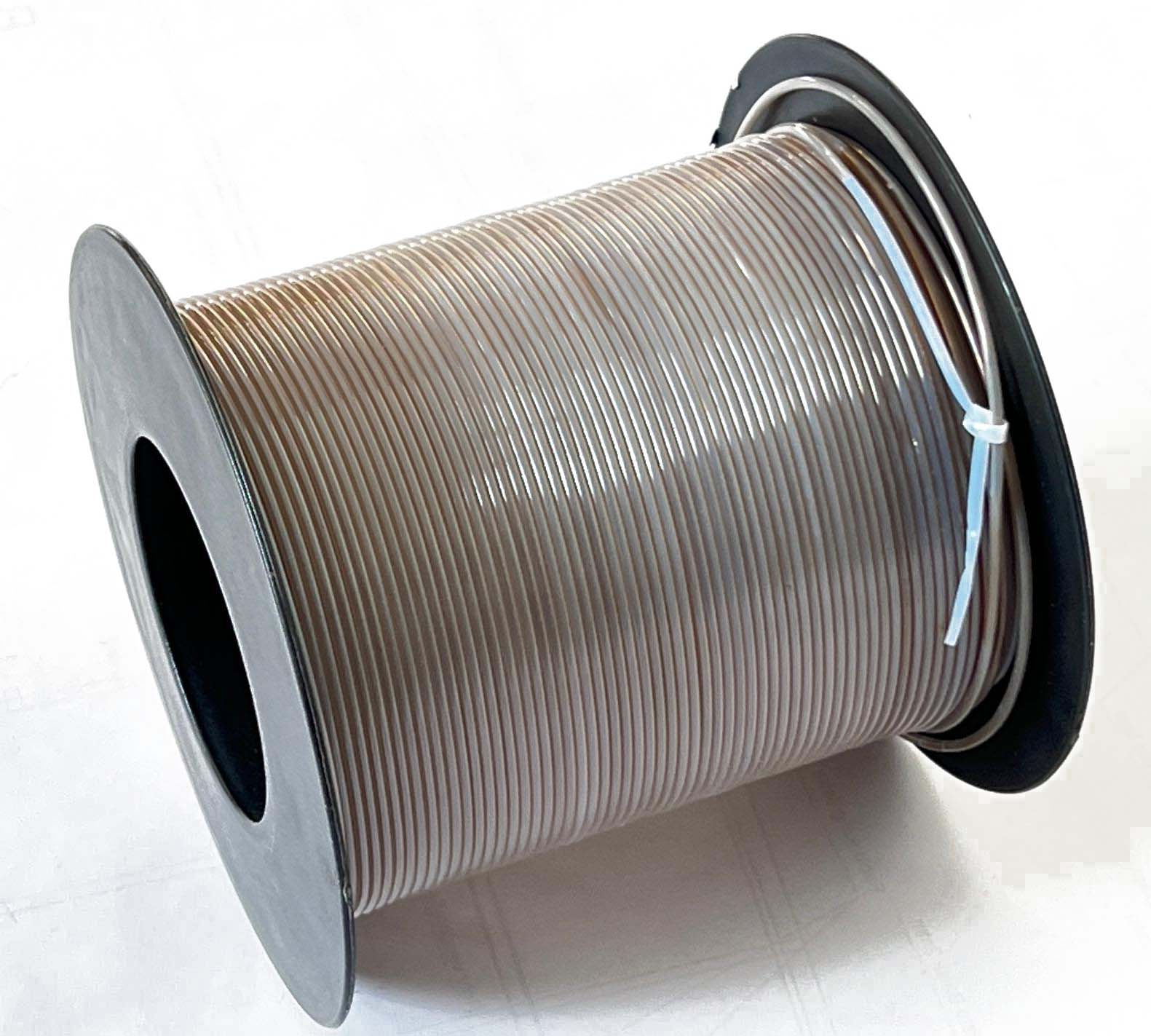

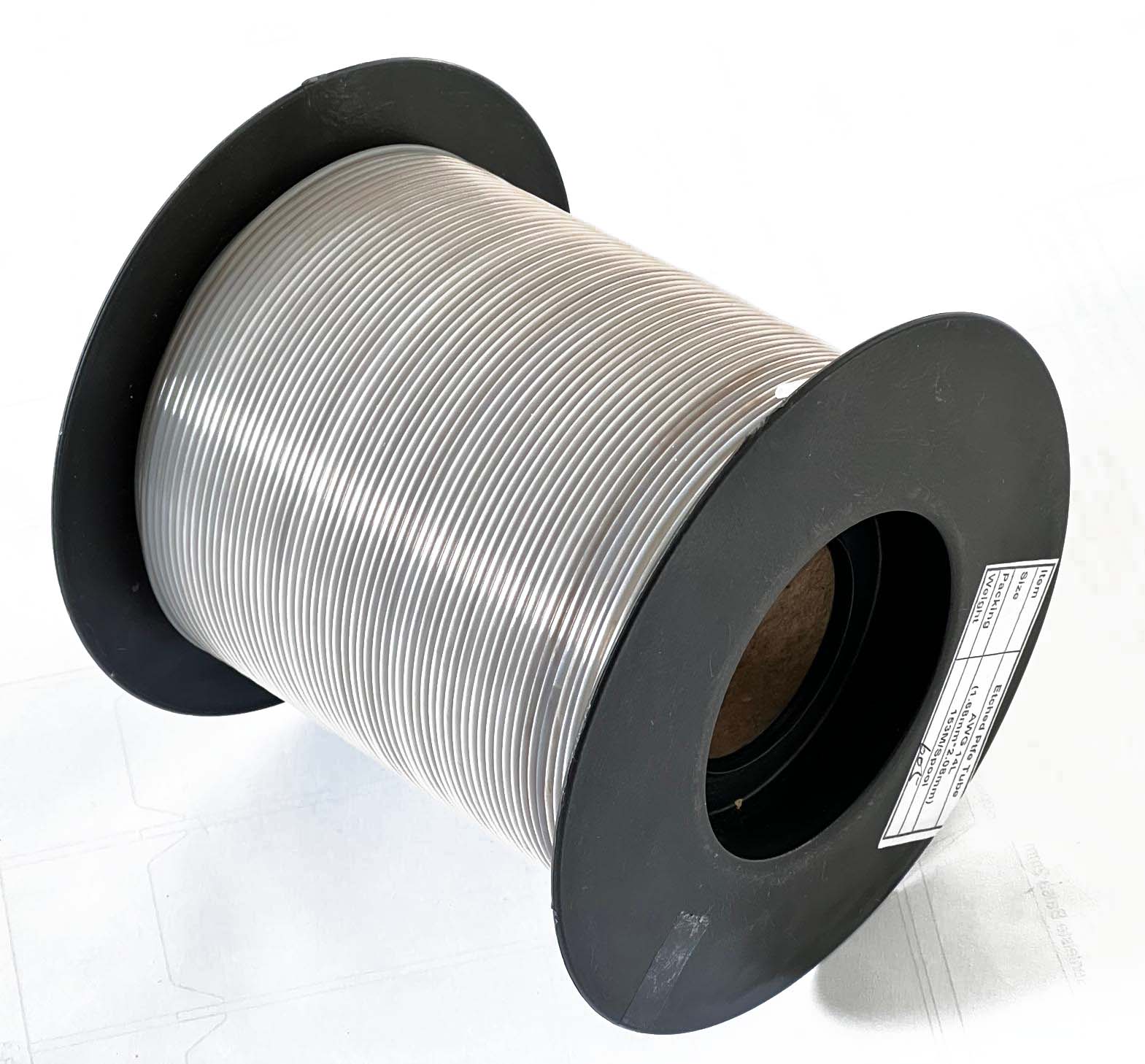

1 Roll (305m) 18L Etched PTFE

Product Code: PTFE-18L-SPOOL
 (add a review)

Price: $366.57

1 in stock
Add to basket to see shipping cost
Quantity

Description

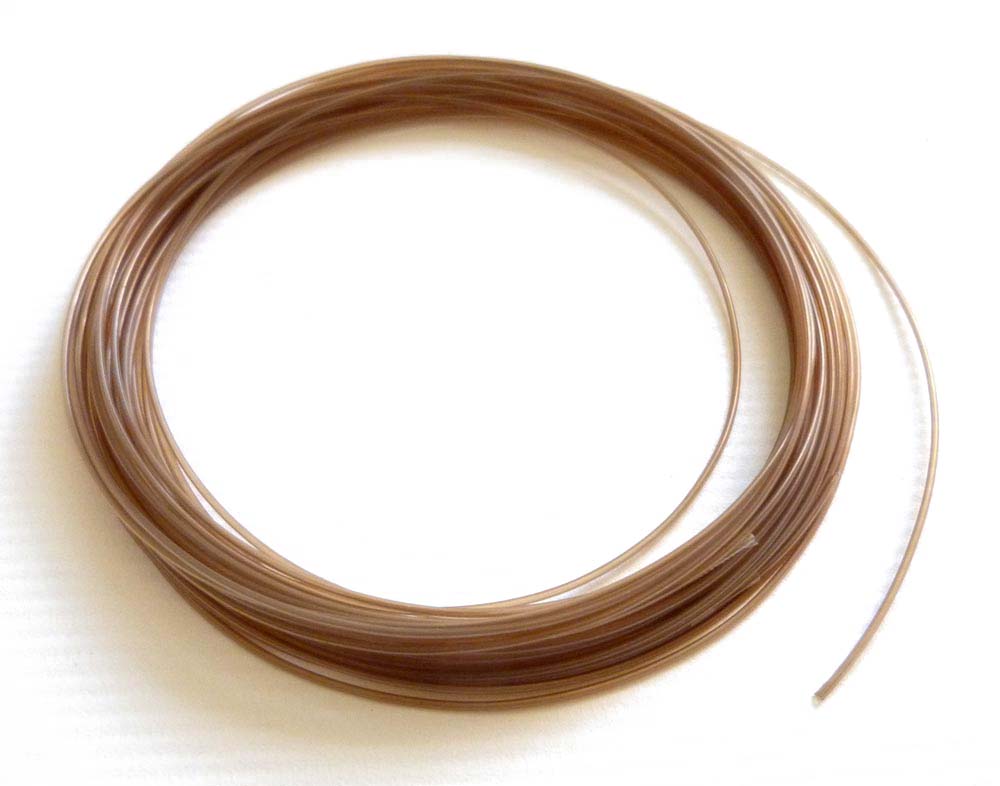

305m low friction 1.07 mm ID PTFE tube suitable for pushrod outers on discus launched glider and other small models. Also suitable for a large range of engineering and industrial uses.

This tubing is specially etched on the outside, making it easily bondable using many adhesives, thin CA being probably the best. Provides the lightest, easiest, most friction-free pushrod installations possible.


18L Etched PTFE Tube Specification
Inside diameter 1.07 mm 0.042 in
Wall thickness 0.16 mm 0.006 in
Outside diameter 1.4 mm 0.055 in
3X Stretched ID 0.64 mm 0.025 in
Suggested inner 0.8mm Carbon Rod 22 SWG or thinner Piano or SS wire
US size 18 AWG L type (Lightweight)
Weight per m 1.4 g per meter
Length of tube 305 m
Number of joins 5 max
