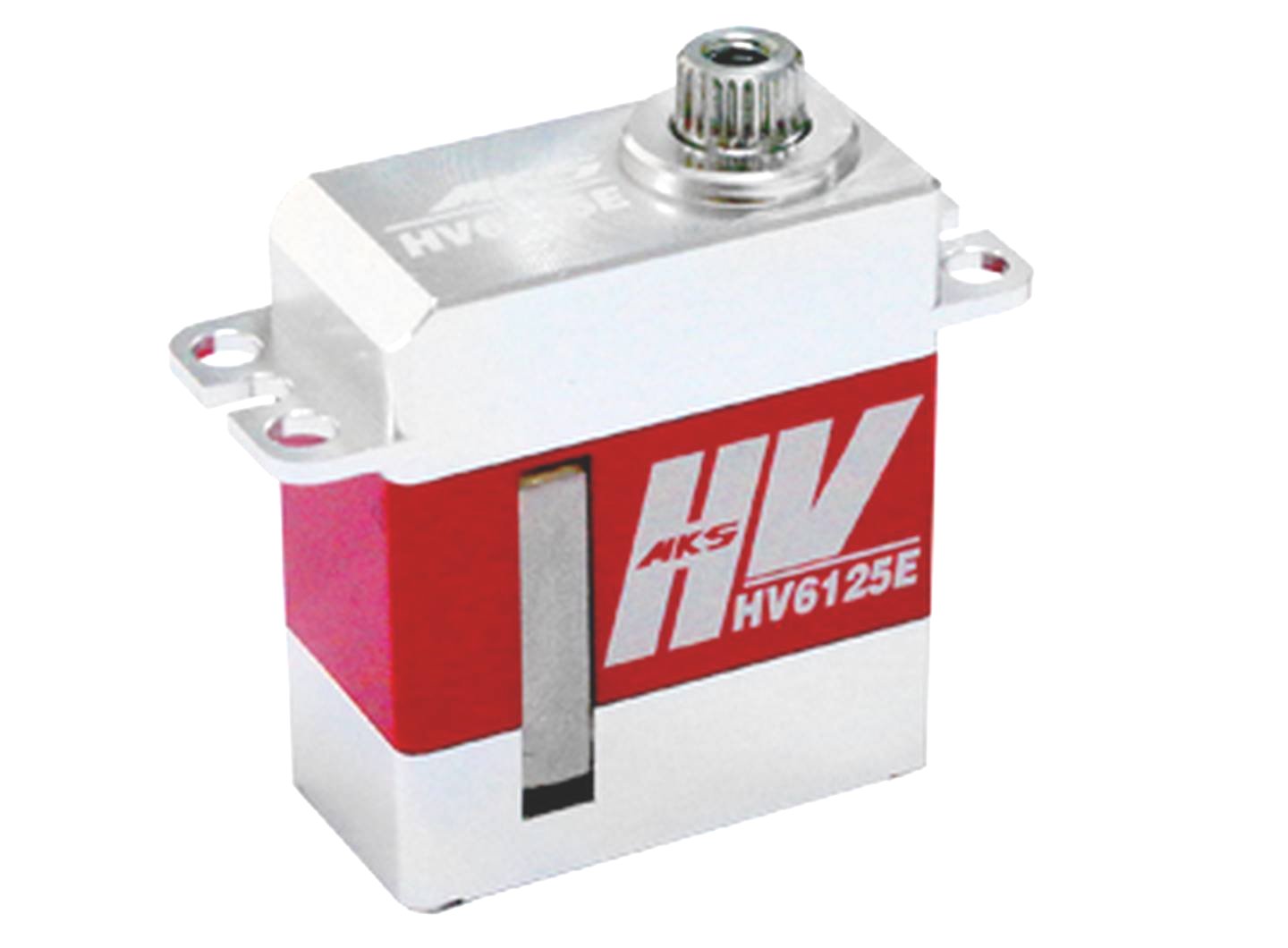

MKS HV6125E Servo - 3.5Kg.cm 0.05s 19.9g 12mm

Product Code: MKS-HV6125E
 (2 reviews)

Price: $95.56

3 in stock
Add to basket to see shipping cost
Quantity

Description

The new MKS-HV6125E is primarily designed as a glider tail servo, with excellent speed, brilliant resolution, and NO free play. It perfectly complements the HBL6625 HV wing servo - but the HV6125e can also be useful for wings, where the fantastic speed will be appreciated. Also great for heli cyclic and tail rotor use.

  • High Voltage: 6.0 - 8.4V
  • Ultra-High Resolution
  • All Aluminium Alloy CNC Case
  • Coreless Motor
  • Fast
  • Negligible Backlash


The MKS hallmark CNC aluminium alloy case adds rigidity and crash resistance to the servo. The gears are pre-loaded to remove all slop or backlash from the geartrain, allowing a level of precision unequalled by other manufacturers.



MKS HV6125E Servo Specifications

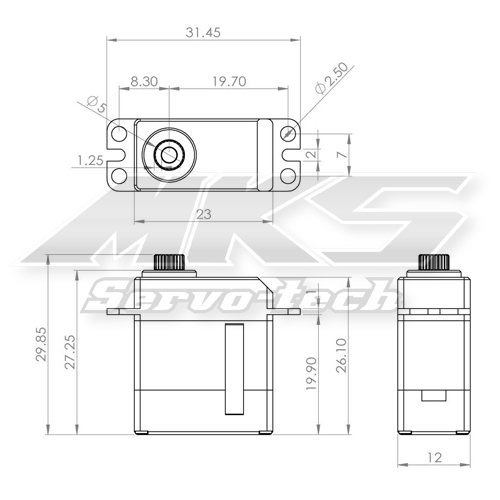

Body dimensions 23.0 mm wide x 12.0 mm thick x 27.3 mm high 0.91" wide x 0.47" thick x 1.07" high
Max dimensions 31.5 mm wide x 12.0 mm thick x 29.9 mm high 1.24" wide x 0.47" thick x 1.18" high
Stall torque (6V) 2.3 Kg.cm 32 oz.in
Stall torque (7.4V) 3 Kg.cm 42 oz.in
Stall torque (8.2V) 3.5 Kg.cm 49 oz.in
Weight 19.86 g 0.70 oz
Lead length 22 cm 8.7 in
Operating speed (6V) 0.07 sec/60°
Operating speed (7.4V) 0.06 sec/60°
Operating speed (8.2V) 0.05 sec/60°
Operating voltage 6V to 8.2V
Operating temperature -10 to 50 °C
Bearings 2 ball bearings
Gear material Chrome-titanium alloy
Case material Aluminium alloy
Motor type Coreless motor
Working frequency 333 Hz
Dead band/resolution 0.8 µs
Pulse width for ± 60º µs
Digital Yes
Programmable No
Position feedback Direct drive potentiometer
Supplied accessories 2 plastic output arms, 2 arm retaining screws, 2 mounting screws
Optional accessories MKS Short Metal Servo Output Arms, MKS Long Metal Servo Output Arms




Tags: RC glider, sailplane, slope, F3F, F3B, F3J, all-aluminium, 333hz, v tail servo

Reviews 2


 Review by:

Great servos for F3F V-tails.

Probably the best servos one can buy for F3F V-tails at the moment.


 Review by:

MKS HV6125e

Excellent service and awesome servo!
