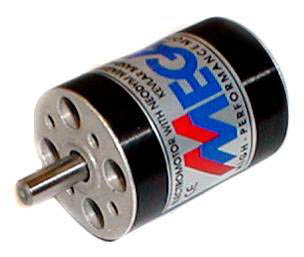

Mega 16/15/3 3000 RPM/V 77g Inrunner

Product Code: MEGA-16-15-3
 (add a review)

Price: $83.54

1 in stock
Add to basket to see shipping cost
Quantity

Description

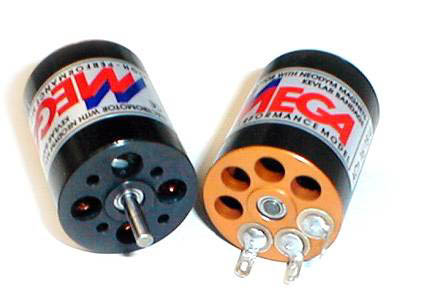

The Mega 16/15/3 Brushless Motor is a Speed 400 sized brushless motor that is powerful, efficient and reliable. Highly recommended for pylon racers.

  • Hardened steel shaft, diameter 3.2 mm.
  • Two precise ball bearings
  • Dynamically balanced
  • Neodymium magnet rotor
  • Handmade stator, lightweight rotor allows high revolution.
  • Kevlar bandage rotor
  • Motor mount has 2 holes on a 16mm diameter and 2 on a 19mm diameter, all M3 threaded
  • Efficiency up to 88%


Mega 16/15/3 Specifications
Motor name Mega 16/15/3 inrunner
Motor weight 77.0 g 2.72 oz
Motor diameter 28.0 mm 1.10 in
Motor length 36.0 mm 1.42 in
Lead length 0.0 cm 0.00 in
Shaft diameter 3.2 mm 0.12 in
Mounting info 2 M3 holes on 16mm & 2 on 19mm diameter
Estimated Rm 28 mR
Estimated Kv 3000 RPM/V
Estimated Io 1.90 A @ 10 V
Max efficiency (10 V) 86 % @ 26.0 A
Operating effic'y (10 V) 86 % @ 30.0 A
Motor Km 19.0 Nm/W^.5 X1000
Motor Km/Kg 247 Nm/(W^.5 Kg)
Recommended battery 3S LiPo
Rec max LiPo capacity 1.5 Ah
Supplied accessories None
3S LiPo Performance
Recommended prop 4.7x4.7
Input power 270 W on 4.7x4.7 prop
Current 27.0 A on 4.7x4.7 prop
