Mega 16/15/2 4200 RPM/V 77g Inrunner

Product Code: MEGA-16-15-2
 (add a review)

Price: $83.54

Out of stock, notify me when back in stock

Description

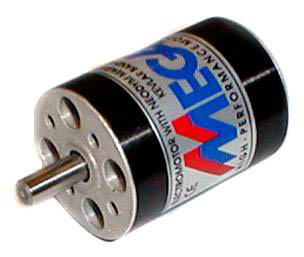

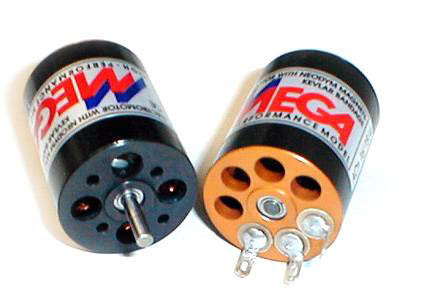

The Mega 16/15/2 Brushless Motor is a Speed 400 sized brushless motor that is powerful, efficient and reliable. Highly recommended for pylon racers.

  • Hardened steel shaft, diameter 3.2 mm.
  • Two precise ball bearings
  • Dynamically balanced
  • Neodymium magnet rotor
  • Handmade stator, lightweight rotor allows high revolution.
  • Kevlar bandage rotor
  • Motor mount has 2 holes on a 16mm diameter and 2 on a 19mm diameter, all M3 threaded
  • Efficiency up to 88%


Mega 16/15/2 Specifications
Motor name Mega 16/15/2 inrunner
Motor weight 77.0 g 2.72 oz
Motor diameter 28.0 mm 1.10 in
Motor length 36.0 mm 1.42 in
Lead length 0.0 cm 0.00 in
Shaft diameter 3.2 mm 0.125 in
Mounting info 2 M3 holes on 16mm & 2 on 19mm diameter
Estimated Rm 12 mR
Estimated Kv 4200 RPM/V
Estimated Io 3.00 A @ 10 V
Max efficiency (10 V) 88 % @ 50.0 A
Operating effic'y (10 V) 88 % @ 50.0 A
Motor Km 20.8 Nm/W^.5 X1000
Motor Km/Kg 270 Nm/(W^.5 Kg)
Recommended battery 3S LiPo
Rec max LiPo capacity 1.5 Ah
Supplied accessories None
3S LiPo Performance
Recommended prop 4.5x4.5
Input power 500 W on 4.5x4.5 prop
Current 50.0 A on 4.5x4.5 prop
