Apex F5L 2m Electric Fuselage & Tail
Description

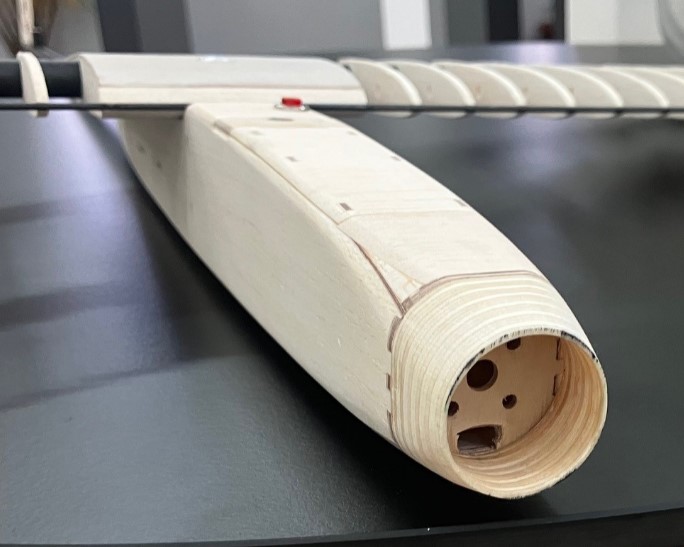

This kit consists of an Apex F5L electric fuselage, tailplane and fin only. The fuselage pod is all balsa and ply construction, with a carbon tailboom. This product does not include the wing.Two versions of the fuselage are made, one intended for cased outrunners like the Dualsky XM2527EG-23 and another designed for drone type outrunners like the T-Motor F60 Pro. Fuselage length: 1280 mm
Ready-to-fly weight (F5L version): approx. 420 - 480 gFor more info and a very nice build log see this RCGroups thread.
Ready-to-fly weight (F5L version): approx. 420 - 480 gFor more info and a very nice build log see this RCGroups thread.
| Recommended RC | |
|---|---|
| Rudder & elevator servos | KST X06, CHA DS06 |
| Spoiler servos (2) (frames for KST X06H included) | KST X06H, CHA DS06 |
| Receiver | 5 channel receiver to match your transmitter |
| Dualsky Motor Recommendation | |
|---|---|
| Motor | Dualsky XM2527EG-23, Dualsky XM2532EG-16 |
| Spinner | 30mm Dualsky Spinner for 3.17mm shafts, 30mm GM F5J Spinner, 3.2mm Split Collet for GM Spinners, 30mm Ali Spinner |
| 3S Prop blades | Vitaprop 8x4, Vitaprop 8x5, Dualsky 8x5.5 |
| ESC | Dualsky SUMMIT 30 SLIM 6V SBEC ESC, Dualsky SUMMIT 30 SLIM 8V SBEC ESC |
| 3S Battery | Bonka LiPo 3S 300mAh, Bonka HV LiPo 3S 520mAh, Radient LiPo 3S 450mAh, 3S 300 - 850mAh LiPo |
| T-Motor Powertrain Recommendation | |
|---|---|
| Motor | T-Motor F60 Pro IV V2.0 1750 RPM/V |
| Spinner | 30mm Dualsky Spinner for 5mm shafts, 30mm GM F5J Spinner, 5mm Split Collet for GM Spinners |
| ESC | Dualsky SUMMIT 30 SLIM 6V SBEC, Dualsky SUMMIT 30 SLIM 8V SBEC |
| 3S LiPo prop | CN 9x7, Dualsky 9x6.5, GM 9x6 |
| Battery | 3S 300mAh-850 mAh LiPo (choose capacity for correct CG) |
