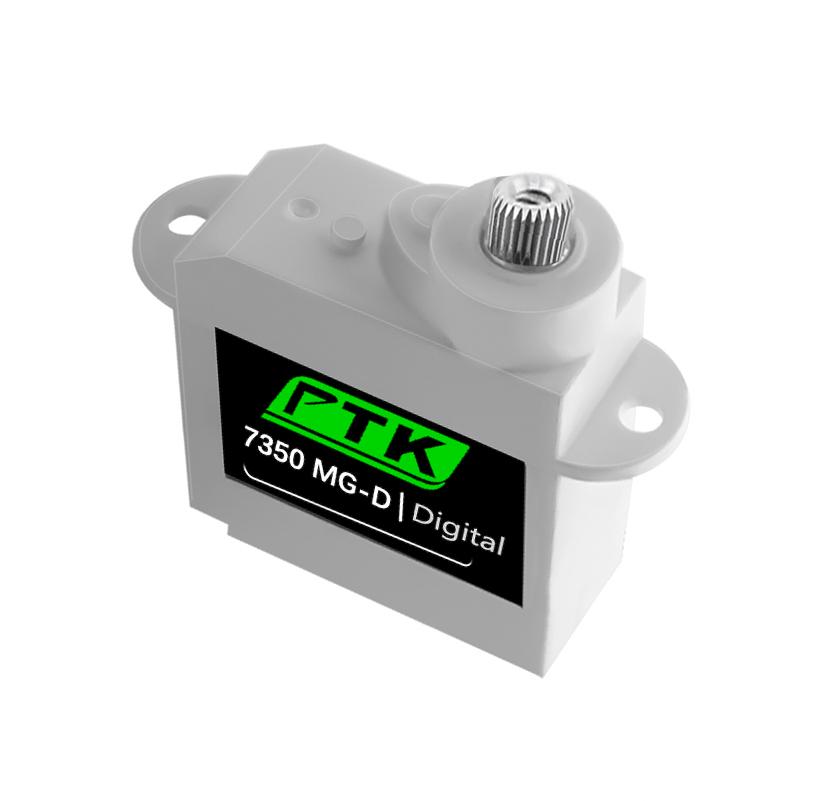

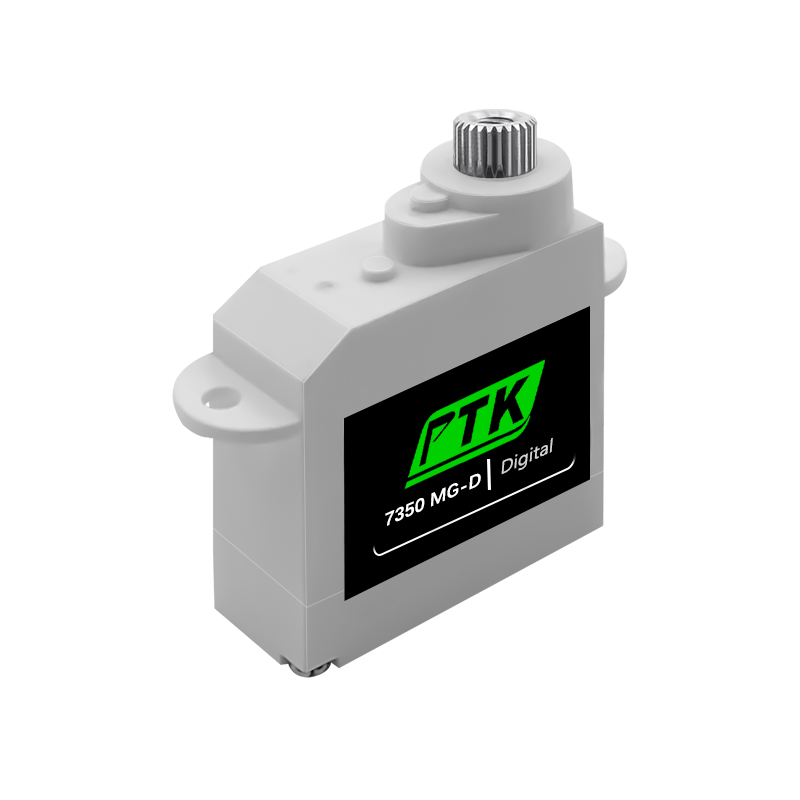

PTK 7350-MG-D Servo - 1.8Kg.cm 0.07s 5.2g 9mm

The PTK 7350-MG-D is a lightweight, budget-friendly servo suitable for the Pug 2 and other small balsa models. While it may not match the ultra-fine resolution of premium servos, it delivers more than enough precision for the vast majority of small aircraft.

What really sets it apart is its impressive rotation range: up to 180° with a 500–2500 µs pulse width. This gives you far more flexibility when setting up your control linkages, making it easier to dial in the perfect mechanical advantage for your build.

The 15T-4 output spline adds another layer of versatility, ensuring seamless compatibility with popular servo accessories from KST X06 - including the Pulley for KST X08 & X06 Servos. That makes it an excellent choice for DLGs and other pull-spring control system models.

In short, the PTK 7350-MG-D packs serious value into a small, lightweight package - giving you the control you need without breaking the bank.

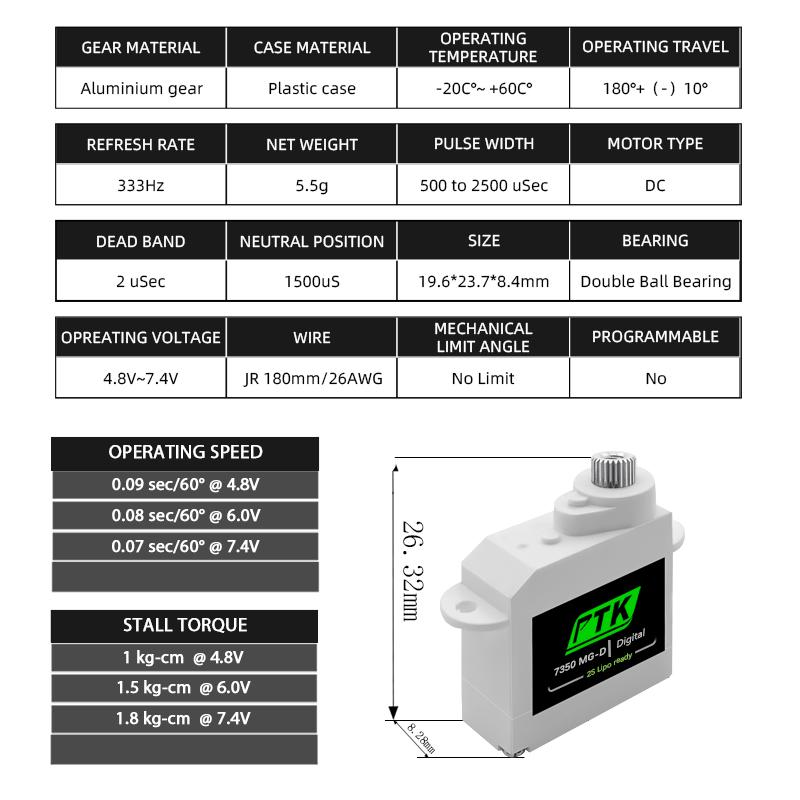

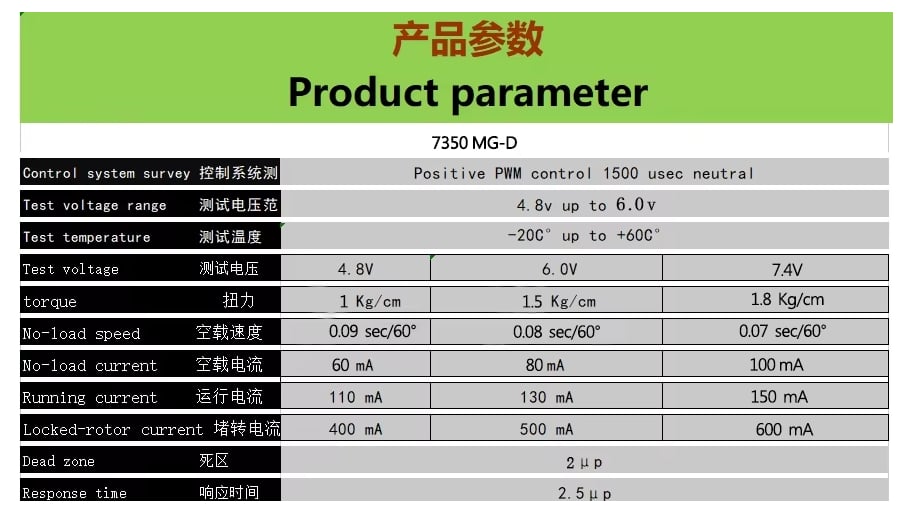

PTK 7350-MG-D Servo Specifications
Body dimensions	19.8 mm wide x 8.5 mm thick x 20.0 mm high	0.78" wide x 0.33" thick x 0.79" high
Max dimensions	27.5 mm wide x 8.5 mm thick x 27.5 mm high	1.08" wide x 0.33" thick x 1.08" high
Stall torque (4.8V)	1 Kg.cm	14 oz.in
Stall torque (6V)	1.5 Kg.cm	21 oz.in
Stall torque (7.4V)	1.8 Kg.cm	25 oz.in
Weight	5.2 g	0.18 oz
Lead length	16 cm	6.3 in
Operating speed (4.8V)	0.09 sec/60°
Operating speed (6V)	0.08 sec/60°
Operating speed (7.4V)	0.07 sec/60°
Operating voltage	4.8V to 7.4V
Operating temperature	-20 to +60 °C

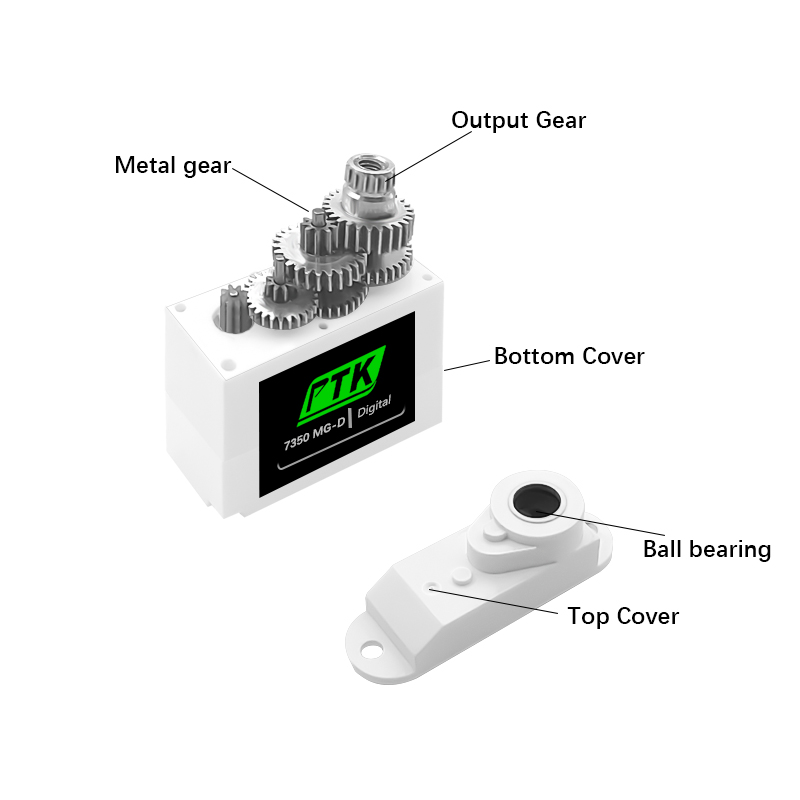

Bearings	2 ball bearings
Gear material	Aluminium
Case material	Nylon
Motor type	Cored
Working frequency	333 Hz
Dead band/resolution	5 µs
Pulse width for ± 60º	µs
Digital	Yes
Programmable	No
Position feedback	Potentiometer

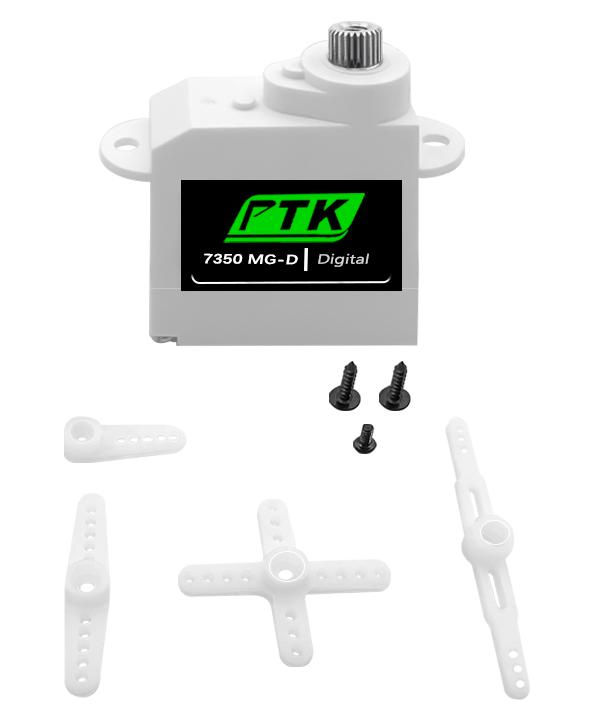

Supplied accessories	4 output arms, 2 mounting screws, 1 arm retaining screw
Optional accessories	KST X06 Arm Set, Aluminium Output Arm for CHA DS06, Pulley For KST X08 & X06
