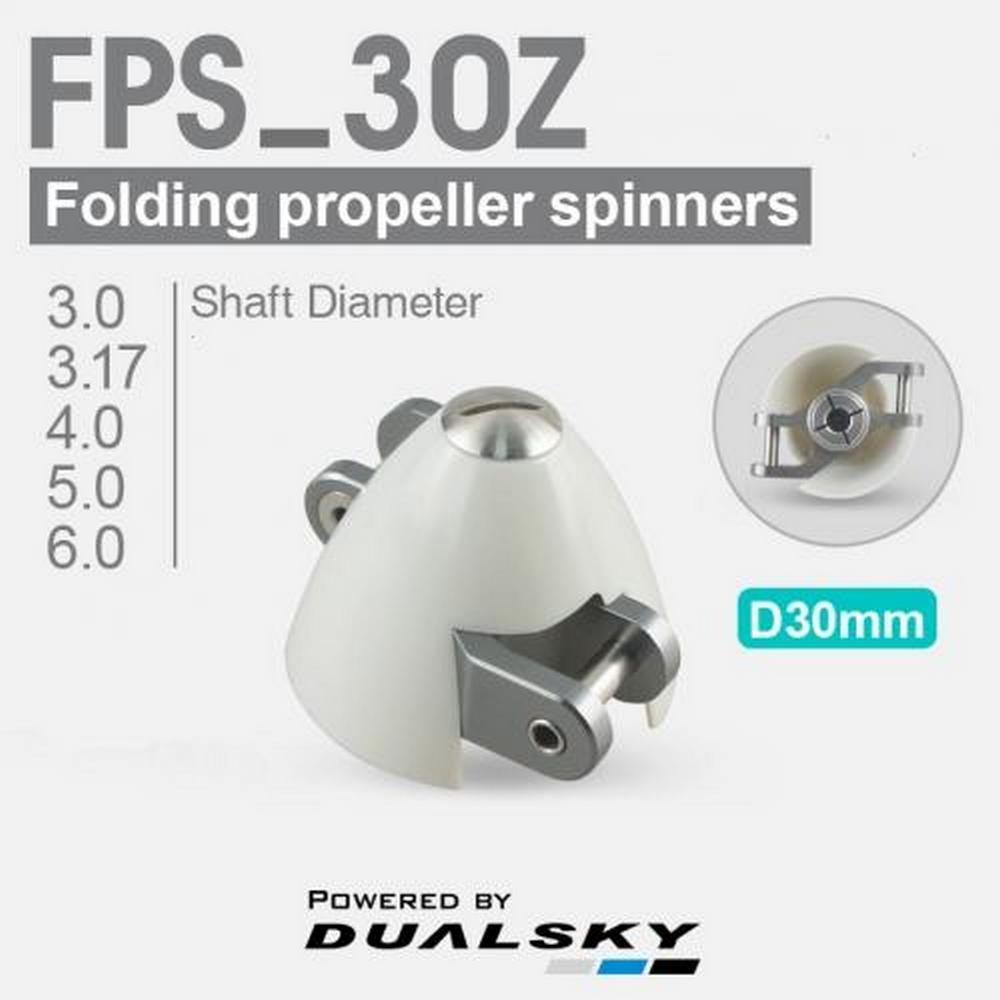

30mm Dualsky Spinner for 3mm shafts
Description

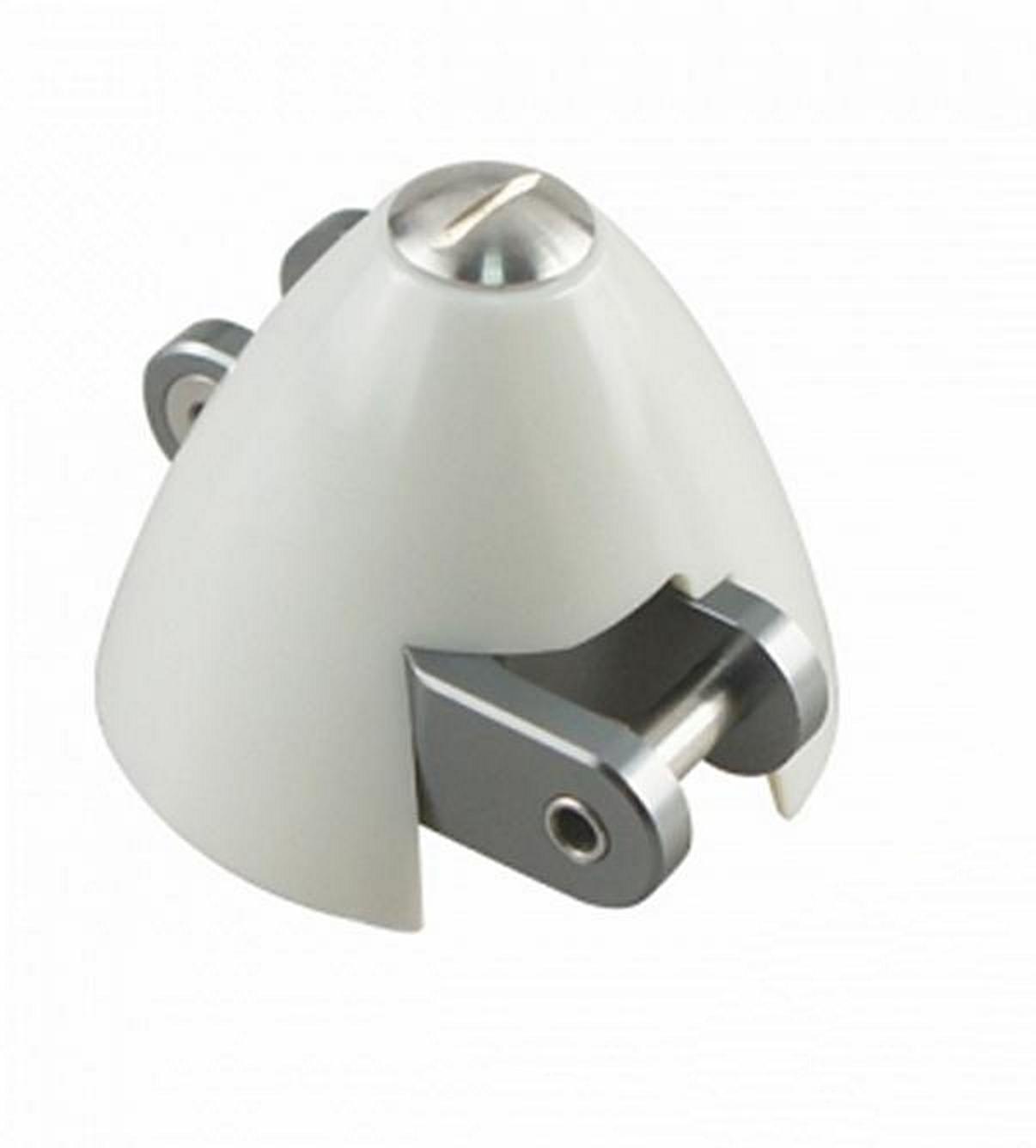

This Dualsky FPS_30 Spinner is designed for 8mm root folding propeller blades and is suitable for electric gliders requiring a 30mm spinner. It comes with a beautifully machined alloy yoke (centre piece, hub) and hollow polished steel hinge pins for mounting the prop blades. A 3mm split collet securely clamps the FPS_30Z Folding Propeller Spinner assembly to the motor or gearbox shaft.

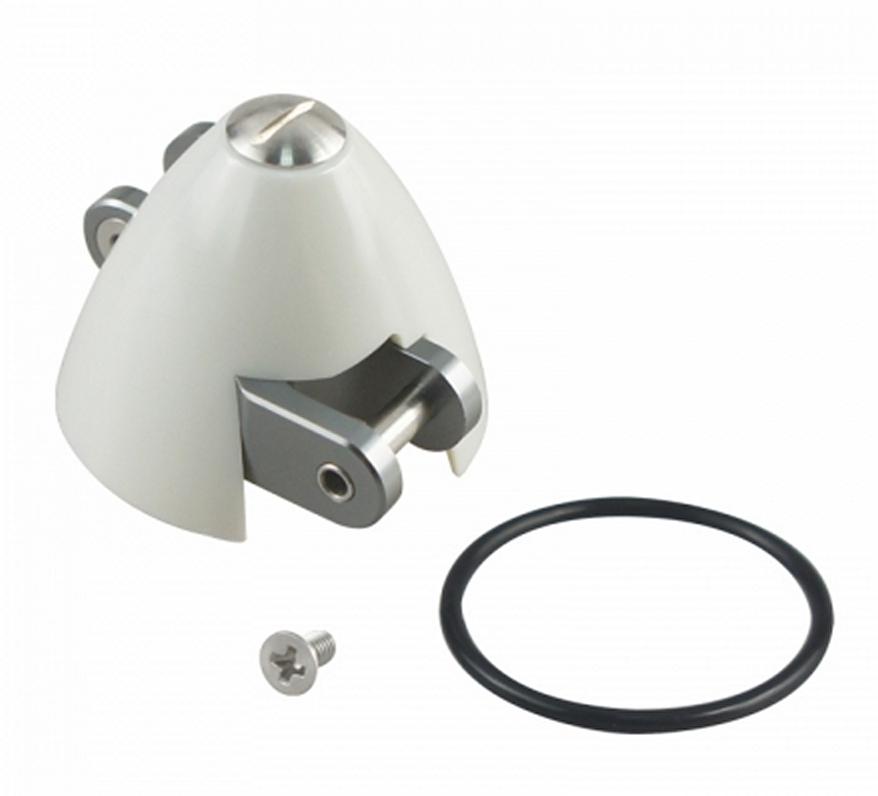

The spinner comes complete will all screws, one 3mm split collet and a rubber band to assist closing the blades. No other items are required apart from the prop blades. Dualsky spinner accessories are available here. See the Spinner FAQ for more help choosing a spinner.
Split collets available in diferent sizes secure the spinner to the motor shaft.
Use the smaller front screw to enable cooling air flow through the spinner.
Lighweight and easy assembly.

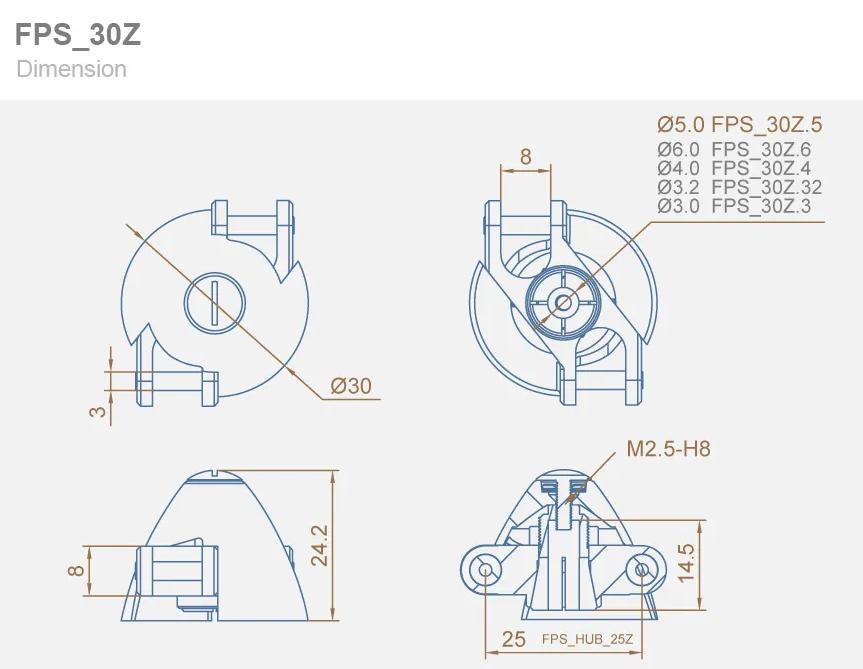

Assembly drawing

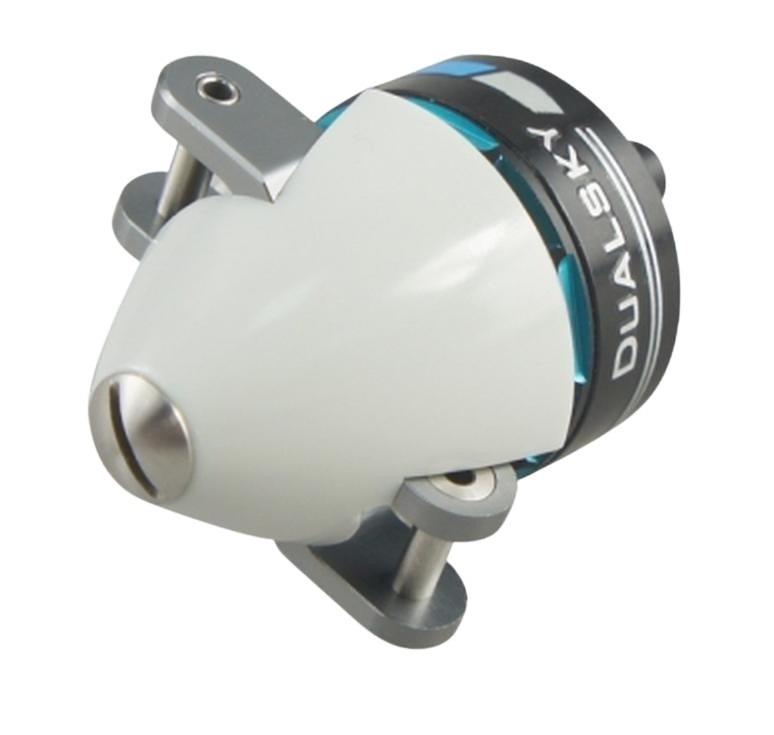

Assembled with a folding prop
Suitable for RES, F3L and F5J electric gliders
- Lightweight.
- High quality.
- Accurate CNC aluminium yoke ensures smooth operation.
- Cranked or Z yoke allows the prop blades to fold closer to the fuselage, reducing drag.
- Supplied with a tough white plastic spinner cone.
- Two front mounting screws supplied - smaller one allows cooling airflow through the spinner.
- Good value.

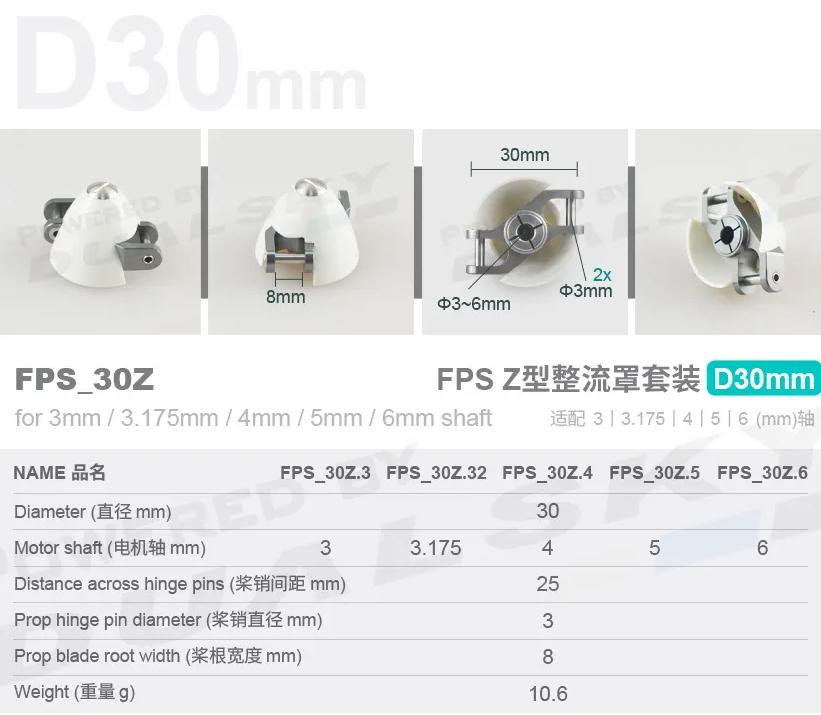

| Dualsky FPS_30Z Spinner Specification | |
|---|---|
| Diameter | 30 mm |
| Motor shaft | 3 mm |
| Distance across hinge pins | 25 mm |
| Prop hinge pin diameter | 3 mm |
| Prop blade root width | 8 mm |
| Weight | 10.6 g |
| Max power | 800 W |
Split collets available in diferent sizes secure the spinner to the motor shaft.
Use the smaller front screw to enable cooling air flow through the spinner.
Lighweight and easy assembly.
Assembly drawing
Assembled with a folding prop
Suitable for RES, F3L and F5J electric gliders
Reviews 5
MJ
United Kingdom
Excellent service as per usual. Nicely made, just the job.
MJ
United Kingdom
Excellent service as per usual. Nicely made, just the job.
Shaun
United Kingdom
F5k installation
Bought for an F5k glider project and I was very favourably impressed with the quality of the item supplied at this price level.
The twist on the yoke also ensured that the Dualsky blades used fold very tightly to the fuselage.
No balance issues and now just waiting for the weather to fly the aircraft.
Mike
United States
Really nice spinner
Seems to be high quality. The prop pins are precise and even the nosecone screw has a little friction, so it won't back out accidentally. Can't beat the price.
