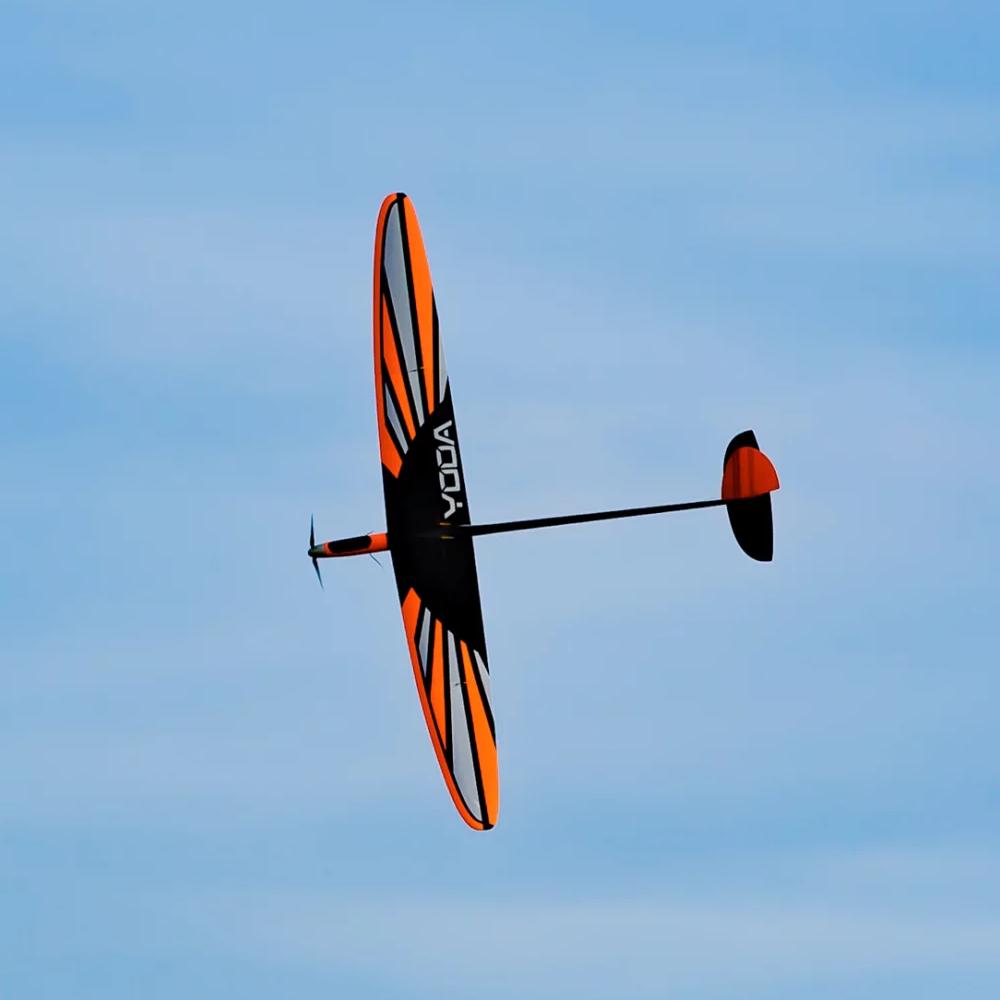

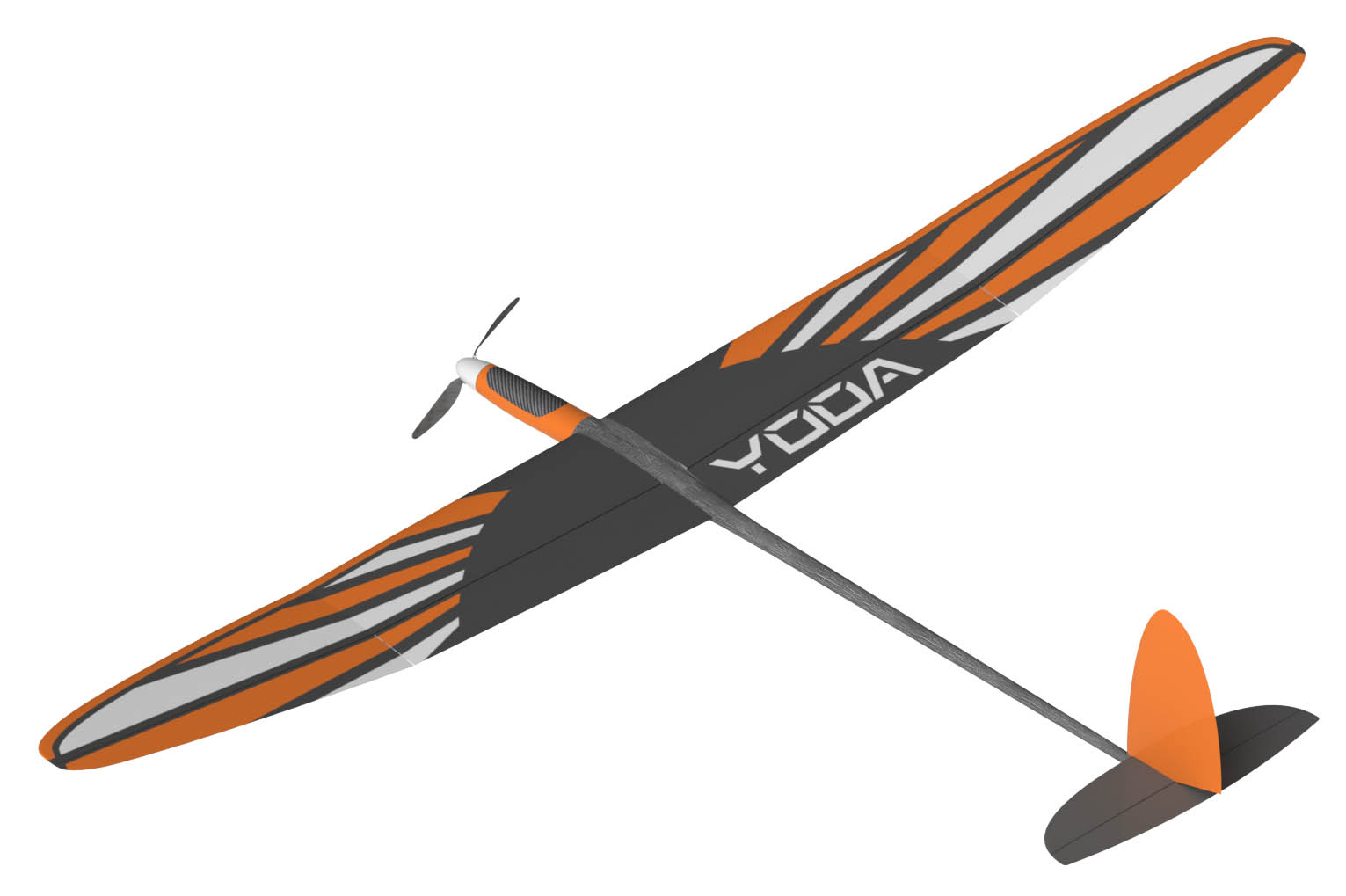

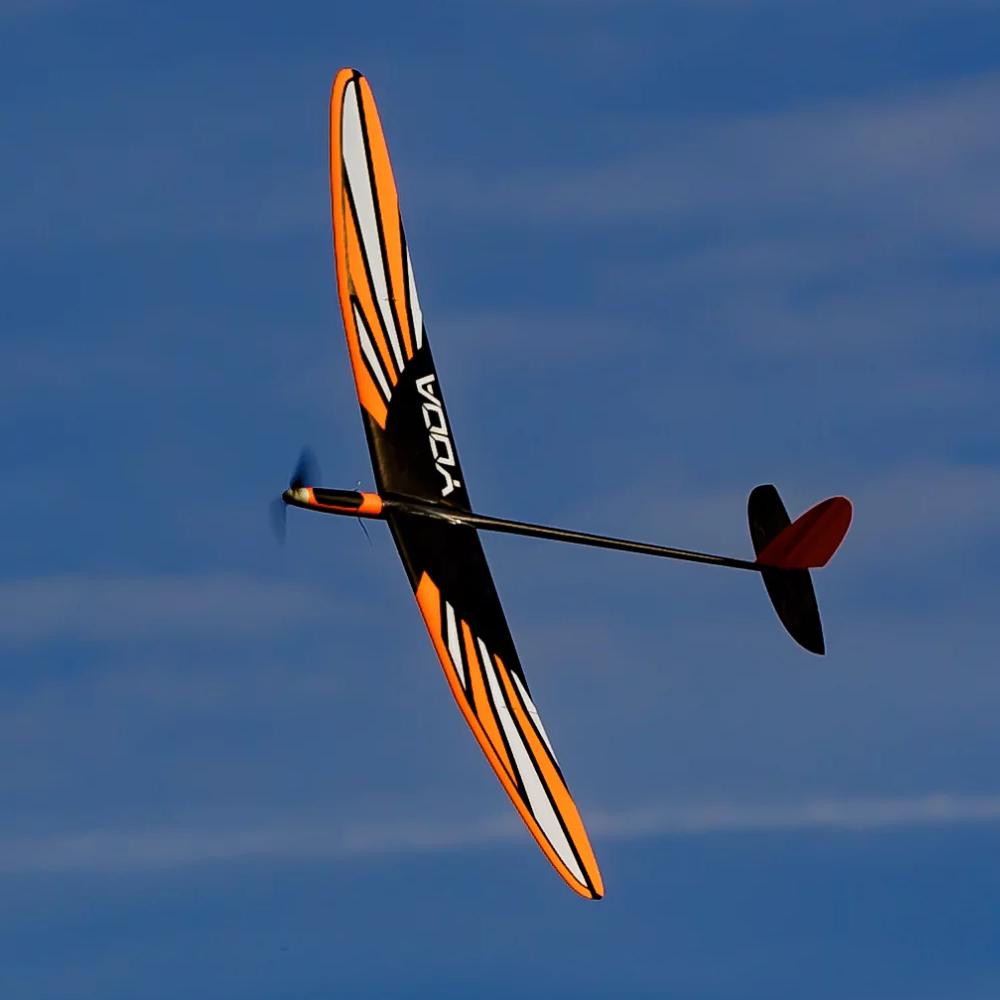

Yoda EL High-Performance F5K 1.5m

The Yoda EL is a high-performance electric glider designed to excel in F5K competitions while also serving as a versatile sport glider for flying just about anywhere. Despite its lightweight construction, it maintains impressive penetration even against moderate winds. However, with added camber, the Yoda EL slows down beautifully, allowing it to climb effortlessly in the lightest thermals.

Mirroring the exceptional handling of the Yoda DLG, the Yoda EL benefits from generous polyhedral, providing outstanding stability and a well-balanced control response-perfect for both competitive and recreational pilots. Its separate flaps enhance landing precision, enabling crow braking for controlled, ultra-slow approaches. This makes it ideal for flying in small spaces and rough terrain.

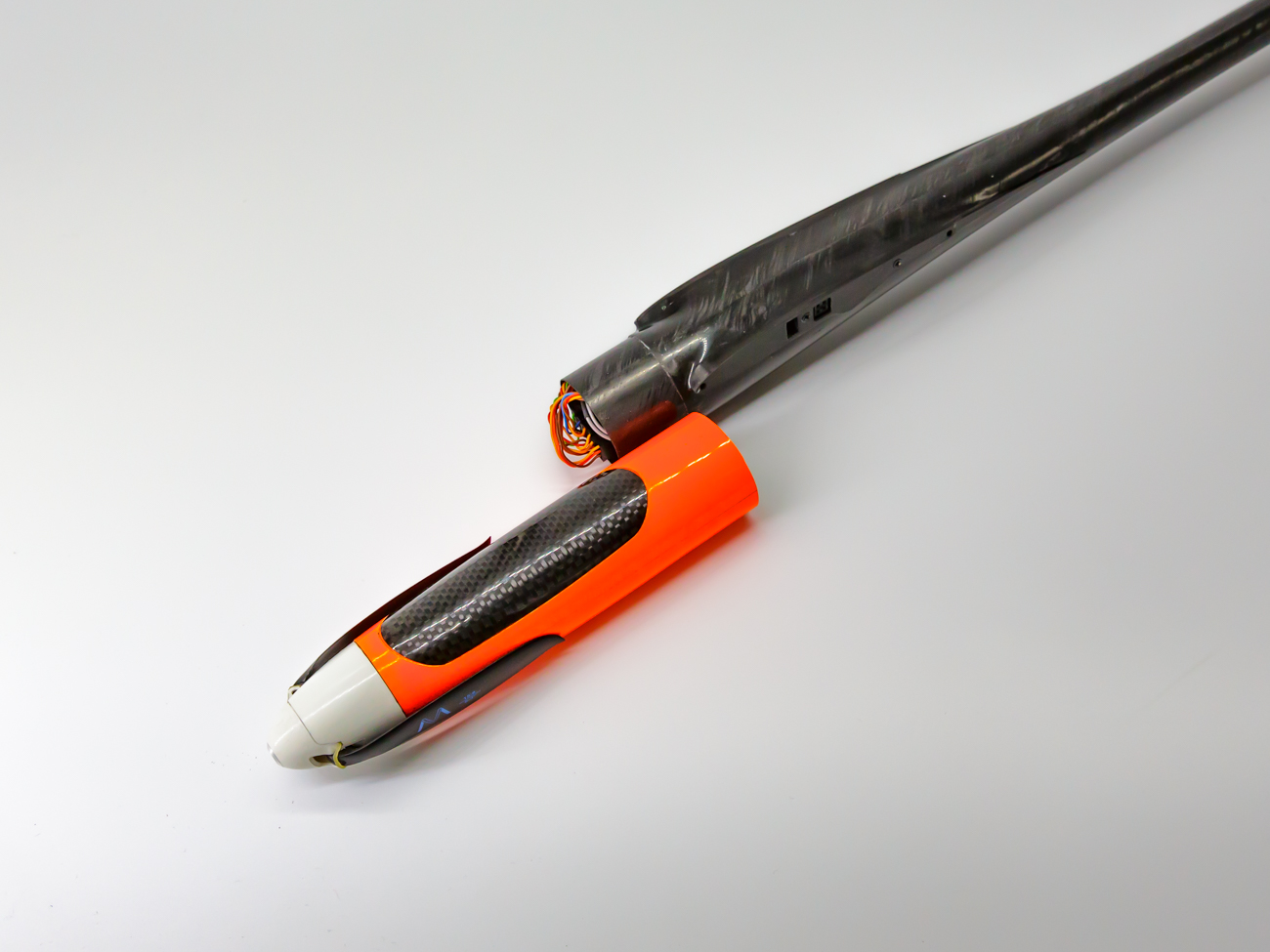

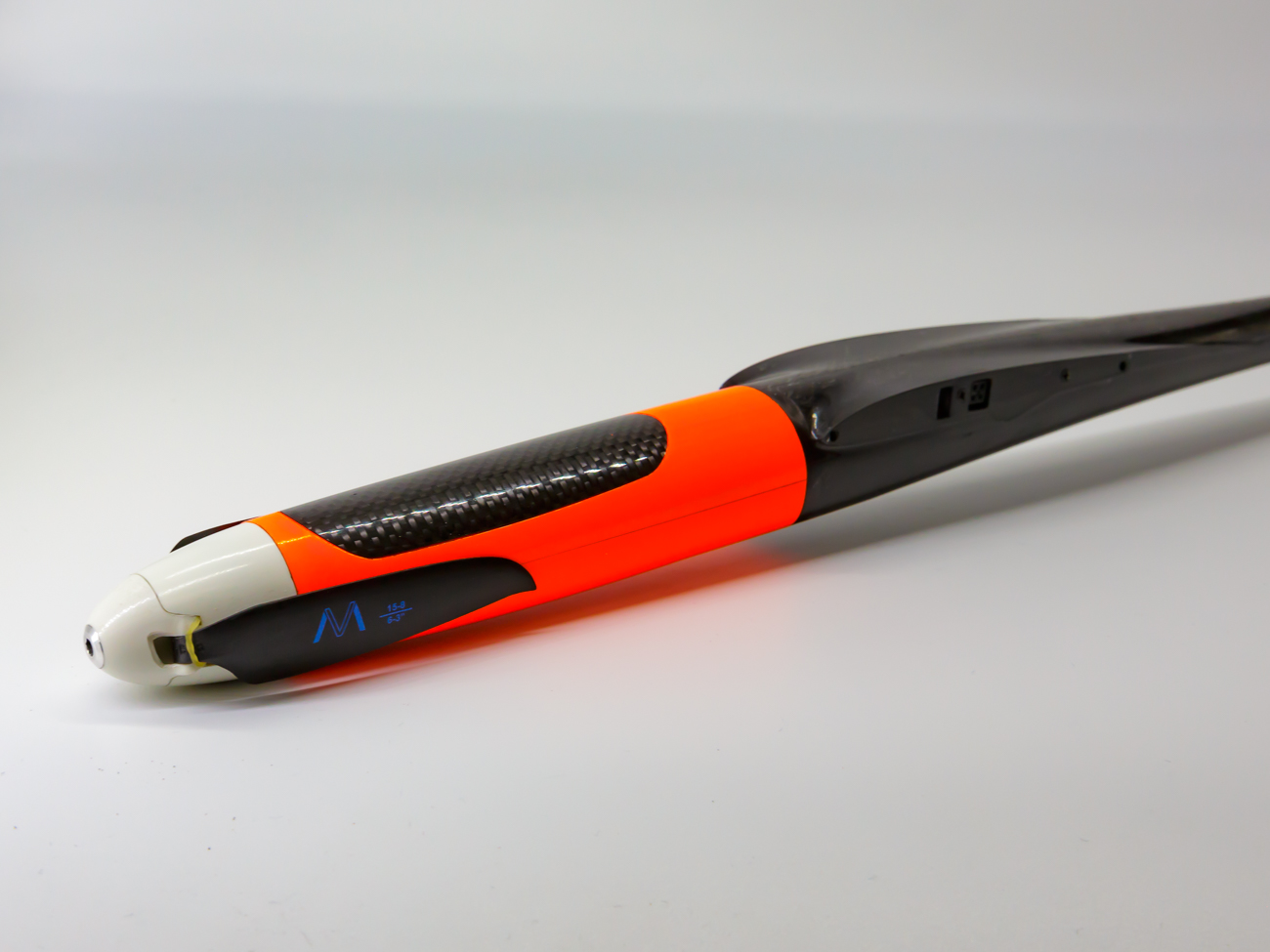

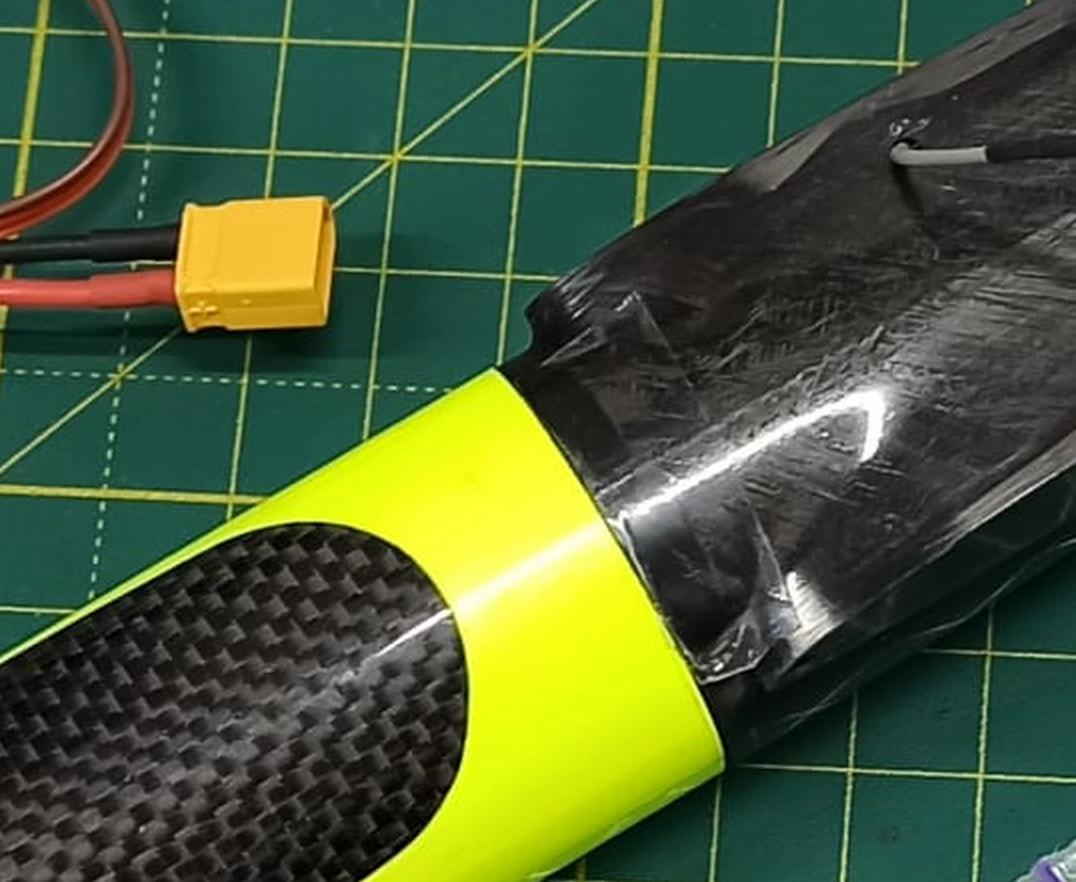

Designed for convenience, the two-piece wing and compact fuselage allow the Yoda EL to be packed into a box as small as 90 × 16 × 6 cm, making it an excellent travel companion. The model is specifically designed for the Vladimir's Models F5 PowerNose, which we highly recommend selecting at checkout.

Key Features:

• Full-house wing with separate ailerons and flaps for superior control

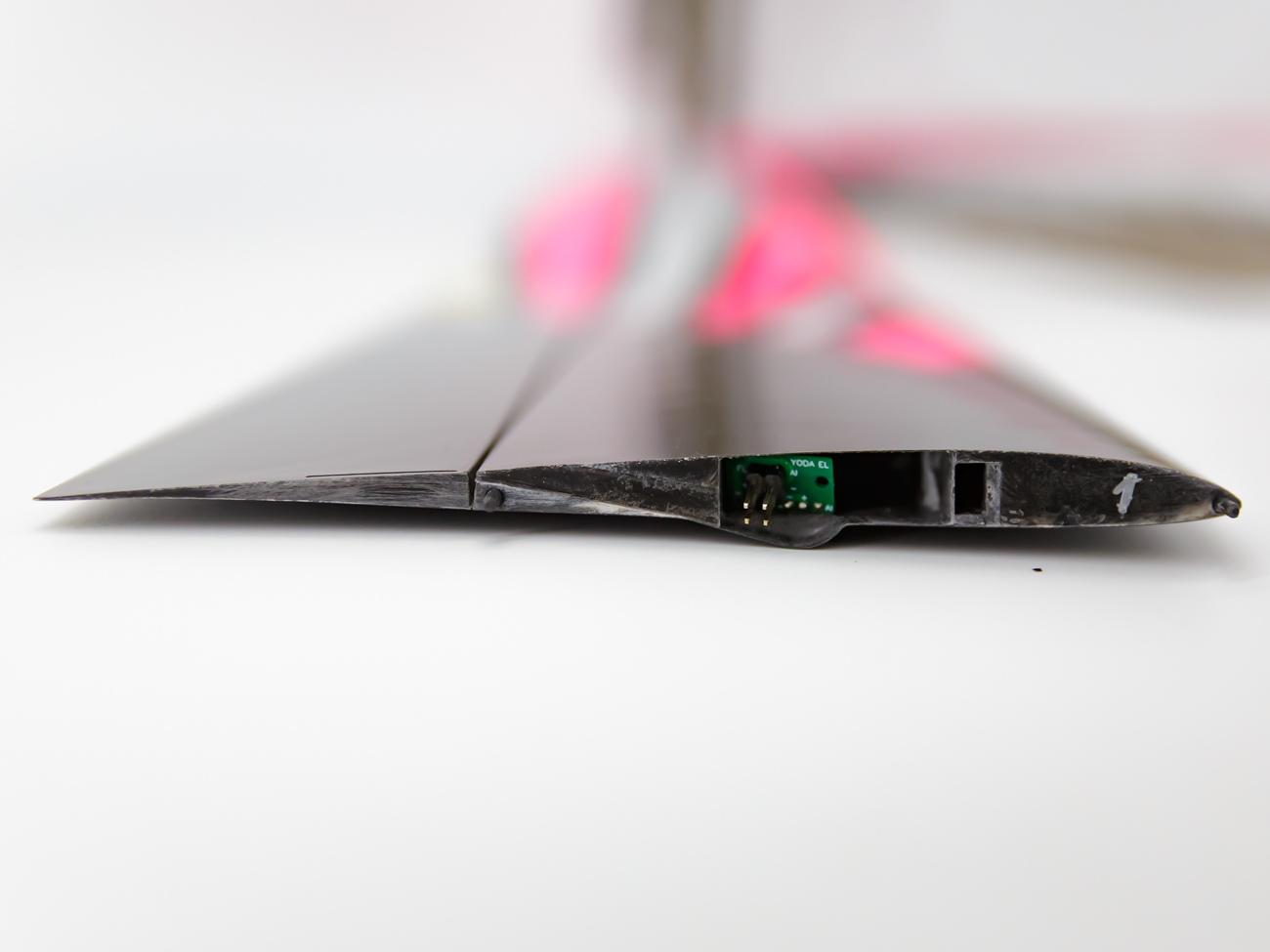

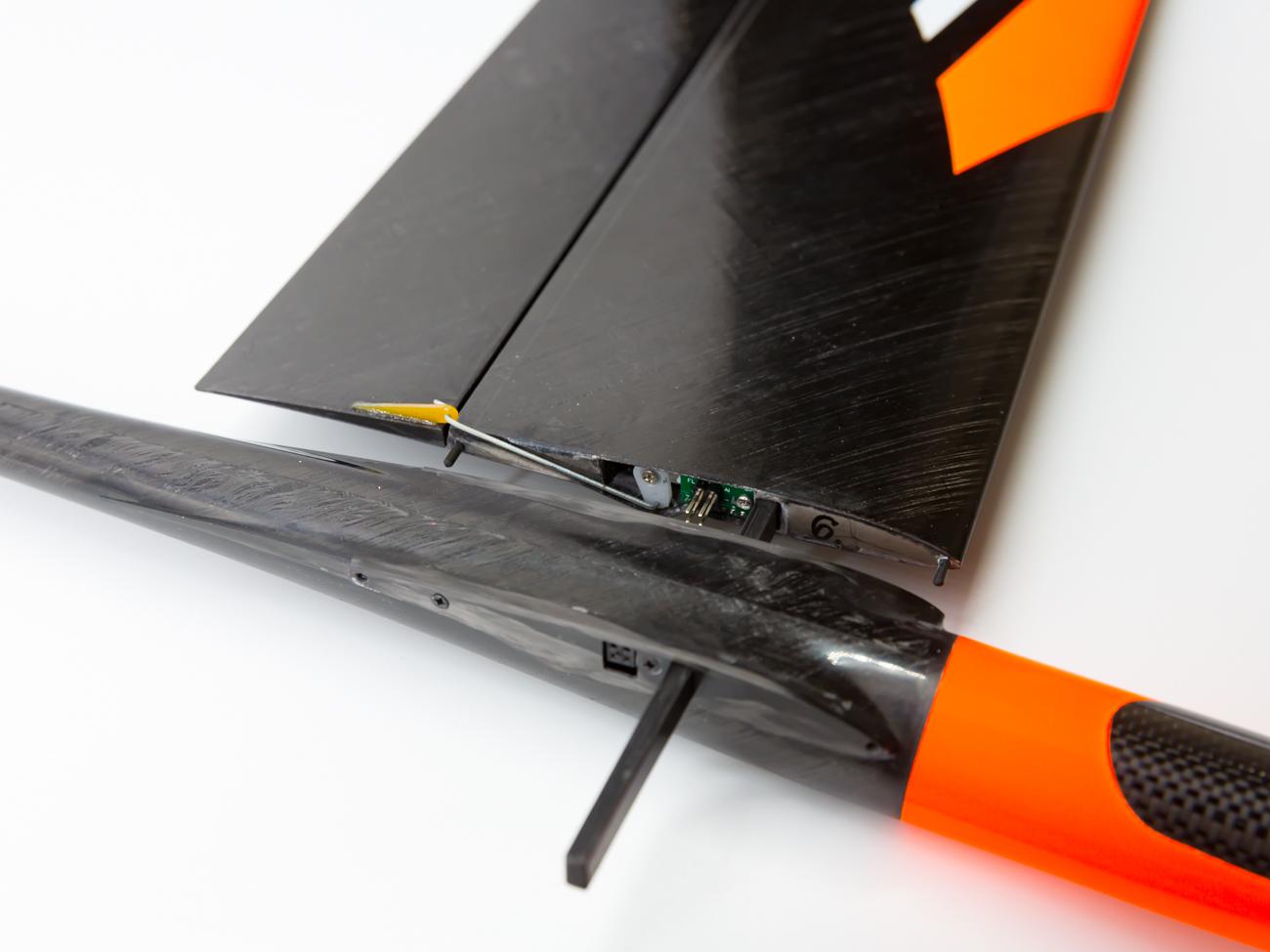

• Two-piece wing for easy transport and storage
• Expert-level prefabrication - minimal assembly required
• High-performance power system with an integrated motor-in-spinner drive
• Ultra-light 280g takeoff weight
• Ballastable fuselage for adaptable performance
• Extreme climb rate with a 3S LiPo setup

Whether you're competing in F5K or just looking for a top-tier sport glider, the Yoda EL delivers an unmatched balance of performance, portability, and ease of use.

More info here: RC-Netwok.de.

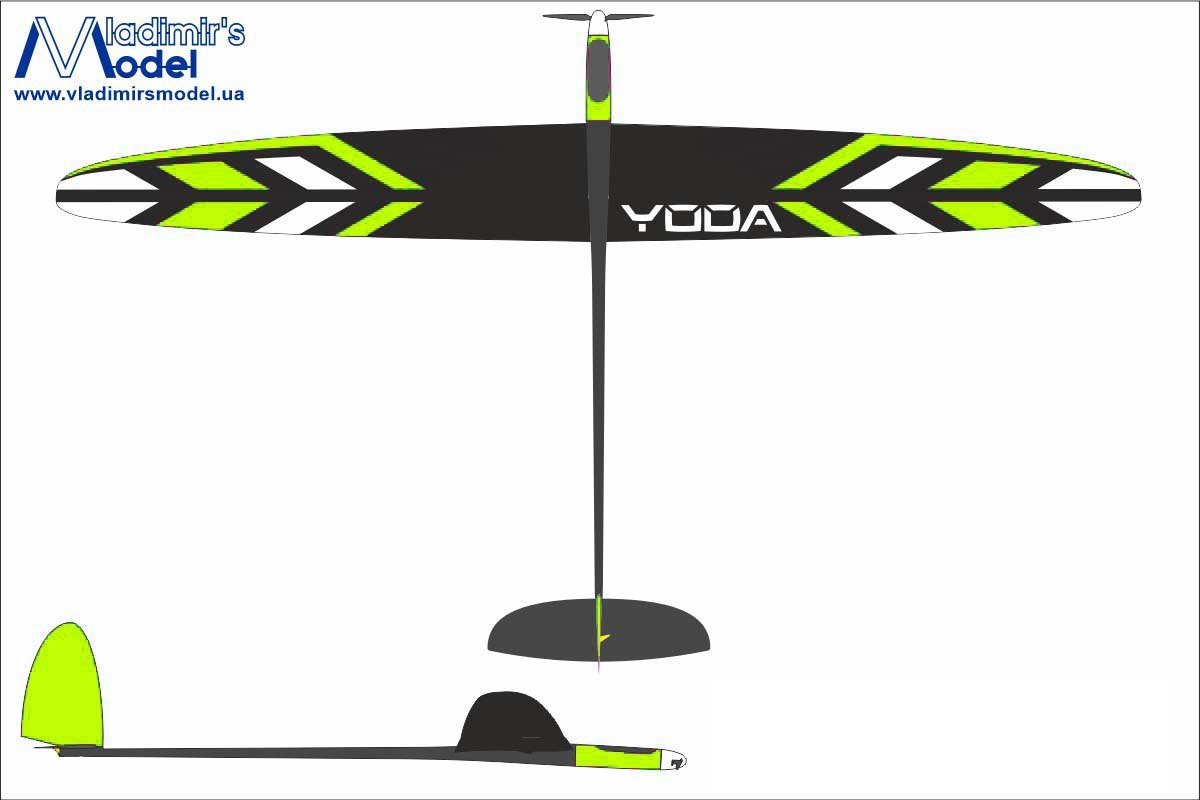

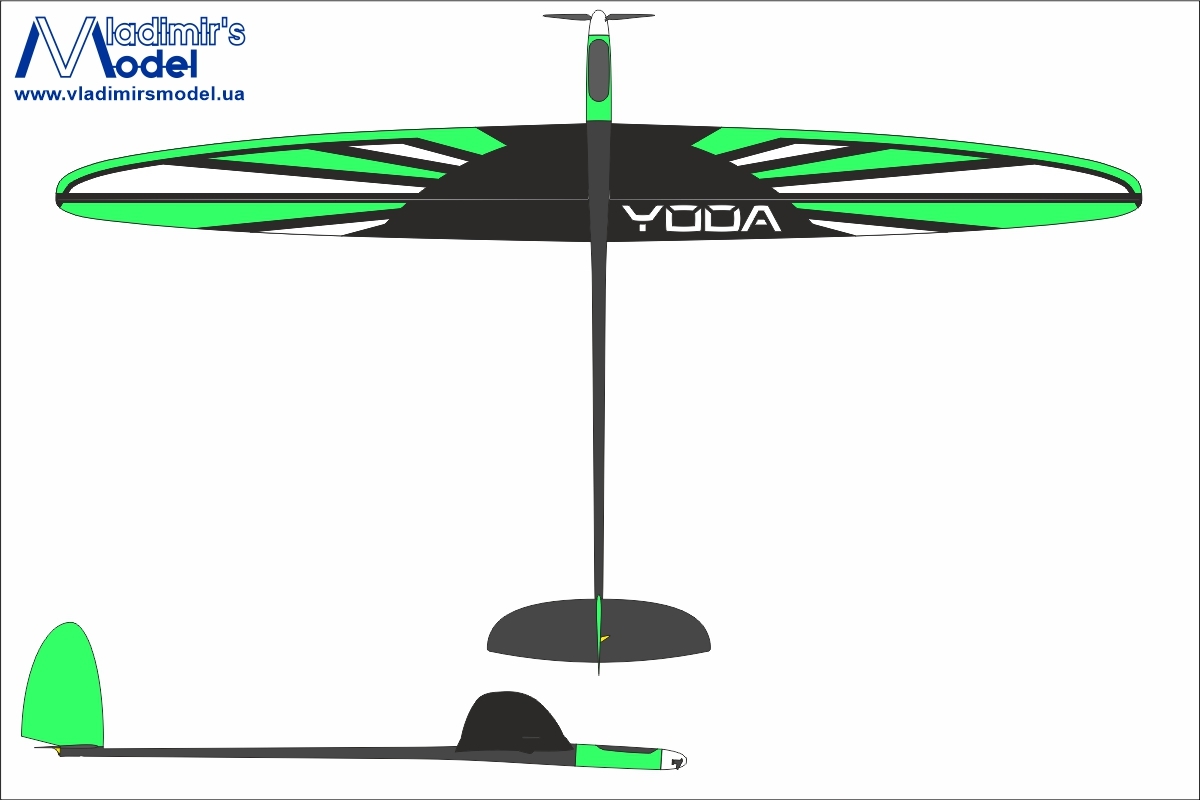

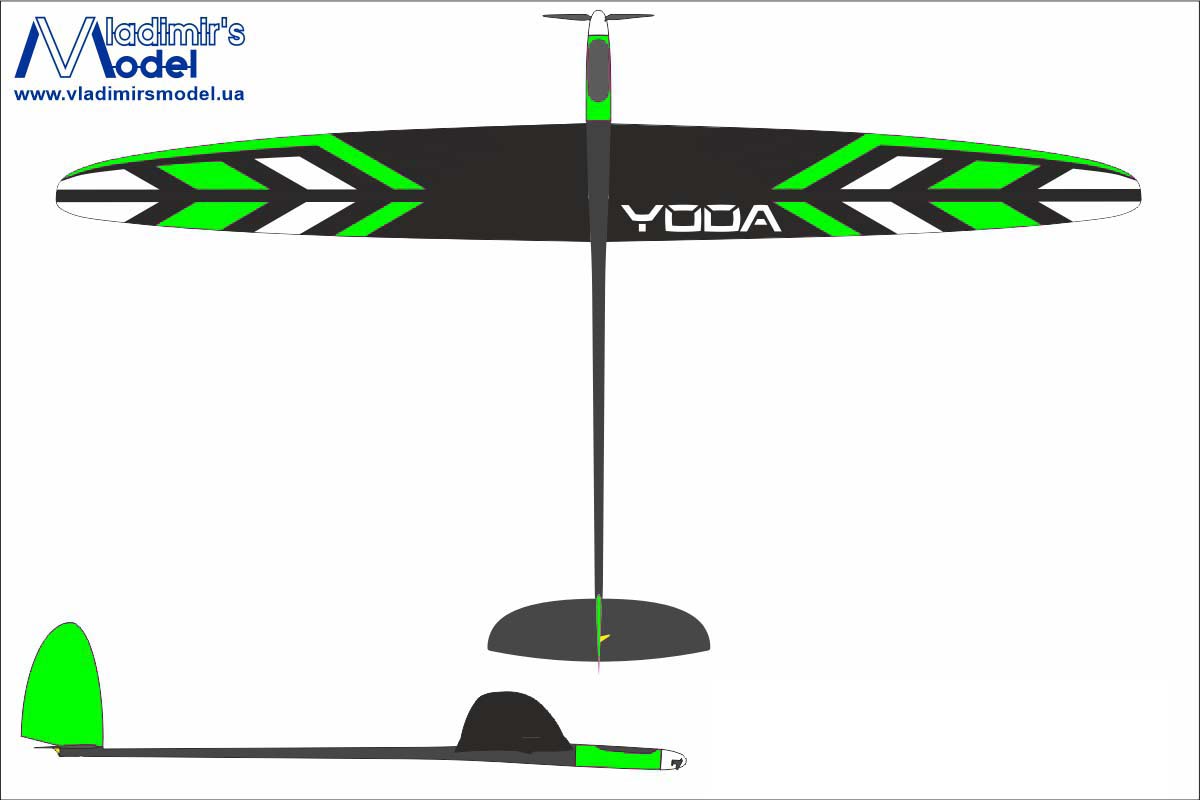

Note colours in the option images are for illustration and may not match the model's colour scheme 100%.

Recommended servos:

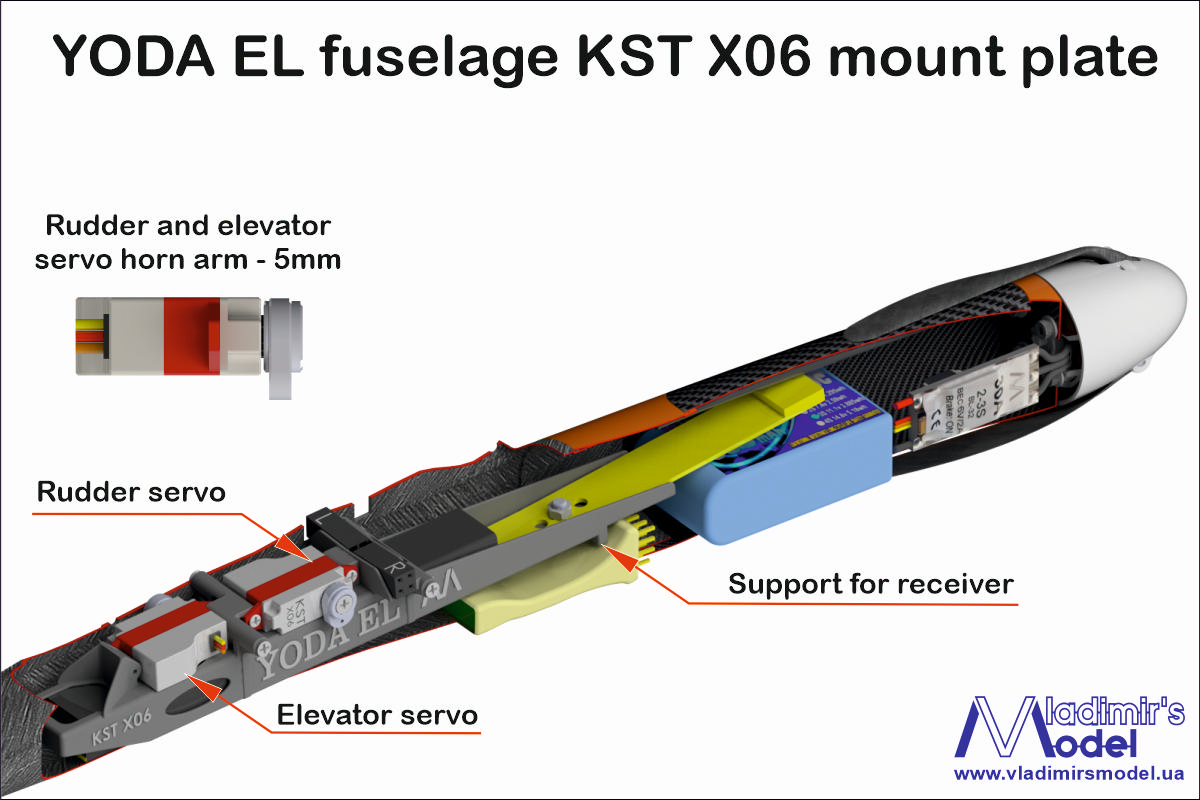

Elevator & rudder: KST X06

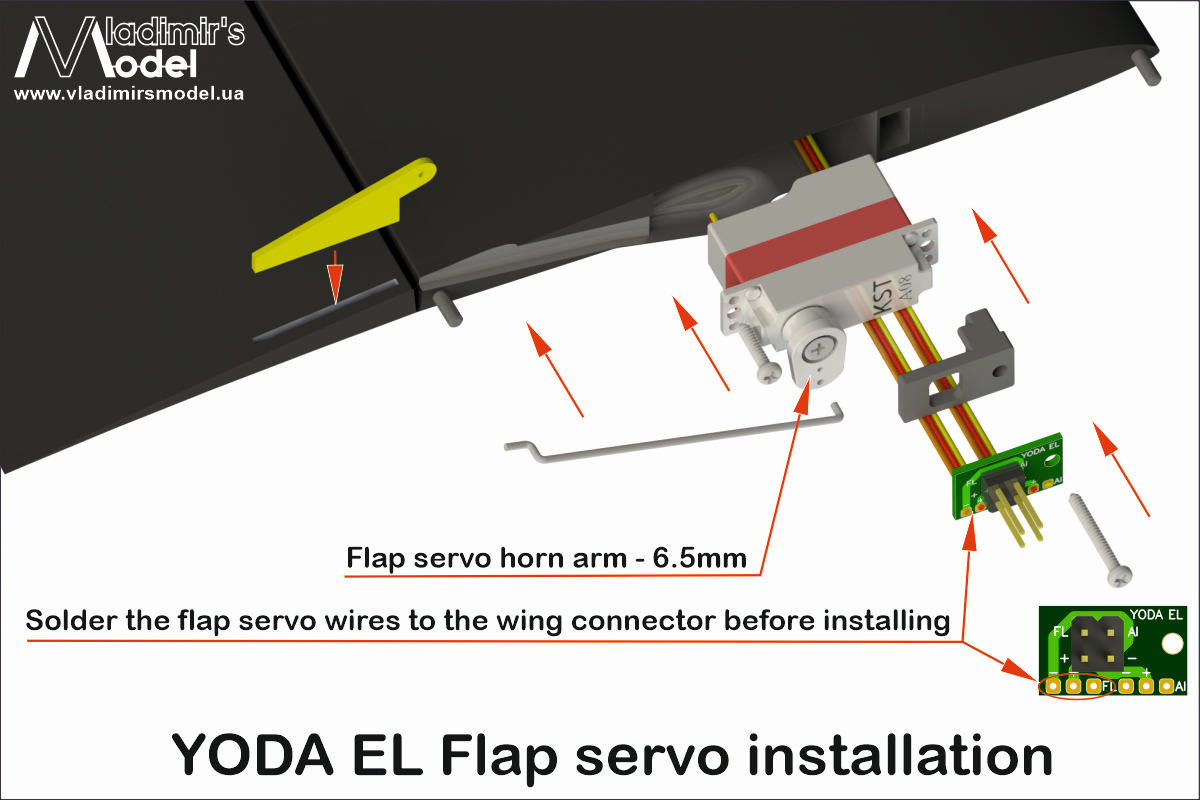

Flaps: KST A08 or KST X08
Ailerons: KST X06N

Yoda EL F5K 1.5m eDLG Specifications
Wing span	1.5 m	59 in
Wing area	19.0 dm2	295 sq in
Length	91 cm	35.8 in
Flying weight from	284 g	10.0 oz
Wing loading	14.9 g/dm	4.9 oz/sq ft
Aspect ratio	11.7
Wing airfoil	JW Yoda F5K EL
Dihedral (EDA)	8.1º
Centre of Gravity	65-76 mm from wing leading edge
Controls	Rudder, elevator, ailerons, flaps, throttle

Recommended RC
Tail servos	KST X06, CHA DS06, CHA HV06
Aileron servos	KST X06N, CHA DS06, CHA HV06
Flap servos	KST X08, KST A08
Receiver	7 channel rx to match your transmitter
Power	2S-3S 300-400 mAh LiPo square cross-section

Yoda EL Control Throws & Mixes - in degrees
Rudder	10° each way
Elevator	6° up / 7° down
Ailerons	17° up / 11.5° down
Flaps (roll input)	14° up / 9.5° down
Recommended aileron and flap settings. Down=surface TE down.
Speed	1° up
Cruise	0°
Thermal 1	2° down
Thermal 2	5° down

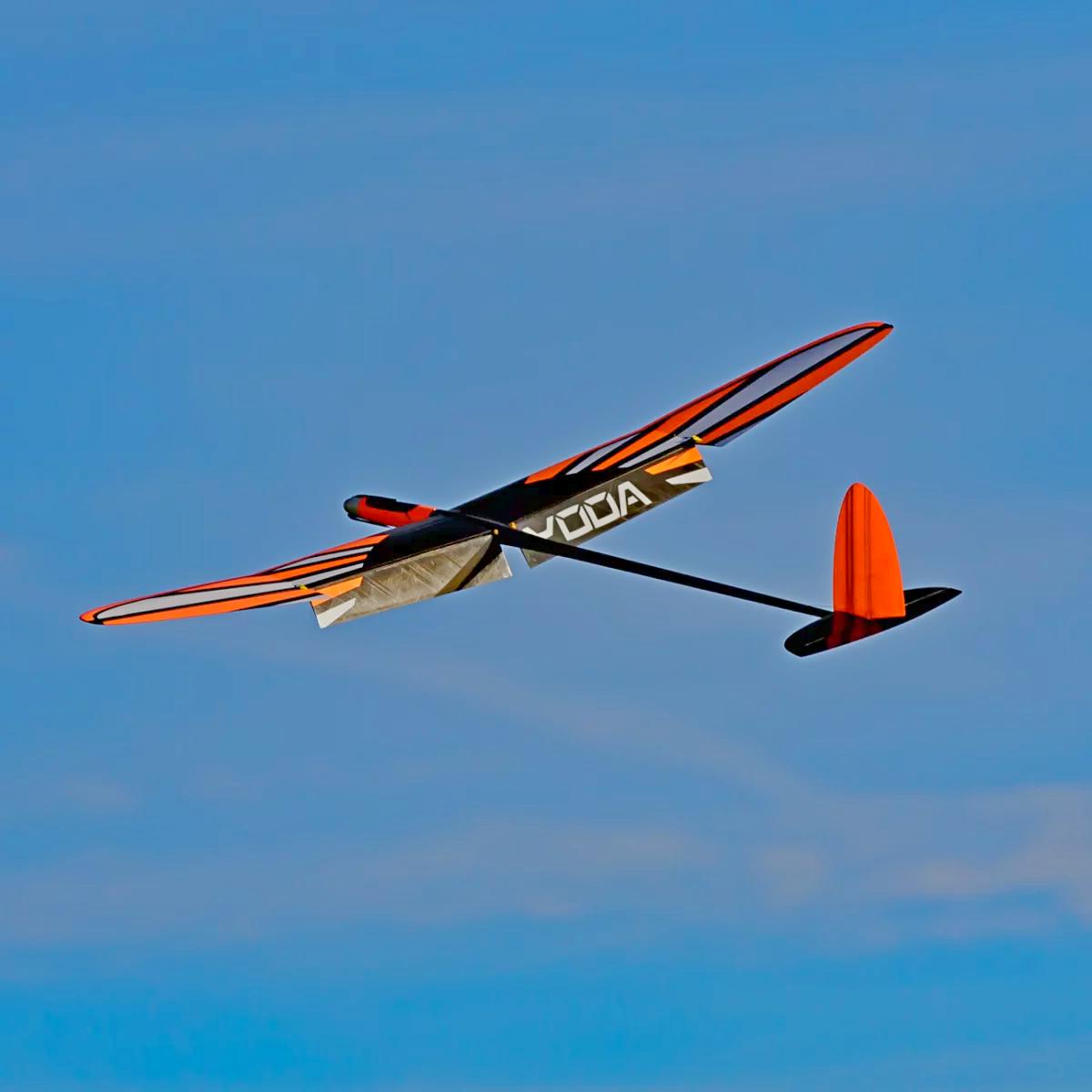

Landing crow brake	Ailerons 10° up, Flaps 47° down, 5° Elevator down

Yoda EL F5K 1.5m eDLG Typical Weights
Fuselage	31.5 g	1.1 oz
Wing (2 piece)	113.0 g	4.0 oz
Fin	6.1 g	0.2 oz
Tailplane	6.2 g	0.2 oz
Accessories	22.6 g	0.8 oz
Total structure	179.4 g	6.3 oz
Receiver	8.0 g	0.3 oz
Tail servos	12.8 g	0.5 oz
Aileron servos	12.8 g	0.5 oz
Flap servos	16.6 g	0.6 oz
Motor, prop, spinner, ESC	34.4 g	1.2 oz
Battery	20.0 g	0.7 oz
Flying weight	284.0 g	10.0 oz
