Vortex 5 DLG

Description

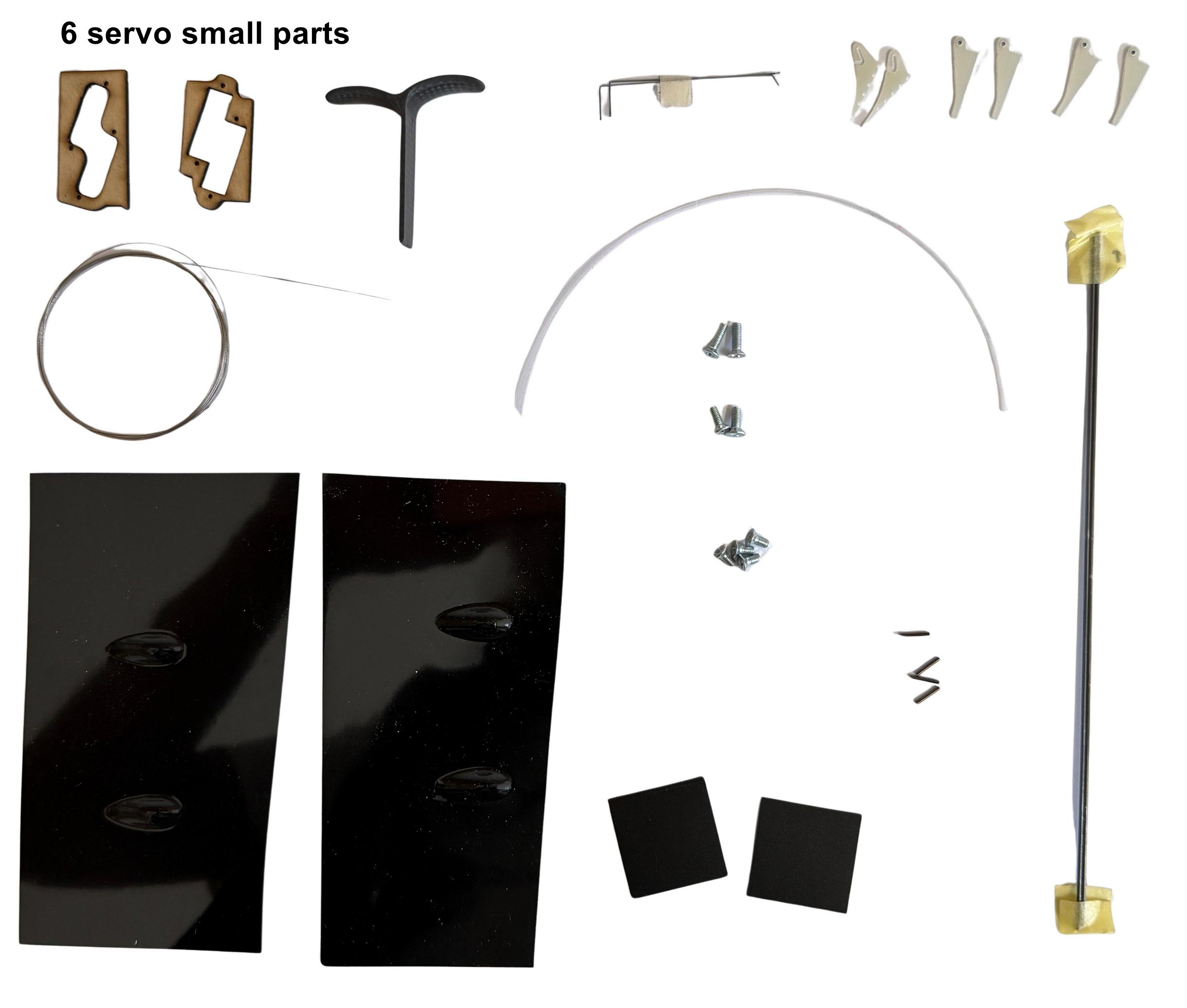

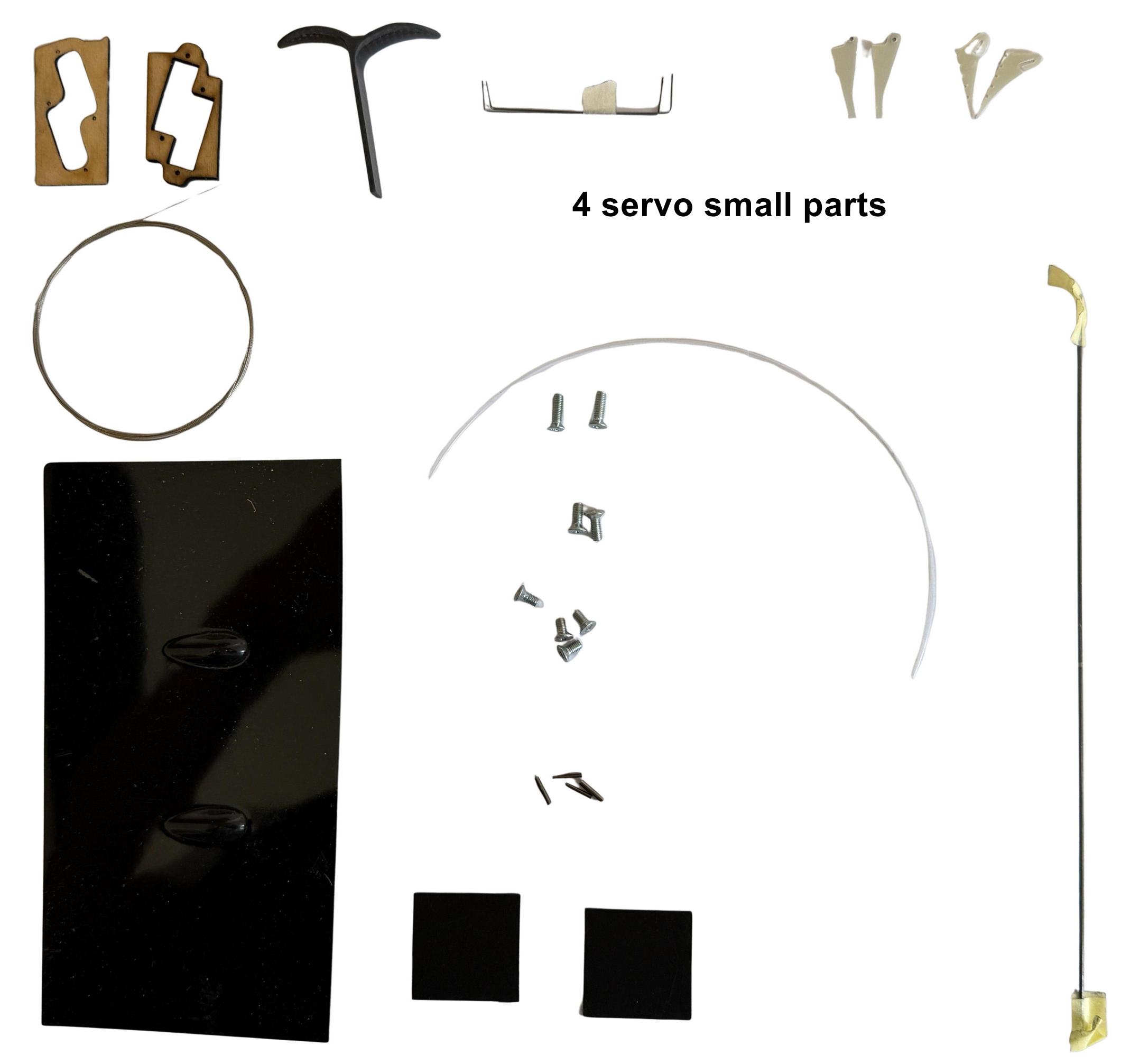

The ground breaking DS Composites Vortex 5 with a four control surface wing DLG is probably the most highly regarded DLG currently available. Many top pilots find the extra controllability of the separate flap and aileron control surfaces gives greater manoeuvrability with less control surface drag in thermal turns and normal flight modes. Also the ability to have crow braking on landing greatly improves control on approach and landing, reducing the likelihood of fumbled catches and resultant damage. Plus the thoroughbred low drag design of the Vortex 5 and excellent surface finish give high launches (up to 80m) and an excellent glide angle. All the models have two piece wings and removable tailplanes and fins to aide transport and storage. We also stock the 4 servo (flaperon) version for those pilots who prefer the simplicity and lighter weight of this configuration.Like the Vortex 4 the build quality is excellent and the engineering is very impressive. Apart from of course perfectly molded carbon parts the kit comes with a very nicely engineered system for automatic connection of the aileron controls when the wing is attached. This is a different level of convenience and functionality to other DLGs we sell.Supplied with a complete accessory bag including all the items necessary to complete the model. Two servo trays are included for the tail servos. These trays are designed for MKS HS75K, MKS HV70, KST X06 & KST A06 servos. CHA HV06 and CHA LV06 also fit. We are stocking the two piece wing version (2pw) with a bottom mounted tailplane, in various layups. The models available also have the updated slightly taller fuselage that accomodate the KST A06 servo.See RCGroups Vortex5 thread for more info.
Vortex 5 1.5m DLG Specifications
Wing span 1.5 m 59 in
Wing area 19.1 dm2 300 sq in
Length 105 cm 41.2 in
Flying weight from 235 g 8.3 oz
Wing loading 12.4 g/dm 4.1 oz/sq ft
Aspect ratio 11.7
Wing airfoil Proprietary
Dihedral angle 6.5º
Centre of Gravity 68-70 mm from wing leading edge
Controls Rudder, elevator, ailerons, flaps
Recommended RC
Tail servos KST A06, KST X06, MKS HV70H, MKS HS75H, MKS HV75, CHA DS06, CHA LV06, CHA HV06
Flap servos KST A06, KST X06, KST X08, KST A08, MKS HV70H, MKS HS75, CHA DS06, CHA LV06H, CHA HV06H
Aileron servos KST A06N, KST X06N, KST X08N, KST A08N, MKS HV70H, MKS HS75, CHA DS06, CHA LV06H, CHA HV06H
Receiver 6 channel rx to match your transmitter, max size approx 60mm x 25mm x 12mm eg FrSky GR6, JR RG612BX, Spectrum AR6610T
Power 1S 400-600 mAh LiPo, 2S 300-400 mAh LiPo
Vortex 5 1.5m DLG Typical Weights
Fuselage 41.0 g 1.4 oz
Wings 101.0 g 3.6 oz
Fin 5.5 g 0.2 oz
Tailplane 5.5 g 0.2 oz
Accessories 20.0 g 0.7 oz
Total structure 173.0 g 6.1 oz
Receiver 5.0 g 0.2 oz
Tail servos 12.8 g 0.5 oz
Aileron servos 12.8 g 0.5 oz
Flap servos 12.8 g 0.5 oz
Battery 20.0 g 0.7 oz
Flying weight 236.4 g 8.3 oz

Reviews 1


  Netherlands
  Vortex 5

They said the Yoda is the Swiss knife of DLGs.
Well the new Vortex 5 became the super++ Swiss knife of DLGs.
Super service from Hyperflight. Thank you Neil

 Verified Purchase
Product Code: VORTEX5
 (1 review)
$1,120.11
4 in stock
Add to basket to see shipping cost
Available Options
* Layup, number of servos, wing colour (stock#):

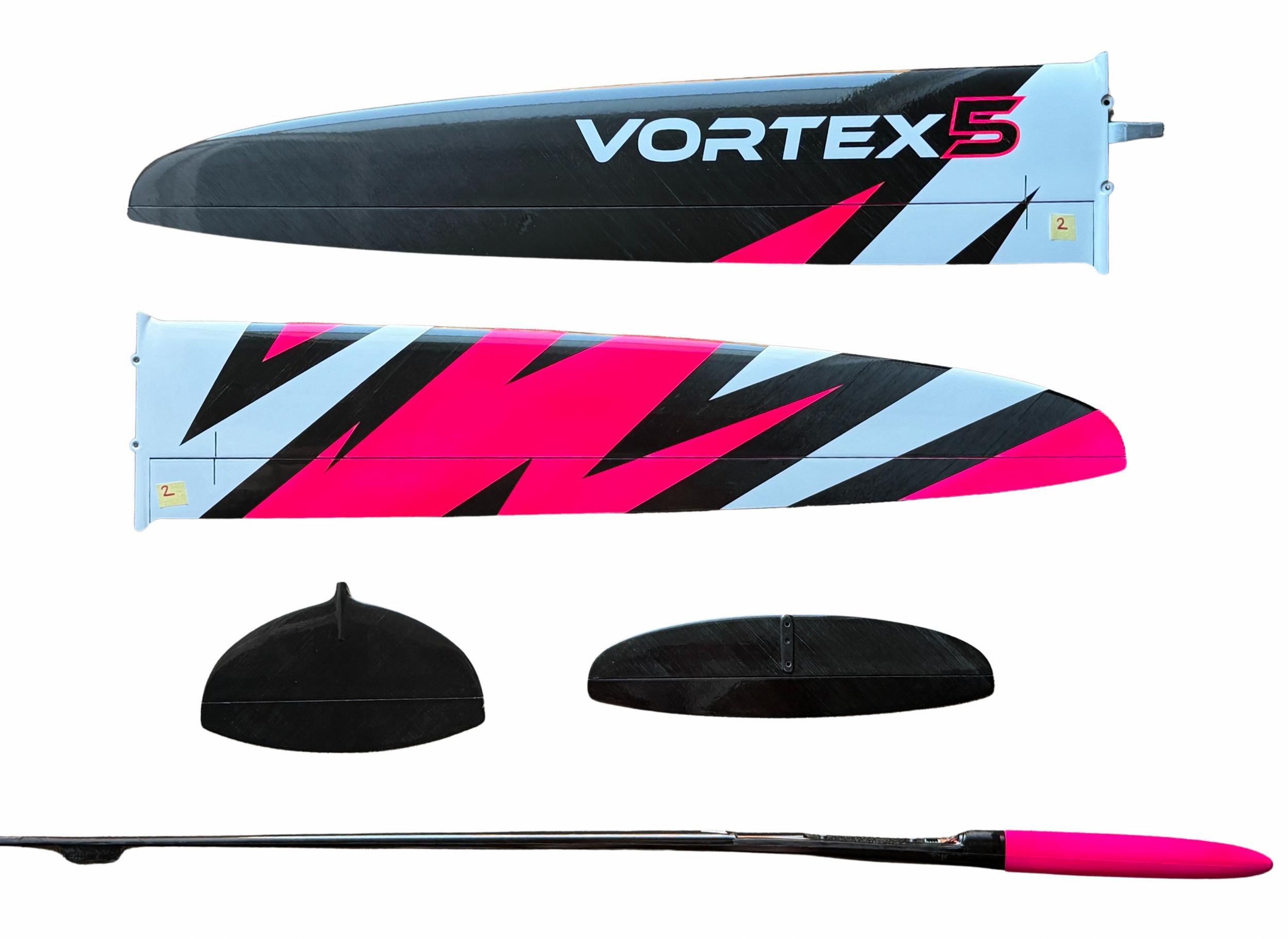

Standard layup, 4 servo<br> Top: magenta & white design on black<br> Bottom: black with magenta-white fade tip stripe (2)
Standard layup, 6 servo<br> Top: green & white design on black<br> Bottom: black with green-white fade tip stripe (7)(8)
Strong layup, 6 servo<br> Top: yellow & white design on black<br> Bottom: black with yellow-white fade tip stripe (5)
* Wing & Tail Bags:
Quantity
