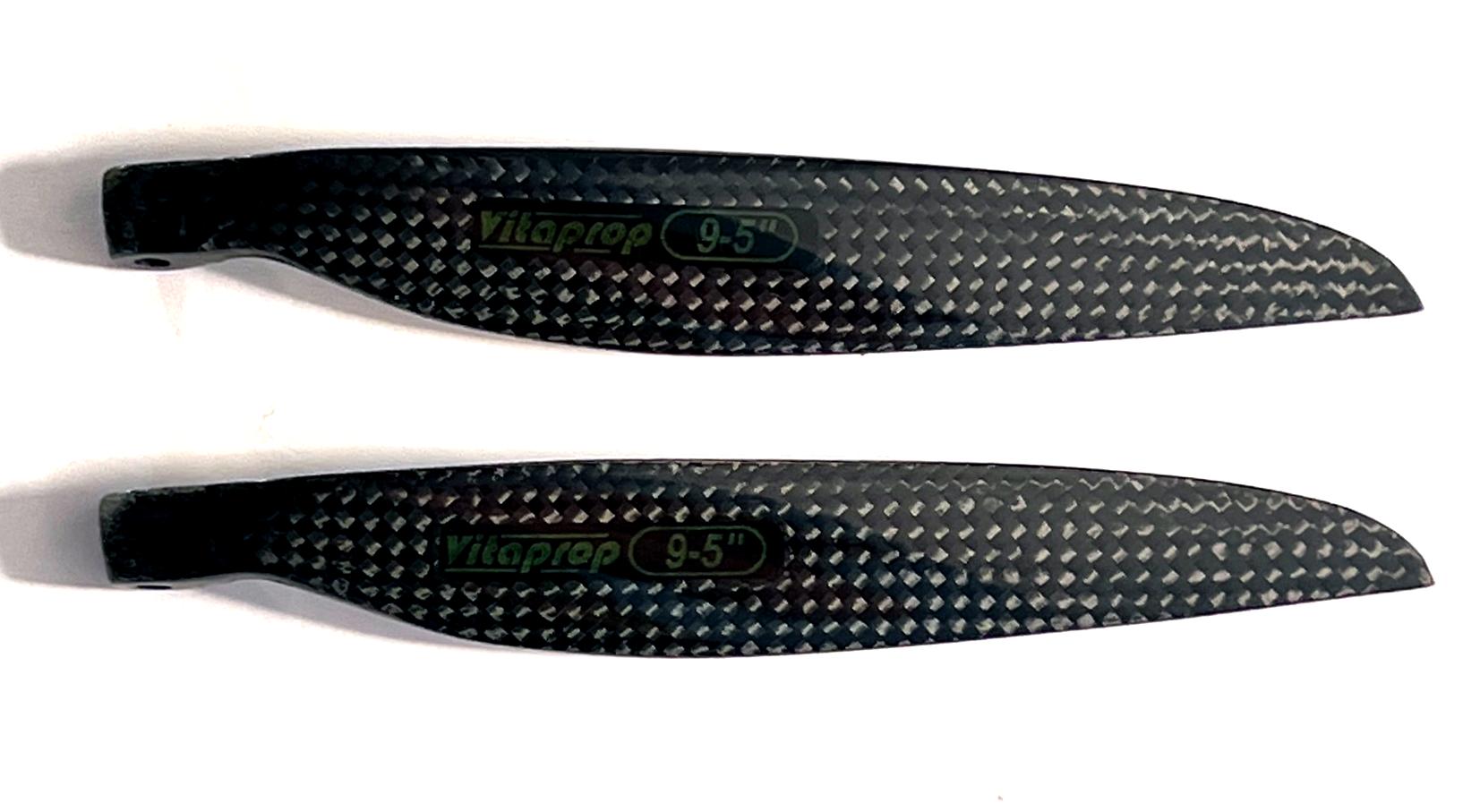

Vitaprop 9x5 V2 Folding prop blades

This new slimmer design of Vitaprop 9 x 5 V2 folding propeller blades has improved efficiency over the original Vitaprop blades. They are suitable for HyperFlight's and other makes of folding prop yokes and spinners.

These blades are very high quality carbon moldings with an excellent aerodynamic design to maximise efficiency. They will tend to pull a little less current than cheaper folding propellers. They are designed for reasonably high power levels and best possible efficiency.

Note this product consists of two carbon propeller blades only. The central spinner/yoke assembly is not included. Also it is common for prop blades to not fit all spinner/yokes perfectly as supplied. It is often necessary to reduce the width the blade root slightly to ensure free folding movement. Also the cut out in the spinner cone often needs to be increased to allow the blades to fully extend. The root of the blade should not touch the spinner cone when the prop is fully opened.

Vitaprop V2 9x5 Folding Propeller Blade Specifications
Prop diameter	23 cm	9 in
Prop pitch	13 cm	5 in
Weight of 2 blades	7.9 g	0.28 oz
Width of blade root	7.95 mm	0.313 in
Hinge pin hole dia	3.0 mm	0.118 in
Max power	1000 W
