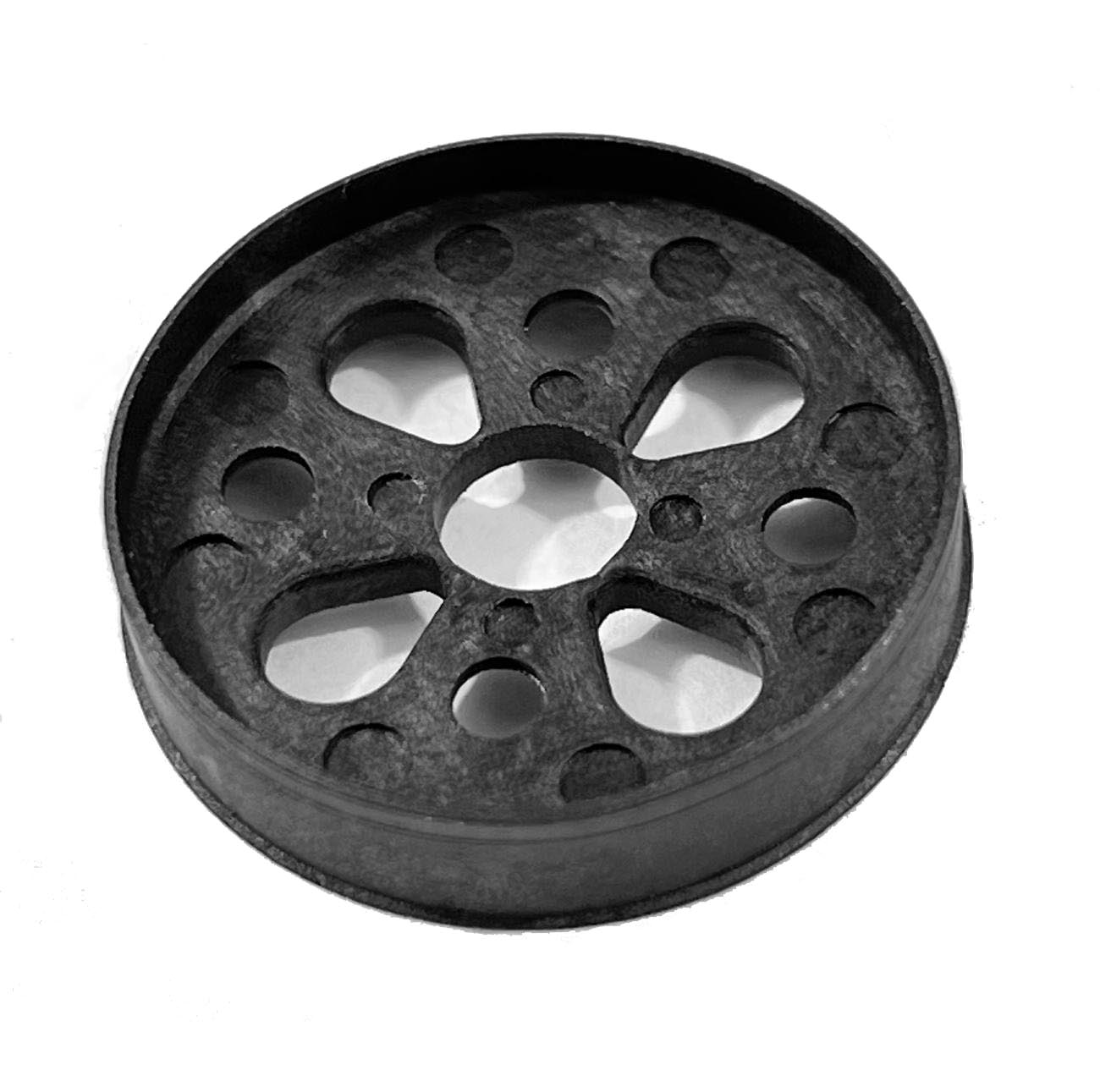

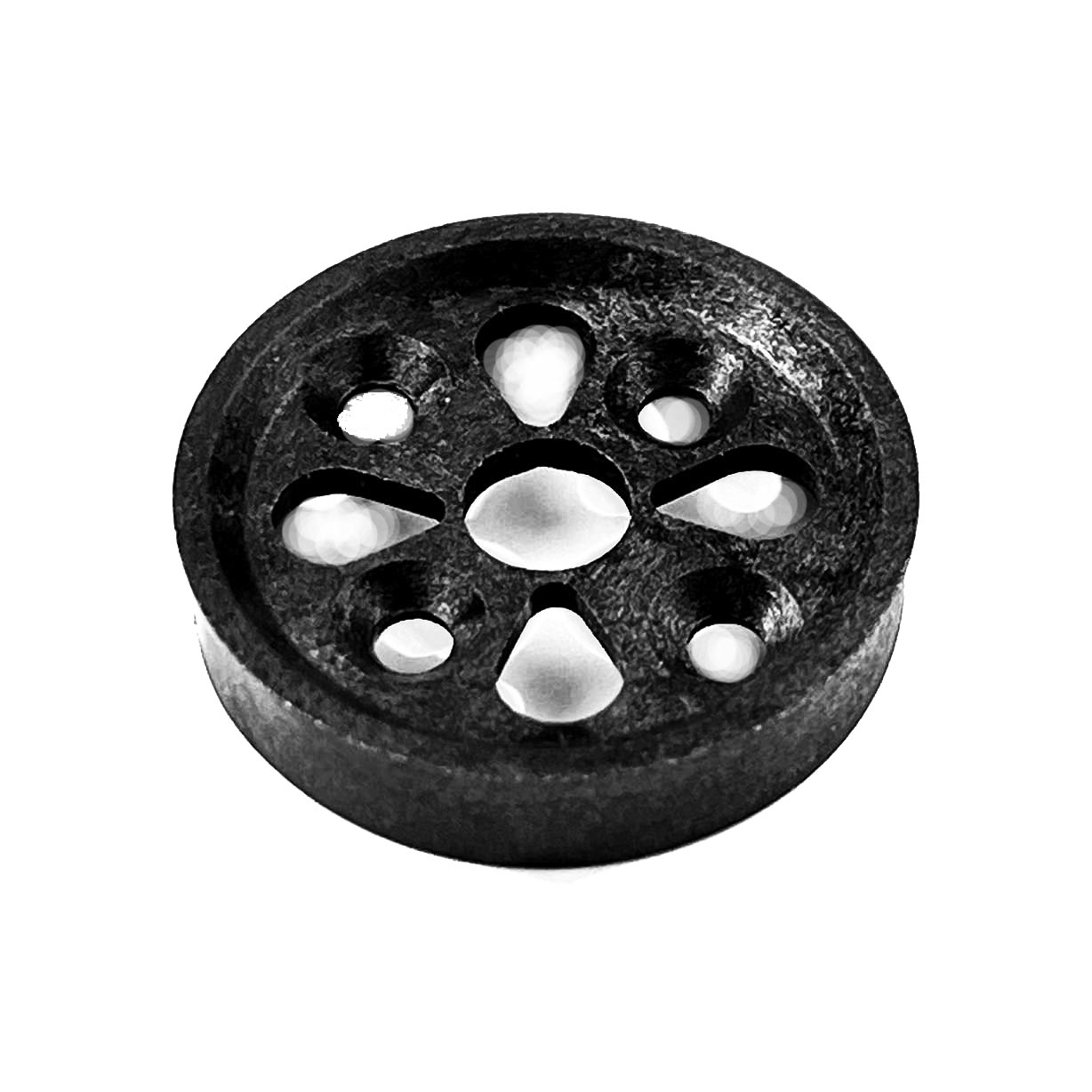

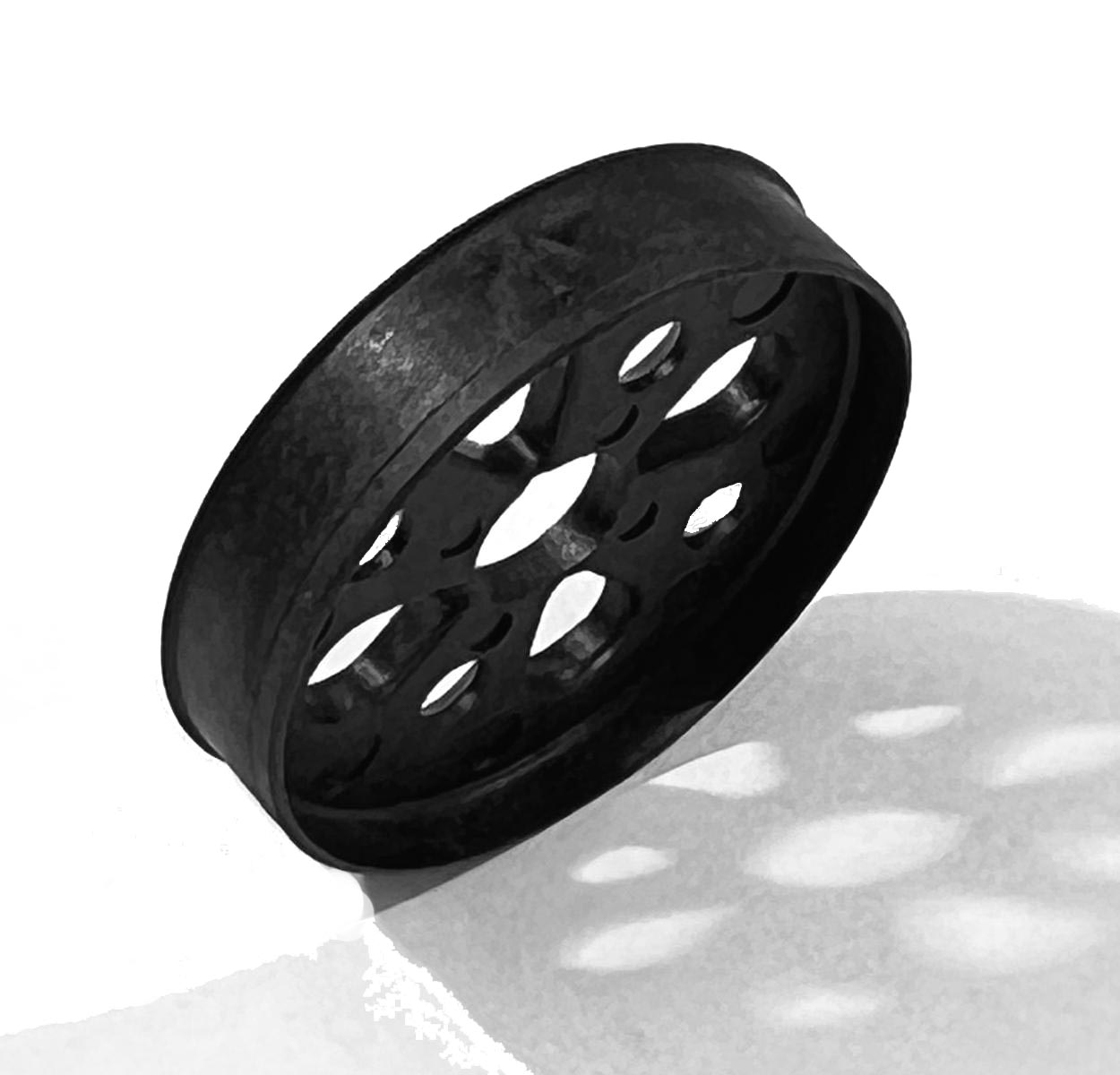

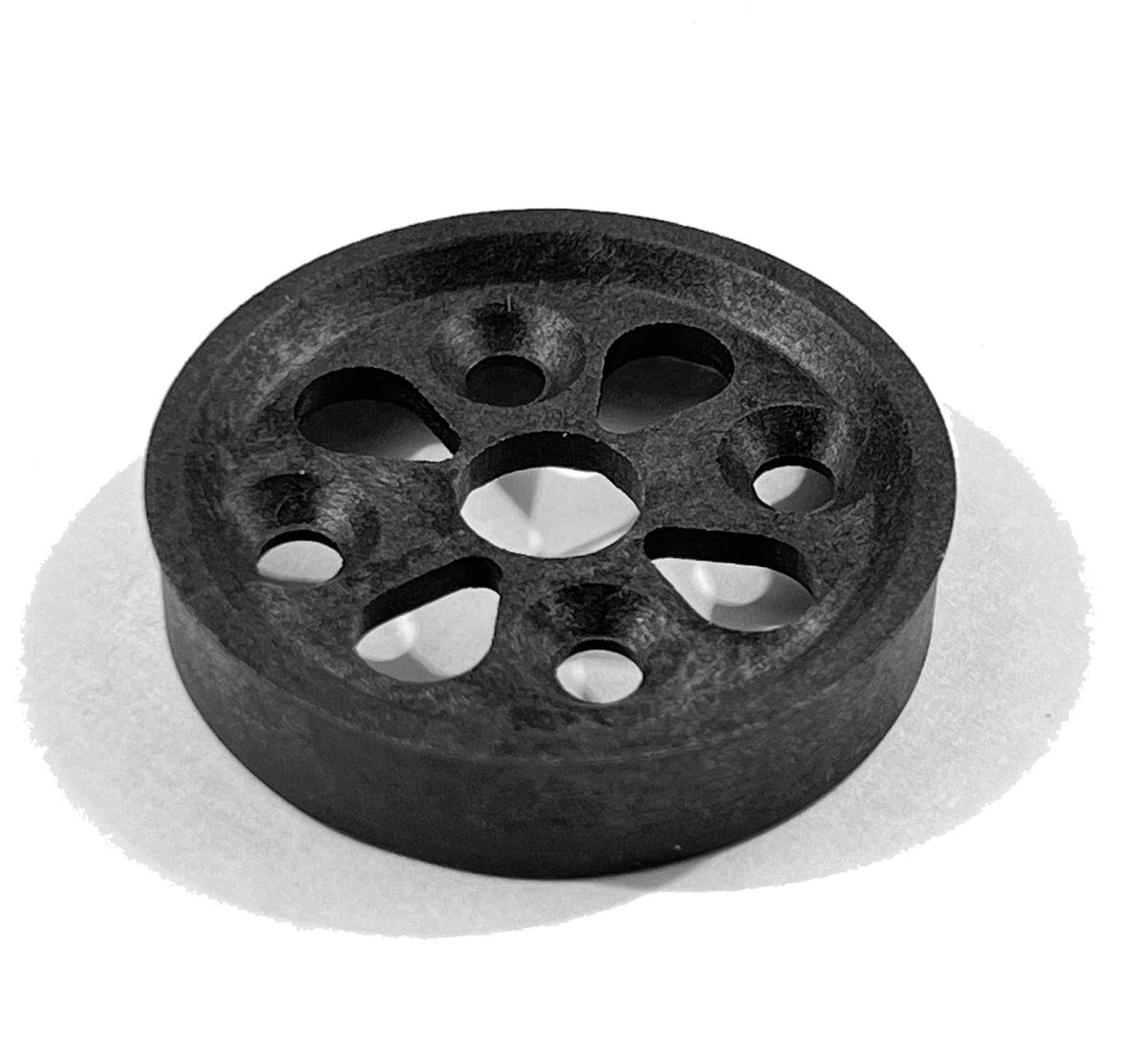

XPower Plastic Firewall - 30mm

A hard plastic firewall to fit 30.3 mm outside diameter F5J electric glider fuselages. This is usually also the spinner diameter. The motor mounting holes have been pre-drilled for XPower F29xx and F34xx series of motors. However this mounting hole pattern is very common and these firewalls will work with many other motors also.

Note the 29.5 mm dimension on these firewalls is the fuselage front inside diameter i.e. the outside size less 2*fuse wall thickness

XPower F29xx and F34xx Plastic Firewall Specifications
Fuselage outside/spinner diameter	30.3 mm
Fuselage inside diameter	29.5 mm
Predrilled holes	2 holes on 16 mm & 2 on 19 mm diameter
Weight	1.6 g
