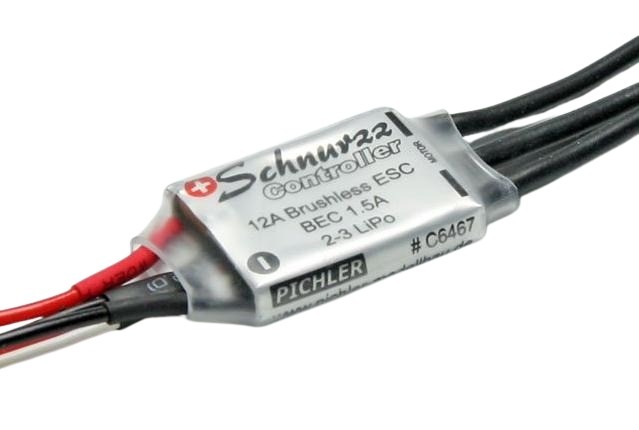

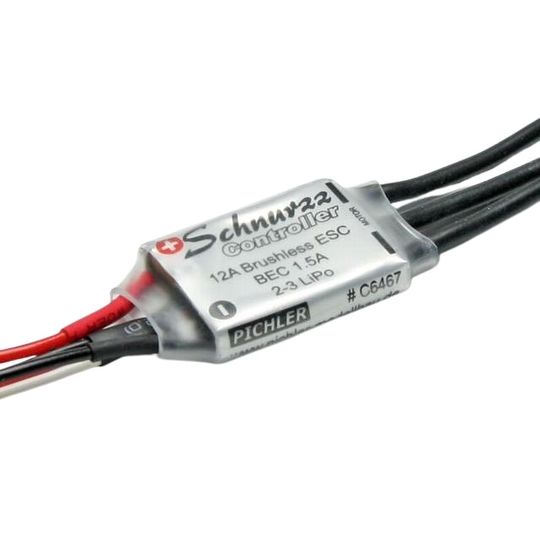

Schnurzz 12A ESC

The Schnurzz 12A ESC is a simple lightweight ESC with a 1.5A linear BEC circuit, making it suitable for small models with up to 3 servos. It is supplied with the brake off, so will have to be programmed using the transmitter to set the brake on when using a folding prop.

• Premium quality with carefully selected components
• Exceptionally smooth and precise throttle response
• Reliable performance across the partial-load range
• Fully programmable to suit your setup

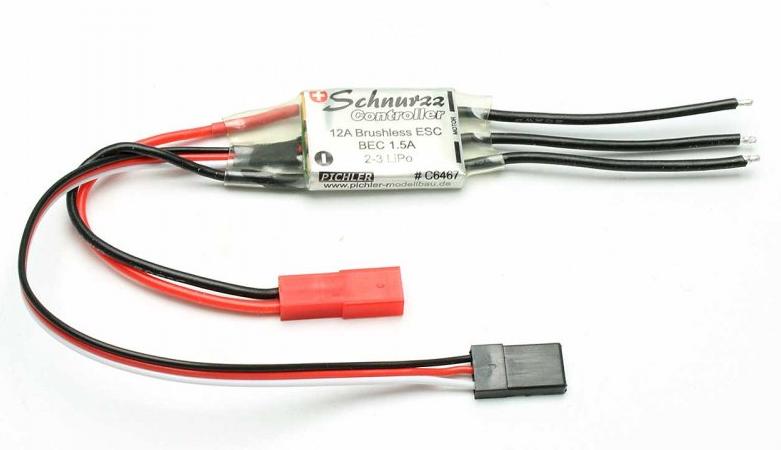

• Supplied with red JST/BEC connector
• Programmable using the transmitter

Specifications
Continuous current: 12A / 16A peak
Weight: 8 g
Dimensions: 25 × 20 × 5 mm
BEC: 1.5A / 5.0V
LiPo compatibility: 2-3 cells (7.4-11.1V)
