Kontronik / Speed 480 / Speed 600 / Universal Mount - 32mm

Product Code: PNC-UNIV-32
 (1 review)

Price: $34.29

4 in stock
Add to basket to see shipping cost
Quantity

Description

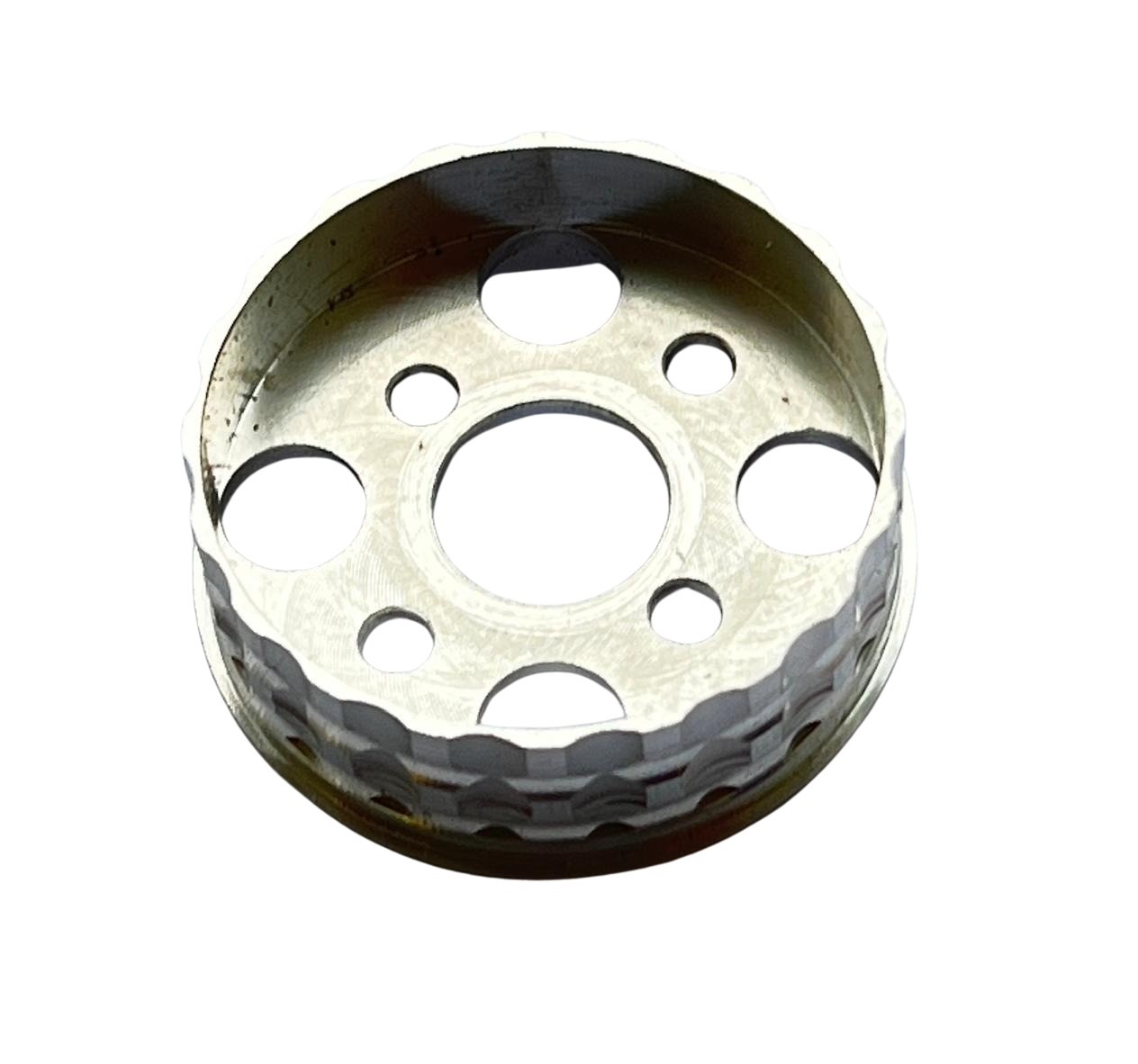

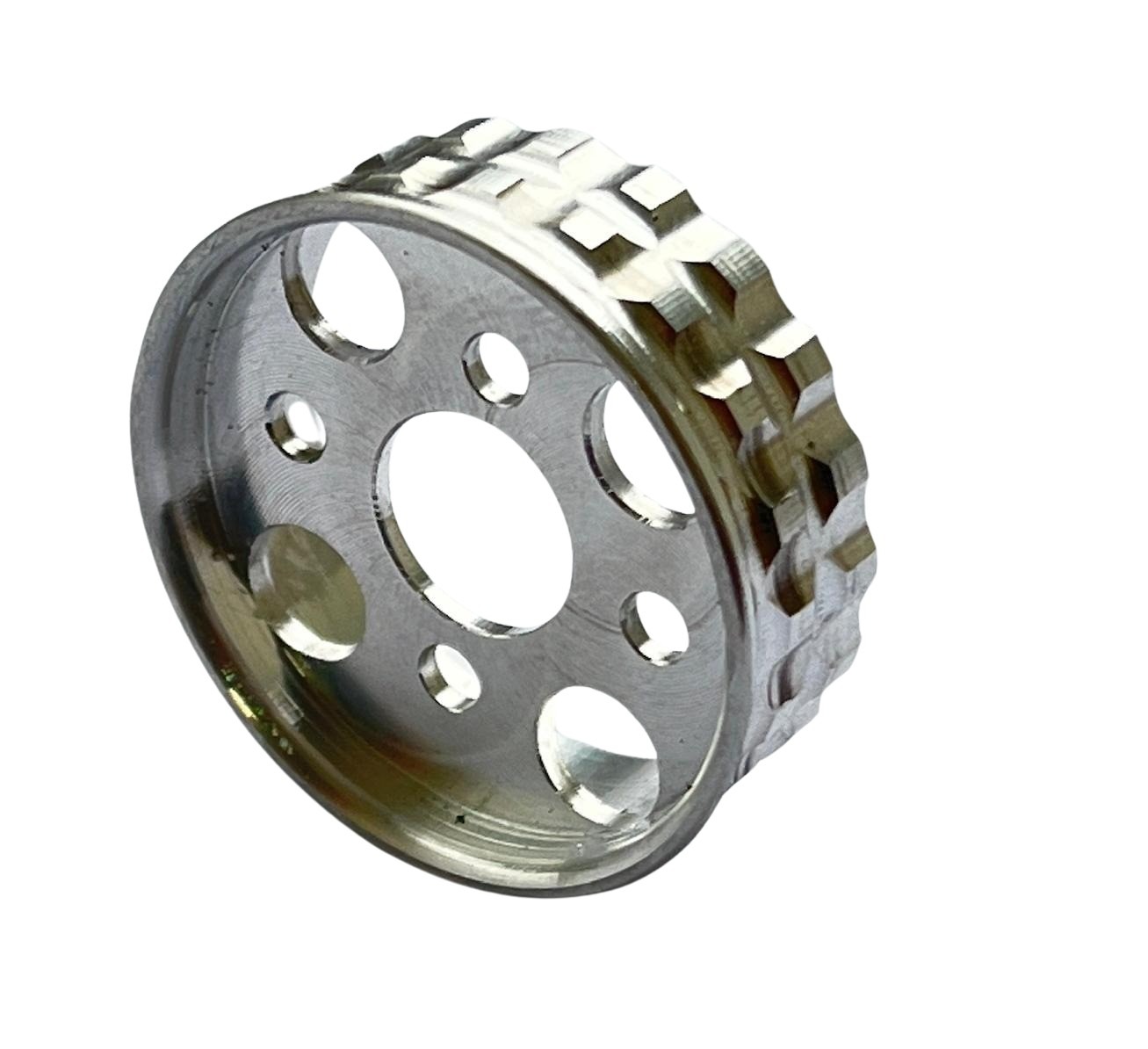

The PNC Innovations 32 mm Kontronik KPG 25 / Speed 480 / Speed 600 / Universal Motor Mout is a beautifully CNC machined motor mount for securely attaching Kontronik KPG 25 / Speed 480 / Speed 600 / Mega and may orther motors to the front of 32 mm diameter fuselages. The bolt hole pattern is as shown in the second photo.

  • Easy to install.
  • Very strong.
  • Superb machining.
  • They look great!
To attach these CNC motor mounts to carbon/kevlar/glass fuselages a strong high temperature glue is required. We recommend this glue or JB Weld. Epoxy can be used but the strength is impaired at high temperatures.

Universal Motor Mount
Fuselage outside diameter 32 mm
For fuselage internal diameter 30 mm
Firewall internal diameter 27.5 mm
Centre hole 12.1 mm
Mount 1 4 holes on a 16 mm diameter circle
Mount 2 4 holes on a 19 mm diameter circle


Reviews 1


 Review by:

Nice finishing product ! 3.5gm. Outer diameter 32mm. Inner need to trim a little bit to fit my 28.1mm can motor.
