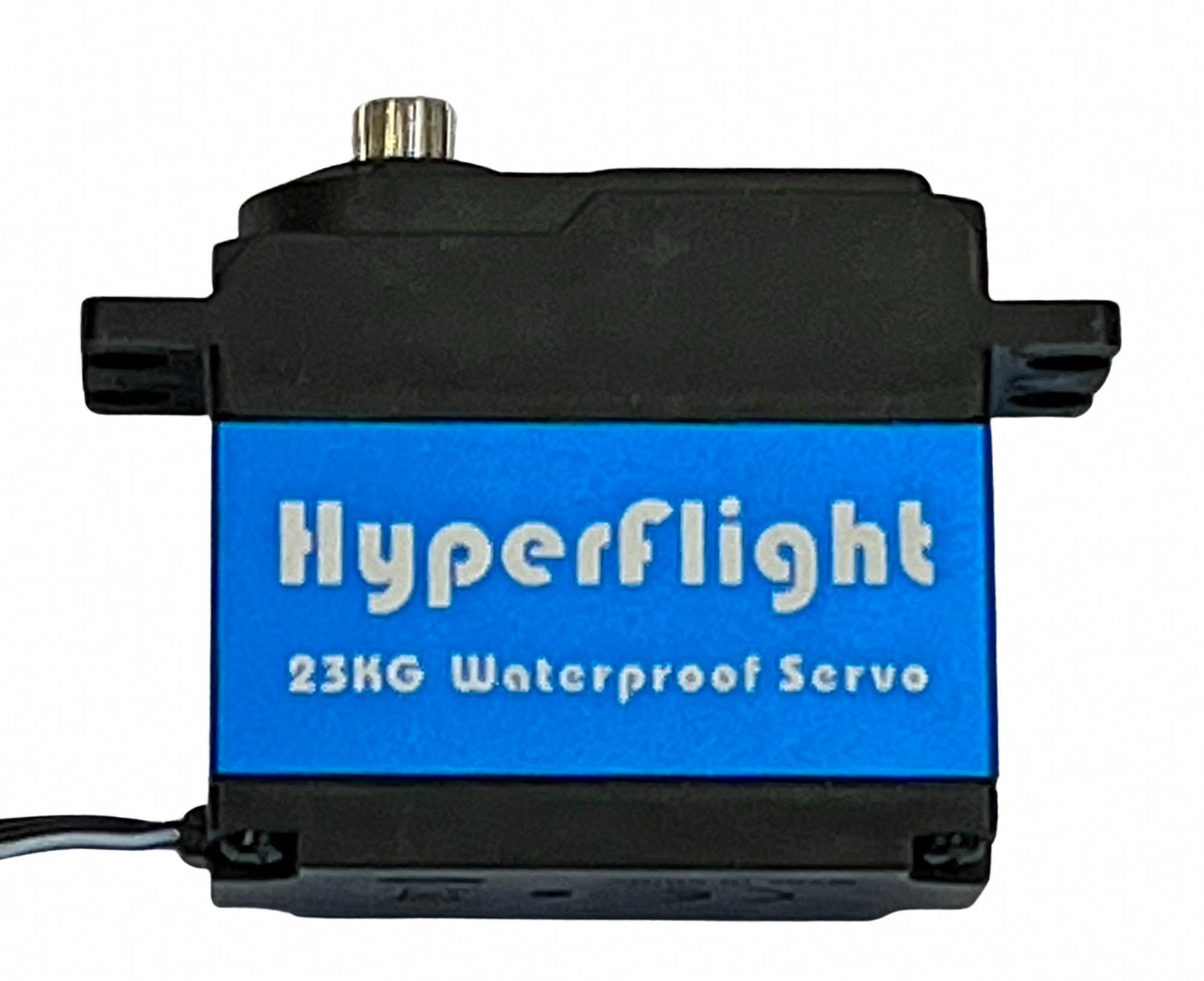

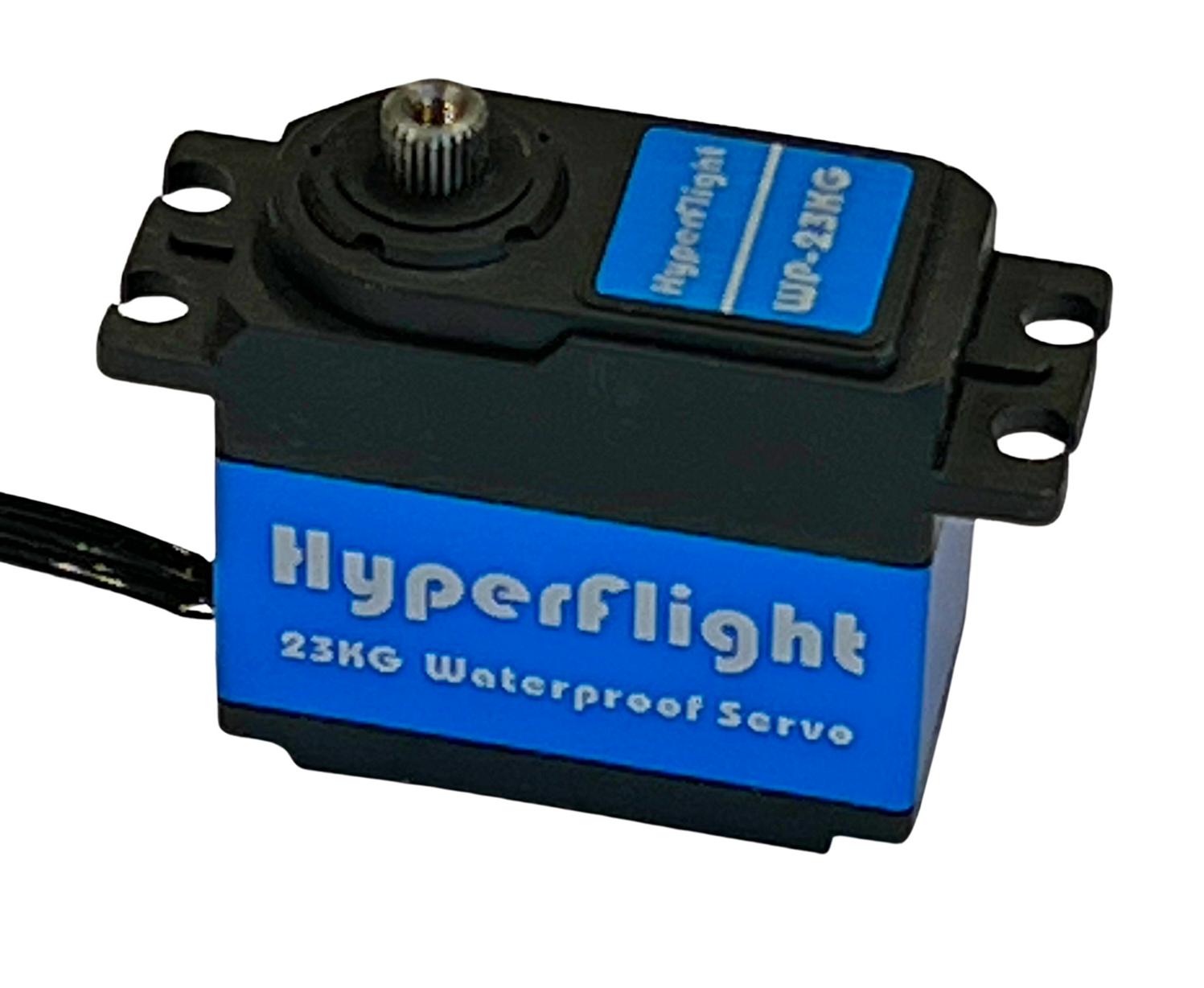

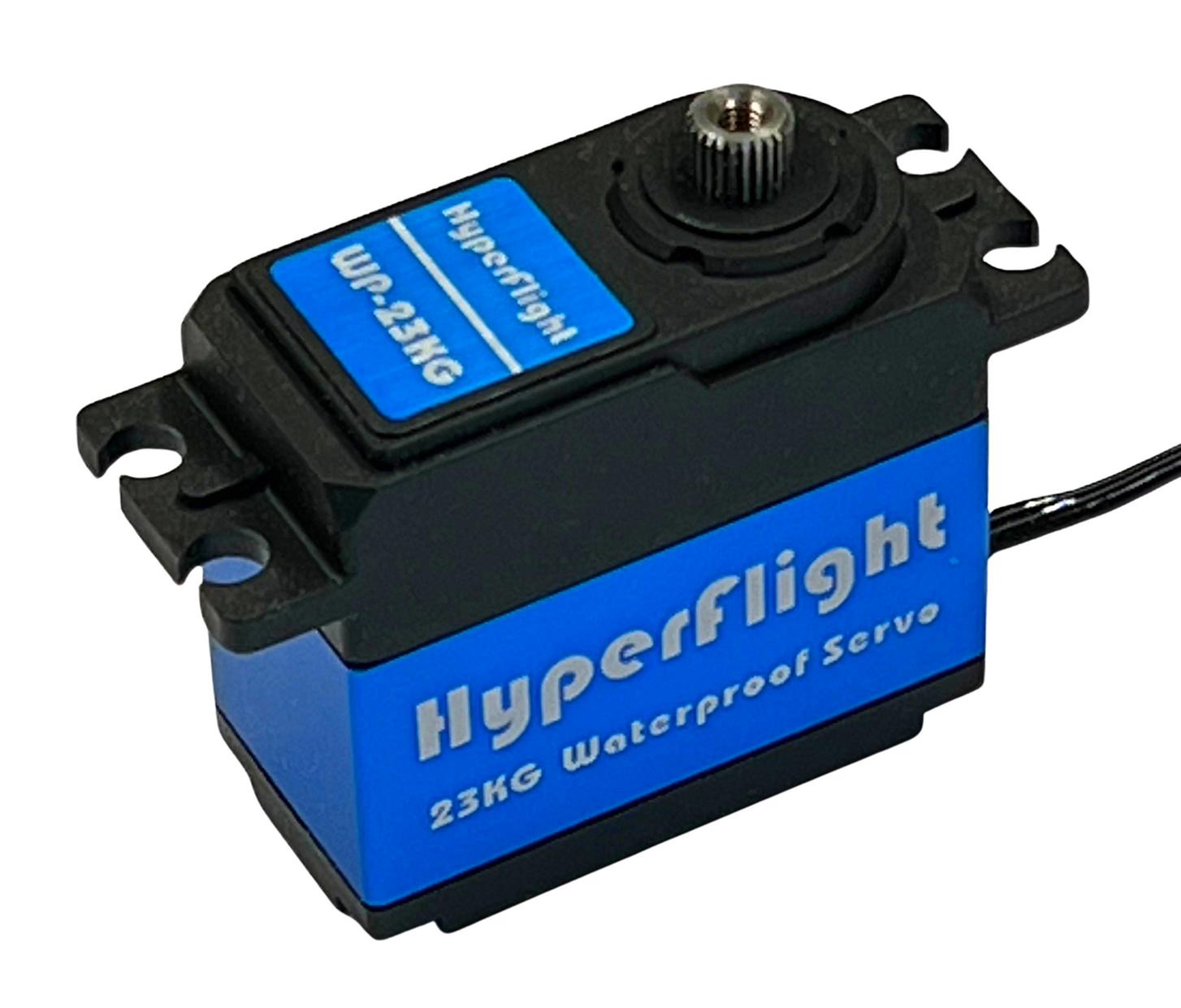

HF/Power HD WP-23Kg Servo - 23.0Kg.cm 0.12s 75.0g 21mm
Description
This servo is a HyperFlight branded Power HD WP-23KG. This is a well regarded servo and is ideal for large models and UAVs. The steel gear material is much stronger than various titanium-plated aluminum (titanium alloy), electroplated aluminum or aluminum alloy used in other servos.The servo is also fully waterproof with a high precision seal. The output spline is 25T Futaba compatible.
| HF/Power HD WP-23Kg Servo Specifications | ||
|---|---|---|
| Body dimensions | 40.7 mm wide x 20.5 mm thick x 38.5 mm high | 1.60" wide x 0.81" thick x 1.52" high |
| Max dimensions | 48.0 mm wide x 20.5 mm thick x 44.0 mm high | 1.89" wide x 0.81" thick x 1.73" high |
| Stall torque (4.8V) | 18 Kg.cm | 250 oz.in |
| Stall torque (5V) | 19 Kg.cm | 264 oz.in |
| Stall torque (6.6V) | 23 Kg.cm | 319 oz.in |
| Weight | 75 g | 2.65 oz |
| Lead length | 30 cm | 11.8 in |
| Operating speed (4.8V) | 0.14 sec/60° | |
| Operating speed (5V) | 0.14 sec/60° | |
| Operating speed (6.6V) | 0.12 sec/60° | |
| Operating voltage | 4.8V to 6.6V | |
| Operating temperature | °C | |
| Bearings | 2BB | |
| Gear material | Steel | |
| Case material | Aluminium | |
| Motor type | Coreless | |
| Working frequency | 333 Hz | |
| Dead band/resolution | µs | |
| Pulse width for ± 60º | µs | |
| Digital | Y | |
| Programmable | N | |
| Position feedback | Potentiometer | |

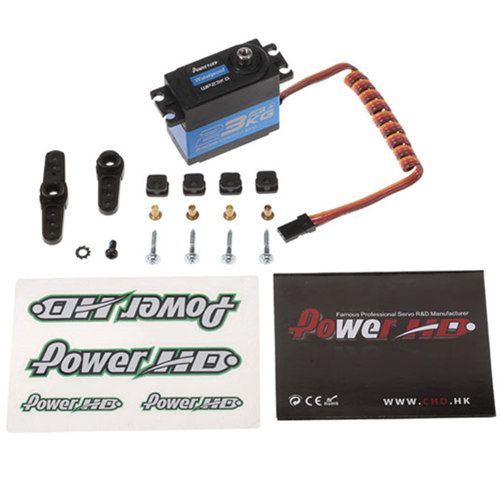

| Supplied accessories | ||
| Optional accessories | ||
