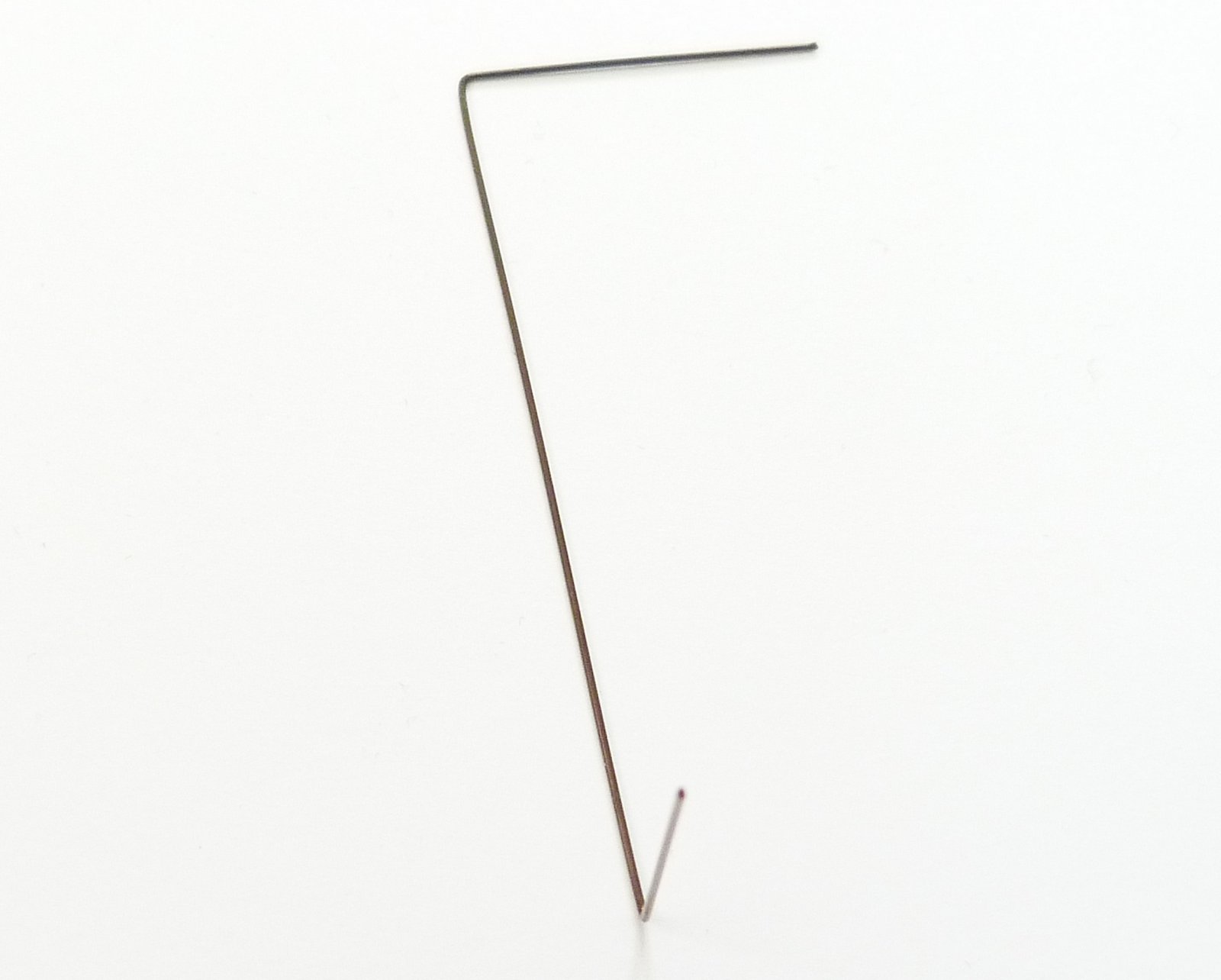

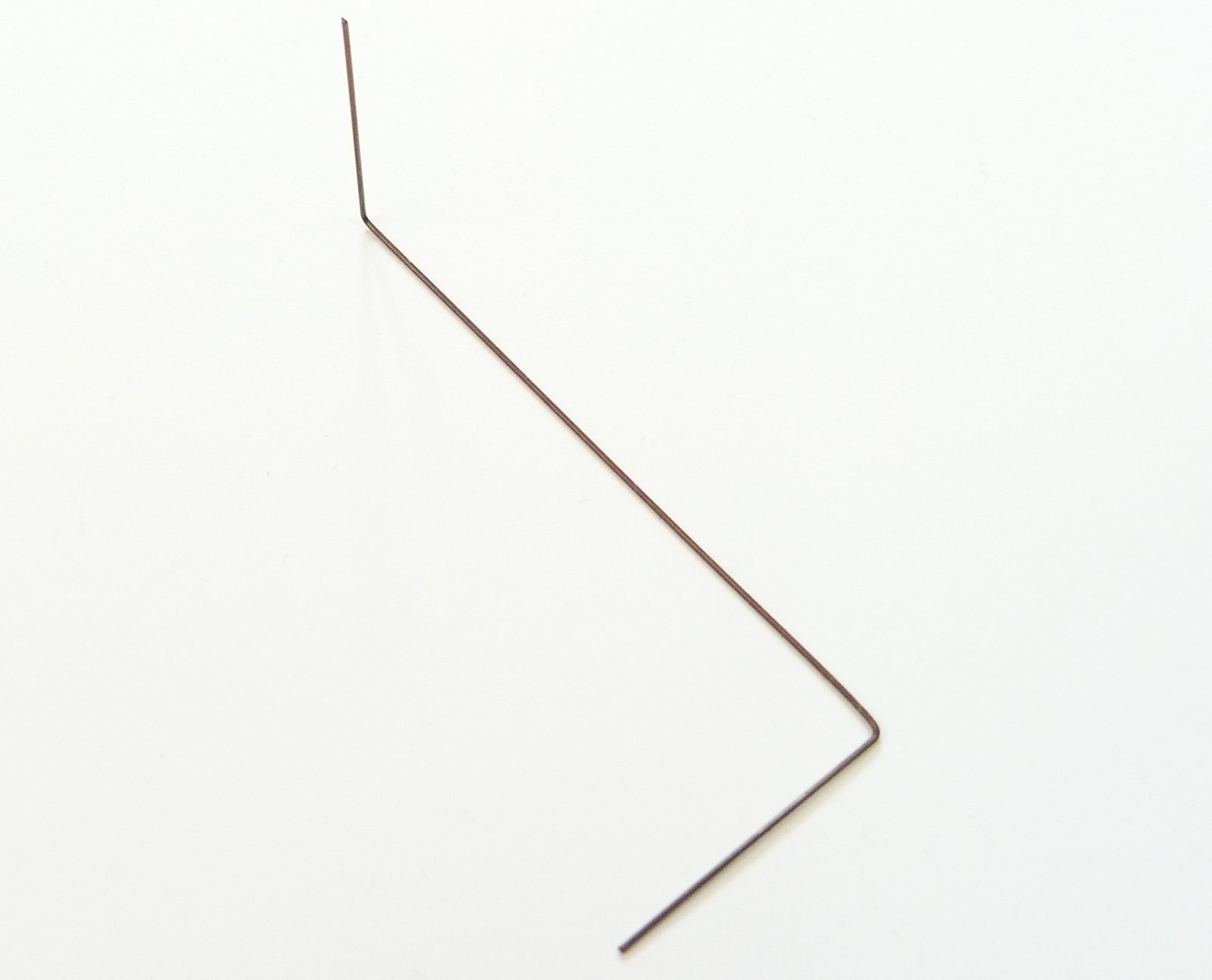

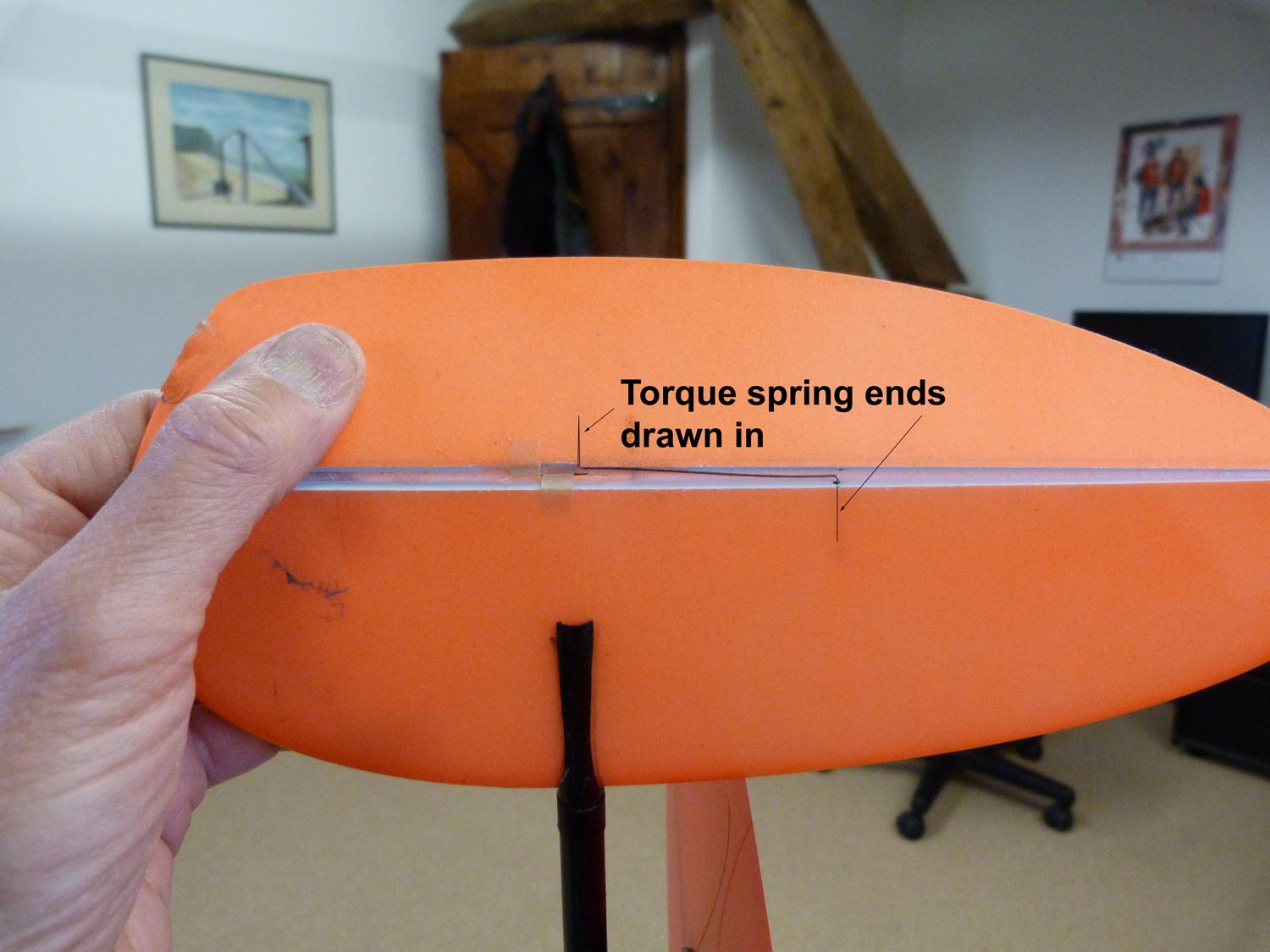

A torque spring for inserting into DLG tail surfaces for implementing pull-spring control linkages.
As used in many discus launched gliders.
| DLG Torque Spring |
|---|
| Material |
High tensile steel wire |
| Wire diameter |
0.45 mm |
| Distance between end legs |
50 mm |
| Length of each end leg |
20 mm |
| Angle between end legs |
90 degrees |
| Weight |
0.15 g |
See this excellent
RCGroups Torsion Spring thread for more info.
