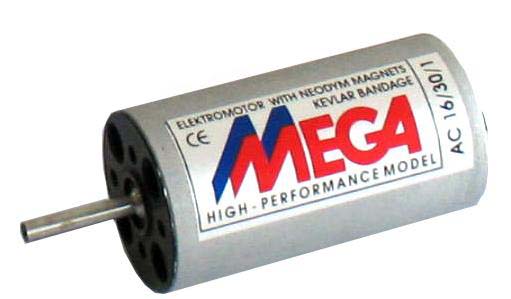

Mega 16/30/1 Brushless Motor is a longer Speed 400 sized brushless motor that is powerful, efficient and reliable. Highly recommended for pylon racers.
- Hardened steel shaft, diameter 3.2 mm.
- Two precise ball bearings
- Dynamically balanced
- Neodymium magnet rotor
- Handmade stator, lightweight rotor allows high revolution.
- Kevlar bandage rotor
- Motor mount has 2 holes on a 16mm diameter and 2 on a 19mm diameter, all M3 threaded
- Efficiency up to 91%
| Mega 16/30/1 Specifications |
|---|
| Motor name |
Mega 16/30/1 |
inrunner |
| Motor weight |
135.0 g |
4.76 oz |
| Motor diameter |
28.0 mm |
1.10 in |
| Motor length |
51.0 mm |
2.01 in |
| Lead length |
0.0 cm |
0.00 in |
| Shaft diameter |
5.0 mm |
0.20 in |
| Mounting info |
2 M3 holes on 16mm & 2 on 19mm diameter |
| Estimated Rm |
4 mR |
| Estimated Kv |
4200 RPM/V |
| Estimated Io |
5.00 A @ 10 V |
| Max efficiency (10 V) |
91 % @ 110 A |
| Operating effic'y (10 V) |
90 % @ 70.0 A |
| Motor Km |
35.9 Nm/W^.5 X1000 |
| Motor Km/Kg |
266 Nm/(W^.5 Kg) |
| Recommended battery |
3S LiPo |
| Rec max LiPo capacity |
3 Ah |
| Supplied accessories |
None |
| 3S LiPo Performance |
| Recommended prop |
4.7x4.7 |
| Input power |
720 W on 4.7x4.7 prop |
| Current |
72.0 A on 4.7x4.7 prop |
