Prices shown exclude VAT

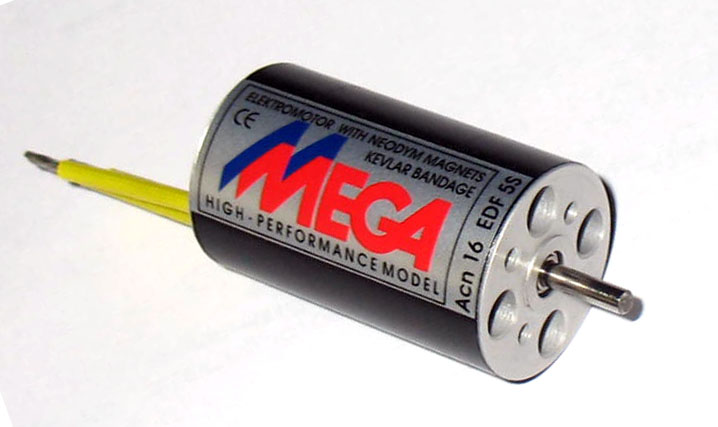

Mega 16/25/3 Brushless Motor

MEGA-16-25-3
Product Code: MEGA-16-25-3
 (add a review)

Price: $96.71

2 in stock
Add to basket to see shipping cost
Quantity

Description

The Mega 16/25/3 Brushless Motor is a long Speed 400 sized brushless motor that is powerful, efficient and reliable. Recommended for sports models and electric gliders.

Mega 16/25/3 Specifications
Motor name Mega 16/25/3 inrunner
Motor weight 116.0 g 4.09 oz
Motor diameter 28.0 mm 1.10 in
Motor length 46.0 mm 1.81 in
Lead length 0.0 cm 0.00 in
Shaft diameter 3.2 mm 0.12 in
Mounting info 2 M3 holes on 16mm & 2 on 19mm diameter
Estimated Rm 35 mR
Estimated Kv 1750 RPM/V
Estimated Geared Kv 1750 RPM/V
Estimated Io 1.30 A @ 10 V
Max efficiency (10 V) 87 % @ 19.3 A
Operating effic'y (10 V) 83 % @ 40.0 A
Motor Km 29.2 Nm/W^.5 X1000
Motor Km/Kg 251 Nm/(W^.5 Kg)
Recommended battery 3S LiPo
Rec max LiPo capacity 2 Ah
Supplied accessories None
3S LiPo Performance
Recommended prop 8x5
Input power 390 W on 8x5 prop
Current 39.0 A on 8x5 prop
Rate of climb 10 m/s for 800 g glider
4S LiPo Performance
Recommended prop 7x4.5
Input power 520 W on 7x4.5 prop
Current 40.0 A on 7x4.5 prop
Rate of climb 11 m/s for 800 g glider
