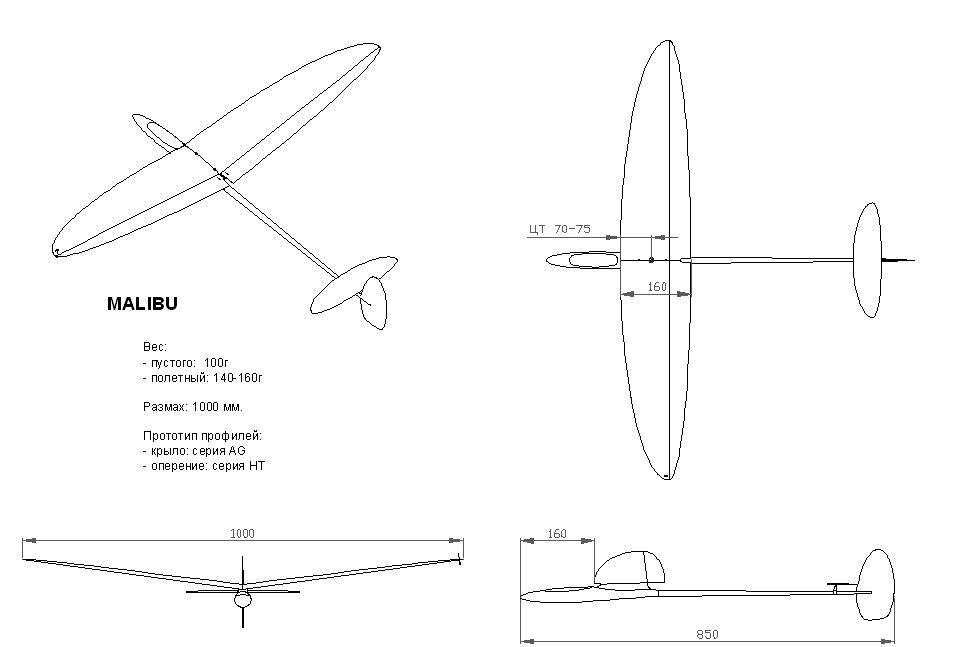

Malibu Pro DLG Specifications | ||
---|---|---|
Wing span | 1.0 m | 39 in |
Wing area | 13.2 dm2 | 205 sq in |
Length | 85 cm | 33.5 in |
Flying weight from | 140 g | 4.9 oz |
Wing loading | 10.6 g/dm | 3.5 oz/sq ft |
Aspect ratio | 7.6 | |
Wing airfoil | Propriety | |
Dihedral angle | 5.0º | |
Centre of Gravity | 70-75 mm from wing leading edge | |
Controls | Ailerons, elevator |
Malibu Pro DLG Typical Weights | ||
---|---|---|
Fuselage | 32.0 g | 1.1 oz |
Wing (glass) | 64.0 g | 2.3 oz |
Wing (carbon) | 59.0 g | 2.1 oz |
Fin | 4.1 g | 0.1 oz |
Tailplane | 5.1 g | 0.2 oz |
Accessories | 3.5 g | 0.1 oz |
Total structure (carbon wing) | 103.7 g | 3.7 oz |
Glue, mounts etc | 2.0 g | 0.1 oz |
Receiver | 5.0 g | 0.2 oz |
Elevator servo | 4.5 g | 0.2 oz |
Aileron servos | 9.0 g | 0.3 oz |
Battery | 10.0 g | 0.4 oz |
Noseweight | 5.8 g | 0.2 oz |
Flying weight | 140.0 g | 4.9 oz |
Recommended R/C-nano gear only | |
---|---|
Elevator servo | Blue Bird BMS-101DMG, Blue Bird BMS-101HV, Hitec HS-40, KST X06 |
Aileron servos (2) | Blue Bird BMS-101DMG, Blue Bird BMS-101HV, Hitec HS-40, KST X06 |
Receiver *case removed | Spektrum AR6260*, AR6100e, AR400, Futaba R6004FF*, FrSky X4R, Orange DSM2 compatible, Jeti Duplex R5, Multiplex Mlink RX-6-DR Light* |
Battery | HyperLipo 2S 175 mAh LiPo, 150 mAh 4.8V NiMH, Radient 1S 500 mAh LiPo, Radient 1S 600 mAh LiPo, Cellevia 1S 250 mAh LiPo |
Malibu Pro Control Throws | |
---|---|
Elevator | 8 mm up / 8 mm down |
Ailerons | 7 mm up / 6 mm down |
Camber Settings | |
Launch | 0.5mm up |
Cruise | 0 mm |
Thermal 1 | 2 mm down |
Max thermal | 4 mm down |
Review by: Frederik Lattner
Great and solid DLG GliderGreat RC DLG Glider !
Fairly easy to fly (my first RC plane after a long time) and pretty solid. I landed it quite hard a few times and things broke (mostly cracks in fuselage, dents in wing and vertical stabilizer), but nothing that couldn't be repaired. I recently ripped off the vertical stabilizer (because it cought on some stone on landing, but vertical stabilizer have to be below the tail boom) and am currently 3D printing a new one.
It is also pretty easy and intuitive to launch, resulting in good useable hights without too much effort / experience.
There are only two points I'd like to critique:
1. absolutely zero instructions. This plane comes with zero instructions. Therefore I was quite confused on where to mount the servos, where to drill holes for the steering rods, which steering rod to use where (I switched them around and notices too late: the thin one within the tube goes to the elevator, the thicker metal rod must be cut in parts and connects to the flapperons). But again, very little experience on my hand.
2. very slim fuselage / very little room for servos etc. It was tricky figuring out how to mount the servos in the fuselage. The fuselage could harly fit a servo standing up or laying down, cannot imagine two side by side, not to mention finding a mounting point. Therefore I used a single servo for the flaperons, making them just ailerons. Using really small servos might help, more experience as well. (I used BlueBird servos)
Review by: Richard
Kit arrived quickly in good order and was well packaged. I won't be able to fly it until the spring but fully expect outstanding performance; it's a Malibu
Review by: Mario Richard
I like it!I wanted an upgrade from my old Great Planes Fling DLG, so upon reading reviews and checking out the videos online I could find on the Malibu Pro I decided to get one. So glad I did. I love this plane. The build quality is great. Being a novice DLG flyer, putting it together was ok, I 3D printed a servo mount I found online, it helped a lot in installing the servos. I am very happy with this glider and would definitely recommend it. As for the service from Dreamflight? It was awesome. Shipping to Canada from the UK was faster than some local shipping. I had mine in about a week from when it was shipped. I have since ordered various items from them and had the same great service and shipping.
Review by: Timothy
Very ImpressedEverything on the order arrived in good shape. Spectacular delivery, 2-3 days from the UK to the US.
The part finish is gorgeous. The tail + boom go together in 15 minutes. The
control horns on the ailerons another 15 minutes. The radio install
and cutting access holes in the fuse are the most work, an hour.
The fuse in the photos is an earlier version, different from one in the kit, current fuse is not as tall. There is one dimensional drawing of the fuse shown where to cut slots. The dimension for making the cut for elevator cable exit is not accurate, should be 7mm.
I like the BlueBird servos. They are jewel, metal gear, quality is excellent, worth the price. I don't observer any jitter when used with FrSky R4 Archer receiver.
Review by: Ian
Malibu Pro 1mVery nicely designed and produced model and I'm looking forward to flying it soon.
Thanks for sending it so quickly and for using great packaging!
Best wishes, Ian
Review by: Andynr
first dlgthis is my first dlg. being use to larger gliders of course things all somewhat smaller but plenty of room for installing 3 servos. Once servo arrangement was decided it is easy to assemble. wings already have bolt holes and fixings in fuselage are in place in fuselage so that took a lot of the stress out of assembling compared to other models. decided on sd100 servos which fit fine. not flown yet as ever first class service from hyperflight.
Review by: Andynr
first dlgthis is my first dlg. being use to larger gliders of course things all somewhat smaller but plenty of room for installing 3 servos. Once servo arrangement was decided it is easy to assemble. wings already have bolt holes and fixings in fuselage are in place in fuselage so that took a lot of the stress out of assembling compared to other models. decided on sd100 servos which fit fine. not flown yet as ever first class service from hyperflight.
Review by: JerO
Malibu proFast shipping and nothing was damaged. Had all the parts necessary except for electronics and glue. No instructions and build info for the Pro version is kind of sparse. Went together easily enough and flew pretty well considering it's my first DLG and I don't have a good frame of reference.
Review by: s warne
Malibu prokit arrived quickly all complete the kit is good quality and fits together well ,a small amount offideling/ placing to do but well worth it
Comment by: Carlos de Diego
malibu proComo siempre , perfecto.
gracias por todo.
el avión esta muy bien en la versión glass, pero me gusta mas la carbono.
tengo las dos .
servos BMS 101 HV, bateria 300 mah 2S, rx jeti R5EX, en los dos.
sigo comprando en hiperflight .
gracias
Review by: ole denmark
my very first build malibu prothis is the first plane i have ever build. it is basically glueing stuff together and make servo linkage. built it over 3 days, can be done faster but wanted stuff to dry up properly before moving to next step. it was pretty simple. had a carbon rod for the elevator pushrod. one thing i do want for this is some form of pullspring system for the elevator. its not so easy to figure out..at least for me as i am not very experienced. normal spring pull i could have handled,,but cant really figure out how to make the spring for the v-mount,,,so if anyone has an idea for that?
Review by: Michael
Malibu ProAs this is my first DLG build, i must say it was easy. Everything fitted nicely together, came out ~160Grams so not that bad. Very nice flyer. Now I do not have anything to compare to, but first flight was in ~5-6 M/S it handled it with ease!
I designed a 3d printed servo tray and canopy magnet holder, the designs may not be perfect or what you like, but they work - feel free to use them :).
https://www.thingiverse.com/thing:4144172
https://www.thingiverse.com/thing:4139176
What more to say? It's just great fun! Oh yes, and a great swift service from Hyperflight - Thank You!
Review by: Herbert Reich
Malibu ProJust a quick follow up on my Malibu Pro. The Malibu was easy to complete including placing the Blue Bird servos into the wing. Flying the Malibu of a shallow beach dune was a delight. The aircraft is very responsive and response positively to any lift. I have flown the Malibu now in conditions up to 16 knots and I am surprised how well the plane handles and penetrates. Another plus is the low power consumption, three Bluebird servos and receiver consume +/- 35ma per 30min. All in all I would recommend the Malibu Pro to anyone seeking a dlg that is inexpensive but has a wide performance envelope.
Review by: Dan Black
easy to build and fly. Great service. Will order again
Review by: Herbert Reich
Malibu ProThe Malibu Pro arrived today packed in bubble wrap and a very sturdy cardbord box. Delivery time was extremely short considering the item was shipped to Australia from the UK, in fact it takes longer for items to arrive that have been dispatched locally.
All parts were accounted for and the quality of the kit components are of very high standard.
The customers service of Hyperflight is excellent and as a result I will deal with this organisation more frequently.
The Malibu Pro will be fitted out with 3 Blue Bird servos, LemonRX receiver and a 700ma 1S LiPo.
Review by: Ian Williams
Well packed and fast next day delivery.
I have been flying a Stiletto Hot off the slope for a few years, without a throwing blade fitted, and wanted something similar I can DLG when there's zero wind.
Well pleased with the quality and particularly the 'low drag' texture of the glass wing surface and translucent pod so you can check the alignment of the servos.
I have kitted out with 3 Blue Bird BMS-101AMG servos in the pod and a 1S round LiPo (650ma) which balances up near perfect.
Review by: Wim H
Not finished with servo linkage yet. So far: arrived in about one week (way ahead of what I expected), well packaged, excellent workmanship, on-line directions VERY helpful!
Review by: Dave T
malibuvery well packaged assembled and tested in no time i am a pensioner and was happy with the height i could launch to second model from hyperflight will buy more
Review by: PYves
Malibu ProThis is my first DLG. First glider with carbon wing. So good quality product. And it flies great.
I have added rudder control. All the controls are inside the fuselage = elevator with 0.36mm wire in tube and rudder with torque spring and a pull cord.
I used a Radient 1S 600 mAh LiPo Battery with JR connector, 4 Blue Bird BMS-101AMG Servo and a Graupner GR12 receiver without box. The total weight is 160g with 12g/dm2 wing load.
Only one bad thing : the package was made with bubble wrap and tape. I would have liked to receive it in a box with division for each parts.
HyperFlight Comment: The model *was* of course sent in a very strong cardboard box. We find wrapping the components in a generous layer of bubble wrap, and then suspending them with tape and void-fill is the best way of ensuring the model arrives safely.
Review by: Keith
Malibu ProVery well done 1m DLG with beautiful flying surfaces. It has a wide speed range and is
very responsive using just ailerons and elevator. Built up with D-47 servos, a Lemon DSMX receiver and 240 ma Shread RC smart LiPo the AUW .... 146 g. Balanced out at 72mm from front lead edge. Quick service to the US, thank you Hyperflight!
Review by: Steve Underwood
Malibu pro...Excellent quality ....flies great.
Like to see carbon rod and guides for elevator in kit as standard.
Regards
Steve
Review by: Peter
MalibuExperienced modeller, first DLG.
Kit arrived promptly well packed. Faulty blue bird servo replaced by Neil with no quibbles. Plenty of room for gear installation (hi tech mini rx). Detail pictures on web site helpful as a rough guide to assembly. Flies well with surprisingly long battery life.
150 mAh nimh.
Review by: Mike S
Malibu ProJust received my new DLG. Delivery was really fast and it was packaged perfectly. The quality of the components is outstanding and I cannot wait to build this beauty. I will let you know how she peforms at a later date. Thank you Hyperflight
Review by: Les
MalabuPleased with the service and delivery, happy with the quality and finish apart from the paint lines in the aileron hinging but can put up with it, overall a very nice looking model
Review by: Paul
What a great dlg for the money lovely finish great way for a quality first dlg entry model
