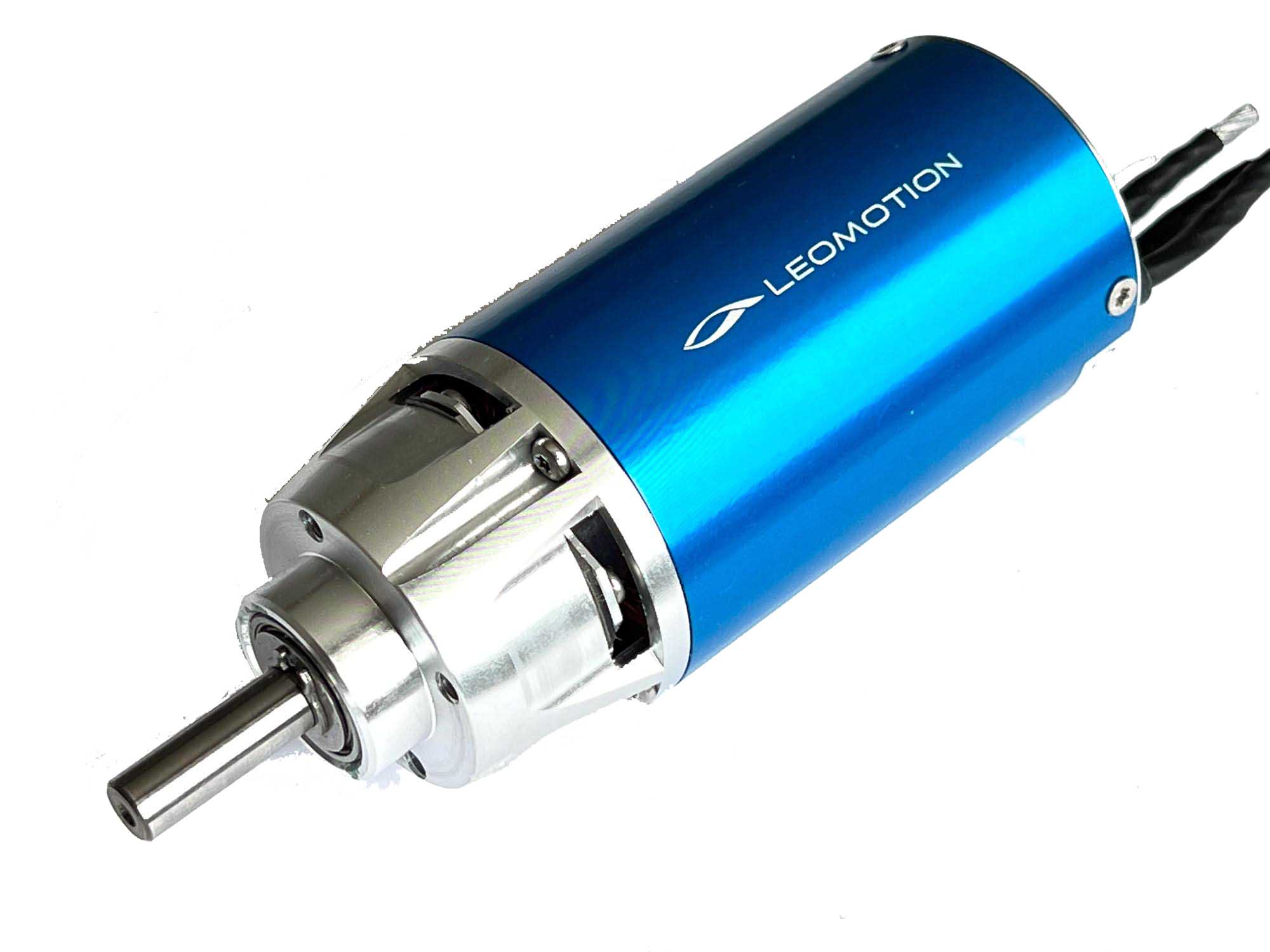

Leomotion L4023-2400 6.7:1 282g
Description
The Leomotion L4023-2400 6.7:1 is a very powerful electric motor that is ideal triangle racers and other larger models.Weight including P32 gearbox is 282 g and the motor is capable of approx 2500W for 15 seconds on a 6S LiPo battery. According to Urs Leodolter this is Leomotion's best selling motor and is the motor for Sports class GPS racers. It should be used with a 6S LiPo and 17x12 or 18x10 prop.
- 4 pole motor offering high efficiency for high-perfomance applications
- hand wound stator for best copper cross section
- improved rotor for best cooling
- dynamically balanced rotor
- Carbon fiber reinforced rotor for max. 60'000 rpm
- highend ball bearing
| Leomotion L4023-2400 6.7:1 Specifications | ||
|---|---|---|
| Motor name / GB name | Leomotion L4023-2400 geared inrunner | |
| Motor+GB weight | 282 g | 9.95 oz |

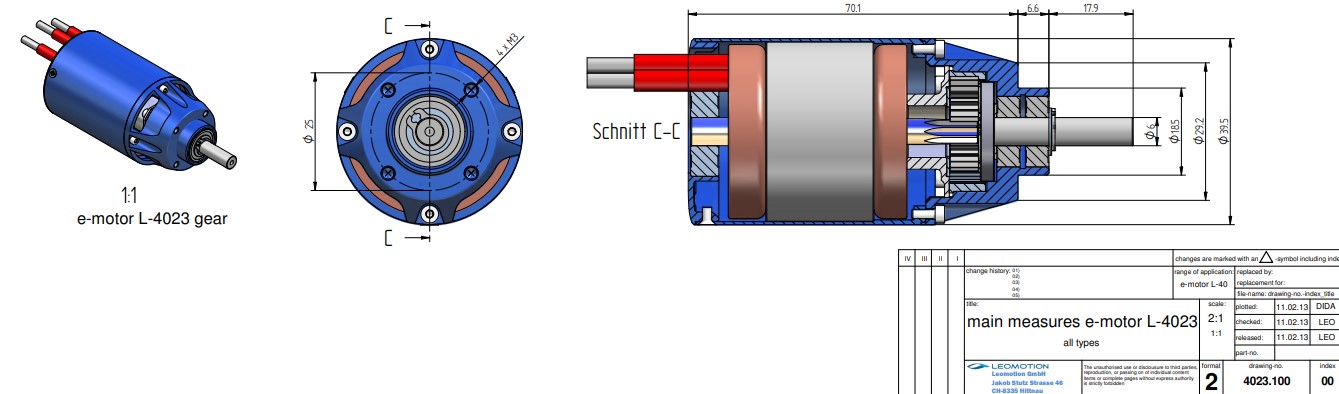

| Motor diameter | 39.5 mm | 1.56 in |
| Motor+GB length | 70.1 mm | 2.76 in |
| Lead length | 3.5 cm | 1.38 in |
| Shaft diameter | 6.0 mm | 0.24 in |
| Mounting info | 4 M3 holes on a 25 mm diameter circle | |
| No of poles | 4 | |
| Manufacturer's Rm | 7 mR | |
| Manufacturer's Kv | 2400 RPM/V | |
| Geared Kv | 358 RPM/V | |
| Est Io | 2.2 A @ 10V | |
| Max efficiency (20 V) | 95 % @ 79 A | |
| Operating efficiency (20 V) | 94 % @ 119 A | |
| Motor+gearbox Km | 319 Nm/W^.5 X1000 | |
| Motor+gearbox Km/Kg | 1130 Nm/(W^.5 Kg) | |
| Usable batteries | 4S to 7S LiPo | |
| Recommended battery | 6S 5Ah LiPo | |
| Recommended prop | GM17x12; GM18x10 | |
| Supplied accessories | 4 mounting screws | |
| Gearbox Ratio | 6.7 | |
| Planet bearings | Needle bearings | |
| Estimated GB efficiency | 98 % | |
