X20 Combo Brushless Servos - X20-2208 + X20-1035 Combo Set

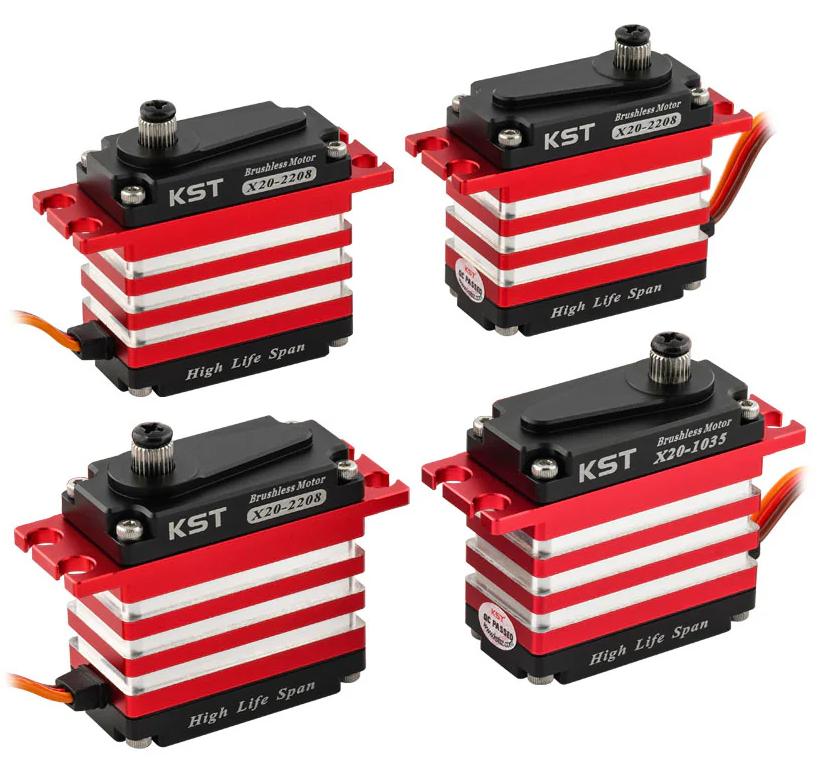

The X20 Combo set of three X20-2208 V8.0 Cyclic Servos and one X20-1035 V3.0 Tail Servo. The X20 Servos feature brushless motors, full CNC aluminum cases, and a complete set of hardened steel High Life Span (HLS) gears throughout each servo. Each gearbox is equipped with 6 ball bearings to maintain a slop-free gear train. The cyclic servos boast an incredible 25 Kg.cm (2.5N.m) of torque at 8.4V, and a crisp 0.07 second speed. The tail servo offers 1.2N.m (12 Kg.cm) of torque at a blistering fast 0.03 second speed at 8.4V.

Features

• Brushless DC motor
• Extreme torque and Excellent speed
• Hardened steel gears
• 6 Ball bearings

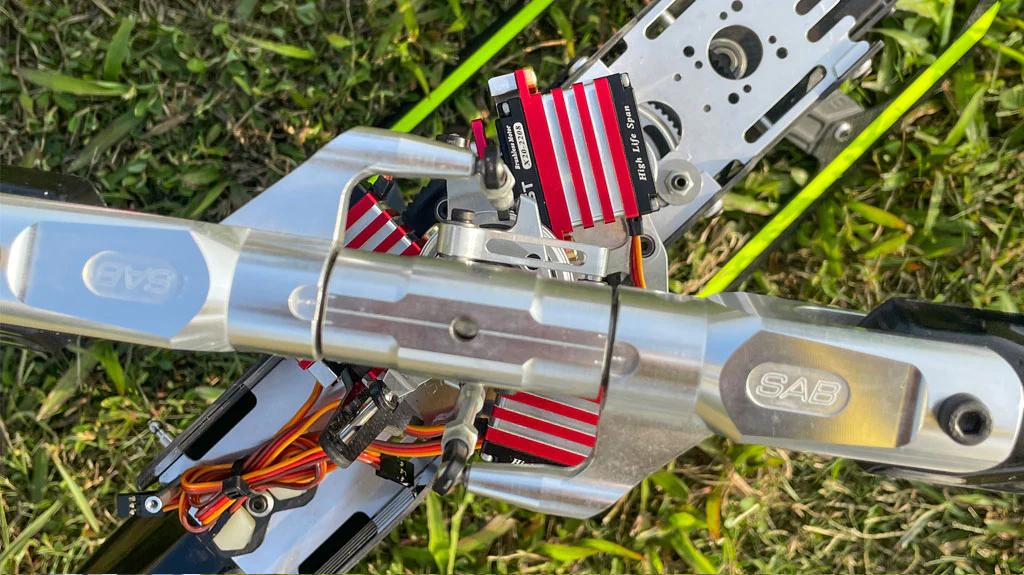

• Ideal for 500, 600, 700 and 800 Class EP/GP Helicopters

Specification

X20-2208
Rated Voltage: DC7.4V
Voltage Range: DC6.0V-8.4V
Torque: 18 Kg.cm@6.0V, 22 Kg.cm@7.4V, 25 Kg.cm@8.4V
Torque: 1.8N.m@6.0V, 2.2N.m@7.4V, 2.5N.m@8.4V
Speed: 0.09sec/60°@6.0V, 0.08sec/60°@7.4V, 0.07sec/60°@8.4V
Working Frequency: 1520us/333Hz
Default Travel Angle: ±50°=100°Total
Temperature Range: -10°C to 65°C
Case Material: Aluminum Alloy
Motor Type: Brushless DC Motor
Gear Set Material: Hardened Steel (HLS)
Position Sensor: Potentiometer
Case Dimensions: 40mm*20mm*40mm±0.2mm
Weight: 72g±10%
Ball Bearing: 6 BB

X20-1035
Rated Voltage: DC7.4V
Voltage Range: DC6.0V-8.4V
Torque: 9 Kg.cm@6.0V, 11 Kg.cm@7.4V, 12 Kg.cm@8.4V
Torque: 0.9N.m@6.0V, 1.1N.m@7.4V, 1.2N.m@8.4V
Speed: 0.040sec/60°@6.0V, 0.035sec/60°@7.4V, 0.030sec/60°@8.4V
Working Frequency: 760us/560Hz
Temperature Range: -10°C to 65°C
Case Material: Aluminum Alloy
Motor Type: Brushless DC Motor
Gear Set Material: Hardened Steel (HLS)
Position Sensor: Potentiometer

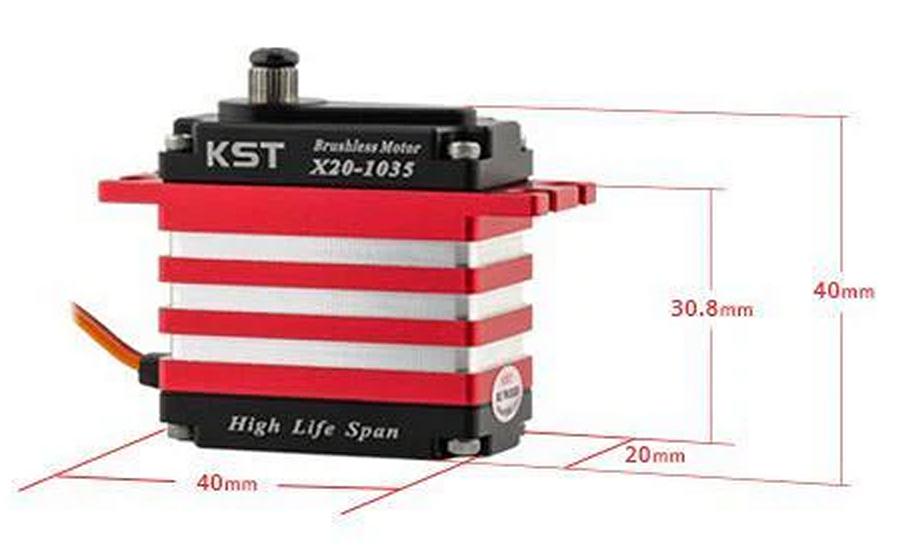

Case Dimensions: 40mm*20mm*40mm±0.2mm
Weight: 72g±10%

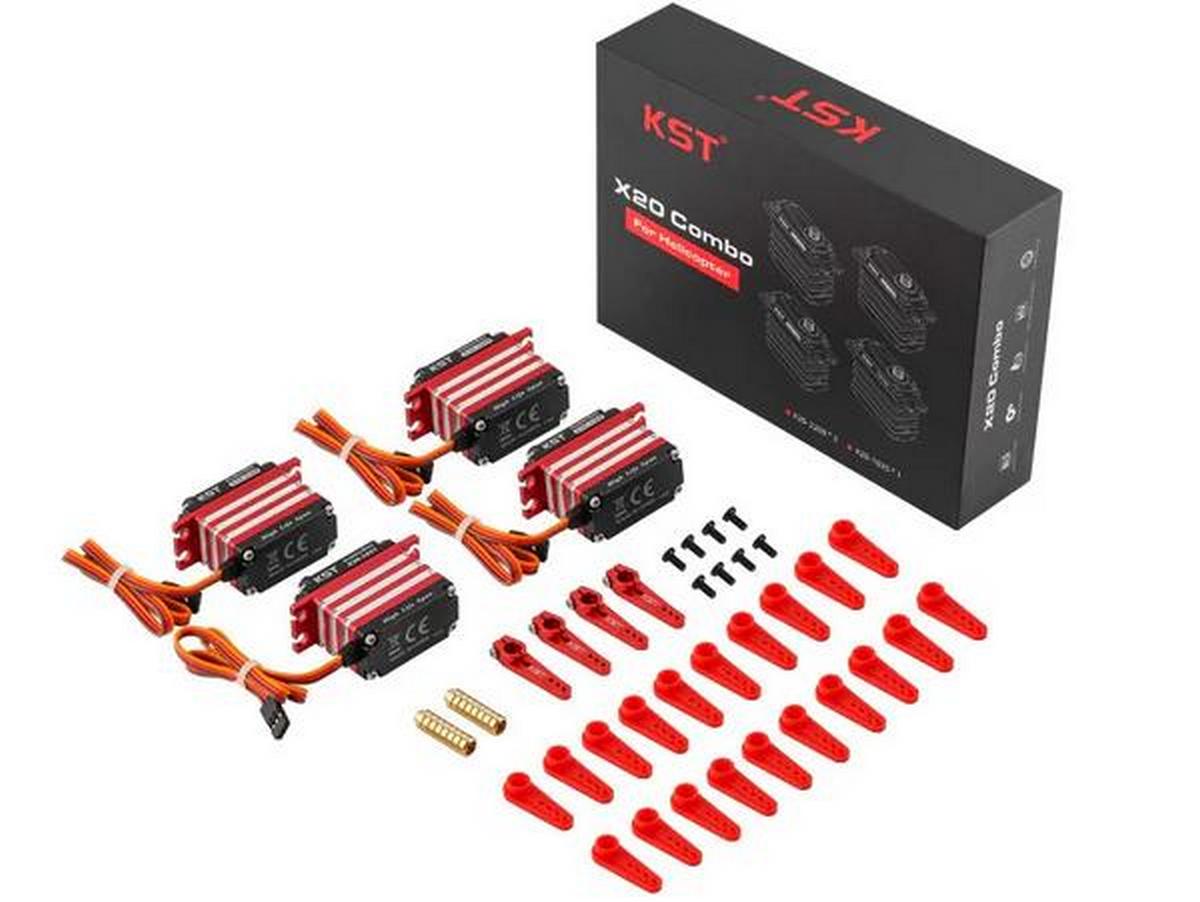

Package Includes
3 * X20-2208 V8.0
1 * X20-1035 V3.0
4 * CNC Servo Horn
20 * Plastic Servo Horn
16 * Grommets
