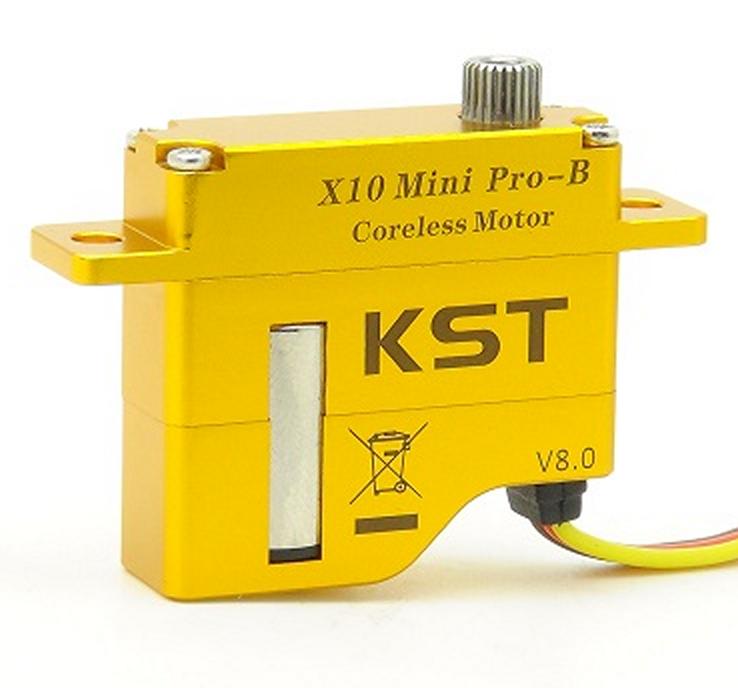

KST X10 Mini Pro B Servo - 7.5Kg.cm 0.09s 23.0g 10mm

KST-X10-MINI-PRO-B
Product Code: KST-X10-MINI-PRO-B
 (add a review)

Price: $50.22

5 in stock
Add to basket to see shipping cost
Quantity

Description

KST X10 Mini Pro B Servo Specifications

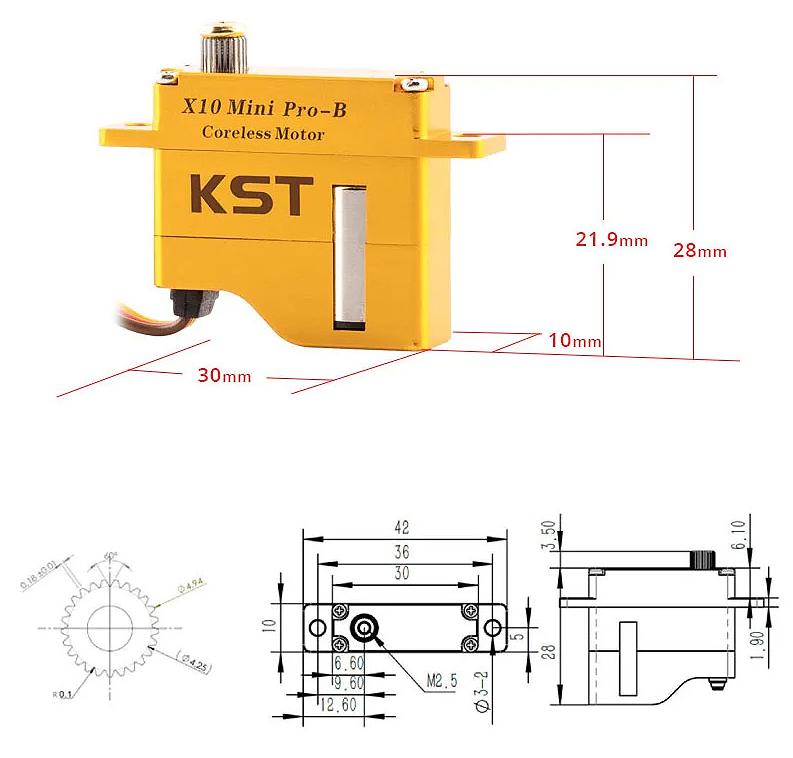

Body dimensions 30.0 mm wide x 10.0 mm thick x 29.5 mm high 1.18" wide x 0.39" thick x 1.16" high
Max dimensions 42.0 mm wide x 10.0 mm thick x 39.0 mm high 1.65" wide x 0.39" thick x 1.54" high
Stall torque (4.8V) 4.5 Kg.cm 62 oz.in
Stall torque (6V) 5.5 Kg.cm 76 oz.in
Stall torque (8.4V) 7.5 Kg.cm 104 oz.in
Weight 23 g 0.81 oz
Lead length 15 cm 5.9 in
Operating speed (4.8V) 0.16 sec/60°
Operating speed (6V) 0.13 sec/60°
Operating speed (8.4V) 0.09 sec/60°
Operating voltage 4.8V to 8.4V
Operating temperature -10 to +50 °C
Bearings 2 ball races
Gear material Hardened steel
Case material 7075 aluminium
Motor type Coreless DC
Working frequency 333 Hz
Dead band/resolution 2 µs
Pulse width for ± 60º 900-2100 µs
Digital Yes
Programmable No
Position feedback Potentiometer
Supplied accessories 5 strong plastic output arms, 2 arm retaining screws, 3 mounting screws
Optional accessories Ply Frame for KST X10 Mini, Integrated Drive System/Mono for the KST X10, Frame with bearing for the KST X10
