KST DS315MG Servo Servo - 4.8Kg.cm 0.07s 20.5g 12mm

Product Code: KST-DS315MG
 (add a review)

Price: $30.79 save 14%

9 in stock
Add to basket to see shipping cost
Quantity

Description

The KST DS315MG has a hardened steel drive train and a coreless motor capable of running from 4.8V to 8.4V (4 cell NiMH to 2S LiPo) meaning these servos will deliver the power and reliability you need. They are super high speed with pretty good torque.

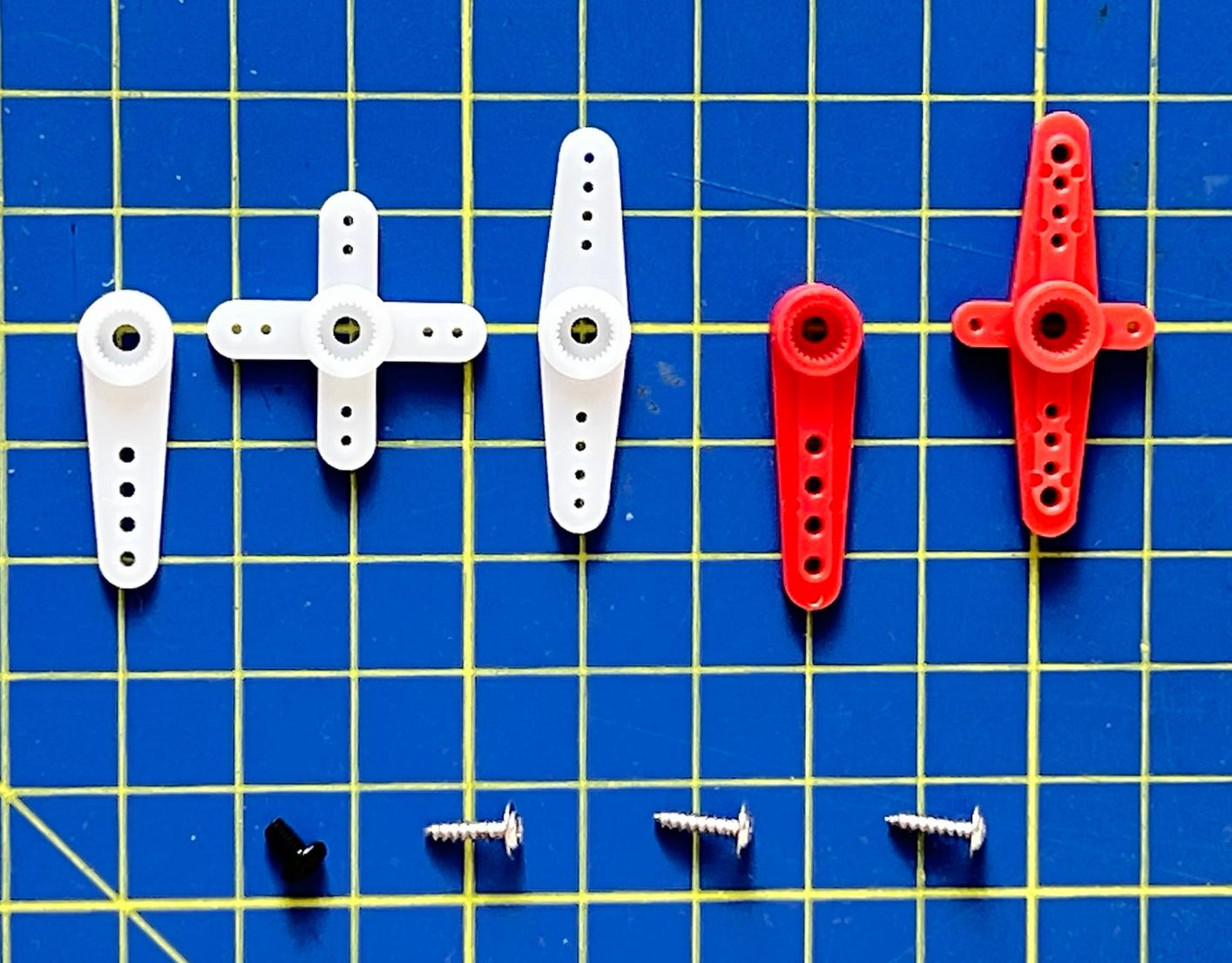

The accessories include 3 standard output arms and 2 red strong output arms.


KST DS315MG Features
  • Compact and strong design
  • Excellent speed with good torque
  • Wide 4cell NiMH to 2S LiPo voltage range
  • Excellent heat dissipation
  • 7075 Alloy casing
  • Hardened Steel gears



KST DS315MG Servo Servo Specifications

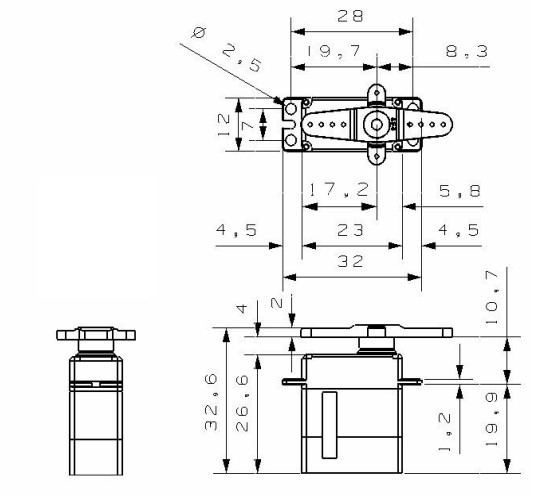

Body dimensions 23.0 mm wide x 12.0 mm thick x 26.5 mm high 0.91" wide x 0.47" thick x 1.04" high
Max dimensions 32.0 mm wide x 12.0 mm thick x 33.0 mm high 1.26" wide x 0.47" thick x 1.30" high
Stall torque (4.8V) 2.8 Kg.cm 39 oz.in
Stall torque (7.4V) 4.3 Kg.cm 60 oz.in
Stall torque (8.4V) 4.8 Kg.cm 67 oz.in
Weight 20.5 g 0.72 oz
Lead length 21 cm 8.3 in
Operating speed (4.8V) 0.1 sec/60°
Operating speed (7.4V) 0.08 sec/60°
Operating speed (8.4V) 0.07 sec/60°
Operating voltage 4.8V to 8.4V
Operating temperature 0 - 50 °C
Bearings 2 ball bearings
Gear material Hardened Steel
Case material 7075 aluminium alloy
Motor type Coreless DC motor
Working frequency 333 Hz
Dead band/resolution 2 µs
Pulse width for ± 60º 900us-2100us µs
Digital Yes
Programmable No
Position feedback Potentiometer
Supplied accessories 3 standard output arms, 2 red strong output arms, 2 arm retaining screws, mounting screws
