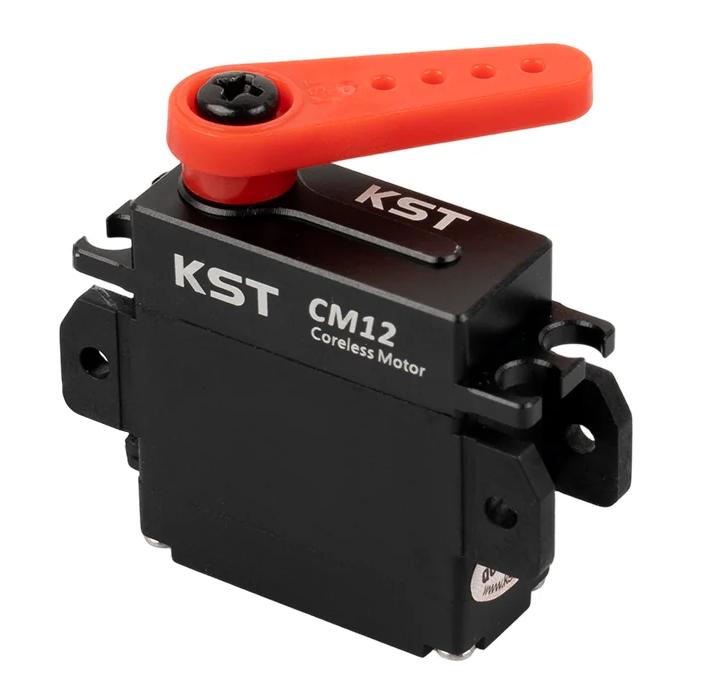

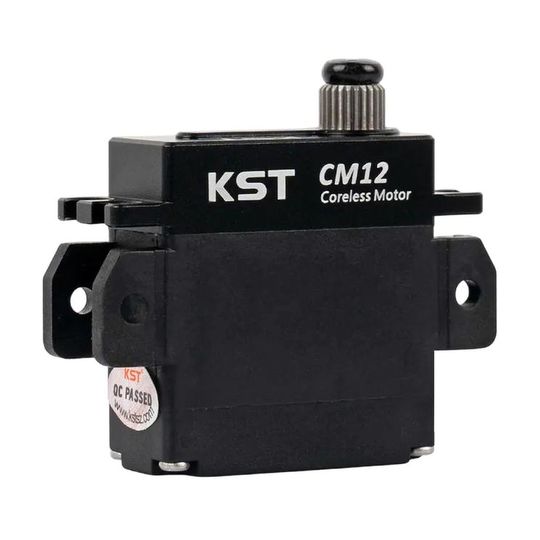

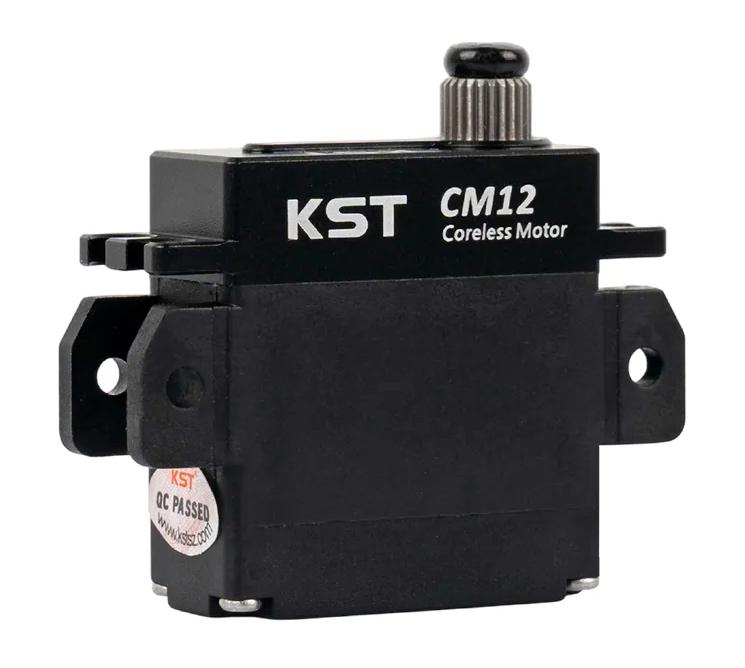

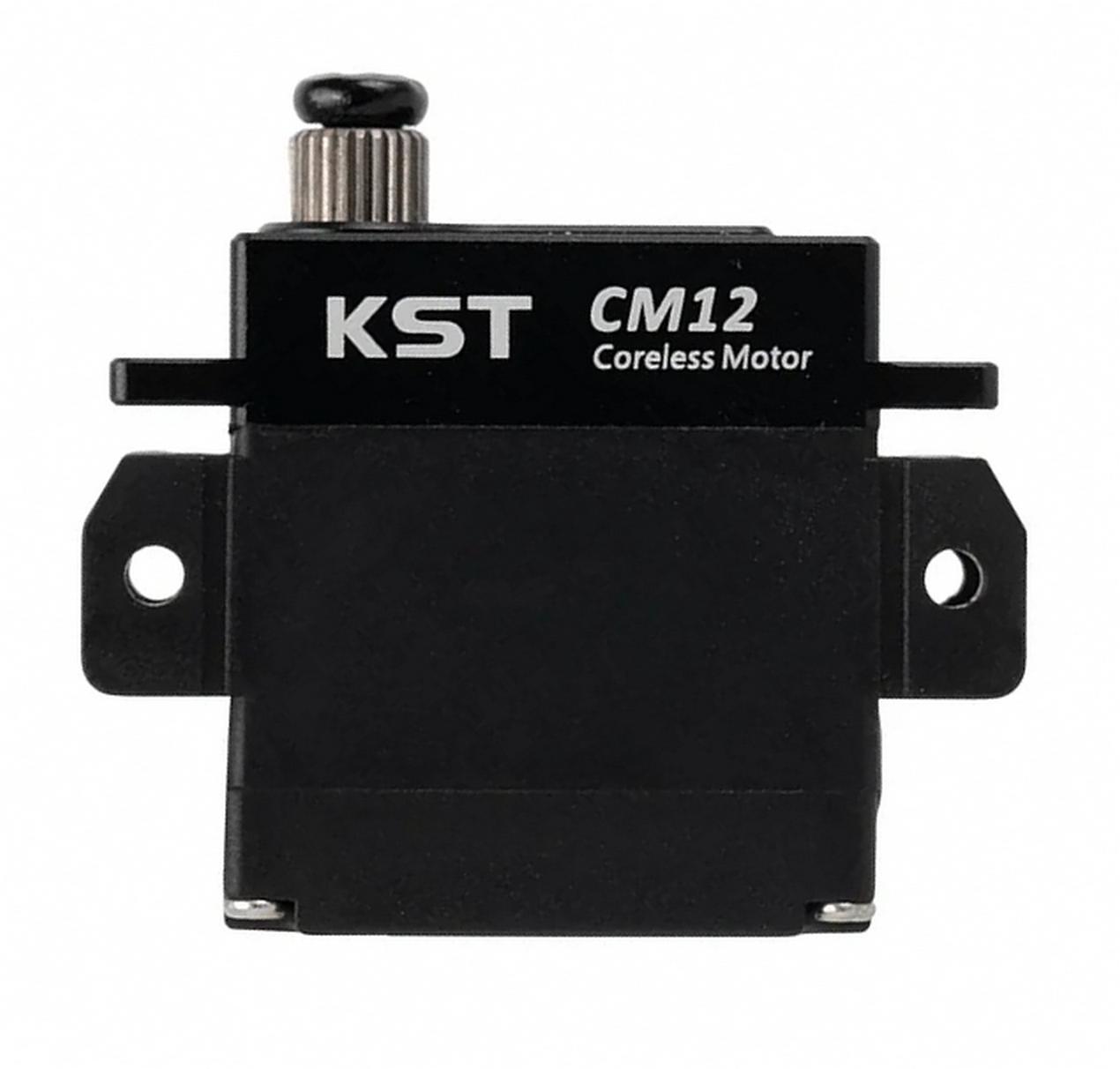

KST CM12 Servo

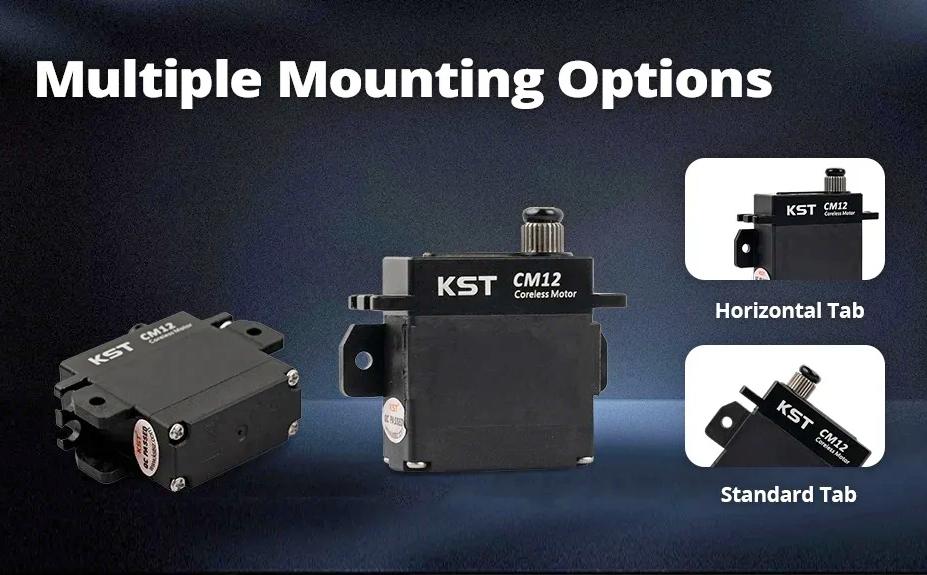

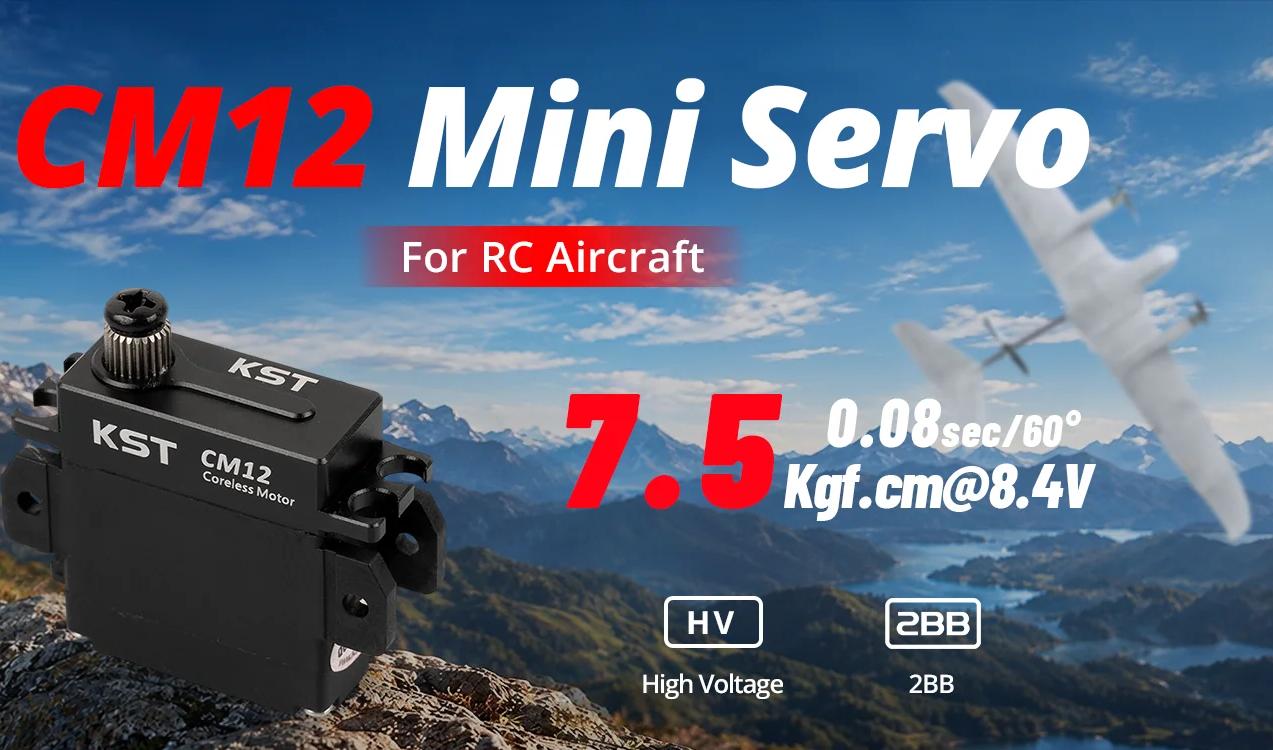

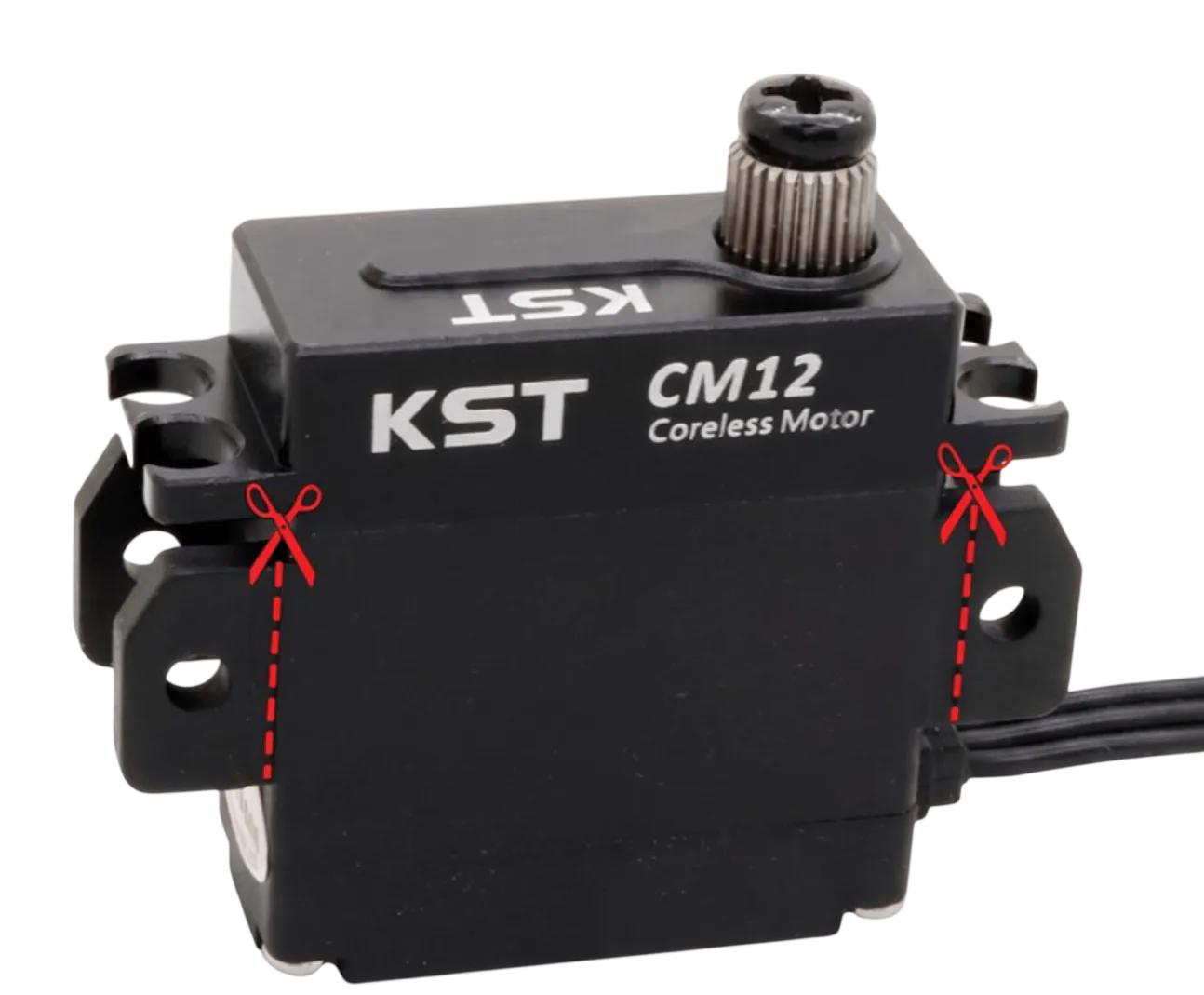

The KST CM12 is a compact coreless digital servo designed for RC aircraft and other RC models. It features a coreless DC motor, hardened steel gears, and dual ball bearings, delivering reliable performance in a lightweight 22g design.Operating at 3.7–8.4V, the CM12 provides up to 7.5 kgf·cm of torque and a speed of 0.08 sec/60° at 8.4V. Its plastic center case features three mounting options, with removable mounting tabs for flexible installation.With compact dimensions of 27 × 12.1 × 29.5mm, the KST CM12 is a versatile metal gear servo for RC applications requiring compact size, flexible mounting, and dependable performance.Features
Coreless DC Motor
Hardened Steel Gears

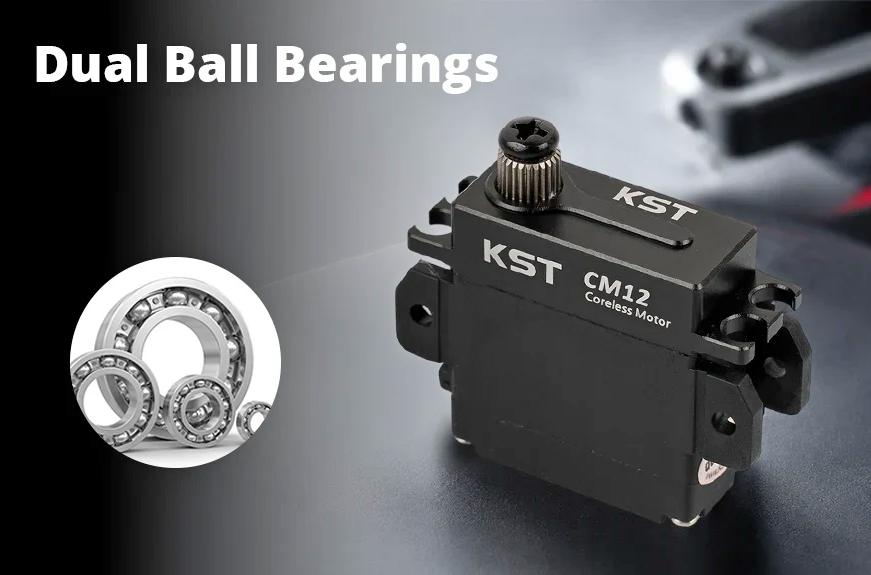

Dual Ball Bearings (2BB)
7.5 Kgf.cm @ 8.4V
0.08 sec/60° Speed @ 8.4V

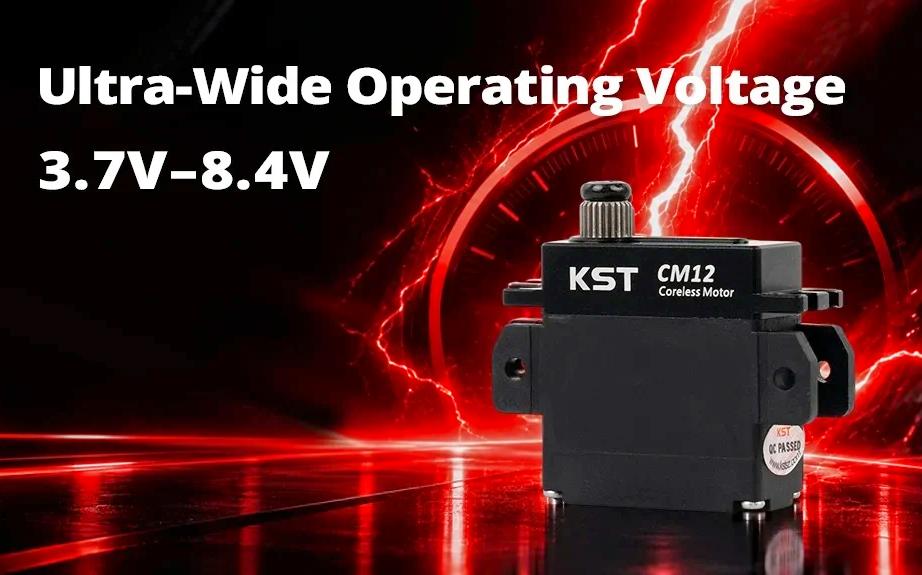

3.7–8.4V Operating Voltage
Compact 27 × 12.1 × 29.5mm Design
Lightweight 22g
Potentiometer Position SensorSpecification
Item: CM12 Servo
Rated Voltage: DC 6.0V
Voltage Range: DC 3.7V-8.4V
Torque: 3.80Kgf.cm @3.7V, 4.80Kgf.cm@4.2V, 5.80Kgf.cm@6.0V, 6.80Kgf.cm@7.4V, 7.50Kgf.cm@8.4V
Speed: 0.16sec/60°@3.7V, 0.13sec/60°@4.2V, 0.10sec/60°@6.0V, 0.09sec/60°@7.4V, 0.08sec/60°@8.4V
Working Frequency: 1520µs/333Hz
Default Travel Angle: ±50° = 100° Total
Temperature Range: -10?……+65?
Case Material: Aluminum Alloy+ Plastic
Motor Type: Coreless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Potentiometer
Ball Bearing: 2BB

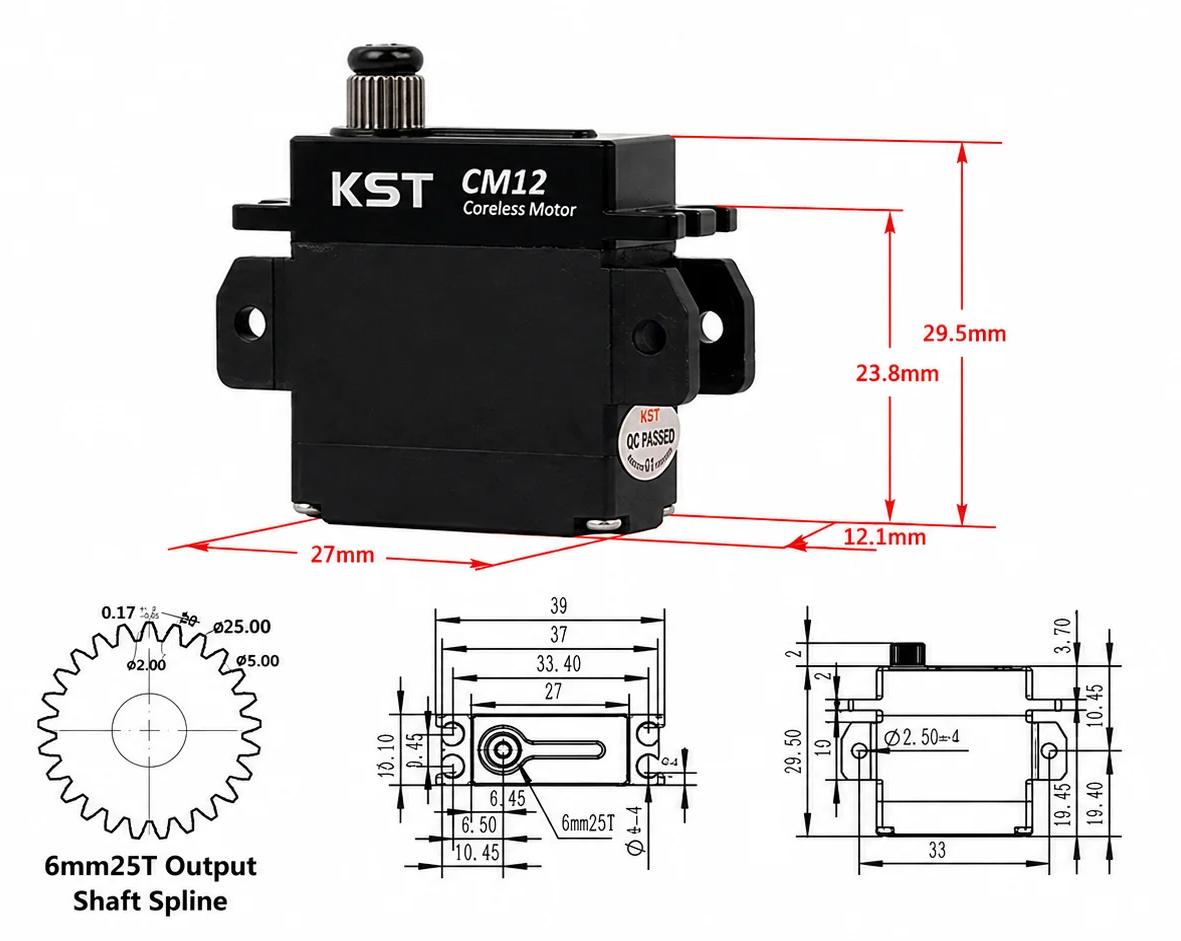

Case Dimensions: 27 * 12.1 * 29.5mm±0.2mm
Weight: 22g±10%Package Includes

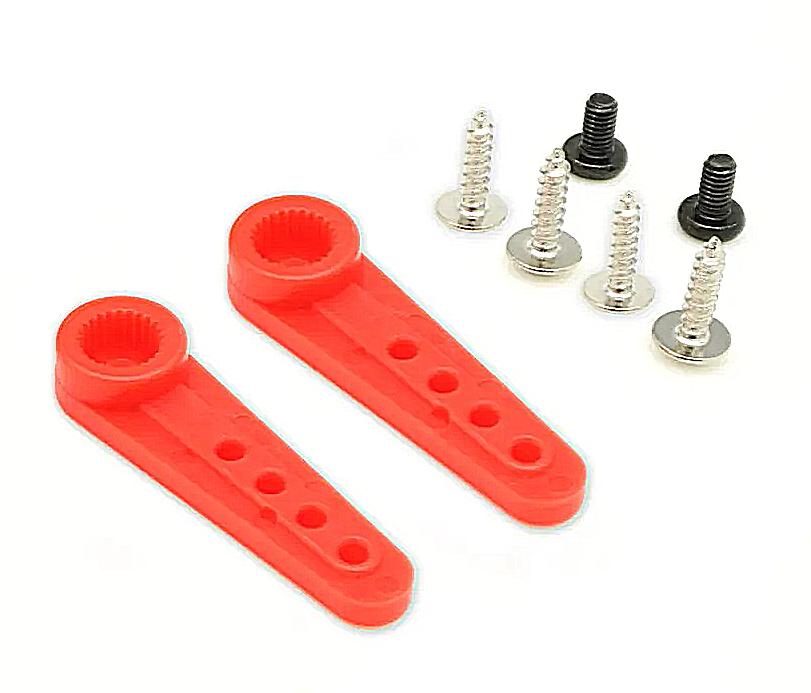

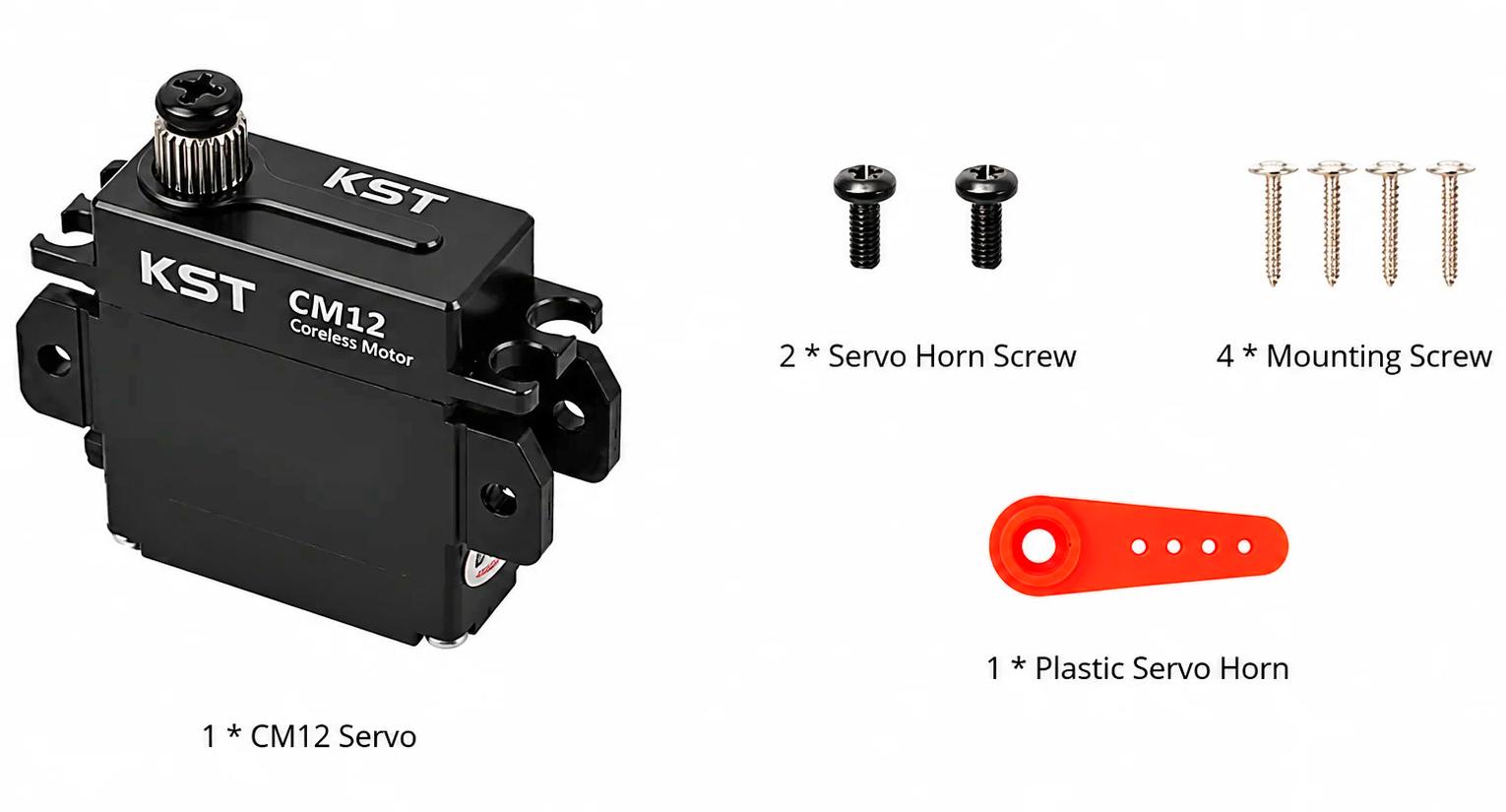

1 * CM12 Servo
2 * Servo Horn Screw
4 * Mounting Screw
1 * Plastic Screw Horn
