Grunau Baby 1.6m

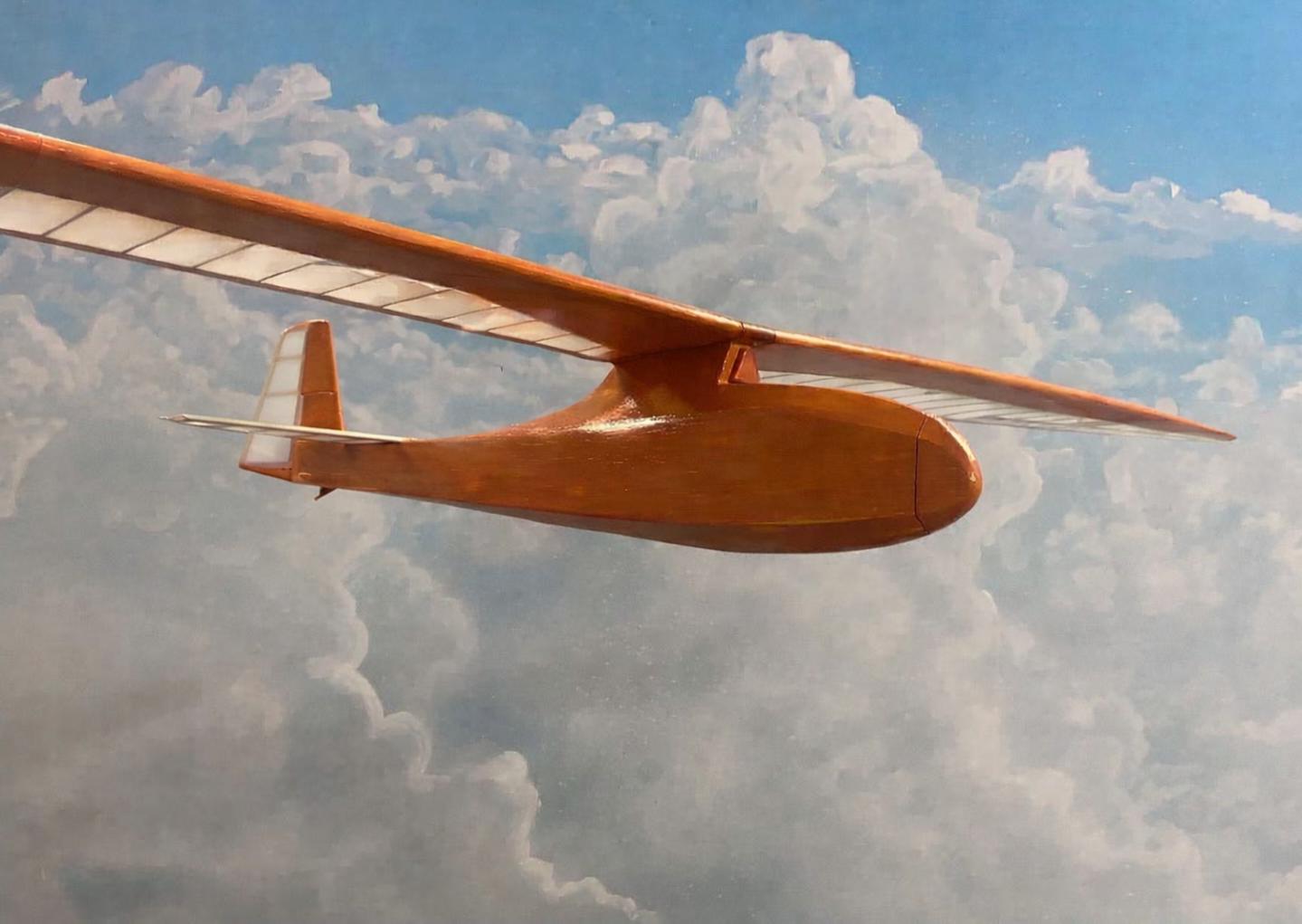

The Aviation Toys Grunau Baby is a lightweight 1.6m (63") semi-scale model of the wonderful Grunau Baby training glider.

Weighting as litle as 350g (12 oz) this wonderful little model is at home on the slope and flat. It can be bungee launched on a standard F3L high start and thermal soars just as well as the full size glider.

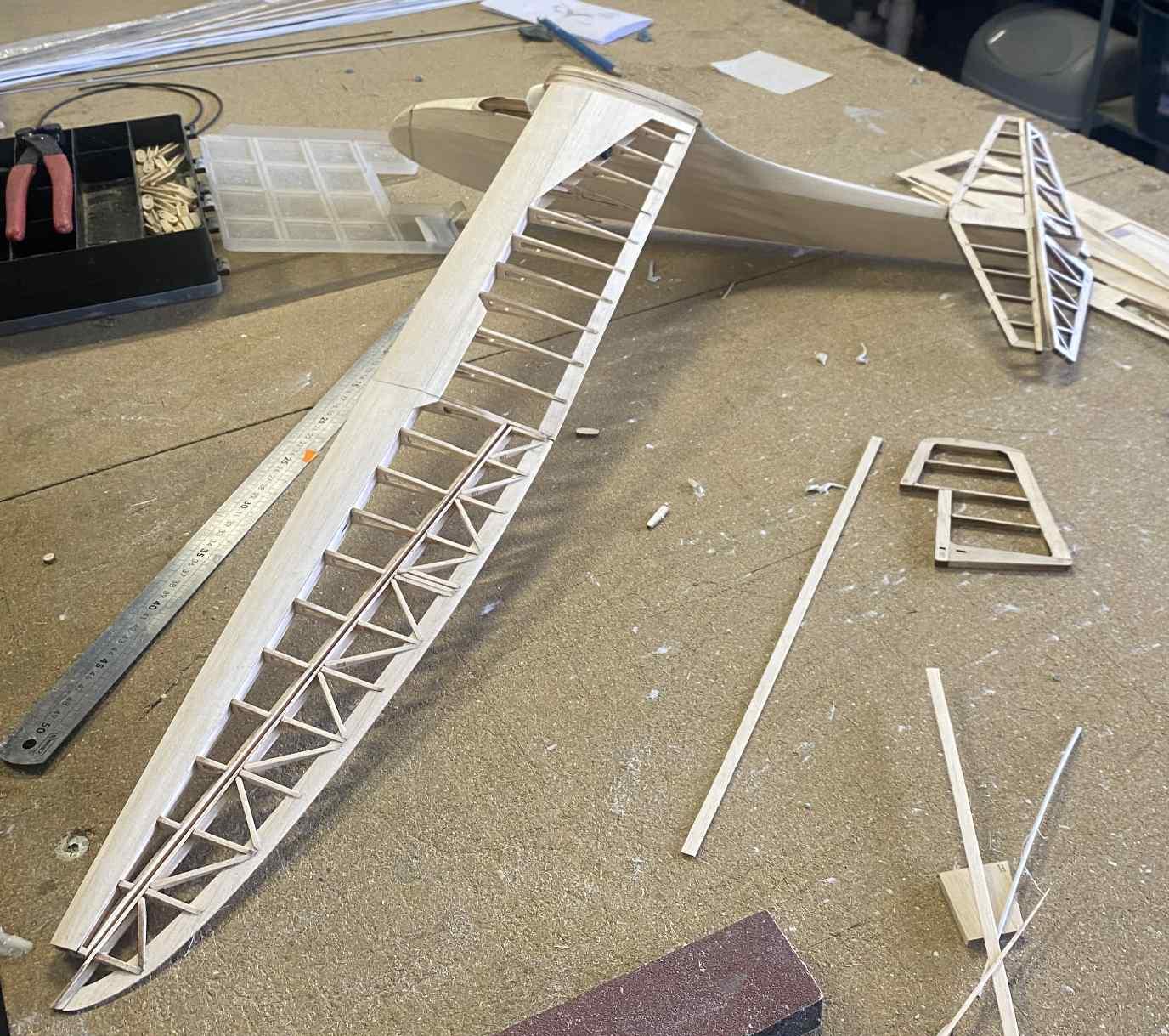

• Ply and balsa wood construction
• Laser cut parts
• 1.6 meter wingspan
• app. 350 grams all up weight
• aileron, rudder and elevator function
• 3d printed pilot and small parts included

Tow line launch and great fun on the slope. Design by Vincent Merlijn.

Grunau Baby Specifications
Wing span	1.6 m	63 in
Wing area	20.5 dm2	318 sq in
Length	112 cm	44.1 in
Flying weight from	350 g	12.3 oz
Wing loading	17.1 g/dm2	5.6 oz/sq ft
Aspect ratio	12.5
Wing airfoil	Custom
Dihedral (EDA)	0.0º
Centre of Gravity	As shown on plan
Controls	Rudder, elevator, ailerons

Grunau Baby Typical Weights
Bare structure	250 g	8.8 oz
Covering	25 g	0.9 oz
Total structure	275 g	9.7 oz
Receiver	6 g	0.2 oz
Rudder servo	5 g	0.2 oz
Elevator servo	5 g	0.2 oz
Aileron servos (2)	10 g	0.4 oz
Nose weight	24 g	0.8 oz
Battery	25 g	0.9 oz
Flying weight	350 g	12.3 oz
