GM CL Spinners & Blades FAQ

Name: HyperFlight
Address: Drybank Farm, Fosse Way, Ettington, Stratford-upon-Avon, Warwickshire, CV37 7PD
Telephone: +44 (0) 1789 336166
Price range: £0.23 - £1950

Product Code: GM-CL-README

(add a review)

Price: $0.00

Description

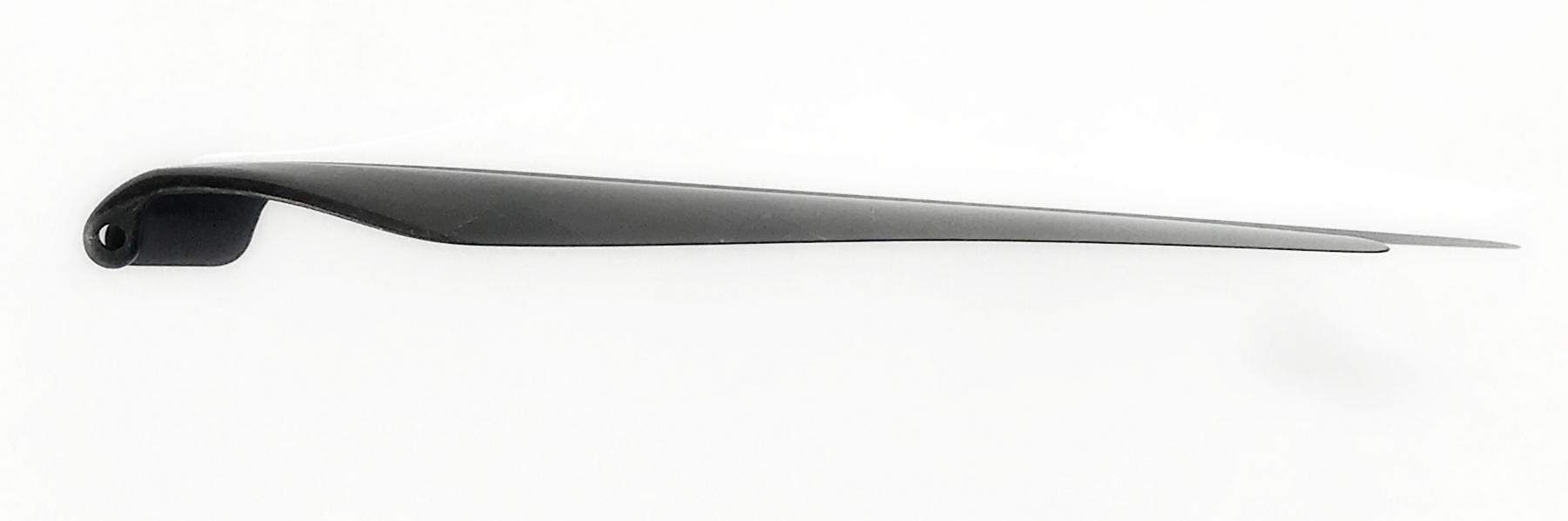

GM CL (Contest Line) spinners and prop blades must be used together. They cannot be used with non CL blades or spinners.

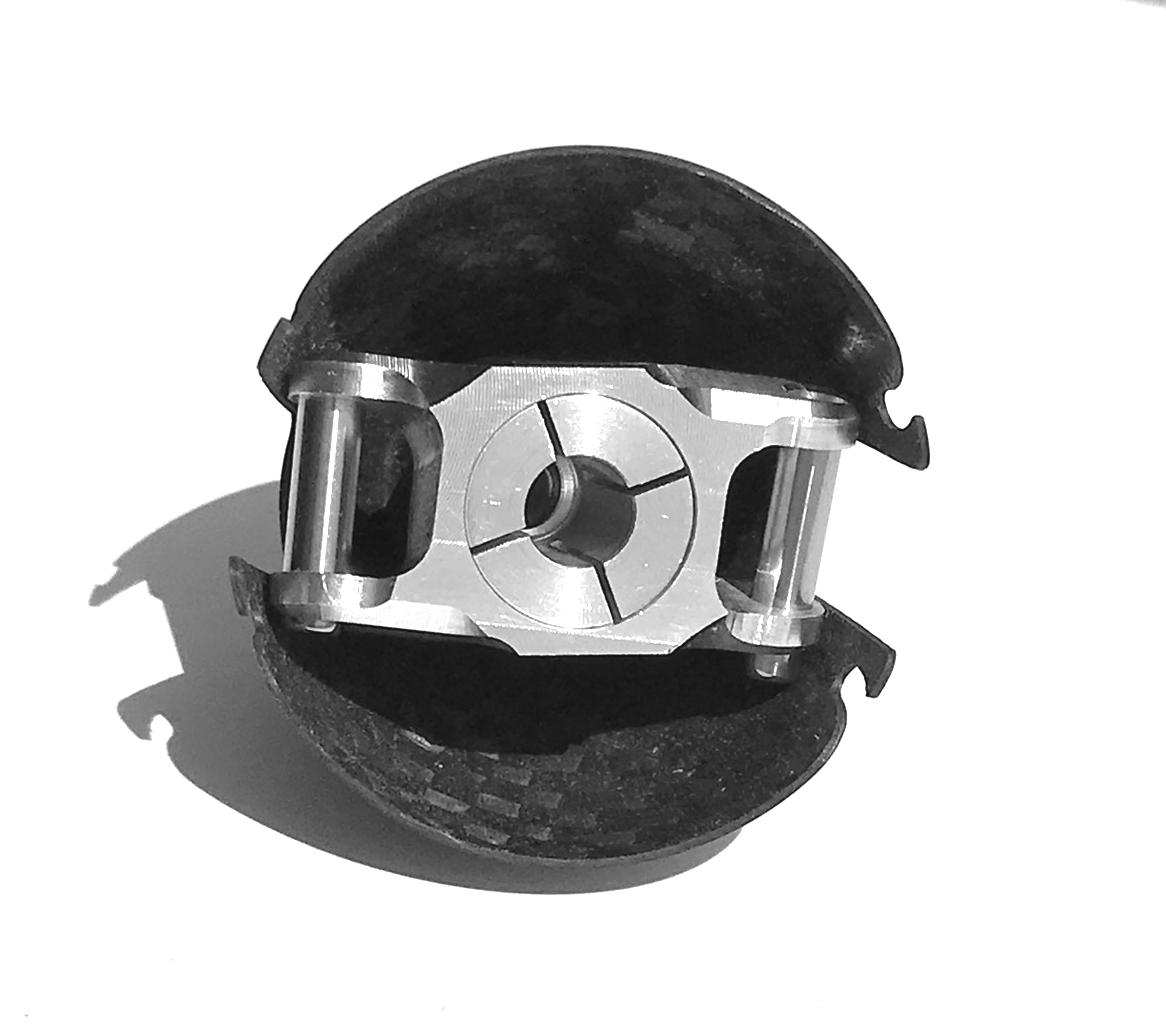

The hinge pin axis on the yoke/hub is angled in 3 planes (axes) so that the blade rotates to be closer to the fuselage when folded, reducing drag.
They are also lighter than the normal GM F5J components.
If normal blades are used on a CL yoke/hub the blade will be at much too high a pitch.
If CL blades are used on a normal yoke/hub the blade their pitch will be too low.
