VM Lightweight Powerset 17g

Product Code: ELF-SPIN-PWRSET
 (5 reviews)

Price: $85.08

8 in stock
Add to basket to see shipping cost

Available Options

* Spinner Colour:
Quantity

Description

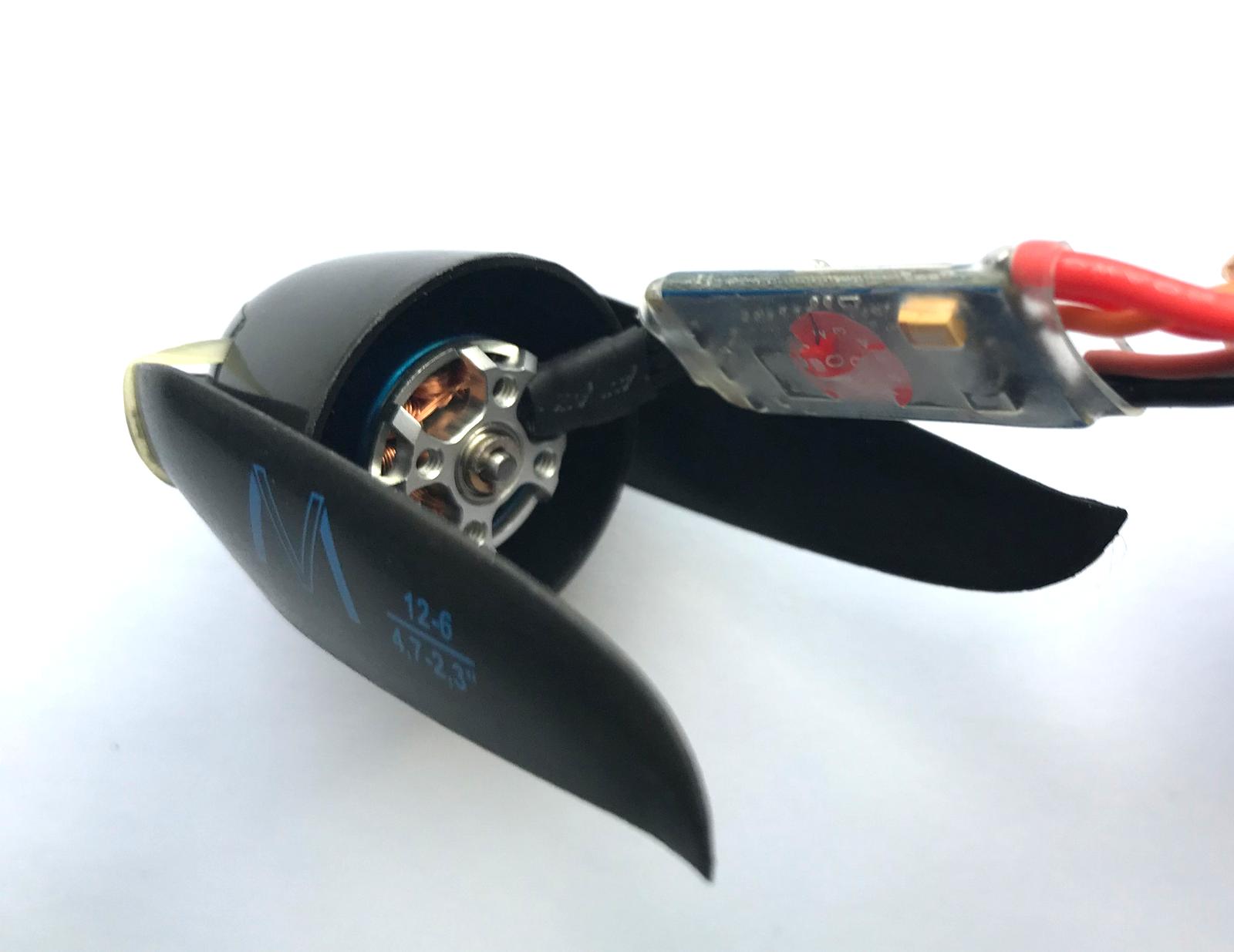

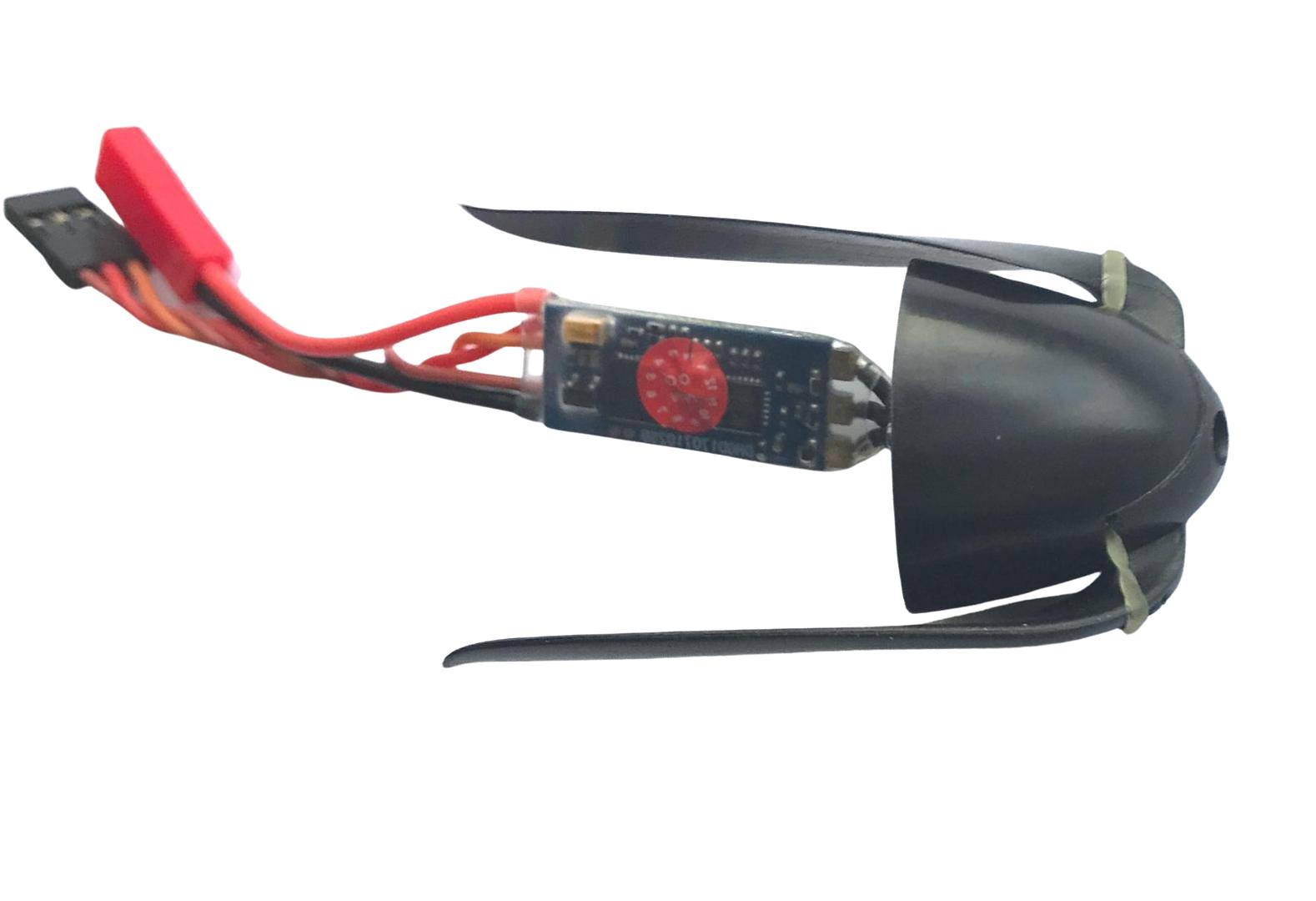

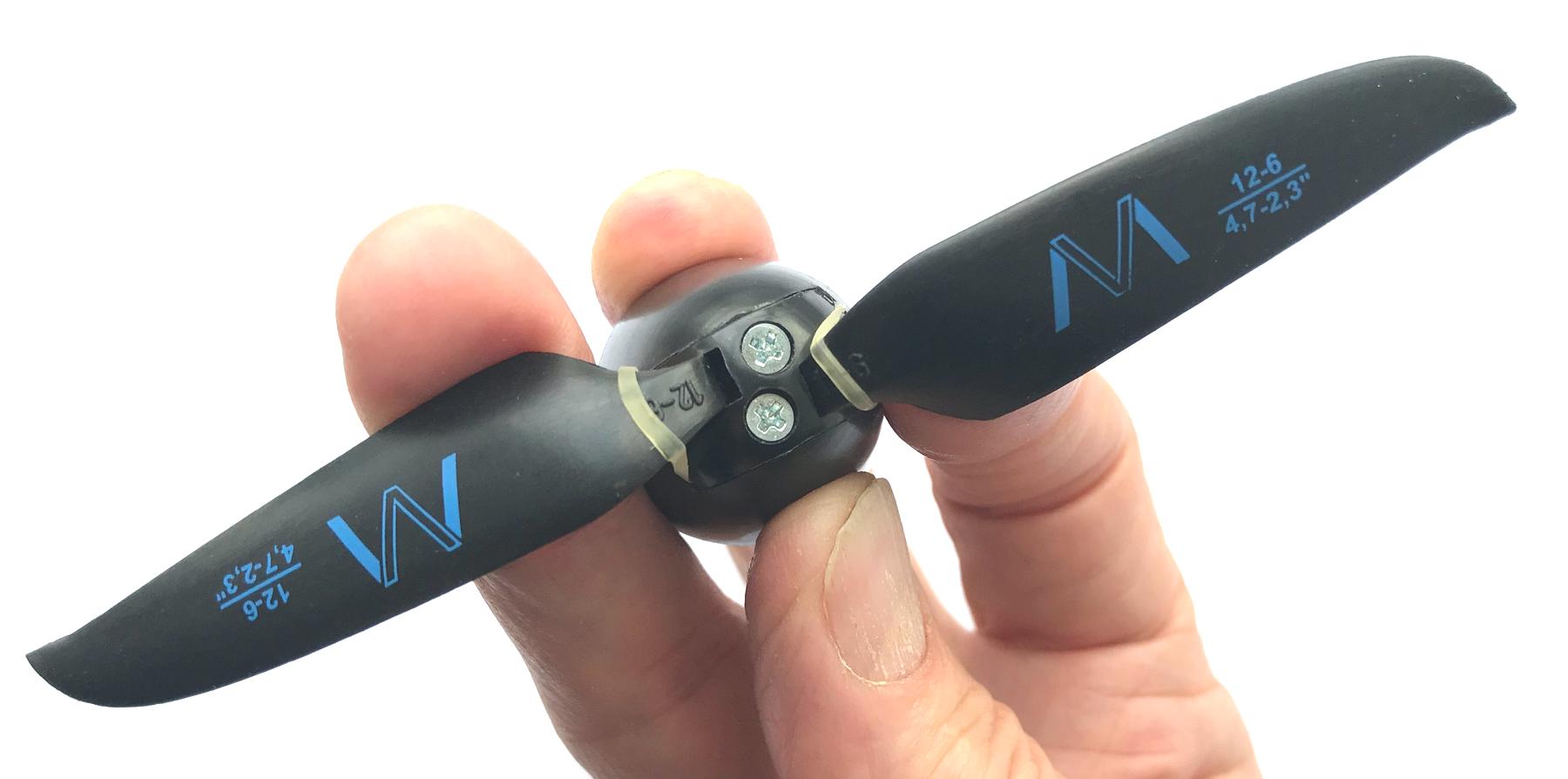

The VM Lightweight Powerset consists of a pair of 4.2x2.3 VM folding prop blades in a special 25 mm spinner ready mounted onto a tiny SunnySky 110X outrunner motor that fits inside the spinner. To this a speed control running BLHeli32 firmware has been expertly soldered. The battery connector on the ESC is a Mini JST red BEC socket but this can be replaced if necessary.

The speed control has been modified to optionally output 5V or unregulated 2S LiPo battery voltage to the receiver and thus servos.

As supplied the ESC outputs the unregulated 2S Lipo battery voltage (approx 8.2V initially unloaded). This is good when using high voltage servos, and especially if using receiver voltage telemetry, as you can see/hear the battery voltage on the transmitter. On the other hand if you are using normal voltage servos you will need to extricate the wire marked 8.4V and insert the wire marked 5V into the RC plug.

The prop/motor/ESC is suitable for 2S LiPo batteries only with a capacity between 150 mAh and 450 mAh.

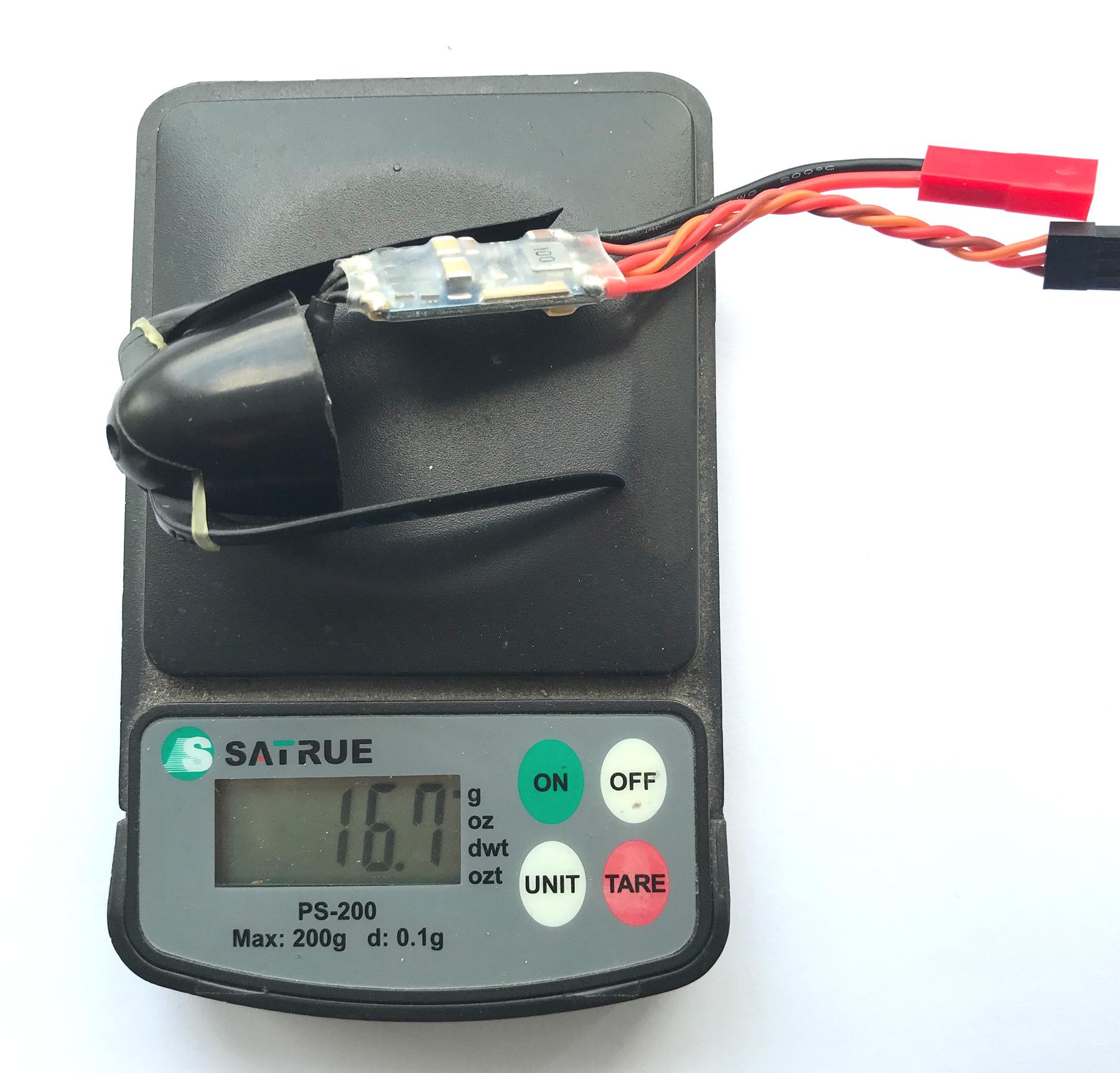

The total weight of this power set is 16.7 g (0.59 oz).

Mounted using 4 pcs M2 screws (supplied) on a 9 mm diameter.

The speed control will overheat if full power is used for more than approx 5 seconds. We recommend that the throttle channel travel is reduced to 60% on the transmitter to limit the current and avoid overheating.

DO NOT CONDUCT STATIC POWER TESTS.
YOU ARE LIKELY TO OVERHEAT THE MOTOR OR ESC
3 SECOND GROUND RUNS MAX.

Reviews 5


 Review by:

Arrived promptly, whereupon I hacked the nose off my Alula Trek and bodged on the Powerset. Fitted a 350MaH Lipo, also from Hyperflight. After removing the two coins that acted as noseweight, the CG was in pretty much the right place, with no net change in AUW. So now I have a 3-minute-endurance rocketship, if there are no thermals; a perfectly good glider, if it's soarable; and no need to keep flinging it into the air, if I keep missing the thermals: after 10 seconds of power, it's a speck. Very pleased.


 Review by:

And the service and shipping to Australia occurred very promptly! Thanks Neil


 Review by:

I put one of these on a 210 gram EPP foam hand launch glider that I converted to RC and am amazed at how much thrust it produces for such a tiny lightweight package.
I did drill two 5mm holes in the spinner to improve cooling airflow as well as providing some cooling airflow to the ESC and find no cooling issues operating at about half power with occasional full power bursts.
Great little unit that would easily pull a clean 250 gram airframe


 Review by:

Looks good so far...

Just received this product. Service was great, shipping prompt, packaging was well done, and everything arrived in good shape. I am currently designing a new "light weight" glider project, that this looks perfect for.....
stay tuned...


 Review by:

Powerset

Nice set!!!
