The

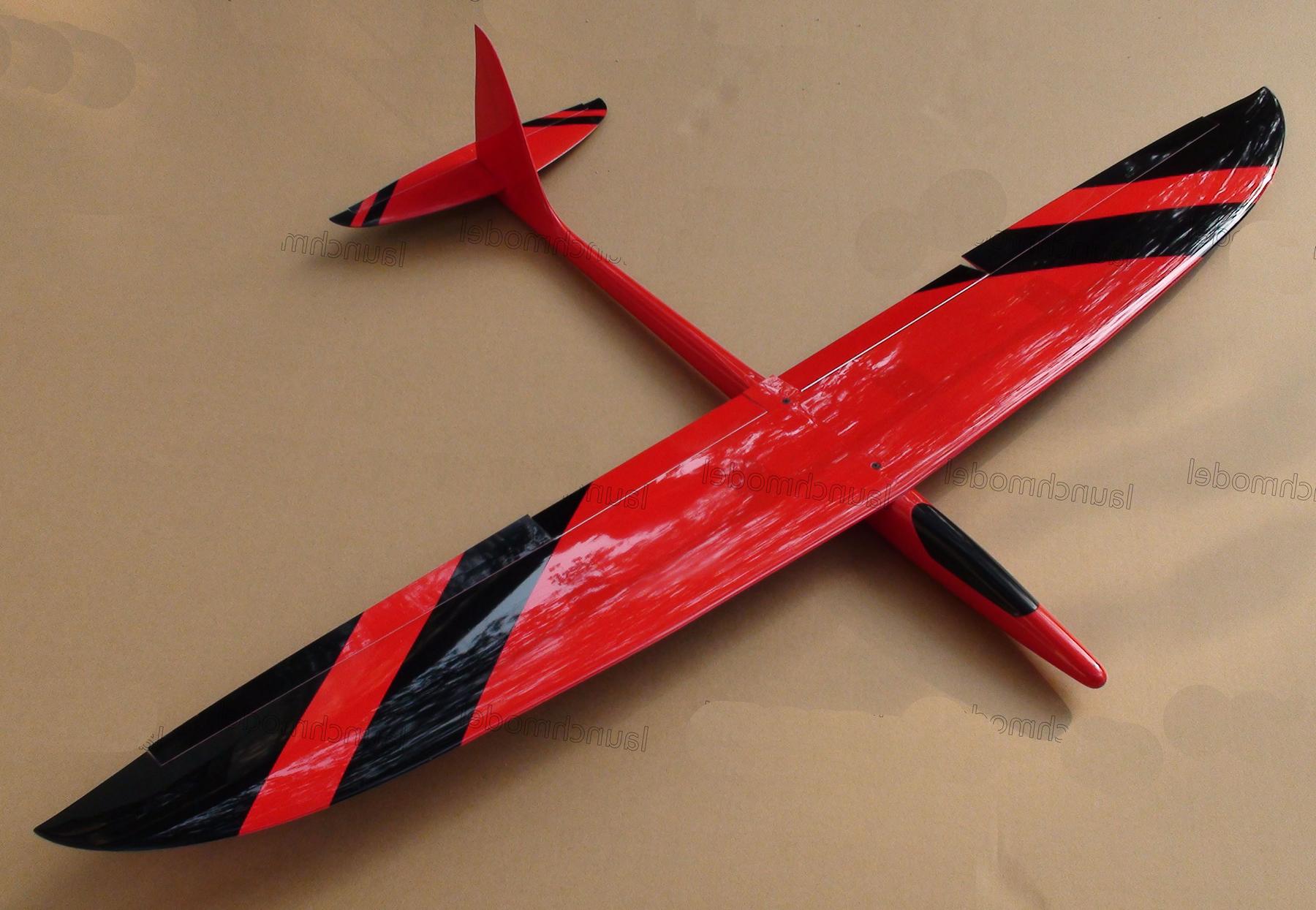

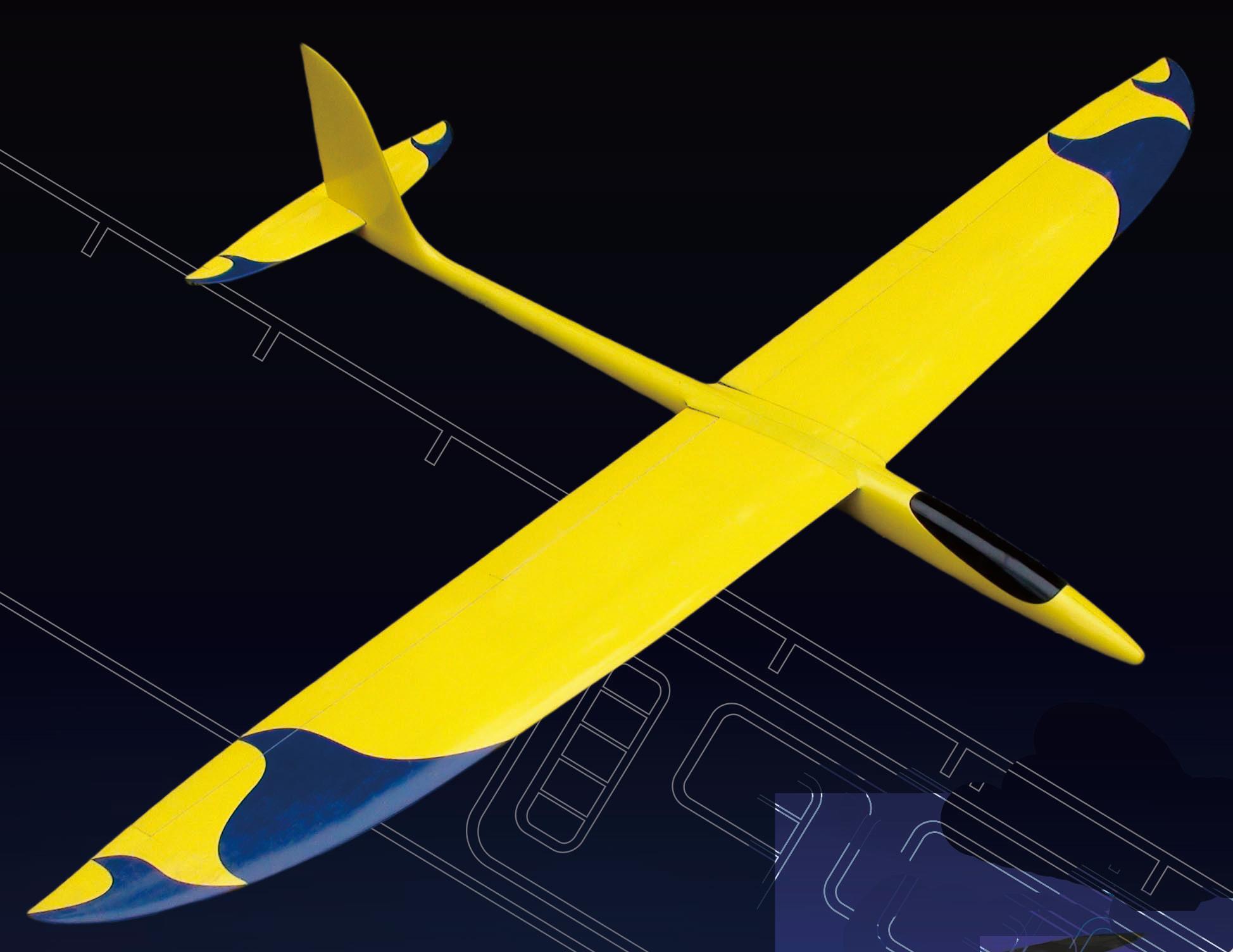

Dragon is a nicely finished fully molded 1.5m glass and carbon hotliner.
More info soon.
| Dragon Specifications |
|---|
| Wing span |
1.5 m |
60 in |
| Wing area |
21.6 dm2 |
335 sq in |
| Length inc spinner |
98 cm |
38.6 in |
| Flying weight from |
982 g |
34.6 oz |
| Wing loading |
45.5 g/dm |
14.9 oz/sq ft |
| Aspect ratio |
10.7 |
| Wing airfoil |
HN1038 |
| EDA (dihedral) |
2.0º |
| Spinner Diameter |
34 mm |
| Centre of Gravity |
60-70 mm from wing leading edge |
| Controls |
Elevator, ailerons, flaps, throttle |
| Dragon Typical Weights |
|---|
| Fuselage |
149 g |
5.3 oz |
| Left wing |
185 g |
6.5 oz |
| Right wing |
179 g |
6.3 oz |
| Tailplane |
36 g |
1.3 oz |
| Wing joiner |
30 g |
1.1 oz |
| Accessories |
15 g |
0.5 oz |
| Total structure |
594 g |
21.0 oz |
| Wiring |
20 g |
0.7 oz |
| Control rods |
8 g |
0.3 oz |
| Receiver |
8 g |
0.3 oz |
| Elevator servo |
9 g |
0.3 oz |
| Elevator pushrod |
7 g |
0.2 oz |
| Wing servos (4) |
36 g |
1.3 oz |
| Speed control |
30 g |
1.1 oz |
| Motor |
105 g |
3.7 oz |
| Prop & spinner |
25 g |
0.9 oz |
| Battery |
140 g |
4.9 oz |
| Flying weight |
982 g |
34.6 oz |
