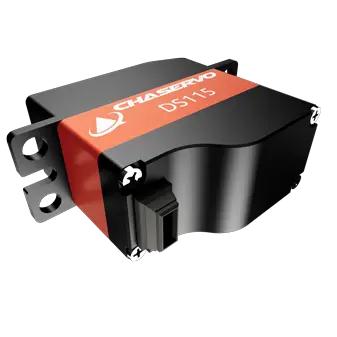

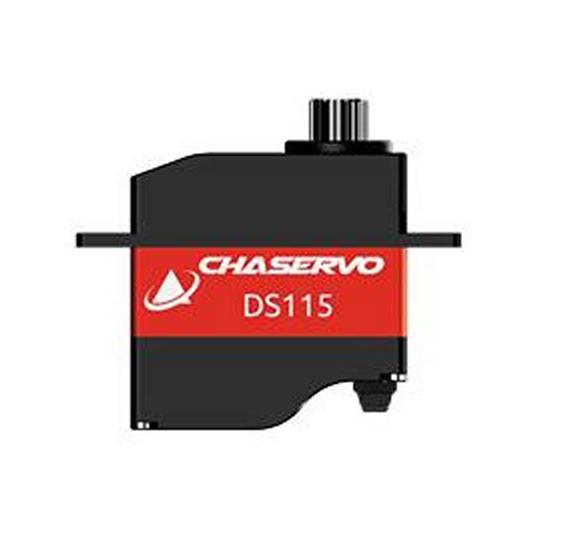

CHA DS115 Servo - 6.0Kg.cm 0.08s 16.0g 12mm

The Chaservo DS115 is made from high-quality materials and has a robust design. The hardened steel gearbox is wear-resistant and ensures a long service life. The aluminum-reinforced, high-strength technopolymer housing ensures reliable vibration damping. The excellent torque and wide voltage range, from 4V up to 9V, makes it useful for a large range of applications

The holding force of up to 9 kg at 8.4 V enables even heavy loads to be moved effortlessly. The rotation speed of 0.055 seconds at 8.4 V is exceptionally fast.

CHA DS115 Servo Specifications
Body dimensions	23.0 mm wide x 11.5 mm thick x 24.0 mm high	0.91" wide x 0.45" thick x 0.94" high
Max dimensions	32.0 mm wide x 11.5 mm thick x 28.5 mm high	1.26" wide x 0.45" thick x 1.12" high
Stall torque (3.5V)	3.6 Kg.cm	50 oz.in
Stall torque (7.4V)	5.5 Kg.cm	76 oz.in
Stall torque (8.4V)	6 Kg.cm	83 oz.in
Weight	16 g	0.56 oz
Lead length	21 cm	8.3 in
Operating speed (3.5V)	0.13 sec/60°
Operating speed (7.4V)	0.09 sec/60°
Operating speed (8.4V)	0.08 sec/60°
Operating voltage	3.5V to 9V
Operating temperature	°C
Bearings	2 ball race
Gear material	Hardened steel
Case material	Aluminium & nylon
Motor type	Coreless
Working frequency	333 Hz
Dead band/resolution	µs
Pulse width for ± 60º	900us - 2100 µs
Digital	Yes
Programmable	No
Position feedback	Potentiometer
Supplied accessories	3 plastic output arms, 2 arm retaining screws, 4 mounting screws
Optional accessories
