11.8mm OD 10mm ID Wound Carbon Tube

Product Code: CF-TWILL-12MM
 (5 reviews)

Price: $13.97

More than 10 in stock
Add to basket to see shipping cost

Available Options

* Length:
Quantity

Description

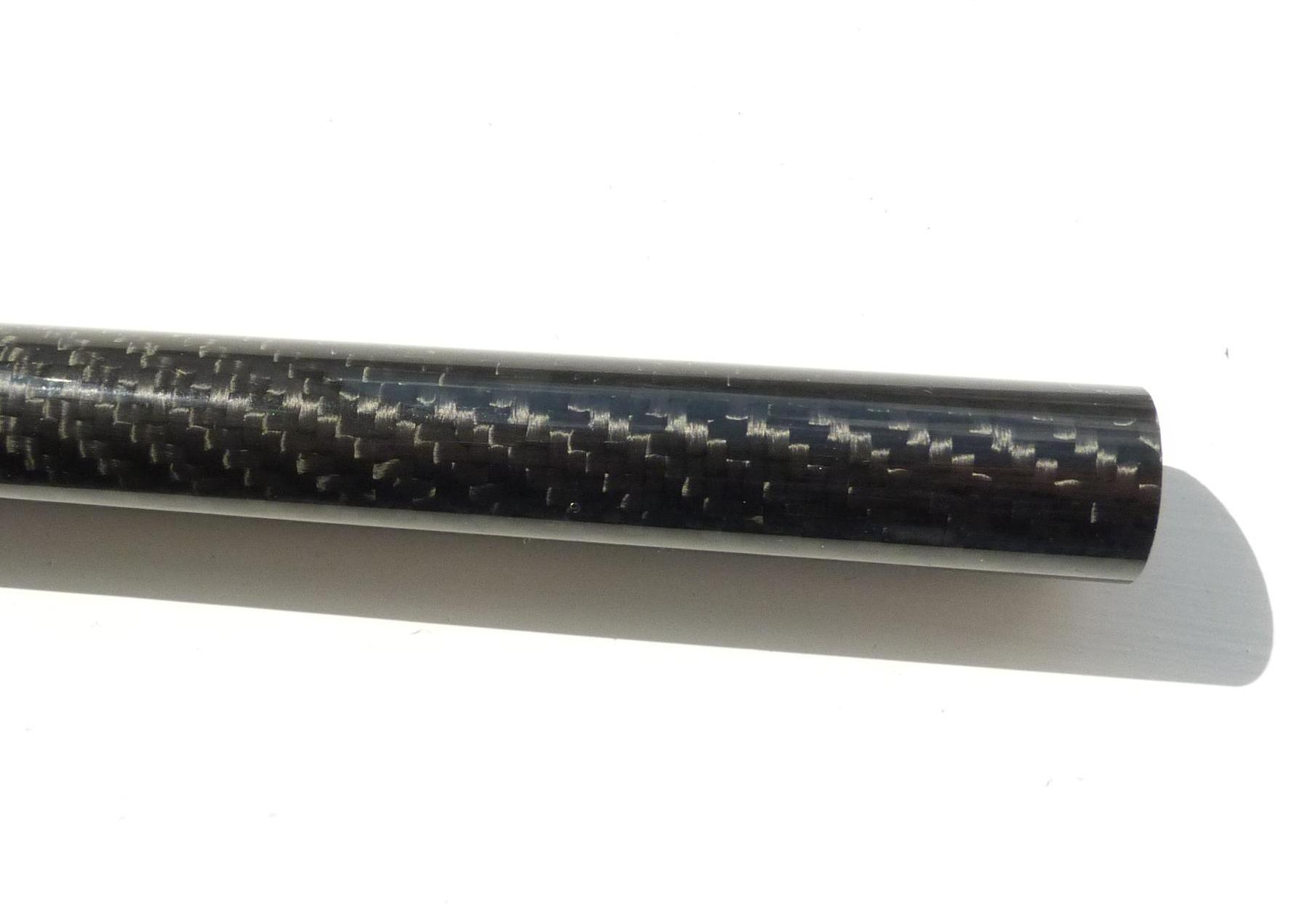

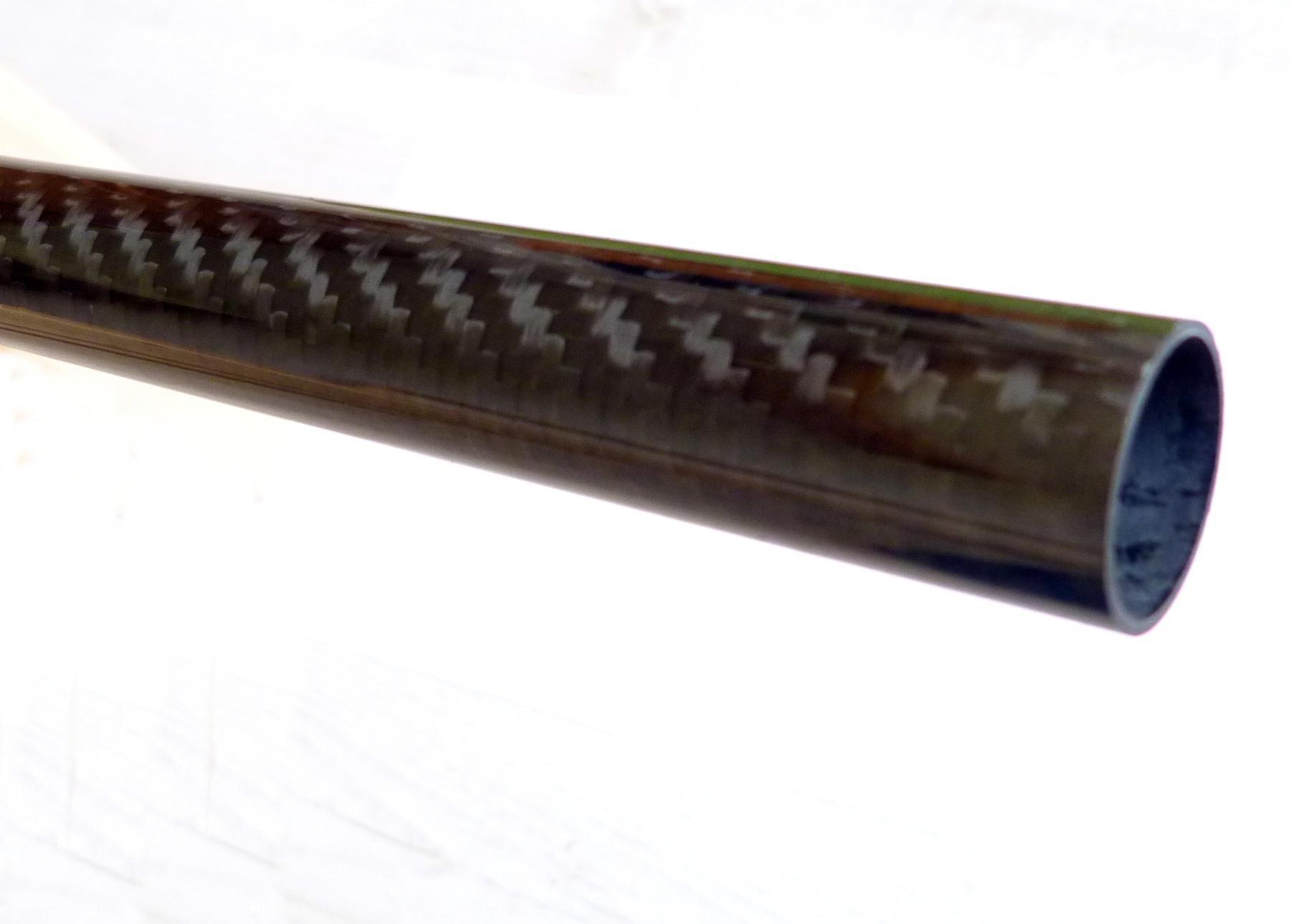

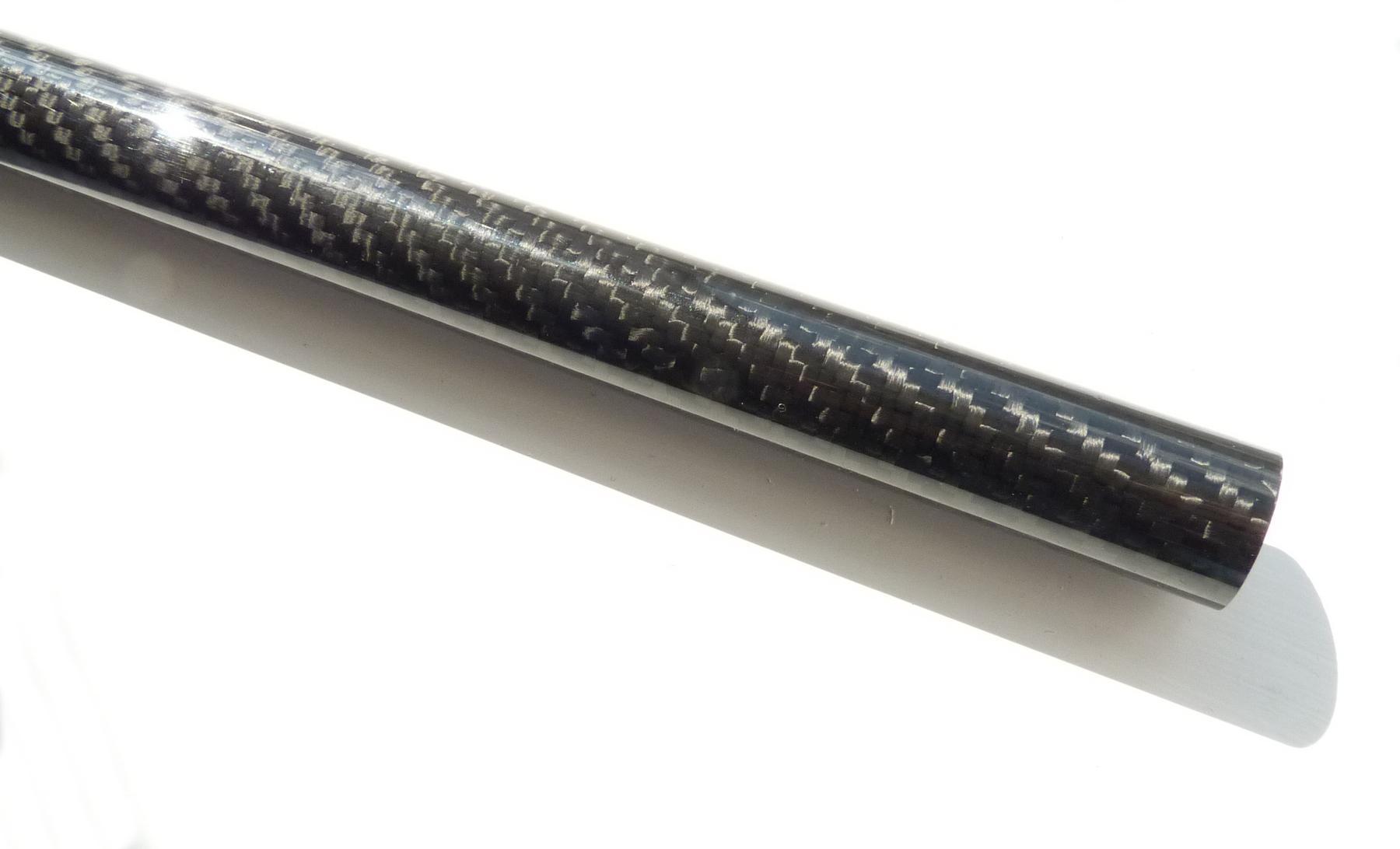

11.8 mm diameter Twill (diagonal) layup wound carbon fibre laytup tube in an epoxy matrix. This is strong in bending, twist and hoop directions, making it ideal for most applications.

Unlike the pultruded carbon tubes these tubes have been sized so they will telescope inside the other wound carbon tubes we stock:
The CF-TWILL-10MM will fit inside this tube.
This tube will fit inside a CF-TWILL-14MM

Select the required length using the radio buttons below the price.


11.8 mm Twill Wound Carbon Fiber Tube Specification
Outside diameter 11.8 mm
Inside diameter 10 mm
Weight per m 46 g per meter
Length See the options below the price
Structural material T300 carbon fibers
Matrix Epoxy resin
Carbon content Approx. 60%
Youngs Modulus 230 GPa
Ultimate tensile strength 1600-2300 mPa
Fibre density 1.4 - 1.8 g/cm3
Resin glass transition Tg 170º C
Packing type Rigid-usually sent in a postal tube


Postal Charges

England, Wales & Scottish Lowlands
75 cm items will be sent in a postal tube by Royal Mail. 150 cm items will be sent in a long postal tube by courier - this increases the postal cost.

UK Islands, NI & Scottish Highlands
All items will be cut down to 75 cm length and sent by Royal Mail unless this postal charge is added to the basket.

Europe and Rest of the World
75 cm long items will be sent by Airmail post at low cost. Longer items will be sent by courier - this will increase the shipping charge considerably.

If even numbers of 75 cm long items are ordered we reserve the right to send half the number of 150 cm items to simplify packing.

Reviews 5


 Review by:

Nice company to deal with and good quality products. Will be buying from them again


 Review by:

Nice company to deal with and good quality products. Will be buying from them again


 Review by:

Used with 9.8mm tube to make 11.8/8mm tailplane joiner for 5m scale glider


 Review by:

Bought to be a telescoping spar in my Sunspot Vintage Glider (Tailplane) and for which it looks to be excellent (if a little costly) - I bought the 1.5 M length and will use it with the next size down which telescopes easily inside, with little slop.
High quality and prompt delivery as ever from Neil - Perfect !


 Review by:

12 mm carbon tube

this tube is excellent - dimensions are exactly as per the description, and 10 mm rod snuggly fits inside the tube. service from Neil was outstanding - ordered one day arrived the next. cant beat that
