Prices shown exclude VAT

7mm Carbon Tube

CARBON-TUBE-7MM
Product Code: CARBON-TUBE-7MM
 (7 reviews)

Price: $3.77

More than 10 in stock
Add to basket to see shipping cost

Available Options

* Length:
Quantity

Description

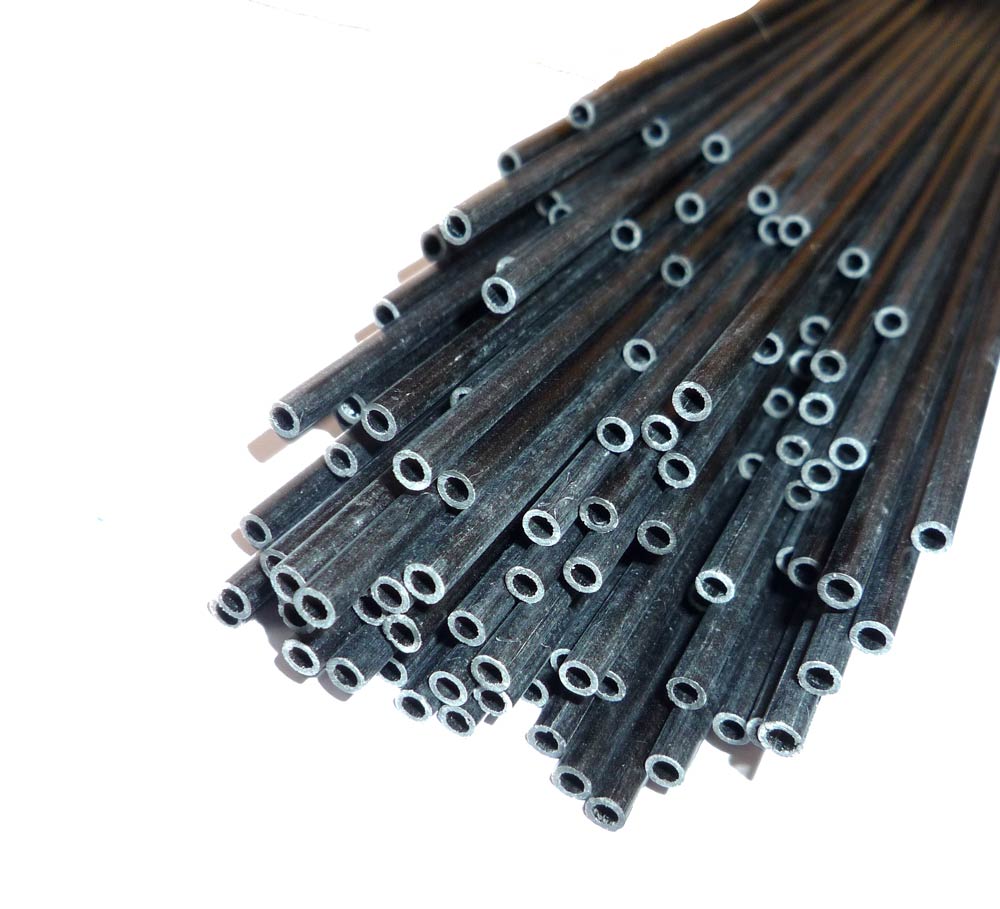

7.0 mm diameter high modulus carbon fiber tube available in various lengths. These pultruded tubes have a high fibre content of high modulus carbon fiber in an epoxy matrix, making them extremely rigid and strong.

Select the required length using the radio buttons below the price.

7.0 mm Carbon Fiber Tube Specification
Outside diameter 7.0 mm
Inside diameter 6.0 mm
Weight per m 15.7 g per meter
Length See the options below the price
Structural material T300 carbon fibers
Matrix Epoxy resin
Carbon content Approx. 60%
Youngs Modulus 230 GPa
Ultimate tensile strength 1600-2300 mPa
Fibre density 1.4 - 1.8 g/cm3
Resin glass transition Tg 170º C
Packing type Rigid-usually sent in a postal tube

Due to dimensional variability our 6.0 mm carbon rods and 6.0 mm OD carbon tubes will probably not fit in these tubes without material being removed.

Postal Charges

England, Wales & Scottish Lowlands
75 cm items will be sent in a postal tube by Royal Mail. 150 cm items will be sent in a long postal tube by courier - this increases the postal cost.

UK Islands, NI & Scottish Highlands
All items will be cut down to 75 cm length and sent by Royal Mail unless this postal charge is added to the basket.

Europe and Rest of the World
75 cm long items will be sent by Airmail post at low cost. Longer items will be sent by courier - this will increase the shipping charge considerably.

If even numbers of 75 cm long items are ordered we reserve the right to send half the number of 150 cm items to simplify packing.

Reviews 7


 Review by:

Great Product

Great Service as always. Carbon tube has been used to make an elevator push rod for my Tomahawk Swift 2 glider.


 Review by:

Perfect

My order arrived beautifully packaged and in perfect condition. Great service and value.


 Review by:

7mm Dia tube

Tube forfilled all the requirements I needed, light and strong. Care needed if inserts are pushed in the end as it’s prone to splitting if the inserts are oversized.


 Review by:

Great price for a great tube . Cheers


 Review by:

Excellent quality and very good service
Thanks a lot


 Review by:

7.0mm Carbon Tube

Great product using in Free Flight F1A Glider Class Main Spar......Build underway Many Thanks..


 Review by:

Excellent product, Item as described, fast shipping and delivery (to Croatia… now EU member). Much better quality then cheap ones from HK... Walls are thicker so if you need lighter, could be sanded so... I like package tube :) Use for other tubes and spares also :)
I use them for my 800mm - 1m DLG scratch projects...
