2.5mm Carbon Tube

Product Code: CARBON-TUBE-25MM
 (2 reviews)

Price: $1.76

More than 30 in stock
Add to basket to see shipping cost

Available Options

* Length:

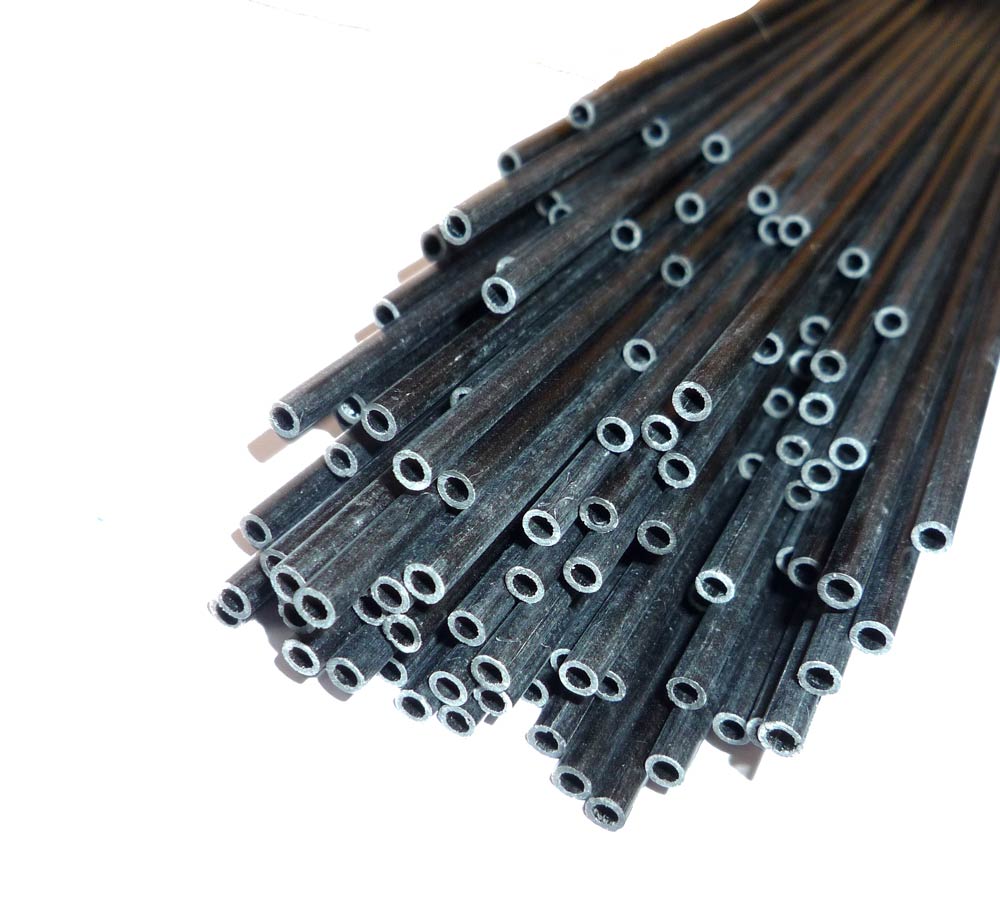

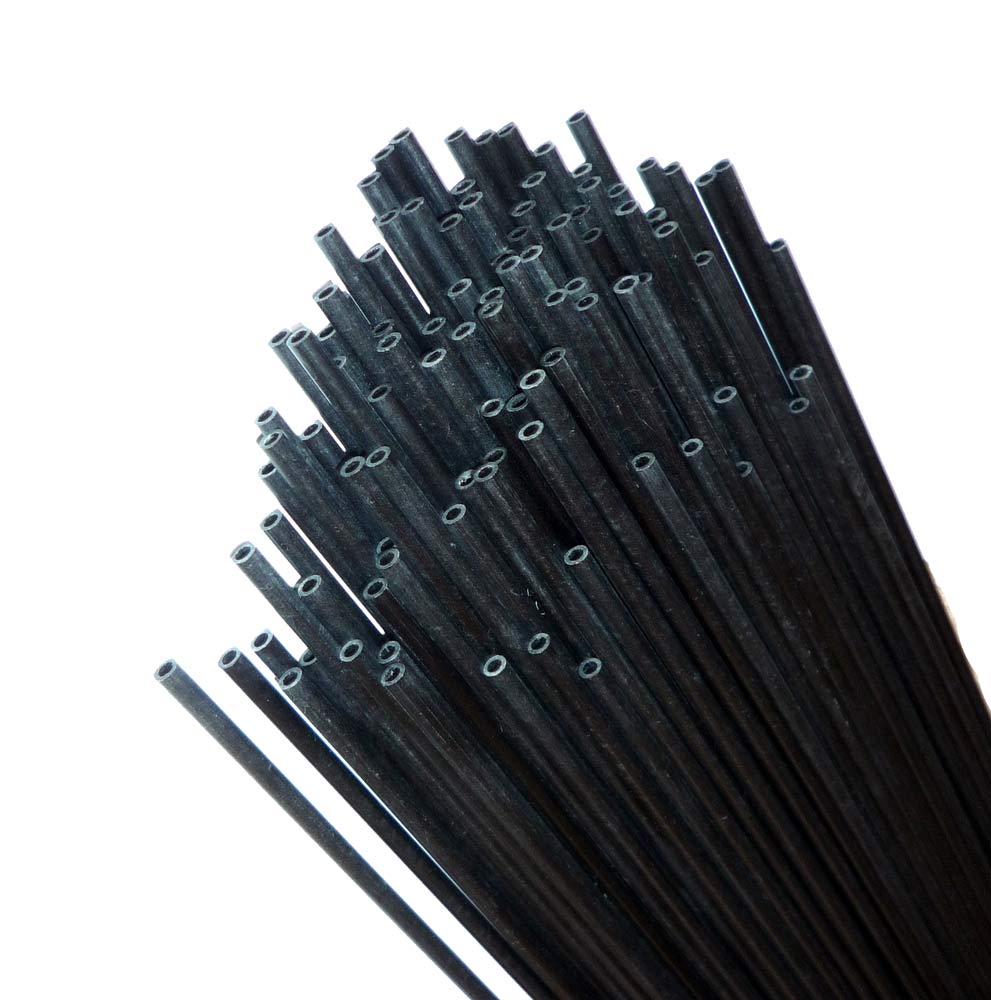

2.5 mm diameter high modulus carbon fiber tube available in various lengths. These pultruded tubes have a high fibre content of high modulus carbon fiber in an epoxy matrix, making them extremely rigid and strong.

Select the required length using the radio buttons below the price.

2.5 mm Carbon Fiber Tube Specification
Outside diameter 2.5 mm
Inside diameter 1.5 mm
Weight per m 4.5 g per meter
Length See the options below the price
Structural material T300 carbon fibers
Matrix Epoxy resin
Carbon content Approx. 60%
Youngs Modulus 230 GPa
Ultimate tensile strength 1600-2300 mPa
Fibre density 1.4 - 1.8 g/cm3
Resin glass transition Tg 170º C
Packing type Rigid-usually sent in a postal tube

Note that there is a dimensional variability to all sizes quoted and that our 1.5 mm carbon rods will probably not fit in these tubes without material being removed.

Postal Charges

England, Wales & Scottish Lowlands
75 cm items will be sent in a postal tube by Royal Mail. 150 cm items will be sent in a long postal tube by courier - this increases the postal cost.

UK Islands, NI & Scottish Highlands
All items will be cut down to 75 cm length and sent by Royal Mail unless this postal charge is added to the basket.

Europe and Rest of the World
75 cm long items will be sent by Airmail post at low cost. Longer items will be sent by courier - this will increase the shipping charge considerably.

Reviews 2

 Review by:

2.5 x 1.5mm carbon fibre tube

I wanted a light, stiff, pushrod outer tube to replace the plastic outer tube provided in a 'Speedo' glider kit. This is perfect. It's one third of the weight of the supplied tube and much stiffer. Slop is minimal. The price of this tube is also very reasonable and delivery speed superb. It is securely sent in a cardboard tube. You might want to buy several carbon tubes the same time to offset the postal cost.

 Review by:

Excellent service: cheap, fast and with a lot of choice in carbon tubes and rods
