1.3mm Carbon Rod

Product Code: CARBON-ROD-13MM
 (10 reviews)

Price: $1.65

Out of stock, notify me when back in stock

Description

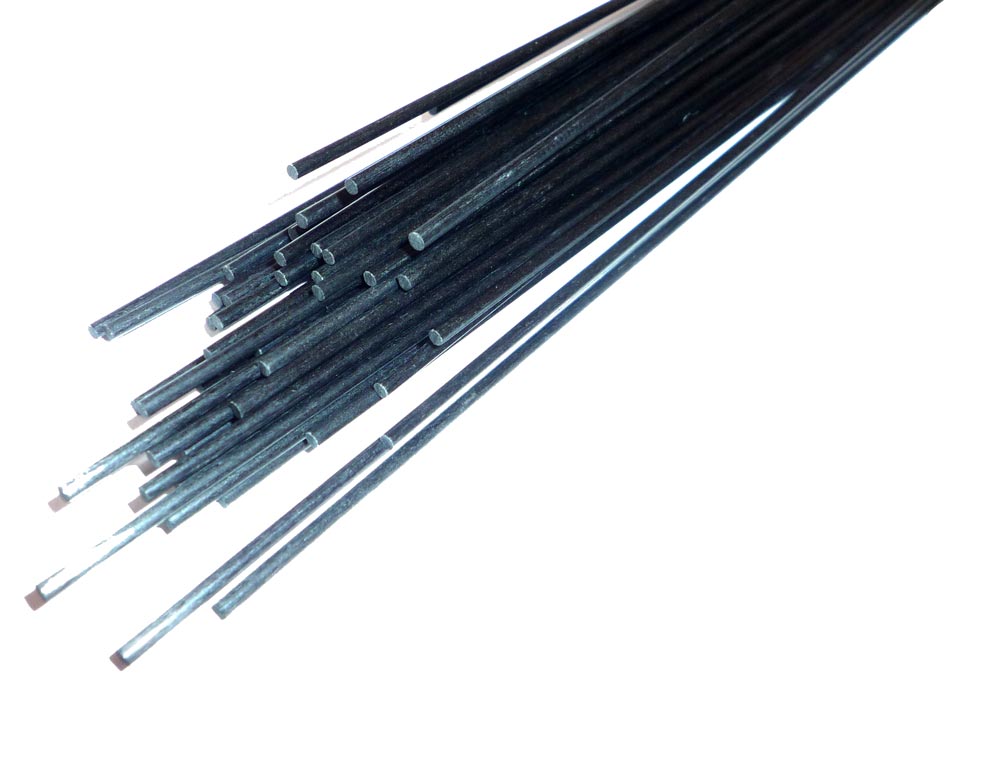

1.3 mm diameter high modulus carbon fiber rod available in various lengths. These pultruded carbon rods have a high fiber content of high modulus carbon in an epoxy matrix, making them extremely rigid and strong.

Select the required length using the radio buttons below the price.

1.3 mm Carbon Fiber Rod Specification

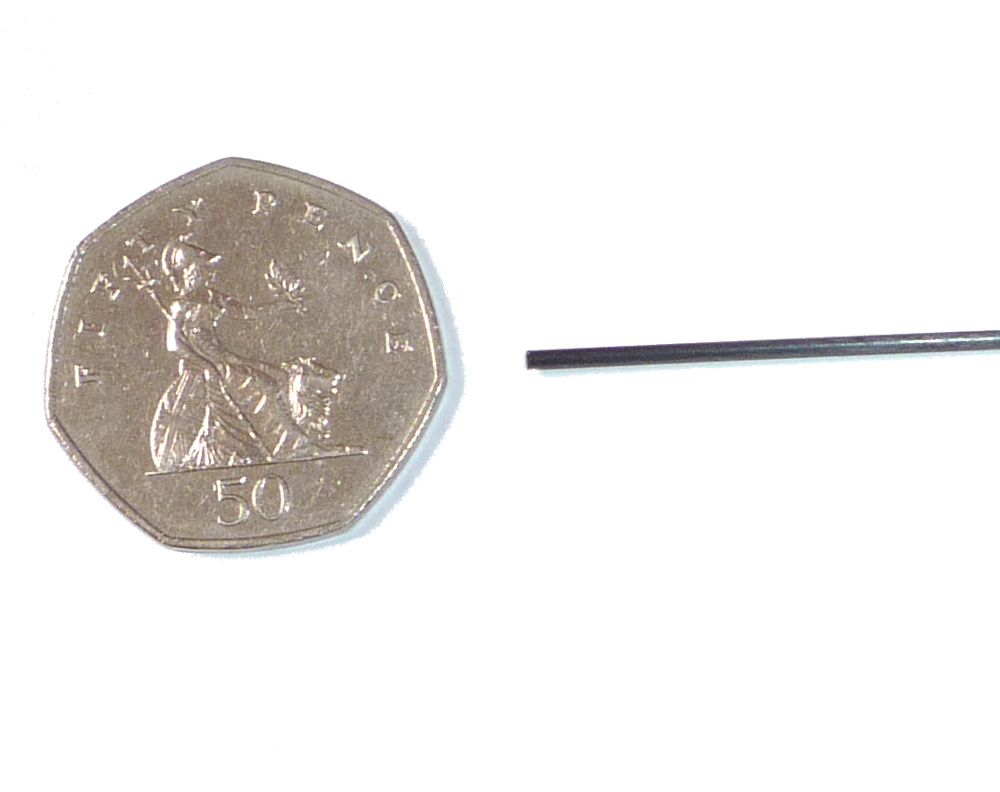

Diameter 1.3 mm
Weight per m 1.90 g per meter
Length See the options below the price
Structural material T300 carbon fibers
Matrix Epoxy resin
Carbon content Approx. 60%
Youngs Modulus 230 GPa
Ultimate tensile strength 1600-2300 mPa
Fibre density 1.4 - 1.8 g/cm3
Resin glass transition Tg 170º C
Packing type Bendy-sent coiled in a pizza box if not ordered with something rigid


Postal Charges

England, Wales & Scottish Lowlands
If ordered with other bendy or small things 75 cm and 150 cm items will be delivered rolled up in a hoop in a pizza box. They will straighten out once unpacked. Open with care. If ordered with 75 cm rigid carbon items the bendy items will be cut down to 75 cm and sent by Royal Mail. If ordered with 150 cm long items they will be sent full length by courier.

UK Islands, NI & Scottish Highlands
If ordered with other bendy or small things the items will be delivered rolled up in a hoop in a pizza box. They will straighten out once unpacked. Open with care. If ordered with rigid carbon items all items will be cut down to 75 cm length and sent by Royal Mail unless this postal charge is added to the basket.

Europe and Rest of the World
If ordered with other bendy or small things 75 cm and 150 cm items will be delivered rolled up in a hoop in a pizza box. They will straighten out once unpacked. Open with care. If ordered with 75 cm rigid carbon items the bendy items will be cut down to 75 cm and sent by Airmail post. If ordered with 150 cm long items they will be sent full length by courier.

If even numbers of 75 cm long items are ordered we reserve the right to send half the number of 150 cm items to simplify packing.

Reviews 10


 Review by:

perfect and fast sending


 Review by:

Le Fish

Following day delivery - quality product


 Review by:

Works great as a pushrod and also to stiffen up the the fuselage of my 3D printed plane. Thanks!


 Review by:

Worked well as a new rudder push -rod on the Libelle


 Review by:

Dimensionally very accurate on diameter which is what I required.


 Review by:

Carbon rod

A perfect fit for my models control tubes, thank you.


 Review by:

Carbon Rod

Excellent


 Review by:

Perfect for AVA repair

use with 1.5mm ptfe tube. slick.


 Review by:

Carbon Rod

A1 service and shipping, goods arrived well packaged in a sturdy cardboard container. High quality product, specifications as described. Recommendable.


 Review by:

good
