This boom is ideal for 1m to 1.5m gliders' wing spars and for lightweight low drag tail booms. They are especially suitable for discus launched gliders (DLG), small electric and FF models.
High quality wound carbon epoxy tapered boom. Ideal for wing spars and low drag tail booms in RC and FF gliders and DLGs.

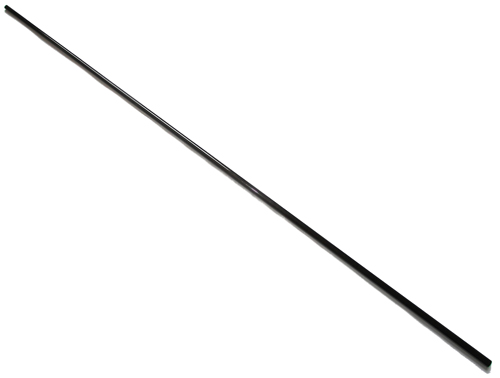

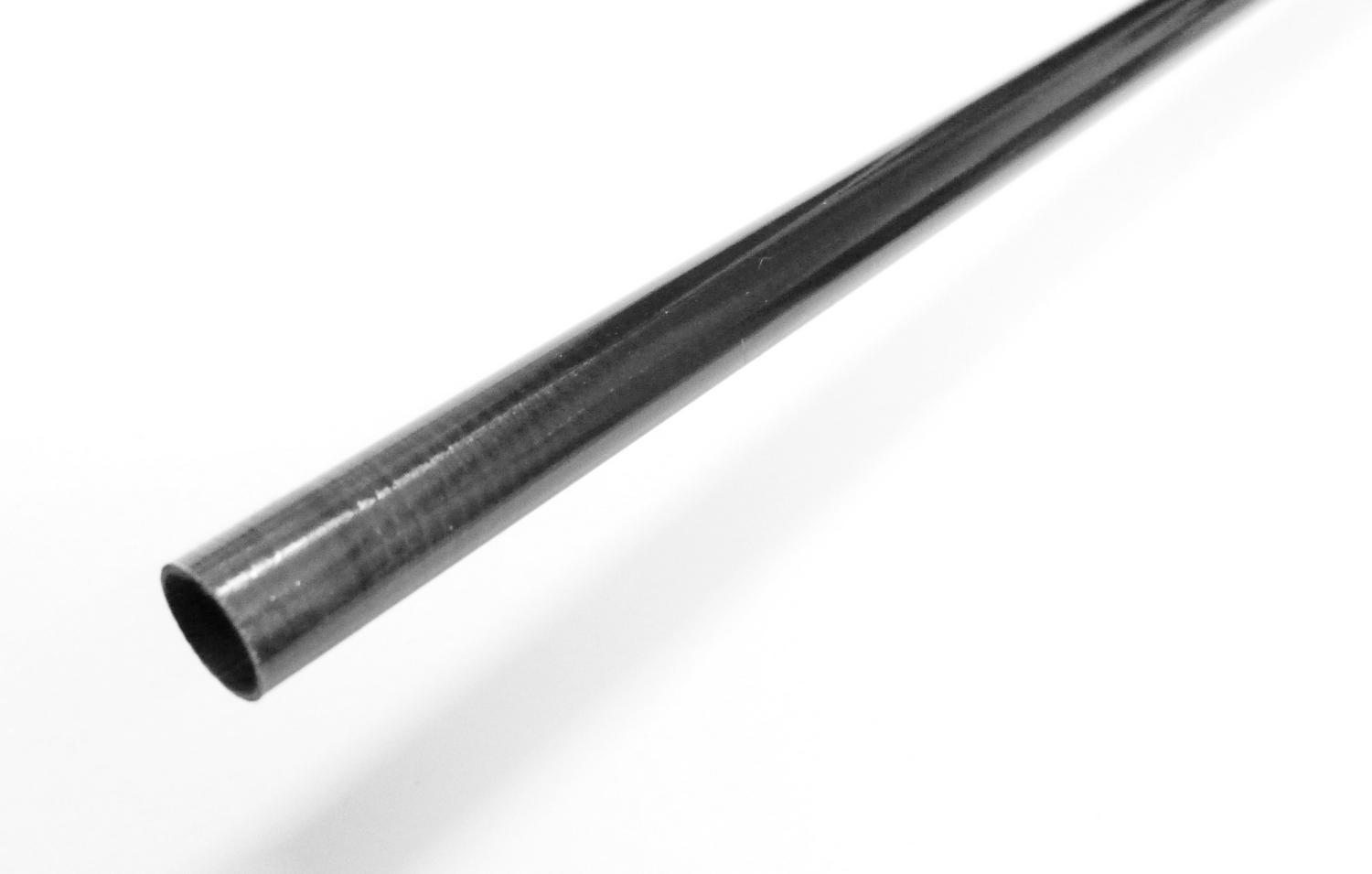

This 77 cm long lightweight carbon fiber boom tapers from 9 mm diameter to 4 mm diameter, with a wall thickness of 0.4 mm. It is made from high modulus carbon fiber wound onto a tapered form, encased in an epoxy matrix, and cured at high temperature. This high quality carbon boom (hollow tapered tube) is extremely rigid and strong, yet only weighs 8.4 g.
These composite carbon fibre booms will be sent in a rigid cardboard postal tube by courier. This increases the delivery cost, but they cannot be sent by regular mail as they are over the 90 cm maximum length.
| 9 mm tapering to 4 mm Carbon Boom Specification |
|---|
| Wide end outside diameter |
9 mm |
| Narrow end outside diameter |
4 mm |
| Wall thickness |
0.4 mm |
| Weight |
8.4 g |
| Length |
77 cm |
| Uses |
DLG wing spars |
| Structural material |
HM carbon fibers |
| Matrix |
Epoxy resin |
| Carbon content |
Approx. 58% |
| Packing type |
Rigid-usually sent in a postal tube |
Quantity discounts available for orders of 10 or more.
