|Alt DLG Specifications|
|Wing span||1.0 m||39 in|
|Wing area||15.1 dm2||234 sq in|
|Length||95 cm||37.4 in|
|Flying weight from||198 g||7.0 oz|
|Wing loading||13.1 g/dm||4.3 oz/sq ft|
|Centre of Gravity||60-68 mm from wing leading edge|
|Alt DLG Typical Weights|
|Fuselage||44 g||1.6 oz|
|Wing||100 g||3.5 oz|
|Fin||7 g||0.2 oz|
|Tailplane||7 g||0.2 oz|
|Total structure||158 g||5.6 oz|
|Receiver||5 g||0.2 oz|
|Rudder servo||5 g||0.2 oz|
|Elevator servo||5 g||0.2 oz|
|Battery||20 g||0.7 oz|
|Noseweight||5 g||0.2 oz|
|Flying weight||198 g||7.0 oz|
|Recommended R/C-nano gear only|
|Elevator & rudder servos||Ripmax SD100, Blue Bird BMS-101AMG, Blue Bird BMS-101DMG, Blue Bird BMS-101HV, Gening D531BB, Gening D541BB|
|Receiver||Orange compatible, Lemom compatible, Jeti Duplex R4 & R5, Multiplex Mlink RX-6-DR Light*, FrSky D4R II|
|Battery||Radient 1S 500 mAh, HyperLipo 2S 175 mAh, 150 mAh 4.8V, HyperFlight 300 mAh, Dream-Flight 300 mAh|
Review by: RussellAll Built

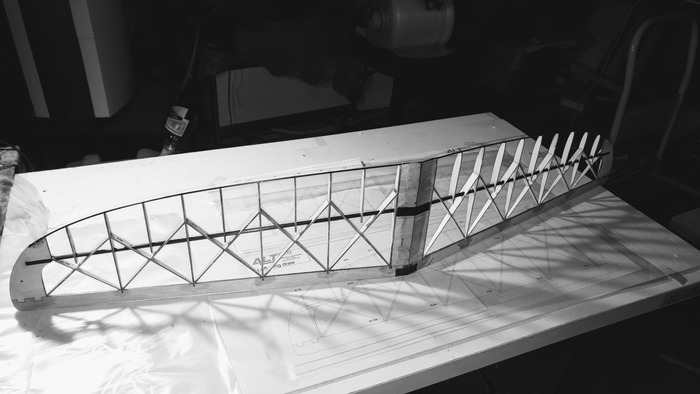

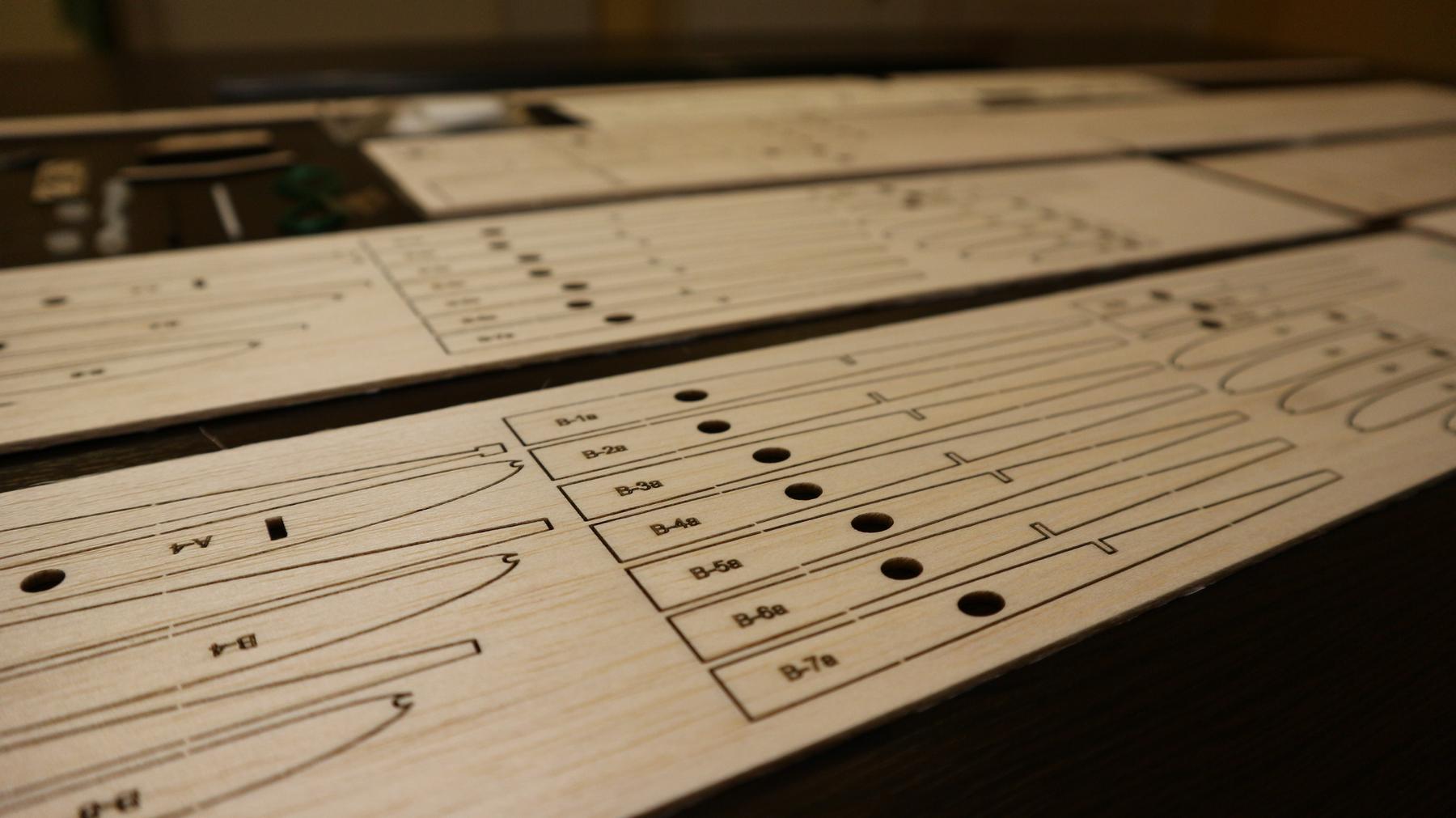

Finnally got round to building the Alt Dlg. With help of build log, easy to build and almost perfect laser cutting. Trailing edge needed thin cyno to stiffen it up, everything else good. Perfect intro to DLG and building. Emax 4 gram servos are a squeeze and need lower cases removed to fit. AUW of 142 grams using a 2S 300 lipo and 2 gram regulator stock Lemon 6 ch RX... but it sadly needs 5 grams in the nose to balance, so 147 grams.
Hope this helps :-)
Comment by: GPAlt DLG kit
Not a bad kit to build and OK flyer, had to put the servos under the wing to get a NiMH battery in and CG in right place. Some of the wood choices were odd - quarter grain for the trailing edge? The carbon boom on mine was split which I didn't notice until after I'd built it, Neil sent me some SC to repair it but it simply splits somewhere else next launch so will probably need to replace it at some point. But for this would have given it 4 stars.
Review by: RussellQuick Delivery

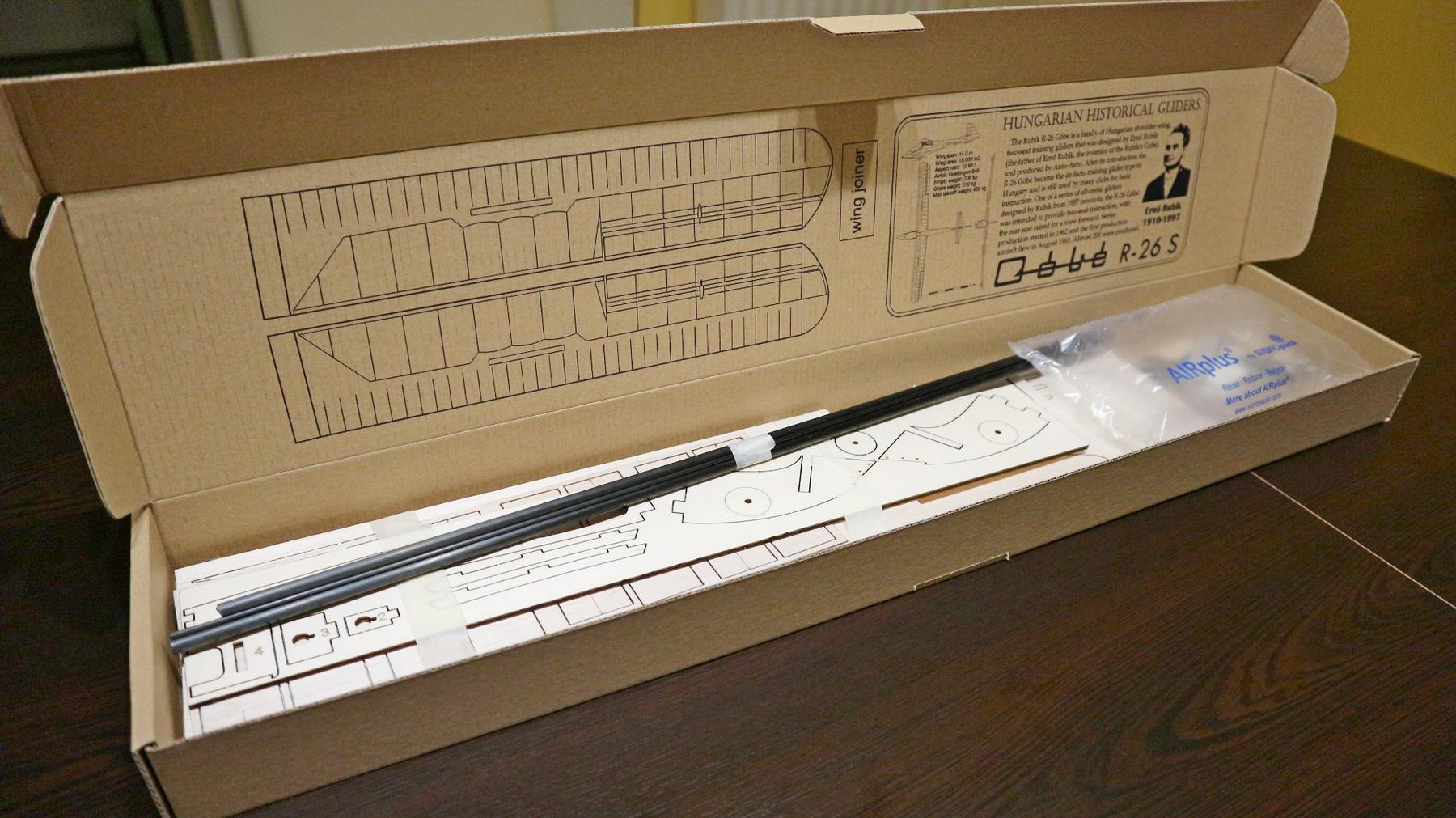

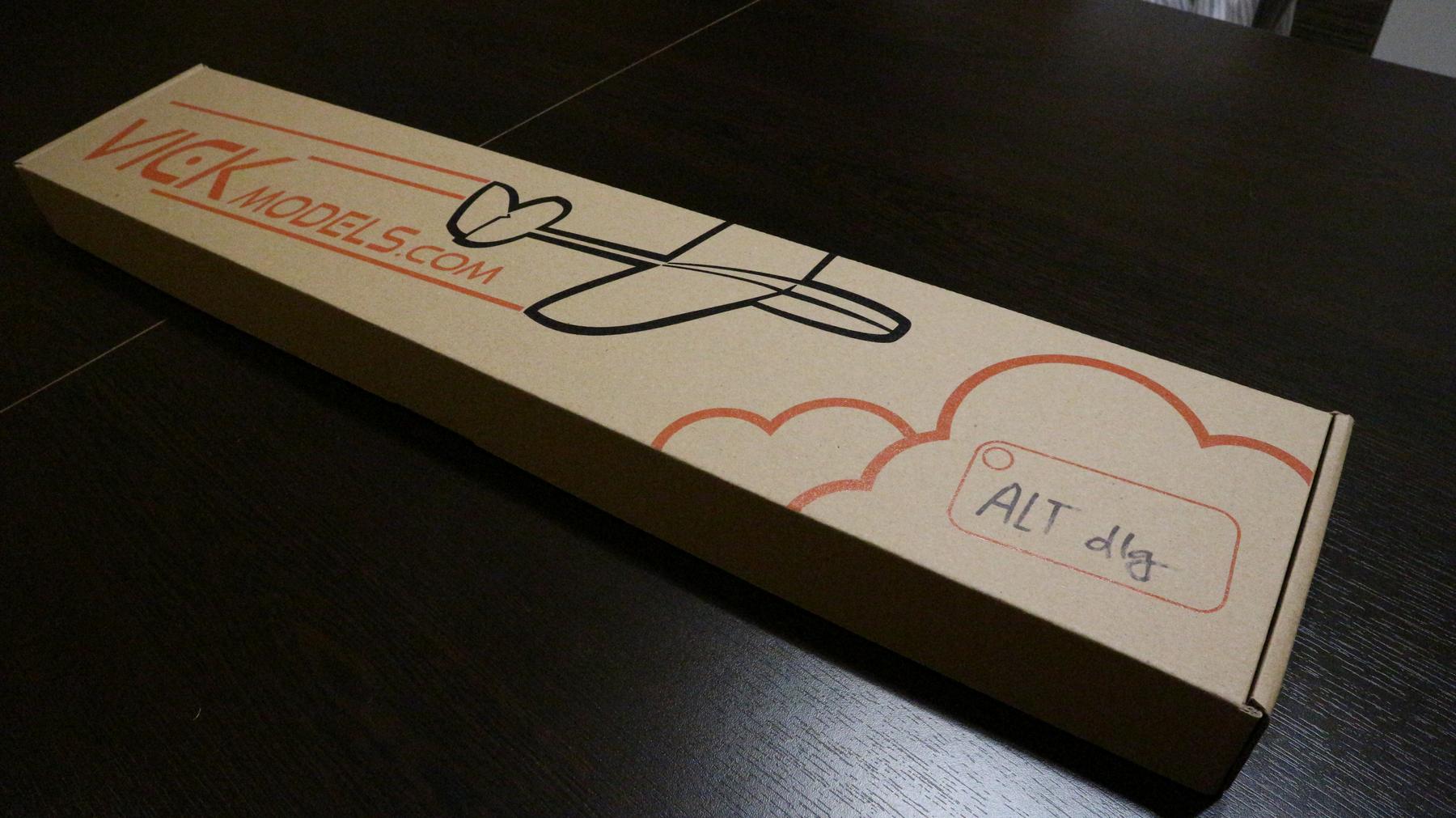

Very quick delivery and yes it does come in a nice box.. with an interesting twist printed inside. I don't expect this model to be competitive, but it is good quality at a very good price. Build looks easy wirh lots of info on web. A great introduction to DLG or the art of balsa construction.
Review by: Petri Savolainen
Fast shipping, product intact and as described. highly recommend!
