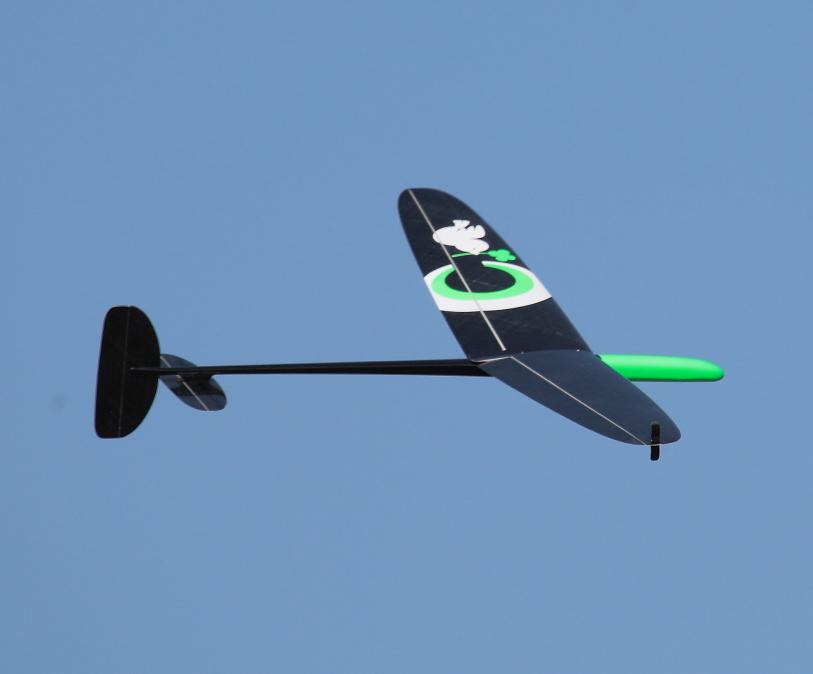

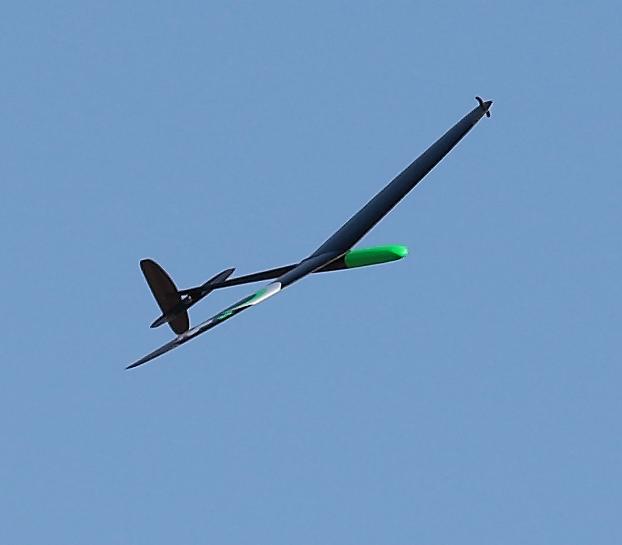

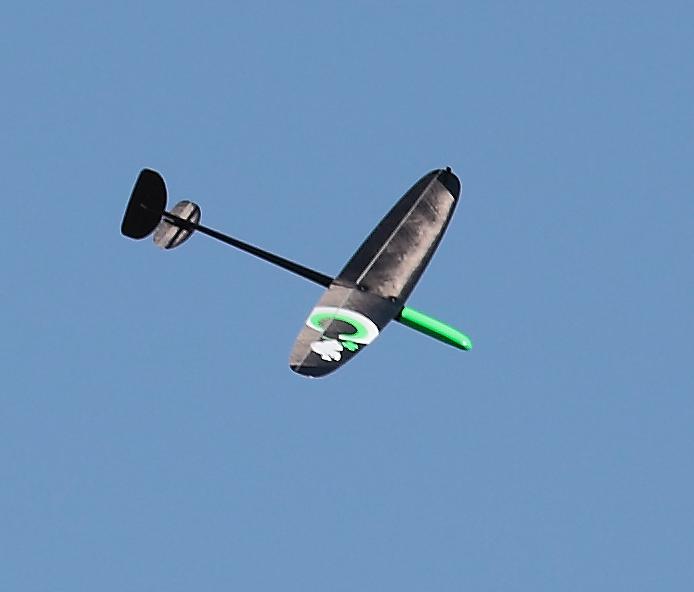

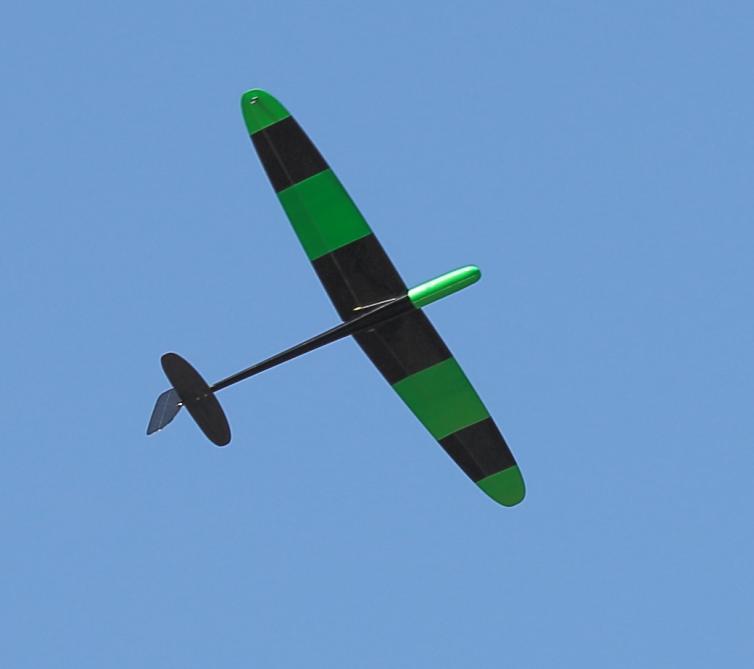

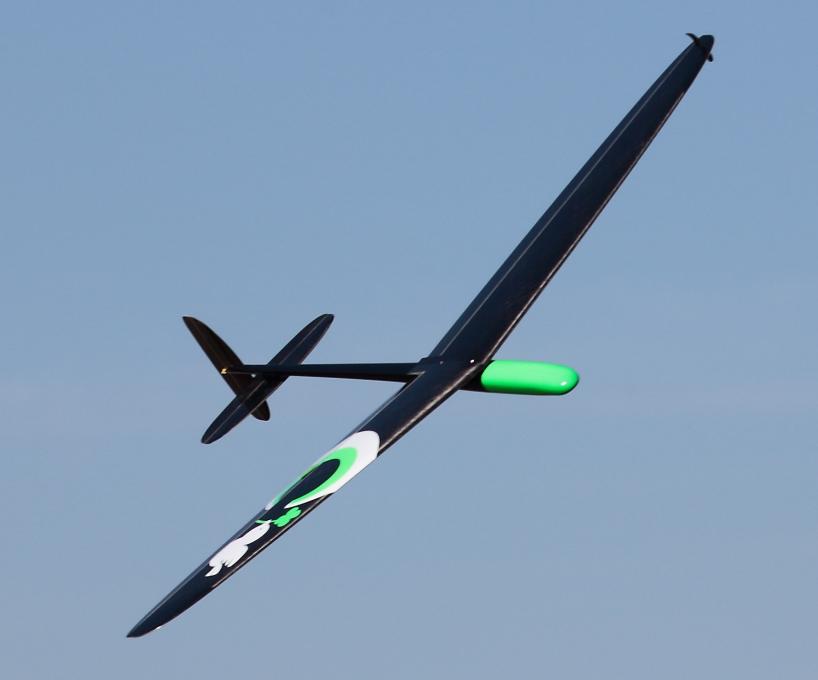

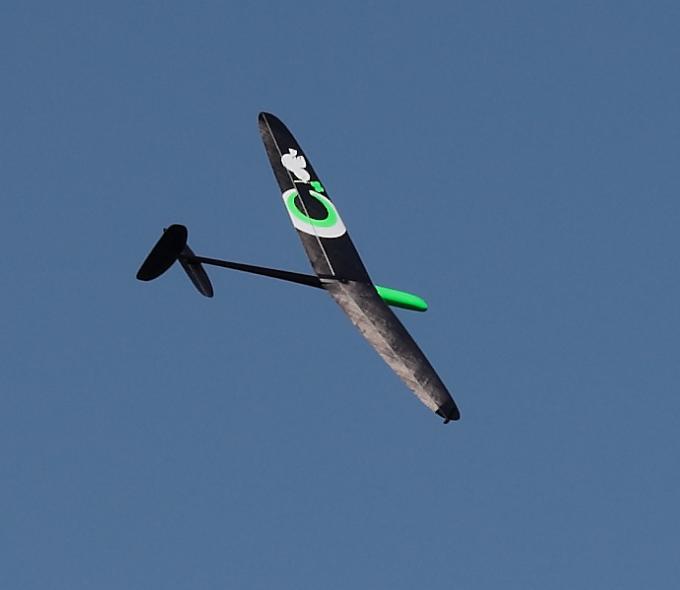

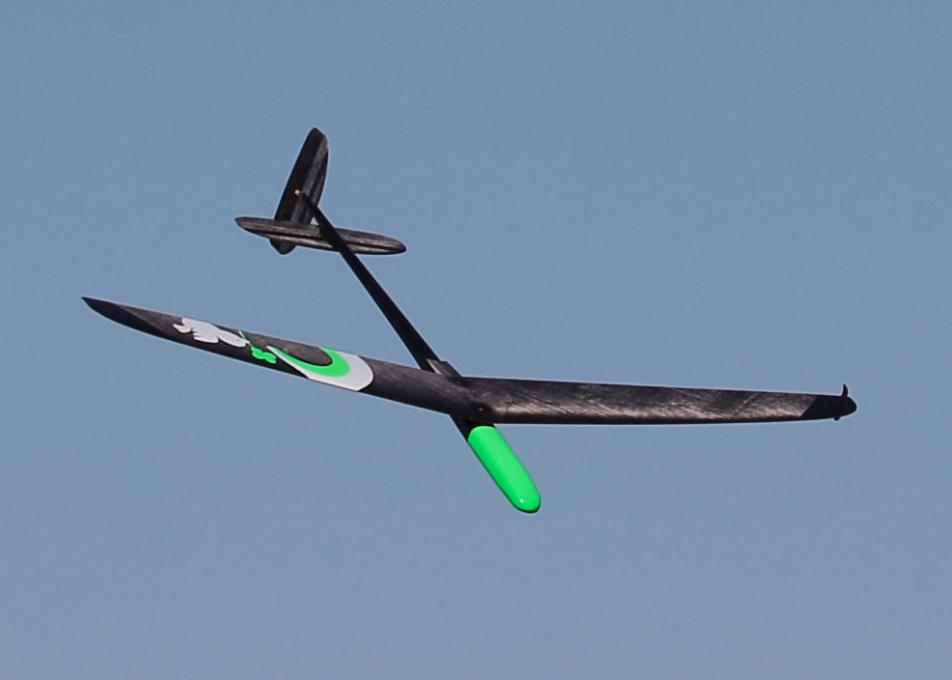

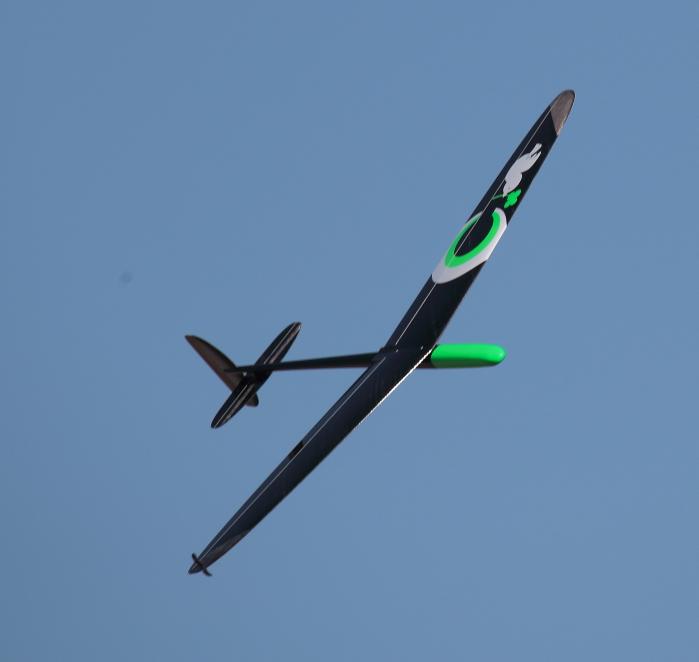

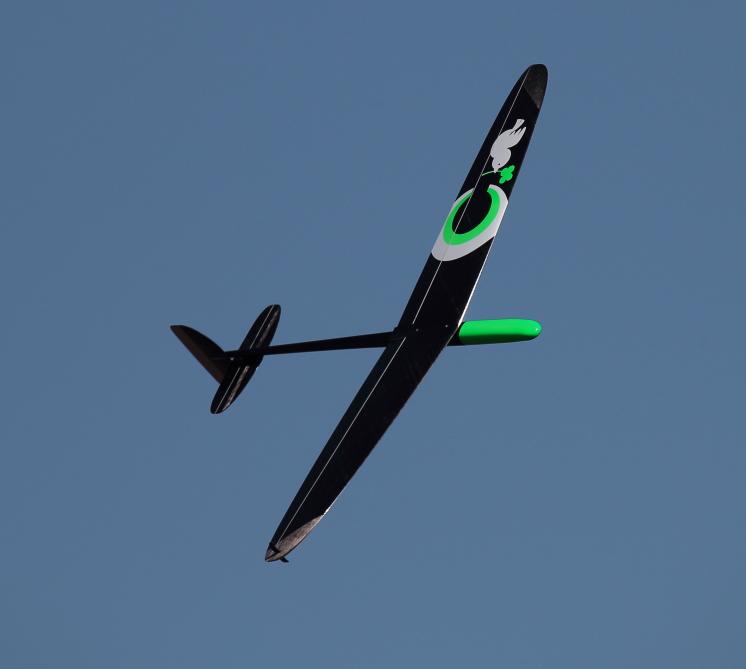

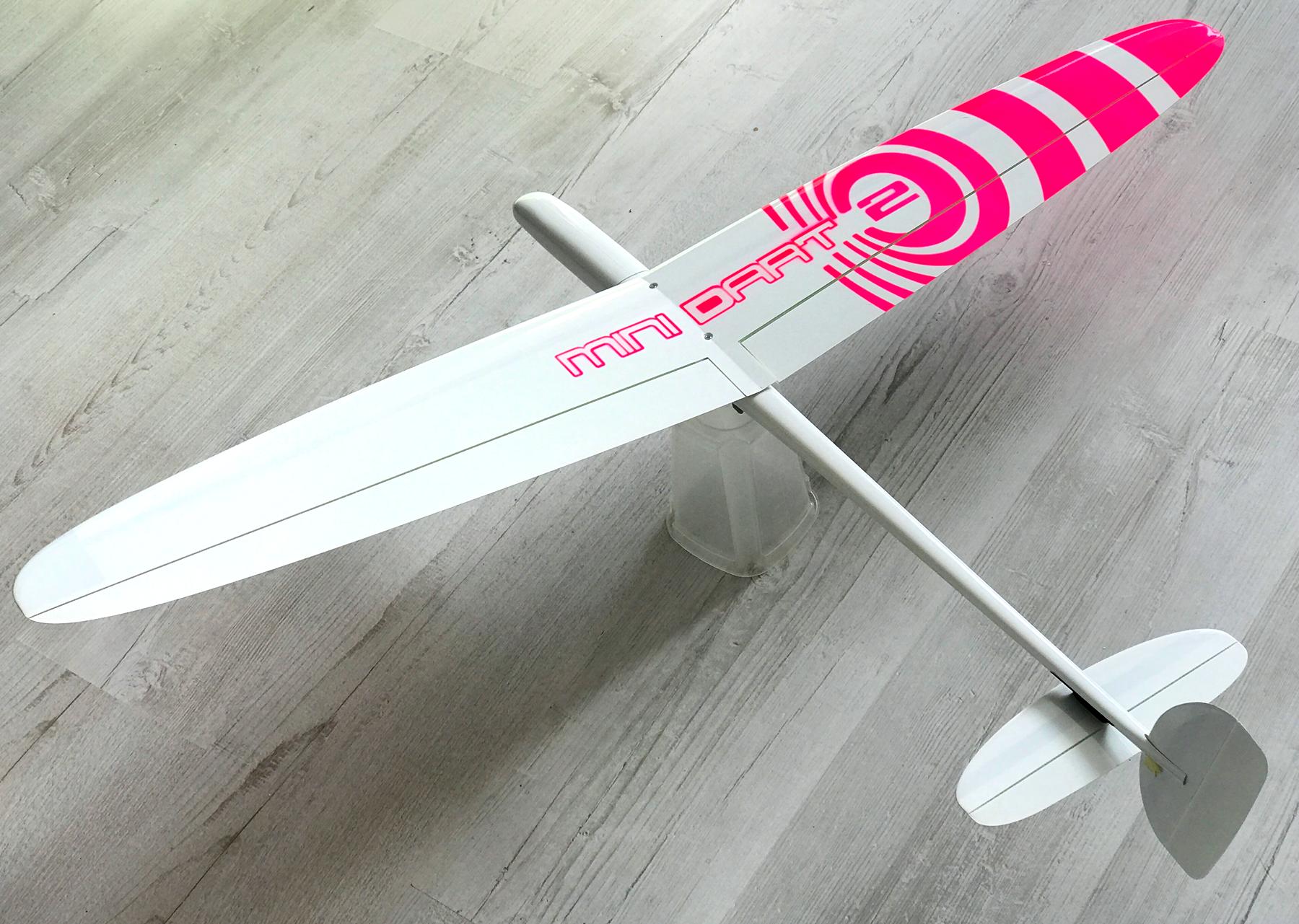

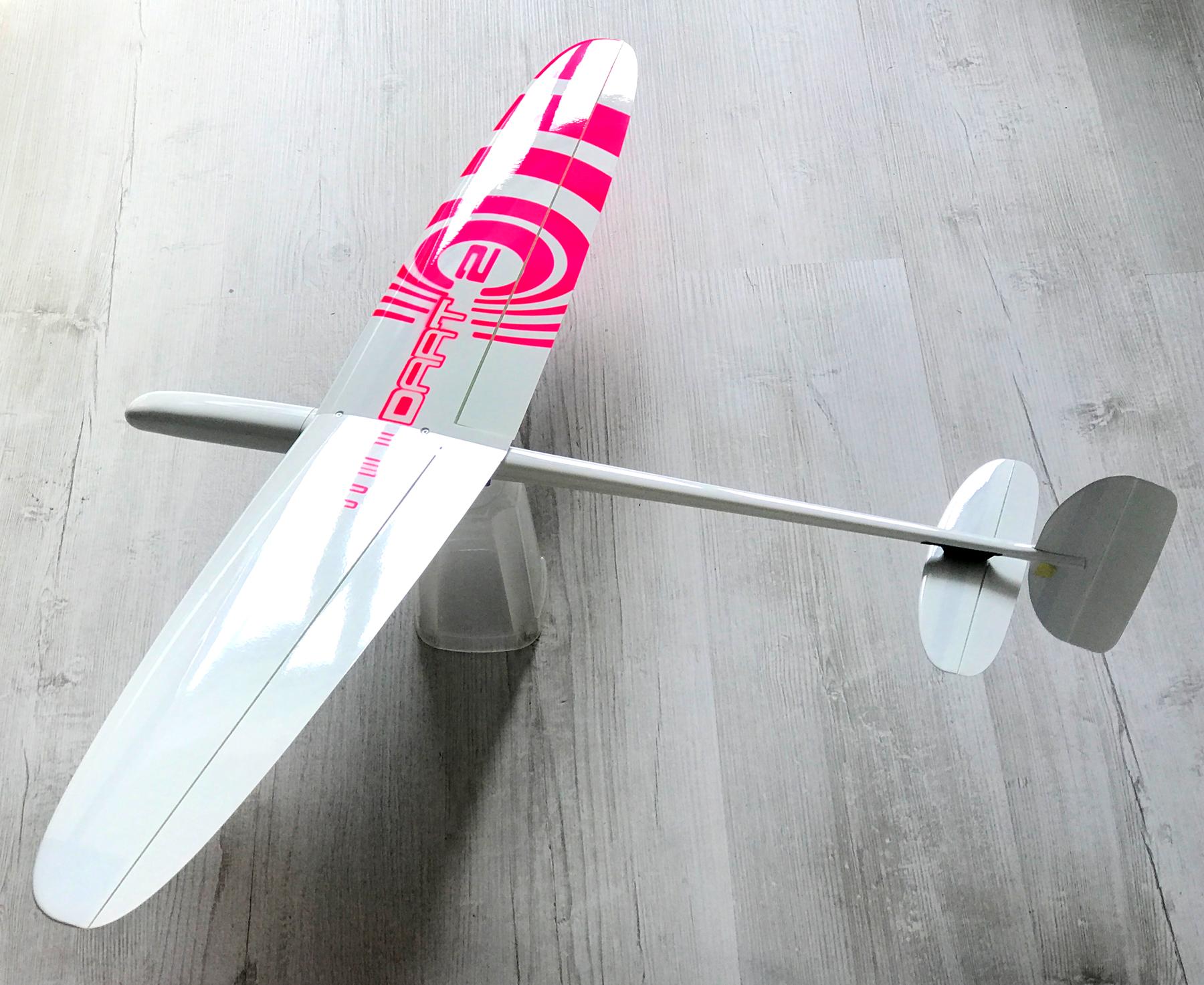

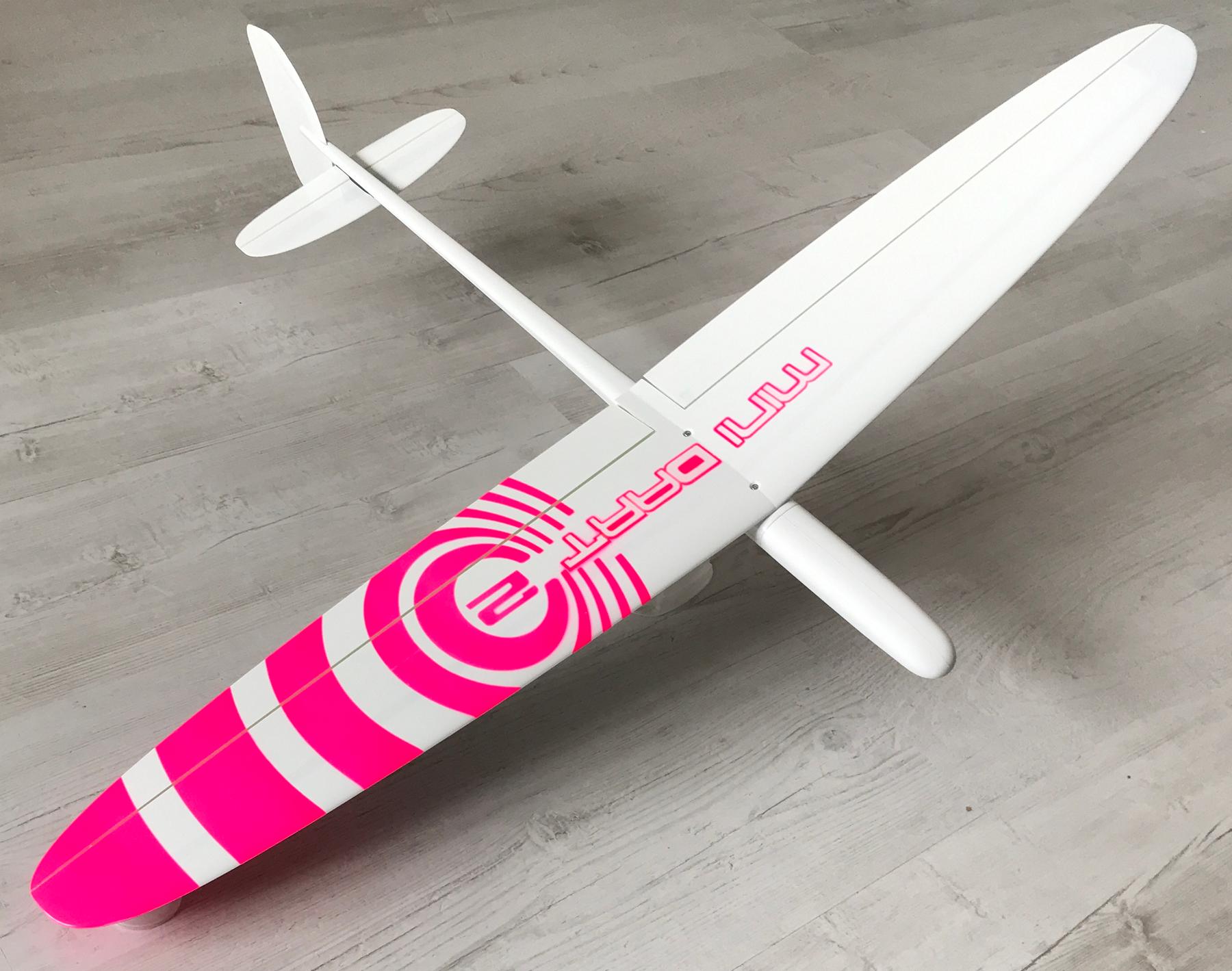

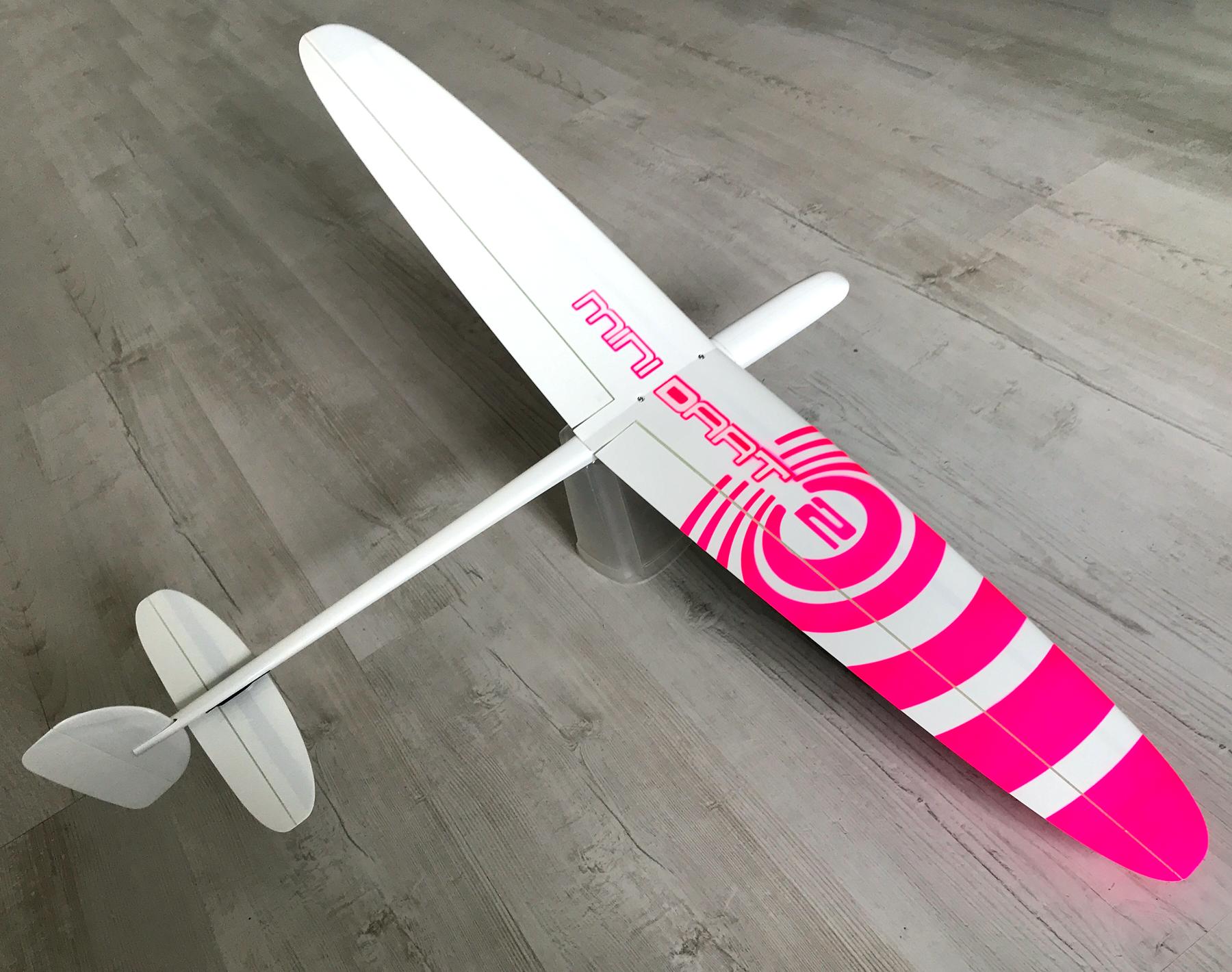

Mini Dart 2 1m DLG ARTF

Description

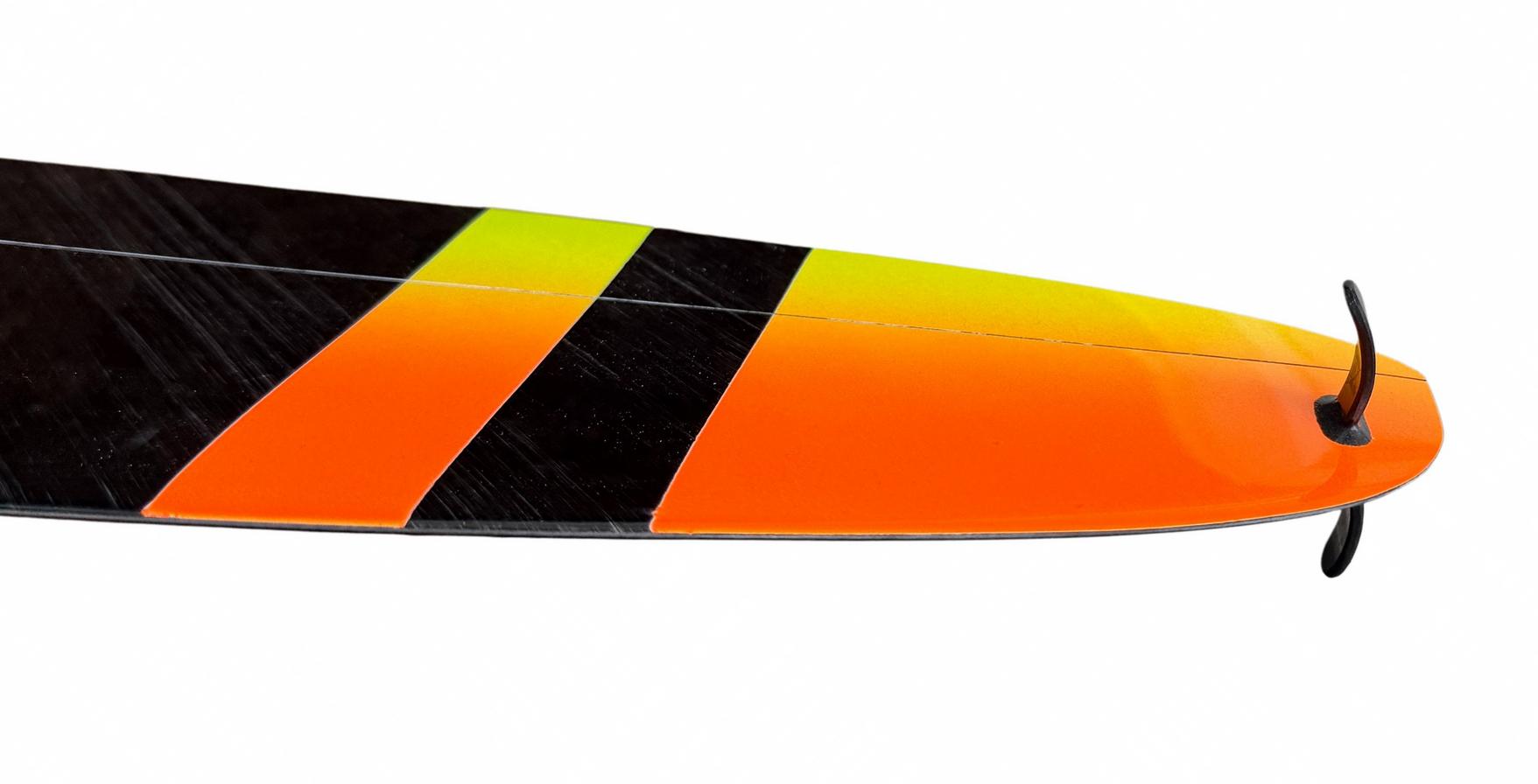

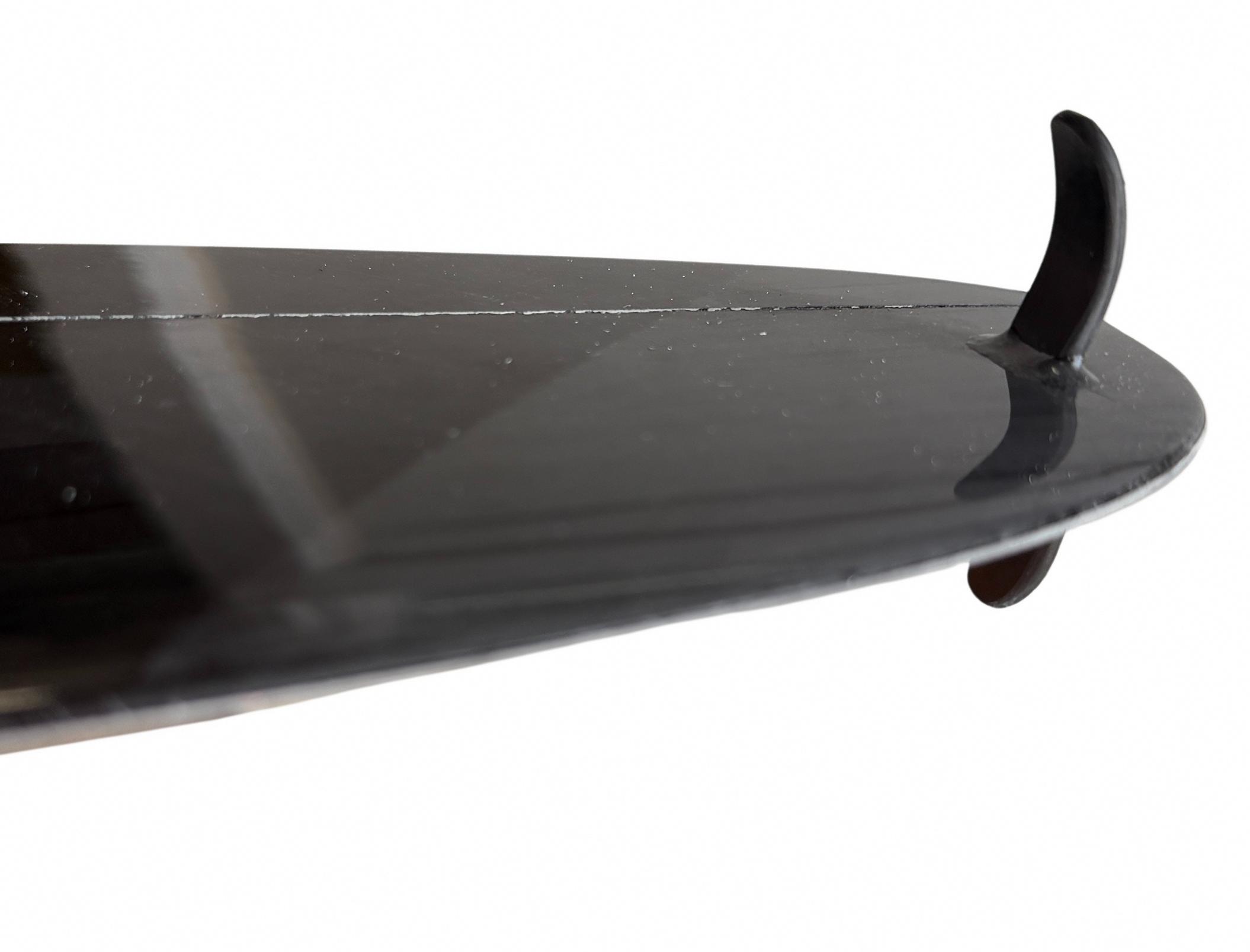

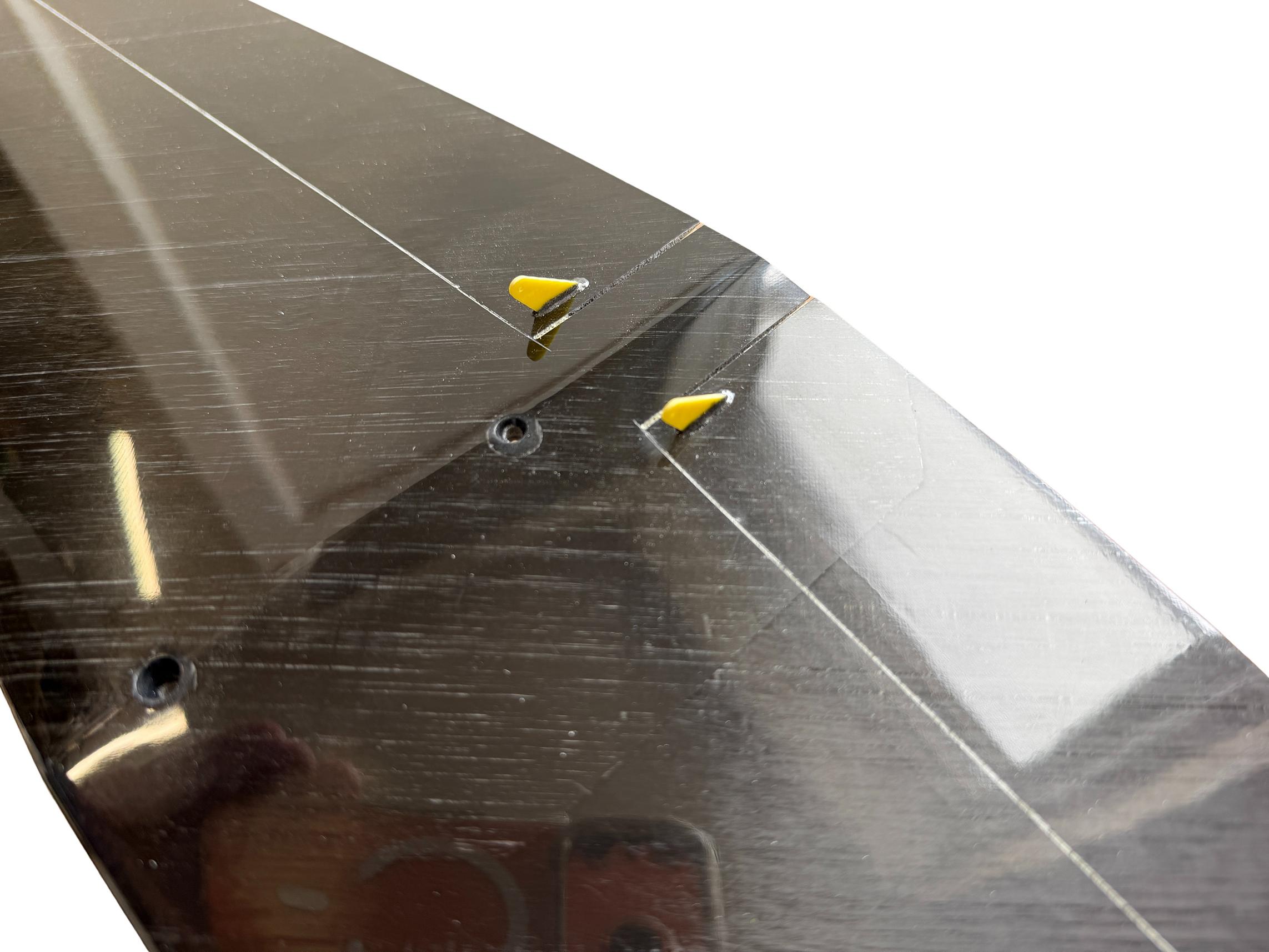

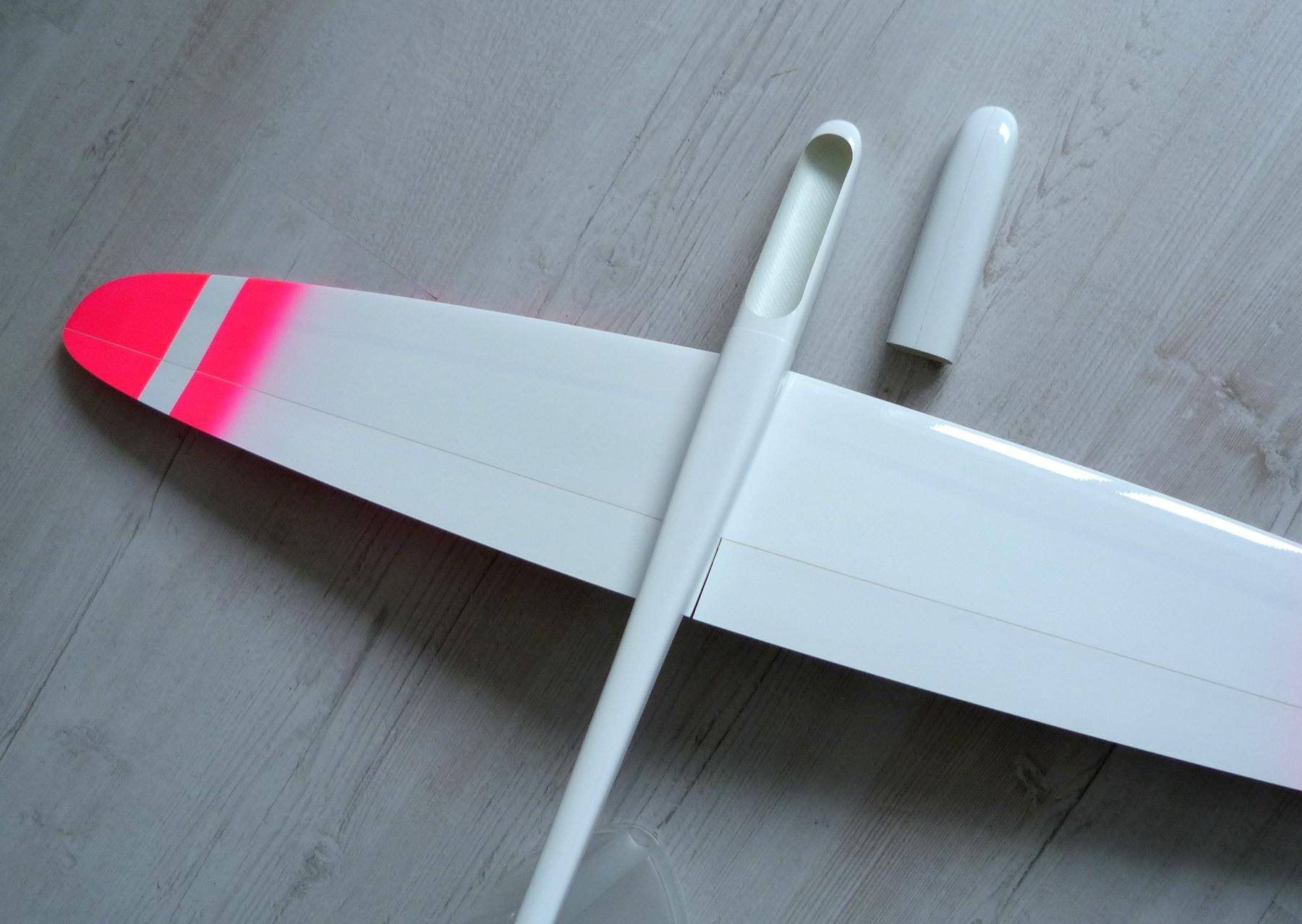

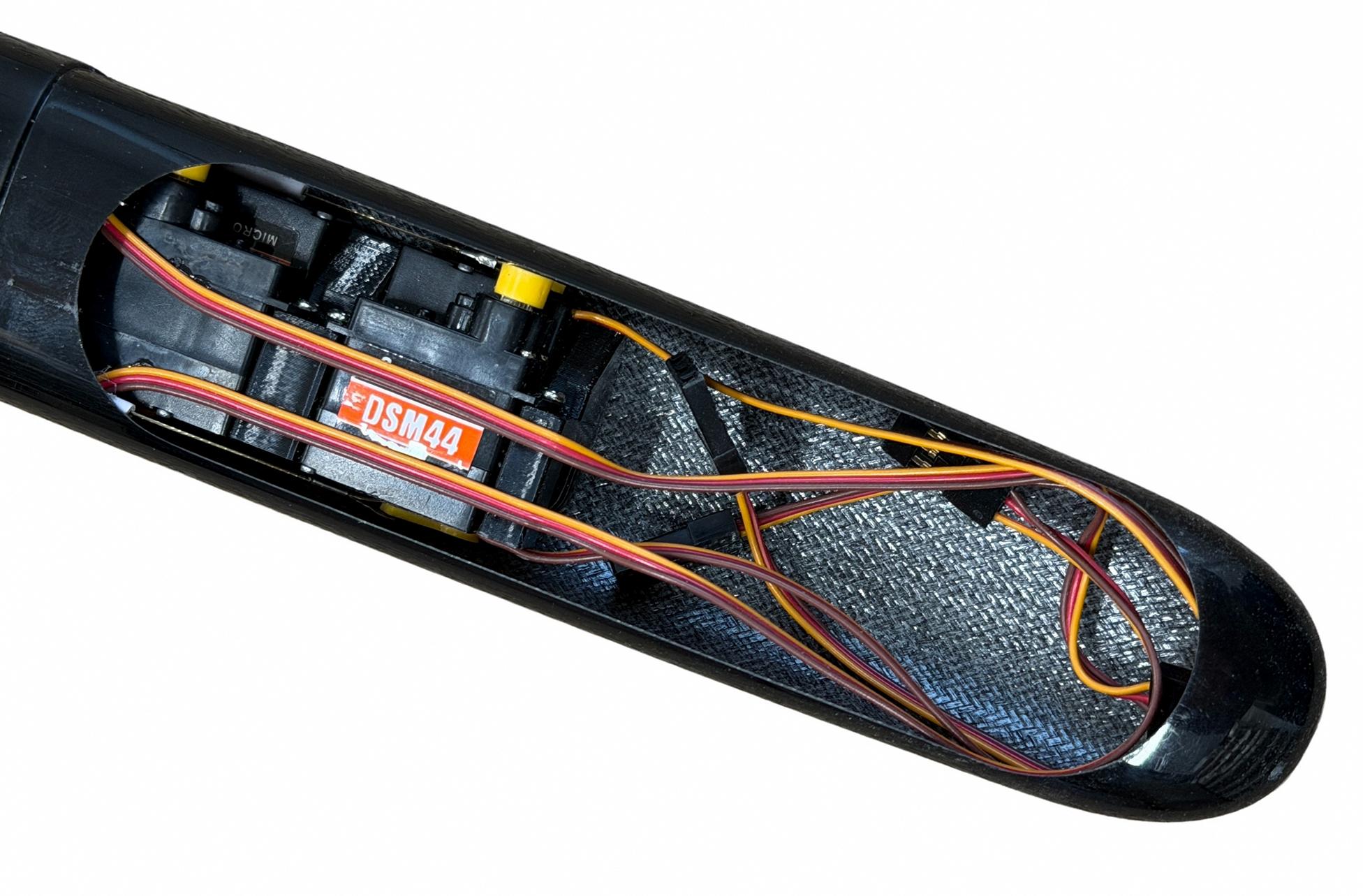

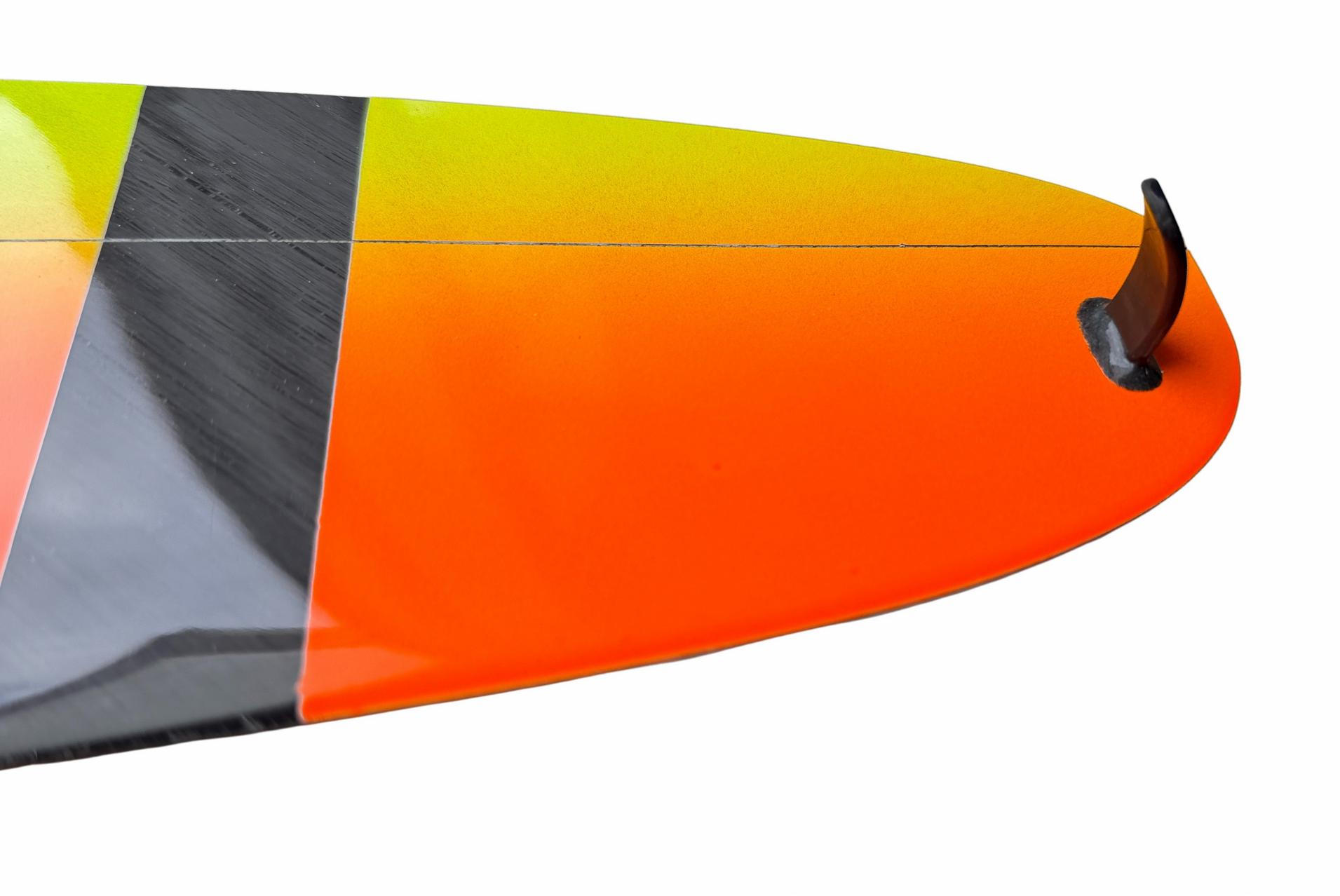

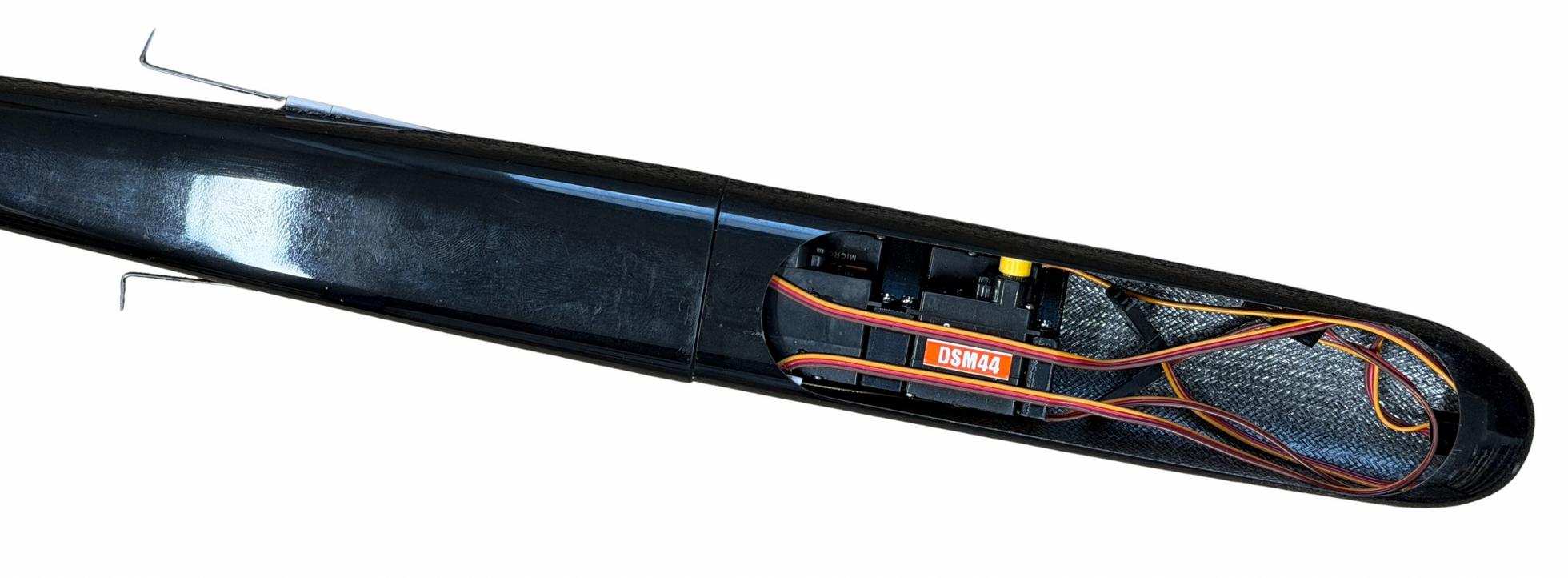

The Mini Dart 2 ARTF is a very competitively priced all-moulded 1 m DLG, combining excellent construction quality, a superb surface finish and impressive flying performance. This ARTF version comes with four Power HD DSM44 micro servos already installed, with the aileron pushrods and linkages fully connected. All control horns are fitted, and a throwing blade is installed in the left wing, making the model suitable for right-handed launchers.The wing and tail surfaces are fully moulded from either glass fibre or spread carbon in an epoxy matrix over a solid XPS foam core. The glass version offers more than adequate strength and stiffness for normal use, while the carbon version is slightly stronger, stiffer and lighter, justifying its higher price.The 2.4 GHz-friendly fuselage is also available in carbon or glass to match the wing. It is a one-piece design with a generously sized nose and a removable slip-on nosecone. Removing the nosecone reveals the space for the radio equipment, including approximately 75 x 30 x 20 mm of usable space ahead of the pre-installed servos for the receiver and battery. The servos are stacked two below and two above to make best use of the space.On both versions, the forward section of the fuselage and the nosecone are moulded in glass fibre, allowing reliable 2.4 GHz radio reception. At the rear, a carbon pylon supports the tailplane, while the fin is securely bonded to the end of the boom. Both tail surfaces are lightweight, fully moulded components in either carbon or glass to match the wing. The carbon fuselage and tail surfaces are black, while the glass versions are white.The beautifully moulded wing has a relatively generous chord, helping to give the Mini Dart 2 a low wing loading and benign handling characteristics. Large ailerons provide excellent control authority, while the high-gloss moulded finish is of a standard normally associated with considerably more expensive models.Please note that all Mini Dart 2 models normally stocked by HyperFlight are configured for right-handed launchers. The fuselage is shaped to suit the cambered fin and the left wing incorporates the necessary reinforcement for the throwing blade, so conversion to left-handed launching is not straightforward. Please contact HyperFlight if you would like to special-order a left-handed Mini Dart 2.The Power HD DSM44 servos are rated up to 6V only, so they should not be used on a 2S LiPo battery without a regulator to drop the voltage. The manufacturer recommends a 400-500 mAh 1S LiPo sized about 5 x 20 x 40 mm.Also see this RCGroups Mini Dart thread for further information and owners' experiences.Also available are these very nicely made custom wing and tail bags, which provide excellent protection during transport and storage and are highly recommended.
Mini Dart 2 Carbon layup Specifications
Wing span 1.0 m 39 in
Wing area 11.6 dm2 180 sq in
Length 72 cm 28.2 in
Flying weight from 125 g 4.4 oz
Wing loading 10.8 g/dm 3.5 oz/sq ft
Aspect ratio 8.6
Wing airfoil AG45, AG455, AG46, AG47
Dihedral angle 6.0º
Centre of Gravity 58-62 mm from wing leading edge
Controls Ailerons, elevator, rudder
Mini Dart 2 Control Throws
Rudder 11 mm each way
Elevator 8 mm up / 8 mm down
Ailerons 11 mm up / 8 mm down
Camber Settings
Launch 1 mm up
Speed 0.5 mm up
Cruise 0 mm
Thermal 1 2 mm down
Max thermal 6 mm down, elevator 1 mm down
Landing 45 mm down, elevator 5 mm down
Mini Dart 2 Carbon Layup Typical Weights
Fuselage (carbon) 22.7 g 0.8 oz
Wing (carbon) 54.0 g 1.9 oz
Fin 2.5 g 0.1 oz
Tailplane 3.3 g 0.1 oz
Accessories 7.5 g 0.3 oz
Total structure 90.0 g 3.2 oz
Glue mounts etc 2.0 g 0.1 oz
Receiver 5.0 g 0.2 oz
Servos (4) 23g 0.6 oz
Battery 10.0 g 0.4 oz
Flying weight 130.0 g 4.6 oz
Mini Dart 2 Glass Layup Typical Weights
Fuselage (glass) 32.6 g 1.1 oz
Wing (glass) 59.0 g 2.1 oz
Fin 2.6 g 0.1 oz
Tailplane 3.3 g 0.1 oz
Accessories 7.5 g 0.3 oz
Total structure 105.0 g 3.7 oz
Glue mounts etc 2.0 g 0.1 oz
Receiver 5.0 g 0.2 oz
Servos (4) 23g 0.6 oz
Battery 10.0 g 0.4 oz
Flying weight 145.0 g 5.1 oz
Note colours may not match the photos exactly.

Reviews 0

We're pleased you would like to review Mini Dart 2 1m DLG ARTF.

Please fill in the details below and press the submit button.

Your review will appear here immediately.

Leave blank to remain anonymous
For security this will not be shown
Submit review


Product Code: MD2-ARTF
 (add a review)
$392.09
More than 10 in stock
Add to basket to see shipping cost
Available Options
* Layup, Colour (Dessign ID):

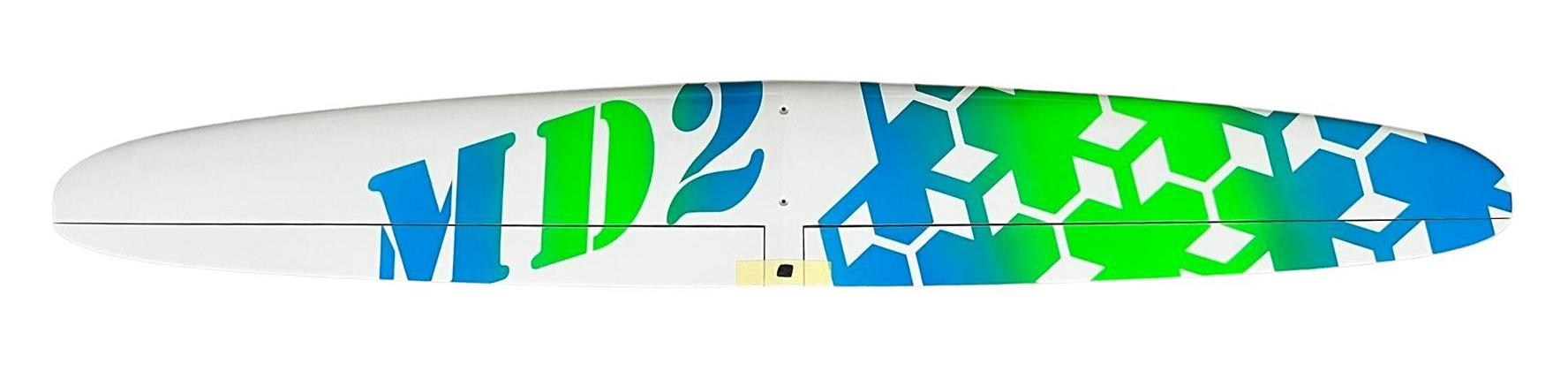

Glass layup, Top: white with green-blue fade MD2 design
Bottom: black with green-blue tips (3)

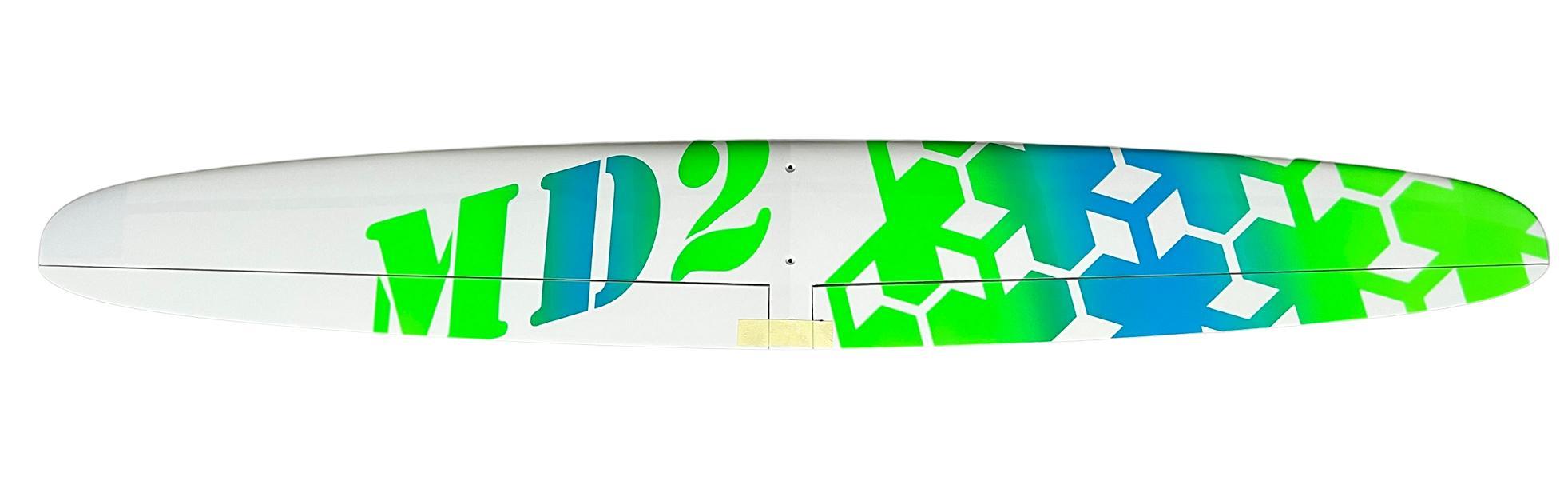

Glass layup, Top: white with blue-green fade MD2 design
Bottom: black with blue-green tips (16)

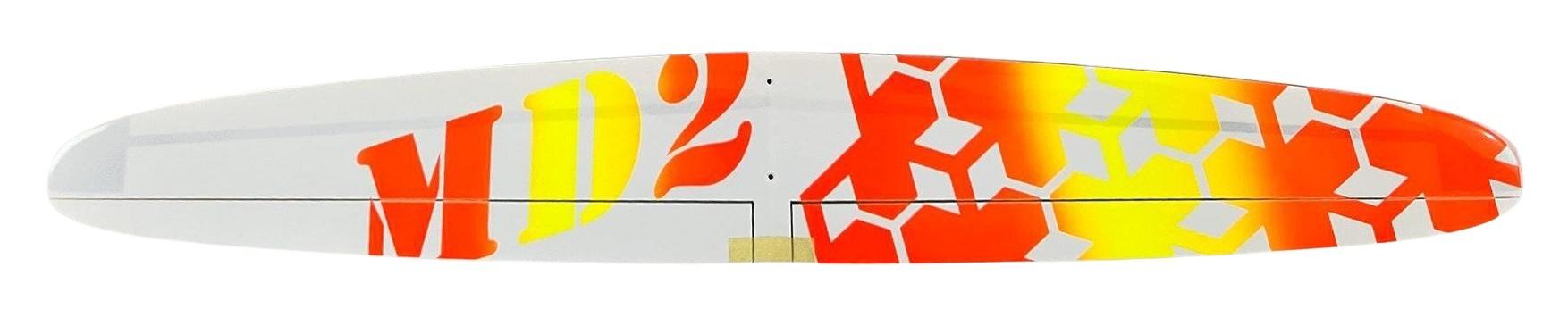

Glass layup, Top: white with orange-yellow fade MD2 design
Bottom: black with orange-yellow tips (18)
Glass layup, Top: white with red-yellow fade MD2 design
Bottom: black with red-yellow tips (19)

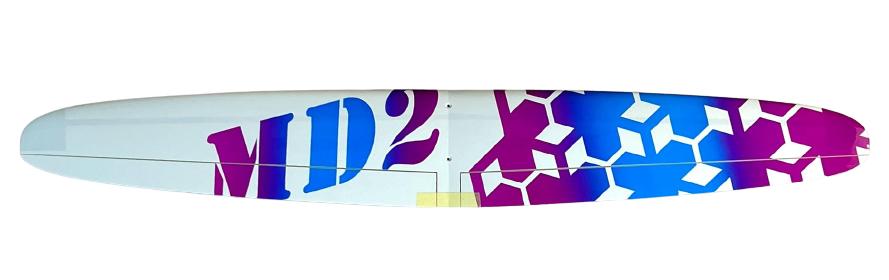

Glass layup, Top: white with blue-purple fade MD2 design
Bottom: black with blue-purple tips (21)

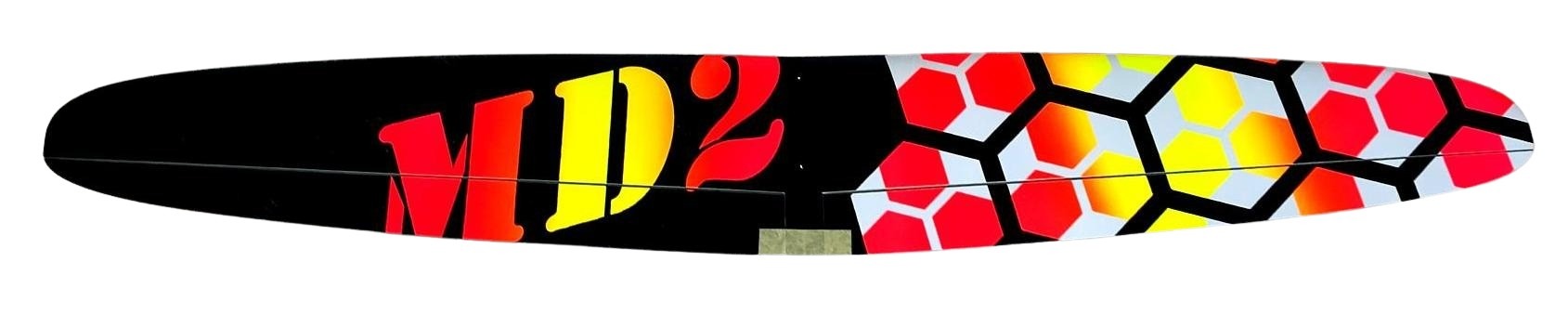

Spread carbon layup, Top: black with red-yellow fade MD2 design
Bottom: black with red-yellow ips (C26)

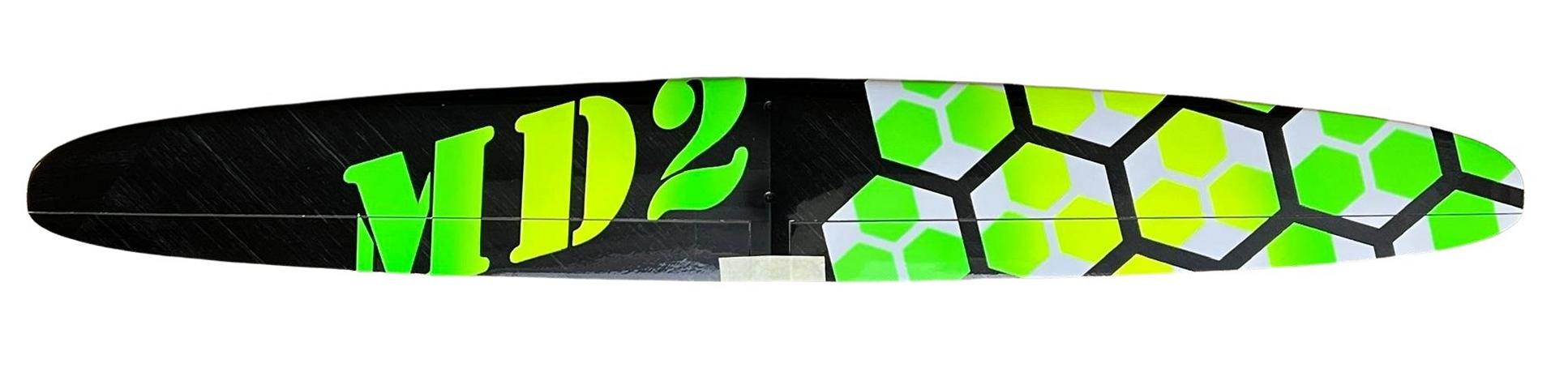

Spread carbon layup, Top: black with green-lime fade MD2 design
Bottom: black with green-lime tips (C33)

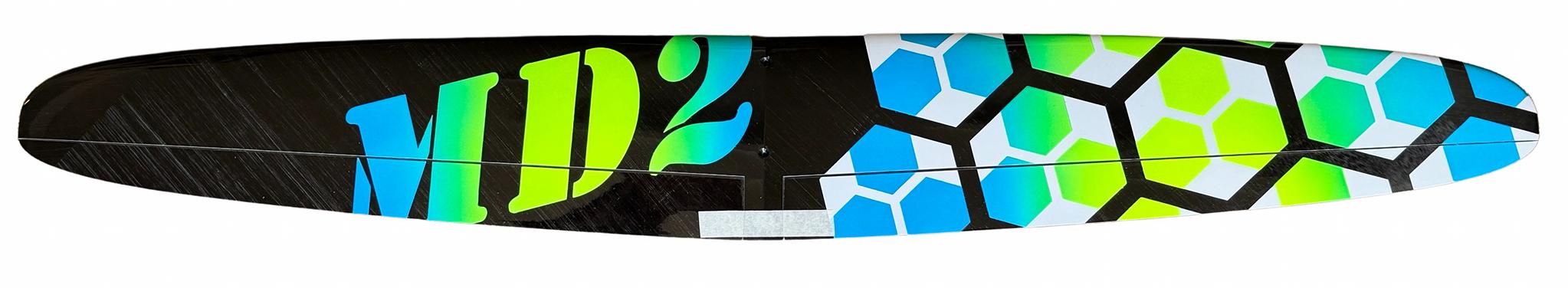

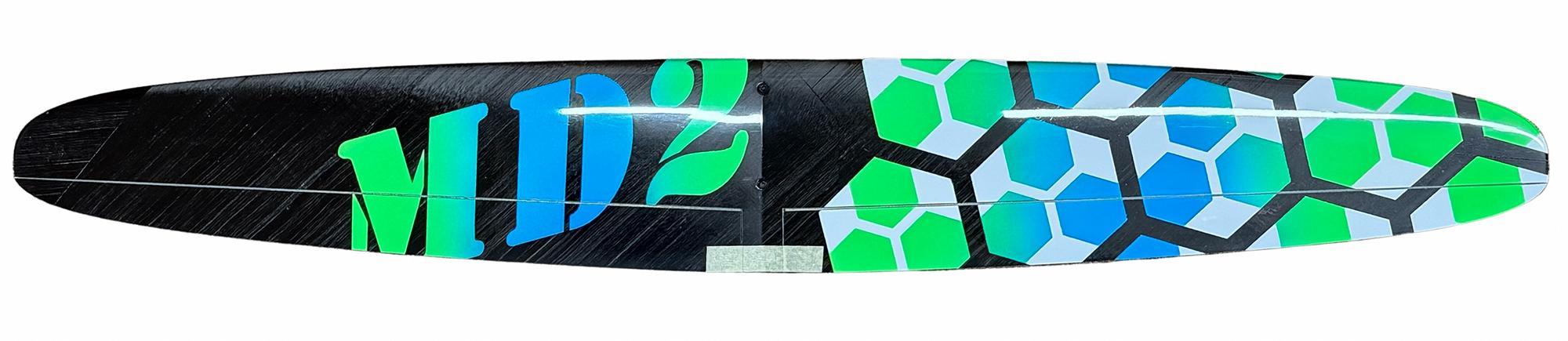

Spread carbon layup, Top: black with green-blue fade MD2 design
Bottom: black with green-blue tips (C39)
Spread carbon layup, Top: black with blue-lime fade MD2 design
Bottom: black with blue-lime tips (C41)

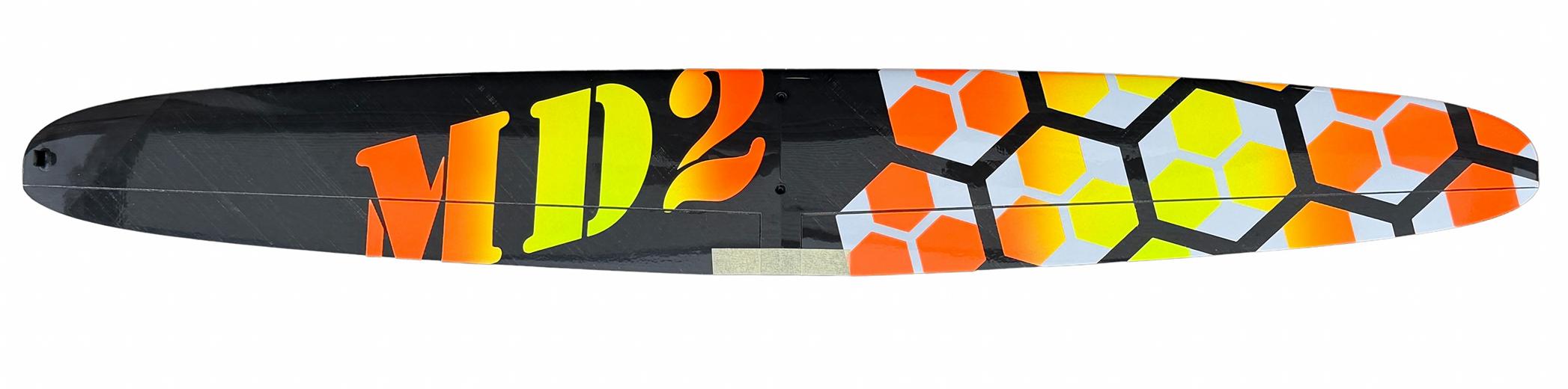

Spread carbon layup, Top: black with orange-yellow fade MD2 design
Bottom: black with orangeyellow ips (C43)
