Fitis 1m Wingeron Electric Glider/Sports Model

With its all-flying wings and fin, the Fitis is a lively mini hotliner with real attitude. Just watch the video to see how quickly it can move. It is equally at home on the slope, yet can be slowed down to search for thermals like a much larger glider. Its excellent manoeuvrability makes it ideal for flying in confined spaces, while its precise handling allows it to land on the spot.Material: Wood

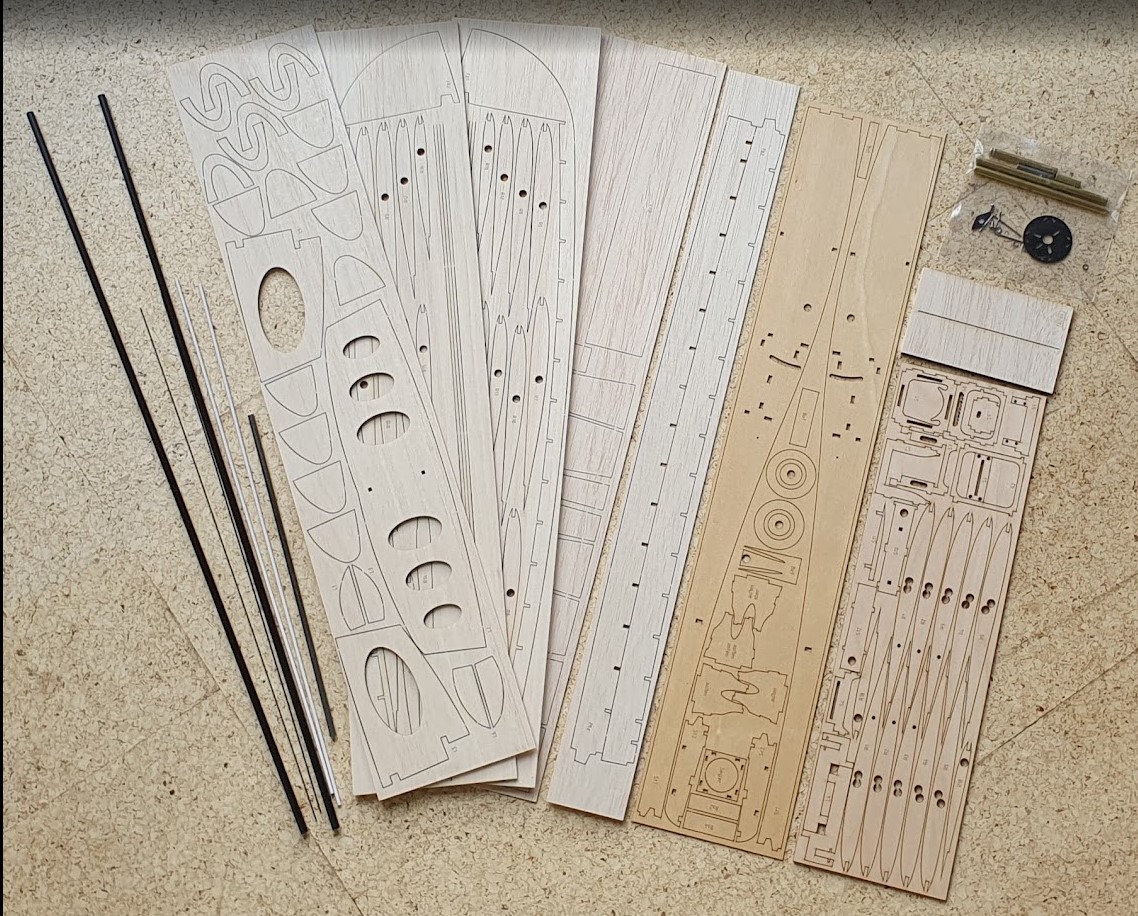

Level of completion: Kit
Flying experience: Advanced
RC functions: Motor (optional), elevator, rudder and ailerons

Fitis Specifications
Wing span	1.0 m	39 in
Wing area	13.5 dm2	209 sq in
Length	61 cm	24.0 in
Flying weight from	300 g	10.6 oz
Wing loading	22 g/dm	7.3 oz/sq ft
Aspect ratio	7.4
Wing airfoil	Semi Symetrical
Dihedral (EDA)	0º
Spinner Diameter	30 mm
Centre of Gravity	49 mm from wing leading edge
Controls	Wingerons, rudder

Recommended RC Components
Spinner: propeller: Aeronaut 30 mm CoolNose spinner
7 × 4 CAM Carbon propeller
Motor: Hacker A10-7L
ESC: 10A - 30A
Battery: LEMONRC 2S 650 mAh or similar, approximately 35 g; maximum dimensions: 60 × 30 × 30 mm
Receiver: 4-channel
Servos: 3 × KST DS113MG V6.0—two for the wing controls and one for the rudder

Fitis Typical Weights (glider)
Total structure	200 g	7.1 oz
Receiver	6 g	0.2 oz
Rudder servo	8 g	0.3 oz
Wingeron servos	32 g	1.1 oz
Battery	35 g	1.2 oz
Noseweight	19 g	0.7 oz
Flying weight from	300 g	10.6 oz

See the assembly squence here.
